Coleman Revolution G36303 Assembly Manual page 17

ASSEMBL Y INSTRUCTIONS
9
6 1 2
X 1
CE3
-
CE1

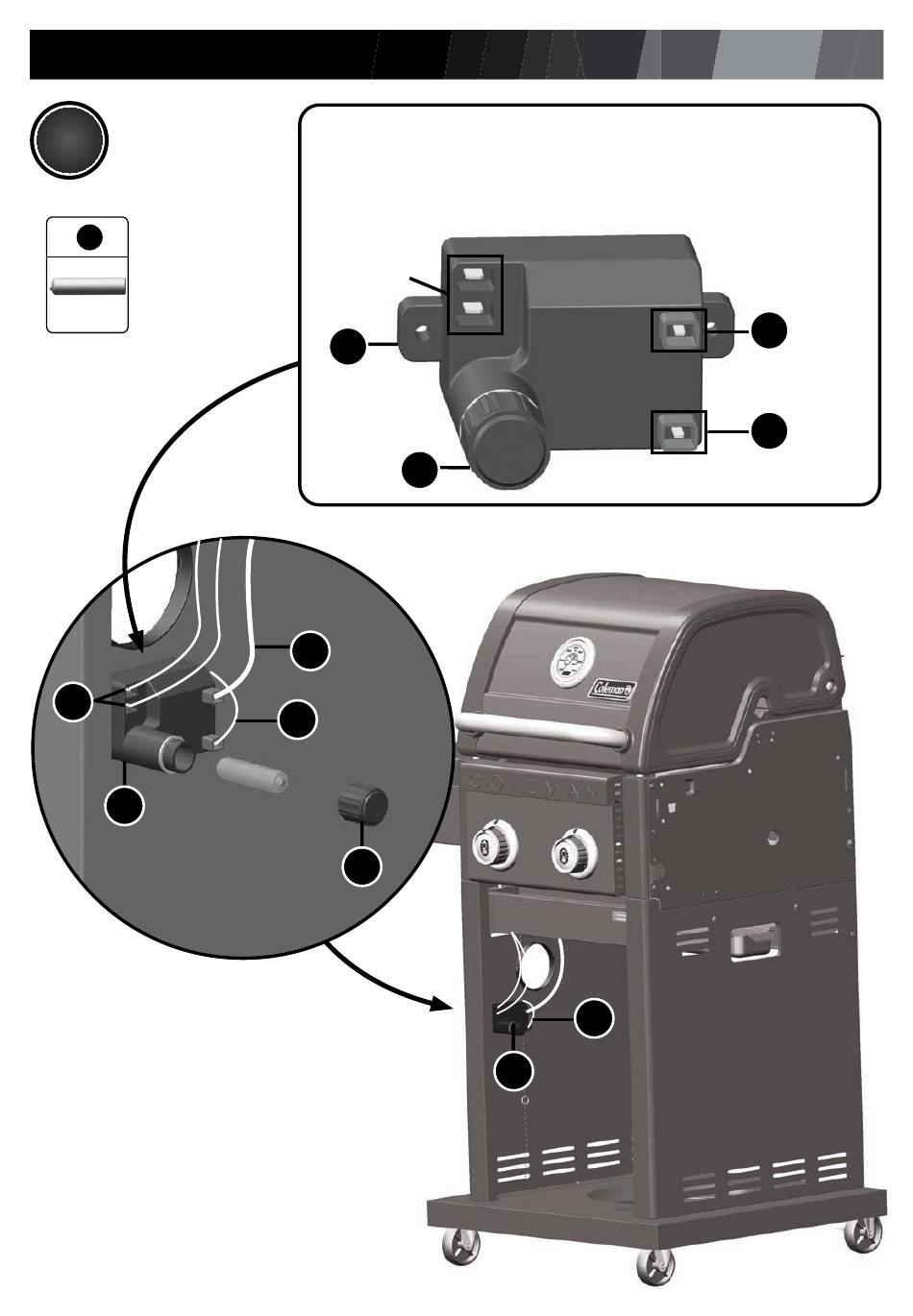

Electronic Ignition Wire Assembly
The electrode wires for the main burner electrode set (CC), instastart button (CE3) can
be found under the control panel (CG), attached to the manifold (CA). Insert them and
the ground wire (CE4) into the electronic ignition (CE1). Insert one "AA" battery into the
compartment with the positive end facing outward. Secure using the battery cover (CE2).
(CE3)
InstaStart
Button
CE1
CE2
CC
CE4
+
CE2
15
CE4
CE1
CC
CE4
