Via Artigianato 85 – 25030 Torbole Casaglia.
(BRESCIA) – ITALY – Tel 030 265 04 79 –Fax 030 265 01 43
USE AND MAINTENANCE INSTRUCTION MANUAL

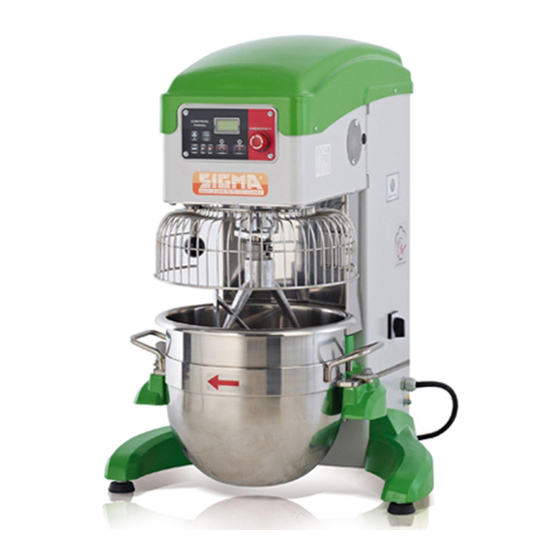

CHEF 10 PLANETARY MIXER WITH ELECTRONIC SPEED
VARIATION (INVERTER)
Instructions manual CHEF 10 VVE
1 of 19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHEF 10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sigma CHEF 10

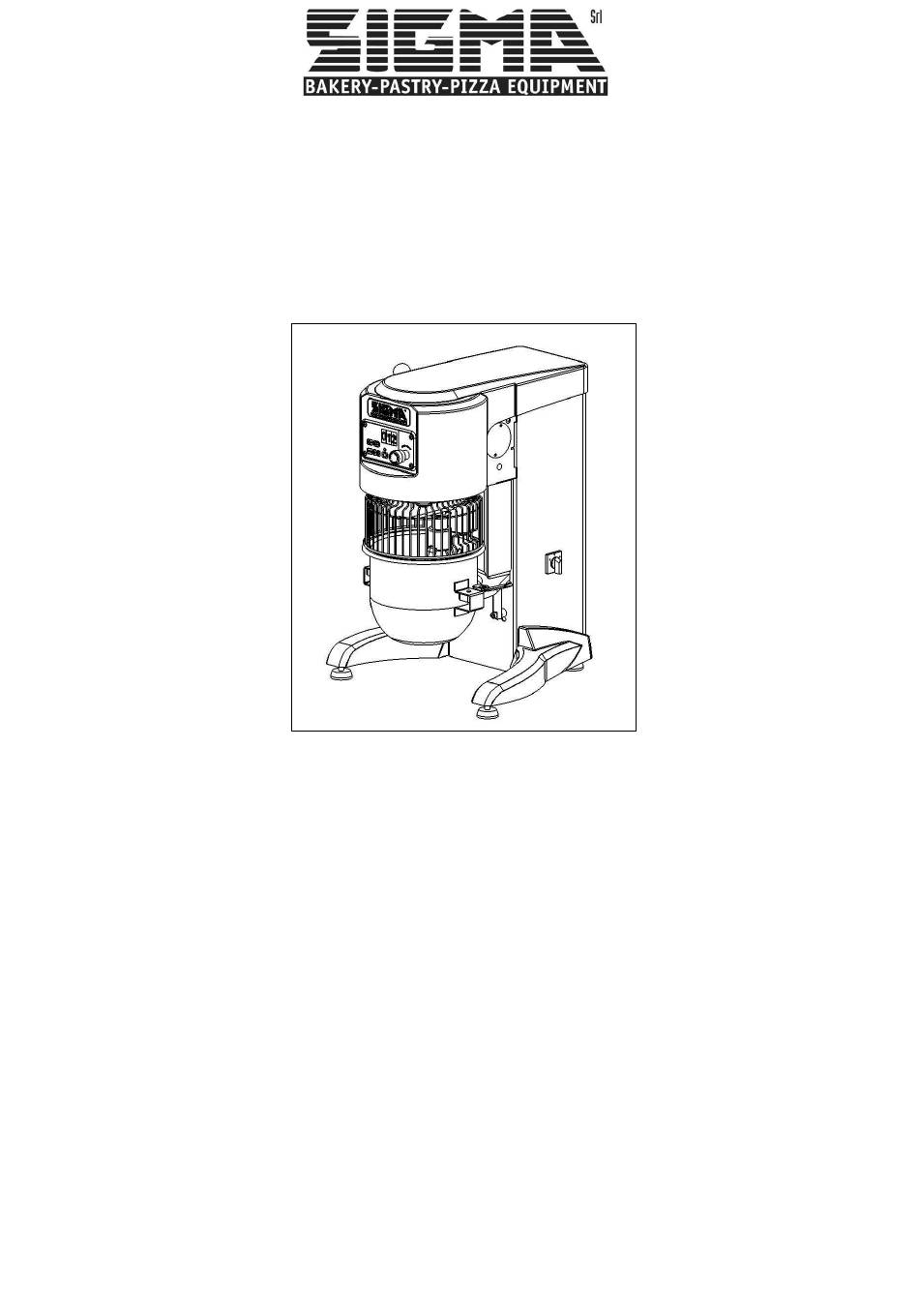

  • Page 1 Via Artigianato 85 – 25030 Torbole Casaglia. (BRESCIA) – ITALY – Tel 030 265 04 79 –Fax 030 265 01 43 USE AND MAINTENANCE INSTRUCTION MANUAL CHEF 10 PLANETARY MIXER WITH ELECTRONIC SPEED VARIATION (INVERTER) Instructions manual CHEF 10 VVE...
  • Page 2: Table Of Contents

    USE AND MAINTENANCE INSTRUCTION MANUAL CHEF 10 PLANETARY MIXER WITH ELECTRONIC SPEED VARIATION (INVERTER) This instructions, use and maintenance manual provides the instructions necessary for transportation, starting-up, use and maintenance of the mixer. It must be consulted before any one of these acts.
  • Page 3: Safety Instructions

    Automatic cycle: after starting up the mixer, it follows an automatic operating cycle. Never go past the safety barriers with your limbs or other objects while it is running. 3 of 19 Instructions manual CHEF 10 VVE...
  • Page 4: Residual Risks, Prohibitions, Obligations: Summarised Table

    Do not introduce any object through the protective grid with organs in movement: danger of objects being thrown. Before carrying out any manoeuvre beyond the protective grid, wait for the mixer to come to a complete stop. 4 of 19 Instructions manual CHEF 10 VVE...
  • Page 5: Symbols Used And Qualifications Of The Personnel

    Use a plastic, aluminium or wooden spatula (which do not scratch the bowl) to make the operation easier. 5 of 19 Instructions manual CHEF 10 VVE...
  • Page 6: Instructions For Use

    Lower it and insert the tool lock ring. Using the lever, lift the bowl to the work position and close the protective grid of the bowl. At this point, after inserting the ingredients, start the work cycle. 6 of 19 Instructions manual CHEF 10 VVE...
  • Page 7 In the mean time full squares that pursue each other appear on the display, they show the board analysis status, the start and stop LED blink and then SIGMA SYSTEM appears on the screen, the machine is ready for use.
  • Page 8 1 : 6 eggs Biscuits Number of Whisk 1 : 4 eggs Meringues Sugar Kg 0,75 2,25 Whisk 1 : 6 Whipped cream Litres of Whisk 1 : 6 cream CONDITIONS FOR USE: 8 of 19 Instructions manual CHEF 10 VVE...
  • Page 9: Identification, Position Of The Operator And Dangerous Areas

    TECHNICAL DATA, PACKAGING, DIMENSIONS AND WEIGHT. There are four types of packaging: machine on pallet wrapped in cellophane, machine on pallet in cardboard box, machine on pallet in wooden cage, machine on pallet with crate. 9 of 19 Instructions manual CHEF 10 VVE...
  • Page 10: Transportation And Handling

    Model Weig Bowl Power litres [Kw] [Kg] BMC 10 0,55 Packaging Pallet + cardboard TRANSPORTATION AND HANDLING. 10 of 19 Instructions manual CHEF 10 VVE...
  • Page 11: Storage

    It was not tampered with, modified and no unintended tools were installed on it. It did not undergo modifications or repairs carried out by the customer or third parties in an incompliant fashion or without the prior consent of the supplier. 11 of 19 Instructions manual CHEF 10 VVE...
  • Page 12: Cleaning And Maintenance Operations

    Periodically the mixer's automation functioning and earthing must be checked. Control The operating modes, safety functions, terminal board contacts need to be Interval Method controlled as well as the integrity of the cables, luminous LEDs and earthing F, M system. 12 of 19 Instructions manual CHEF 10 VVE...
  • Page 13: Routine Maintenance

    To carry out interventions not specially mentioned in the manual, refer proof. Do not wash it with to personnel authorised by SIGMA SrL. To replace the motor or the running water. Clean it with a circuit boards, or else if the mixer falls, contact our assistance service...
  • Page 14: Periodical Maintenance

    Mixer screws A2 [Nm] Installed safety systems check. SPARE PARTS: SIGMA SrL reserves the right to carry out all the modifications that it deems necessary for its mixer models. It is therefore always necessary to specify: • Type of mixer •...
  • Page 15: Spare Parts List

    SPARE PARTS LIST 15 of 19 Instructions manual CHEF 10 VVE...
  • Page 16 G71 4P 0,55 Kw B14 MOTOR 199071 REDUCING UNIT SUPPORT 199070 REDUCING UNIT ATTACHMENT SHAFT 199068 BM-CHEF-10 SCREW FOR REDUCTION UNIT 199069 BM-CHEF-10 CROWN WHEEL REDUCTION UNIT 13000004 BEARING 6004 2RS 20-42-12 16 of 19 Instructions manual CHEF 10 VVE...
  • Page 17: Blockage Of Machinery And Necessary Remedies

    2) Replace the micro switch Intermittent noise 1) Lack of grease in transmissions 1) Grease as shown in previous (gears) layout (page 13) Continuous noise 2) Check the efficiency of the 1) Replace bearings bearings 17 of 19 Instructions manual CHEF 10 VVE...
  • Page 18: Electrical Layout

    ELECTRICAL LAYOUT: 18 of 19 Instructions manual CHEF 10 VVE...
  • Page 19 Illicit disposal of the product by the user entails the application of administrative sanctions foreseen by Standards in force. 19 of 19 Instructions manual CHEF 10 VVE...
