User Manual EMT Tonearm

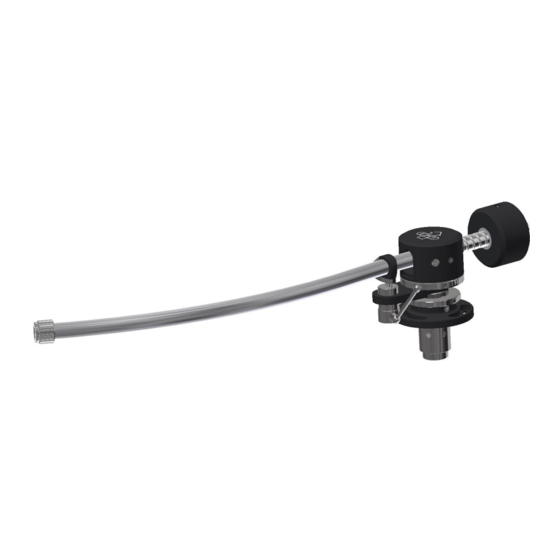

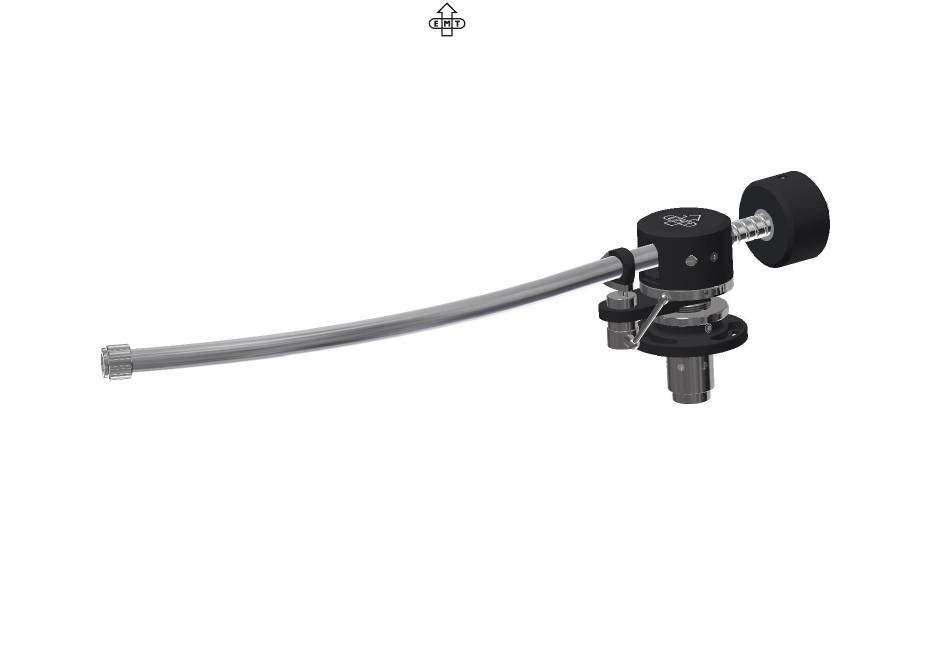

EMT 909: Professional 9-inch tonearm with quick coupling system for EMT Tondose
EMT 912: Professional 12-inch tonearm with quick coupling system for EMT Tondose
Thank you for choosing the EMT tonearm.
Please take time to install and adjust your product properly. remember to work carefully and to follow the instruction manual step by step.
You will find actual information about our products on www.emt-tontechnik.ch.
Manual-EMT-PRO-Tonearm
1/13
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for EMT 909
Summary of Contents for EMT 909
- Page 1 User Manual EMT Tonearm EMT 909: Professional 9-inch tonearm with quick coupling system for EMT Tondose EMT 912: Professional 12-inch tonearm with quick coupling system for EMT Tondose Thank you for choosing the EMT tonearm. Please take time to install and adjust your product properly. remember to work carefully and to follow the instruction manual step by step.
- Page 2 EMT Tontechnik certifies that this device has been inspected and tested before leaving the factory. This product is covered by EMT’s two-year warranty, valid from the day of purchase (dealer’s invoice). It covers all factory materials and processing errors. However, this warranty does not cover any failure caused by putting the device to improper use or malfunction caused by neglecting the instructions elsewhere in the user manual.
- Page 3 Tonearm-base EMT 909 (9-inch version) Prepare the tonearm-base of your turntable according to the drawing below. If anything is unclear or if you have questions, please contact your dealer. Manual-EMT-PRO-Tonearm 3/13...
- Page 4 Tonearm-base EMT 912 (12-inch version) Prepare the tonearm-base of your turntable according to the drawing below. If anything is unclear or if you have questions, please contact your dealer. Manual-EMT-PRO-Tonearm 4/13...
- Page 5 - 3x M3x10 if the thread in the turntable are longer than 10mm 2. Place the Base-ring on the tonearm-base 3. Align the Base-ring in relation to the turntable chassis. Refer to the orange lines in the drawing. 4. Tighten the three screws to fix the Base-ring. Manual-EMT-PRO-Tonearm 5/13...
- Page 6 2. Insert the Tonearm into the Base-ring. The groove in the shaft should be aligned with the retaining-screw. Refer to the orange markings in picture 2. 3. Carefully tighten the retaining screw. Make sure the bolt of the screw fits into the groove as shown in picture 3. Manual-EMT-PRO-Tonearm 6/13...
- Page 7 3. Insert the six countersunk head screws again and tighten them care- fully. Warning: To prevent damage to the sensitive bearing unit, do not release any other screw except the six ones indicated in the drawing (green circle). Manual-EMT-PRO-Tonearm 7/13...
- Page 8 1. EMT (Standard): this is the standard configuration of the EMT profes- sional tonearm. 2. INT (Option): this connection is Ortofon A compatible and available for the EMT professional tonearm as an option. 3. SME Compatible (X): this connection is not available for the EMT pro- fessional tonearm line. Manual-EMT-PRO-Tonearm 8/13...
- Page 9 Tighten lift-support - Choose the hex key wrench 1,3mm from the accessories box. - Insert the hex key wrench thru the hole of the holding-clip. - Carefully tighten the countersunk screw (3). - Remove the hex key wrench again. Manual-EMT-PRO-Tonearm 9/13...
- Page 10 Turn the counterweight until the wanted value for the VTF is aligned with the marking (5). The scale shows the value in dg: 10dg = 1g. Note The accuracy of the integrated scale is limited to ±0,1g. For more precise adjustment, please use a separate tonearm scale. Manual-EMT-PRO-Tonearm 10/13...
- Page 11 2. Adjsut the vertical position - Turn the VTA-Ring (2) clockwise to increase the height - Turn the VTA-Ring (2) anticlockwise to decrease height 3. Tighten the retaining-screw (1) again. Gently tighten the VTA-Ring (2) towards the Base-Ring (3). Manual-EMT-PRO-Tonearm 11/13...
- Page 12 A blank disk can help to set the compensation force. However, in certain cases, the procedure may be unsuitable, especially with modern stylus shape such as Super-Fine-Line or Multi-Radius. In such cases, we recommend to keep the setting between 2 and 3. For further information, please contact your dealer. Manual-EMT-PRO-Tonearm 12/13...
- Page 13 Specification EMT 909 EMT 912 Mounting distance: 230mm 297mm Effective length: 246.75mm 310.15mm Effective mass: 10.3g 11.7g Offset angle: 22.25° 17.55° Overhang: 16.75mm 13.15mm Outer null point: 120.9mm Inner null point: 66.04mm Standard: EMT Tondose Connection: Option INT: Ortofon A compatible...
