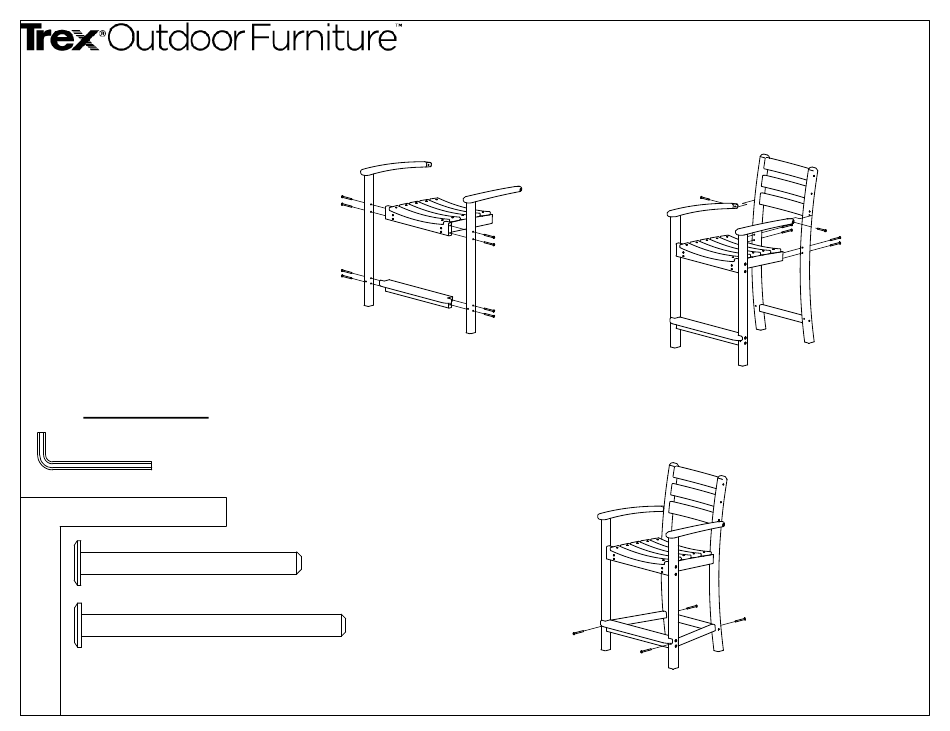

Assembly Instructions

Model: TXD201

__(1) Seat assembly

__(2) Front leg with arm (LH/RH)

__(1) Back leg assembly

__(1) Foot rest

__(2) Brace (LH/RH)

__(1) Hardware pack

TOOLS NEEDED

4mm Hex Key (included)

Qty.

Description

A - 14x2

" Screw

B - 14x3" Screw

Step 1

Attach legs to the seat assembly

and foot rest with (8) 3" screws

Step 3

Attach braces between the front and back

legs with the remaining (4) 3" screws.

Note: Compound angle cut on brace

should be attached to the back leg

All hardware is SS

Step 2

Attach arms to back leg assembly

using (2) 2

" screws

Attach back leg assembly to seat assembly

using (4) 3" screws

10/27/2010
