BN Thermic SystemX XC-45 Instructions

Thank you for purchasing a BN Thermic product. Manufactured to a high standard, this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
REGISTER: PLEASE REGISTER THIS PRODUCT ONLINE TO ACTIVATE YOUR GUARANTEE AT
IMPORTANT: PLEASE READ THESE INSTRUCTIONS, NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS, AND CAUTIONS.
USE THIS PRODUCT CORRECTLY, AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY
CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY.

1. SAFETY INSTRUCTIONS

1.1 ELECTRICAL SAFETY

WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following:
You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets and any
other connectors for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of appropriate safety
devices. A Residual Current Circuit Breaker (RCCB) should be incorporated in the main distribution board. If in any doubt consult a qualified
electrician.
You must also read and understand the following instructions concerning electrical safety.
▪
The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of those appliances and the
safety of the appliance operators. If in any doubt about electrical safety, contact a qualified electrician.
▪
Installation should always be carried out by a qualified electrician or a competent person in accordance with current electrical regulation.
▪
Ensure that the insulation of all the cables on the appliance is undamaged and safe, before connecting it to the power supply.
▪
Ensure that the cables are always protected against short circuit and overload.
▪
Regularly inspect the power supply cables and plugs etc. for wear or damage and check all connections to ensure that none are loose.
▪
Important: Ensure that the voltage marked on the appliance matches the power supply to be used and that a correctly rated fuse is fitted.
▪
DO NOT use worn or damaged cables, plugs or connectors. Immediately have any faulty item repaired or replaced by a qualified electrician.
▪
The unit should be protected by a suitably rated isolator and fuse or MCB.
▪
This heater is IP20 rated and is suitable for indoor or under cover use only.
▪
Do not attach this heater to an extension cord it must be hard wired in position.

1.2 GENERAL SAFETY INSTRUCTIONS

✓ Remove all packaging and store it away from children, check the package and heater
for visible damage or tampering.
✓ Familiarise yourself with the applications and limitations of the heater.
✓ Ensure the heater is in good order and condition both physically and electrically before
use. If in any doubt, do not use the unit and contact your supplier.
✓ Only use recommended attachments and parts. To use unauthorised parts may be
dangerous and will invalidate your warranty.
✓ Keep tools and other items away from the heater when it is in use.
✓ Keep children and unauthorised persons away from the heater, as it gets hot.
✓ Disconnect from mains and allow to cool before attempting any cleaning or
Maintenance.
DO NOT use in areas where hazardous gases or dusts may be present.
X
X DO NOT locate the heater directly below the power outlet.
DO NOT disassemble the heater for any reason. This heater must be checked by
X
qualified personnel only.
X DO NOT use this heater to perform a task for which it has not been designed.
❑ WARNING! This heater is not equipped with a built in device to control the room
temperature. Do not use this heater in a small room if it is occupied by people not
capable of leaving the room on their own, unless constant supervision is provided.
❑ WARNING! Ensure you observe the safety distances and mounting heights and there
is no possibility of inflammable materials coming into contact.
2. INTRODUCTION & SPECIFICATION
This heater produces a totally dry heat, no condensation, no gas, no fumes. It reaches
maximum heat output within a minute from being turned on. It is quick and easy to install
reducing installation costs. Used with the CX range of controllers it provides low / high heat or
fan only settings. Any heaters from the SystemX range may be connected
together and controlled by a single wall controller.
Model
Power
Input supply
Dimensions (W x D x H)
Weight
Recommended Mounting Height
Safety Distance from Heater
Controller Model Numbers
www.
bnthermic
XC-45
4500W
220-240V
576 x 592 x 153mm
10kg
3.0 - 4.0M
1.5M
CX1, CX2, CX3 or CX6

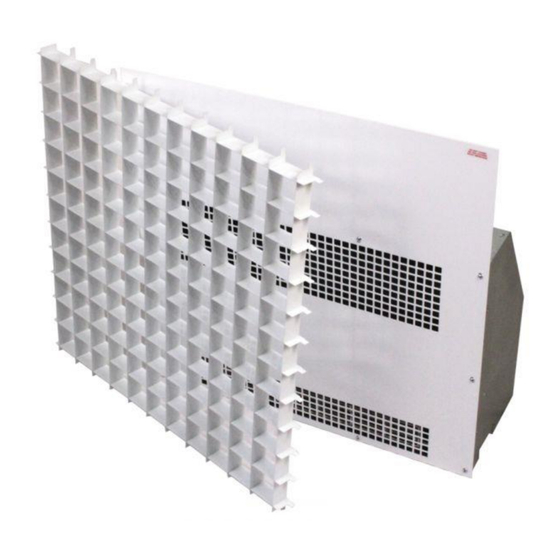

600 x 600 CEILING GRID HEATER
XC-45
.co.uk
CX1 Wall Controller
CX6 Wall Controller
INSTRUCTIONS FOR:-
CX2 Wall Controller
