O W N E R ' S G U I D E
O W N E R S G U I D E

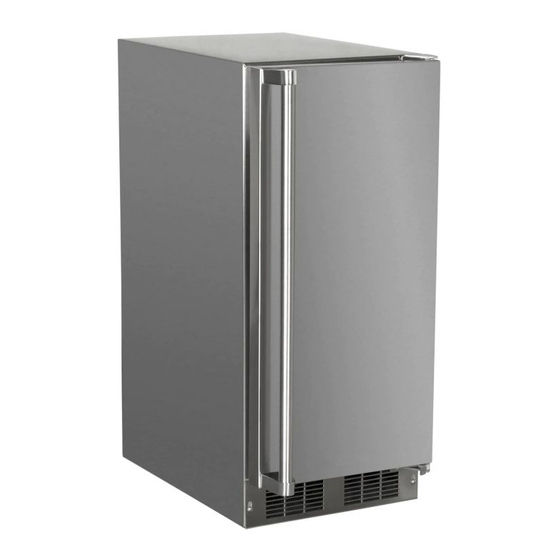

M A R V E L L O W P R O F I L E U N D E R C O U N T E R R E F R I G E R AT I O N
M A R V E L L O W P R O F I L E U N D E R C O U N T E R R E F R I G E R A T I O N
F O R M O D E L # M A R E 2 2 4
F O R M O D E L # M A C L 4 1 5
T H E O R I G I N A L R E F R I G E R AT I O N E X P E R T S S I N C E 1 8 9 2
T H E O R I G I N A L R E F R I G E R A T I O N E X P E R T S S I N C E 1 8 9 2
Advertisement
Table of Contents
Related Manuals for Marvel MACL415
Summary of Contents for Marvel MACL415

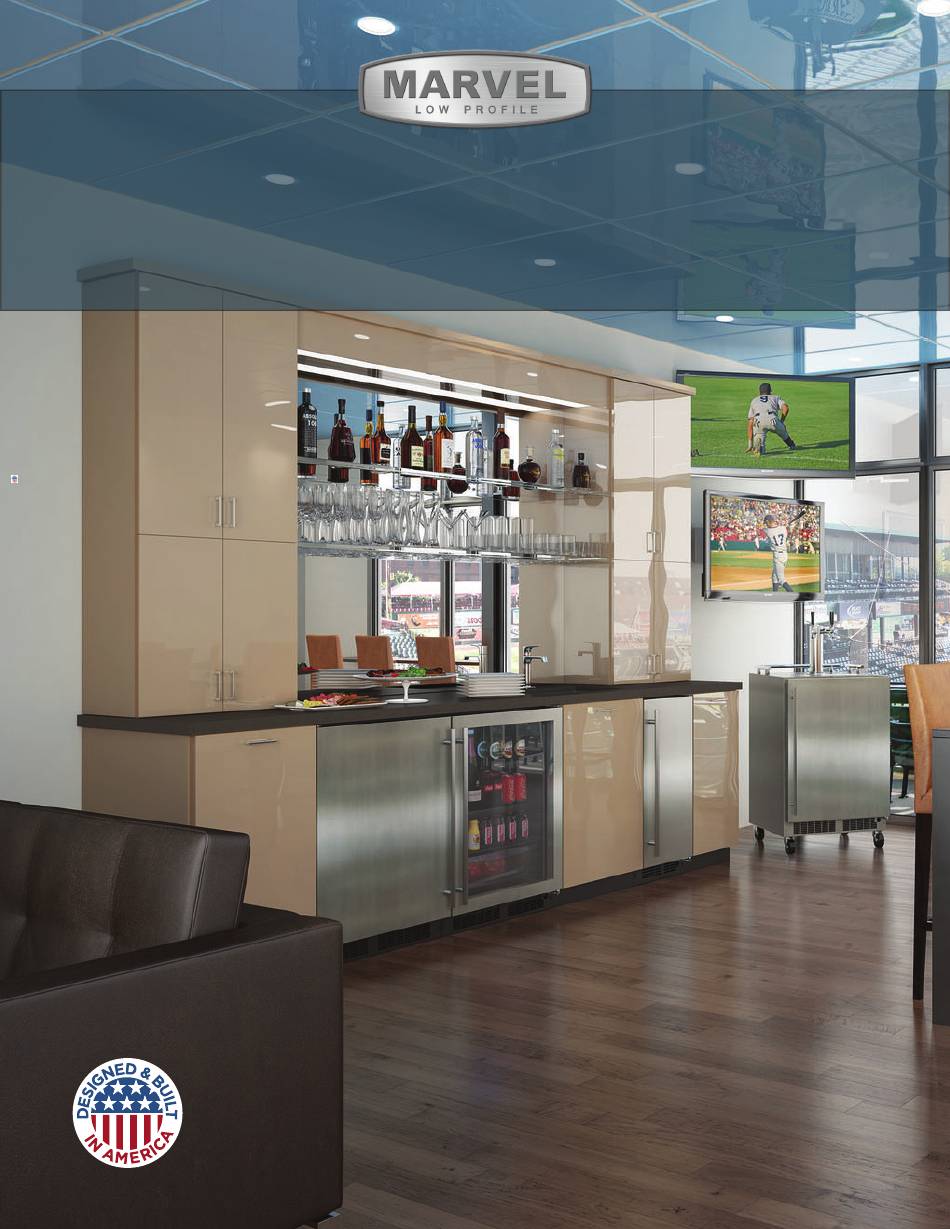

- Page 1 O W N E R ’ S G U I D E O W N E R S G U I D E M A R V E L L O W P R O F I L E U N D E R C O U N T E R R E F R I G E R AT I O N M A R V E L L O W P R O F I L E U N D E R C O U N T E R R E F R I G E R A T I O N F O R M O D E L # M A R E 2 2 4 F O R M O D E L # M A C L 4 1 5...
- Page 2 Tech Support: techsupport@marvelrefrigeration.com side near the top. Got a Marvelous Design? MARVEL We would love to see how your Marvel product looks in its new home. Send us photos at marketing@marvelrefriger- ation.com, and we might feature your Marvel home design XXXXXXXXXXXX...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Tip: Click on any section below to jump directly there Safety Warranty Important Safety Instructions Installation Unpacking Your Appliance Electrical Cutout & Product Dimensions Side-by-Side & Stacking Installations Integrated Panel Dimensions Installing The Water Supply Installing the Drain plumbing Maintenance Care and Cleaning Long-Term Storage/Winterization... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Important Safety Instructions Warnings and safety instructions appearing in this guide are not meant to cover all possible conditions and situa- tions that may occur. Common sense, caution, and care must be exercised when installing, maintaining, or operat- ing this appliance. -
Page 5: Unpacking Your Appliance
UNPACKING YOUR APPLIANCE WARNING CAUTION If the appliance was shipped, handled, or stored in other EXCESSIVE WEIGHT HAZARD than an upright position for any period of time, allow the ap- Use two or more people to move product. pliance to sit upright for a period of at least 24 hours before Failure to do so can result in personal injury. -
Page 6: Electrical
ELECTRICAL Electrical Connection A grounded 115 volt, 15 amp dedicated circuit is required. This product is factory equipped with a power supply cord that has a three-pronged, grounded plug. It must be plugged into a mating grounding type receptacle in ac- cordance with the National Electrical Code and applicable Do not remove local codes and ordinances (see figure below). -
Page 7: Cutout & Product Dimensions
CUTOUT AND PRODUCT DIMENSIONS ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS "A" "B" "C" "D" "E" "F" "G" "H" "J" 16 /8" /2" 15" 24" 14 7/8" 34 1/4" to 35 1/4" 23 /8" 25 /2" 37 / " 34" to 35" "... - Page 8 CUTOUT AND PRODUCT DIMENSIONS PRODUCT DATA ELECTRICAL PRODUCT REQUIREMENTS # WEIGHT 105 lbs 115V/60Hz/15A (47.7 kg) "J" "H" "G" "D" "F" Water inlet "E" ⁄ " (3.2 cm) ⁄ " (12.4 cm) ⁄ " ⁄ " (54.6cm) (17.6 cm) CL Gravity drain...
-
Page 9: Side-By-Side & Stacking Installations
SIDE-BY-SIDE AND STACKING INSTALLATIONS Side-by-Side Installation Hinge-by-Hinge Installation (Mullion) When installing two units hinge-by-hinge, 13/16" (22 mm) Other Site Requirements is required for integrated models. Additional space may be Units must operate from separate, properly grounded elec- needed for any knobs, pulls or handles installed. trical receptacles placed according to each unit's electrical specifications requirements. -
Page 10: Integrated Panel Dimensions
INTEGRATED PANEL DIMENSIONS Clearance Clearance for hinge for hinge at top and at top and bottom bottom Right Hand Hinged Door Left Hand Hinged Door 15" (38.1 cm) wide appliance 15" (38.1 cm) wide appliance ⁄ " (2.9 cm) Left Hand Hinged Door Right Hand Hinged Door 15"... - Page 11 Time to reach set point varies based upon ambient temperature, temperature of product loaded, door openings, etc. Marvel recommends allowing the unit to reach set points before loading.
-
Page 12: Installing The Water Supply
INSTALLING THE WATER SUPPLY Water Supply CAUTION Observe and follow all local building codes when installing this appliance. This ice machine must be connected to a potable cold water supply line. delivering water pressure between a minimum of 20 psi and a maximum of 120 psi. Use 1/4"... -
Page 13: Installing The Drain Plumbing
INSTALLING THE DRAIN PLUMBING CAUTION Drain line coiled and This drain pump is designed to be installed in Marvel ice secured to the back of the machines only and approved for use with water only. cabinet. Uncoil, route to an appropriate drain and cut to length. -
Page 14: Ice Maker Operation
ICE MAKER OPERATION The Ice Making Process sheet is released and slides onto the grid cutter cutter’s heated fractional freezing to form a slab of ice that is clear and wires. The water containing the dissolved minerals is has less dissolved solids than the water it is produced drained after each freezing cycle. - Page 15 ICE MAKER OPERATION Ice Production The ice machine will keep producing ice until the ice machine’s bin is full and will restart automatically when In normal mode the ice machine will produce up to 39 ice needs to be replenished in the bin. The ice bin is pounds (17.7 kg) of clear ice in a 24-hour period when installed in a 72°F ambient with a 55°F water supply.
- Page 16 CAUTION Use only Marvel-approved ice machine cleaner and follow all label warnings and directions. Incorrect chemical usage, and any damage that may result, is not covered by warranty. Available to order Clear Ice Machine Cleaner, 4-oz.
- Page 17 LONG TERM STORAGE AND WINTERIZATION water in the ice-making system. CAUTION This ice machine must have all water drained and removed to prevent ice machine damage as well as possible water damage to the surrounding area in freezing conditions. These damages are not covered under warranty. CAUTION Do not use any type of anti-freeze or other solution as a substitution for properly draining the ice machine.
- Page 18 LONG TERM STORAGE AND WINTERIZATION 7. Disconnect the water valve’s outlet water line to the Reconnect the water valve outlet water line. reservoir and drain the remaining water left in the water Reinstall the ice machine’s access cover. line trap area. Clean and dry the ice machine’s storage bin.
- Page 19 LONG TERM STORAGE AND WINTERIZATION To Restart the Ice Machine access for the air hose. Reconnect or turn on the water supply line. Apply air pressure (approximately 10 psi) to the end of Reconnect drain tubing if removed. the vent tube which will purge the remainder of the Plug in the power cord to a wall outlet and turn the water from the drain pump and the drain line.
-
Page 20: Obtaining Service
OBTAINING SERVICE If Service is Required: • If the product is within the first year warranty period please contact your dealer or call Marvel Customer Service at 616.754.5601 for directions on how to obtain warranty coverage in your area. •... -
Page 21: Troubleshooting
TROUBLESHOOTING Before You Call for Service WARNING troubleshooting guide below. Locate the problem in the Electrocution Hazard guide and refer to the cause and its remedy before calling • Never attempt to repair or perform maintenance on for service. The problem may be something very simple the appliance until the main electrical power has been disconnected. - Page 22 TROUBLESHOOTING Ice Quality Troubleshooting the Drain Pump Is there mineral scale build up on the evaporator NOTE plate If the drain pump reservoir (not the ice machine bin) Is there a high mineral content in the water? The water If the ice machine is not working, check the following: Are food items being stored in the ice bin? Remove •...
-
Page 23: Product Liability
The part that caused the damage must be returned to Marvel in its entirety. The part must be clearly labeled with the serial number of the unit it was removed from, the date, and the servicer who removed the part. -
Page 24: Warranty Claims
Claims must be submitted online at • Final billing - Remodel www. marvelservice . co m Warranty parts will be shipped at no charge after Marvel • 60 day submittal d eadline from date of completed confirms warranty status. Please provide the model, serial service number, part number and part d escription. -
Page 25: Ordering Replacement Parts
Warranty parts will be shipped at no charge after Marvel confirms warranty status. Please provide the model, serial number, part number and part description. Some parts will require color or voltage information. -
Page 26: R600A Specifications
PERSONNEL DO HOT PUNCTURE REFRIGERANT TUBING refrigeration system. RISK Of FIRE OR EXPLOSION. FIAMHA_ B LE REFRIGERANT USED. CONSULT Never substitute Marvel OEM replacement parts REPAIR IIANUAVOWHER'S GUIDE BEFORE ATTEMPTING TO SERVICE THIS PRODUCT. ALL SAFETY PRECAUTIONS HUST BE FOUOWEO. - Page 27 R-600A SPECIFICATIONS/LABELING WARNING R-600a equipped products are labeled (both the unit and the compressor). Only skilled and well trained service technicians permitted to service R-600a equipped products. R-600a is colorless and odorless. All tools and equipment must be approved for use with R-600a refrigerant.
- Page 28 Evacuate/reclaim via the piecing pliers to ensure the When re-brazing, the system must be purged with dry system is empty of R-600a before any system work is nitrogen and at least one access point open to the performed. atmosphere. When re-brazing, proper ventilation is required along with constant monitoring for the presence of R600a refrigerant.
- Page 29 The low side of the refrigeration system (evaporator, Proper ventilation during service is required. compressor and suction line) must be leak tested with the compressor off (equalized pressure). Never apply a torch to a charged R-600a refrigeration system. RECHARGING No air is ever to be allowed inside the refrigeration system Use OEM replacement service parts and do not alter the (R-600a refrigerant or dry nitrogen only).
-
Page 30: System Diagnosis Guide
System Diagnosis Guide REGRIGERATION SYSTEM DIAGNOSIS GUIDE System Suction Suction Compressor Condenser Capillary Evaporator Wattage Condition Pressure Line Discharge Tube Normal Normal Slightly Very hot Very hot Warm Cold Normal below room temperature Overcharge Higher than Very cold Slightly warm Hot to warm Cool Cold... -
Page 31: Compressor Specifications
Compressor Specifications FMXA9C REFRIGERANT R600A DANGER VOLTAGE 115 VAC FREQUENCY 60 Hz 5 Ohm at 77 START WINDING ° Electrocution can cause death or serious injury. RUN WINDING 7 Ohm at 77 ° Burns from hot or cold surfaces can cause serious 12 Ohm at 77 °... - Page 32 MODEL NUMBER 1. Disconnect the unit from power source. 2. Push and hold the Marvel button. 3. While still holding the Marvel button, plug the unit into the appropriate power source. 4. When the flashing digits appear (3-5 seconds), use the up and down arrow buttons to select the appropriate model number*.
-
Page 33: Control Operation-Service
USER GUIDE u-line.com Control Operation-Service... -
Page 34: Thermistor
Thermistors Evaporator Thermistor Thermistors are used for various temperature readings. If the evaporator thermistor fails, the unit will rely on a Thermistors provid e reliable temperature readings preset defrost timer during defrost cycles. The unit will using a resistance which varies based on surrounding otherwise operate normally. - Page 35 For designated Marvel Professional product, Marvel offers a one year extension of the two year warranty coverage from the date of purchase, free of charge. To take advantage of this third year warranty, you must register your product with Marvel within 60 days from the date of purchase at marvelrefrigeration.com and provide proof of purchase.
- Page 36 Marvel Refrigeration 1260 E. Van Deinse St. Greenville MI 48838 616.754.5601 All specifications and product designs subject to change without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, replacements or compensation for previously purchased products.
