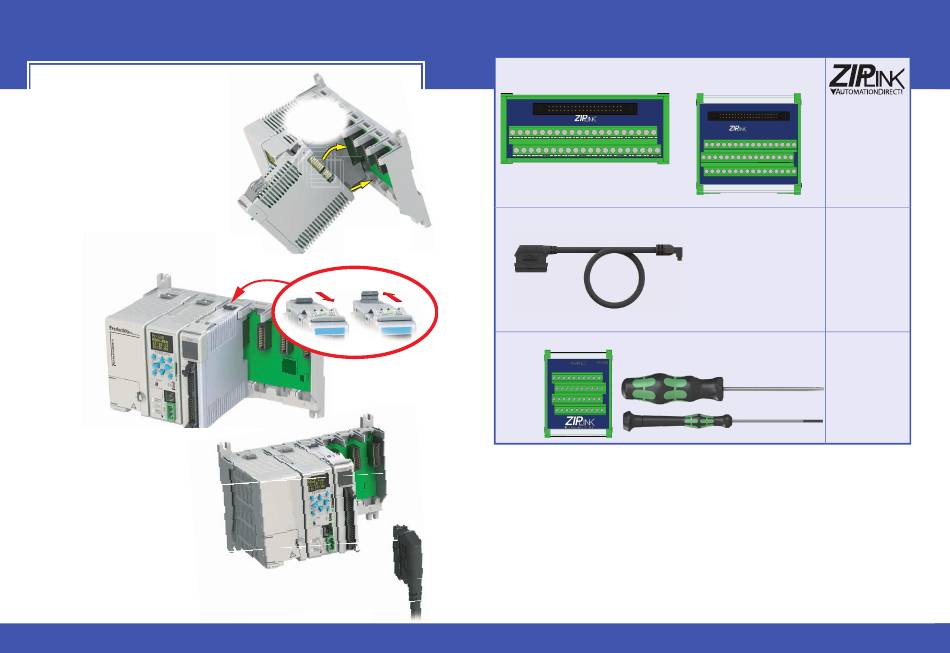

Module Installation
WARNING:
Do not apply field power until
the following steps are completed. See
hot-swapping procedure for
exceptions.
Step One:
Align module
catch with base slot and
rotate module into
connector.
Step Two:
Pull top locking
tab toward module face. Click
indicates lock is
engaged.
Step Three:
Attach
field wiring using the
ZIPLink wiring
system.
4
www.productivity2000.com
2
rotate
to seated
position
1
Align
with slot
Locked
Unlocked
Wiring Options
1
ZIPLink Feed Through Modules and Cables¹
ZL-RTB40
2
ZIPLink Pre-wired Cables
3
Accessories²
1.Cable + ZIPLink Module = Complete System
2. ZL-RTB-COM provides a common connection point for power or ground
Tech Support 770-844-4200
ZL-RTB40
ZL-RTB-40-1
ZL-RTB40-1
0.5 m (1.6 ft) cable
ZL-CBL40S
1.0 m (3.3 ft) cable
ZL-CBL40-1S
2.0 m (6.6 ft) cable
ZL-CBL40-2S
ZL-RTB-COM
TW-SD-SL-1
TW-SD-MSL-1
