WARNING:

To minimize the risk of potential safety problems, you
should follow all applicable local and national codes that regulate the
installation and operation of your equipment. These codes vary from
area to area and it is your responsibility to determine which codes
should be followed, and to verify that the equipment, installation, and
operation are in compliance with the latest revision of these codes.
Equipment damage or serious injury to personnel can result from
the failure to follow all applicable codes and standards. We do not
guarantee the products described in this publication are suitable for
your particular application, nor do we assume any responsibility for
your product design, installation, or operation.
If you have any questions concerning the installation or operation
of this equipment, or if you need additional information, please call
Technical Support at 770-844-4200.
This publication is based on information that was available at the
time it was printed. At AutomationDirect.com
improve our products and services, so we reserve the right to make
changes to the products and/or publications at any time without notice
and without any obligation. This publication may also discuss features
that may not be available in certain revisions of the product.

Connector Specifications

Connector Type
IDC style header with latch, Omron XG4A-4034
Number of Pins
40 point
Pitch
0.1 in (2.54 mm)

QR Code

Use any QR Code reader application to
display the module's product insert.
Document Name
P2-HSI-DS
Copyright 2018, AutomationDirect.com Incorporated/All Rights Reserved Worldwide
Sales 800-633-0405
we constantly strive to
®
Edition/Revision
Date
4th Ed.
5/14/2020
®

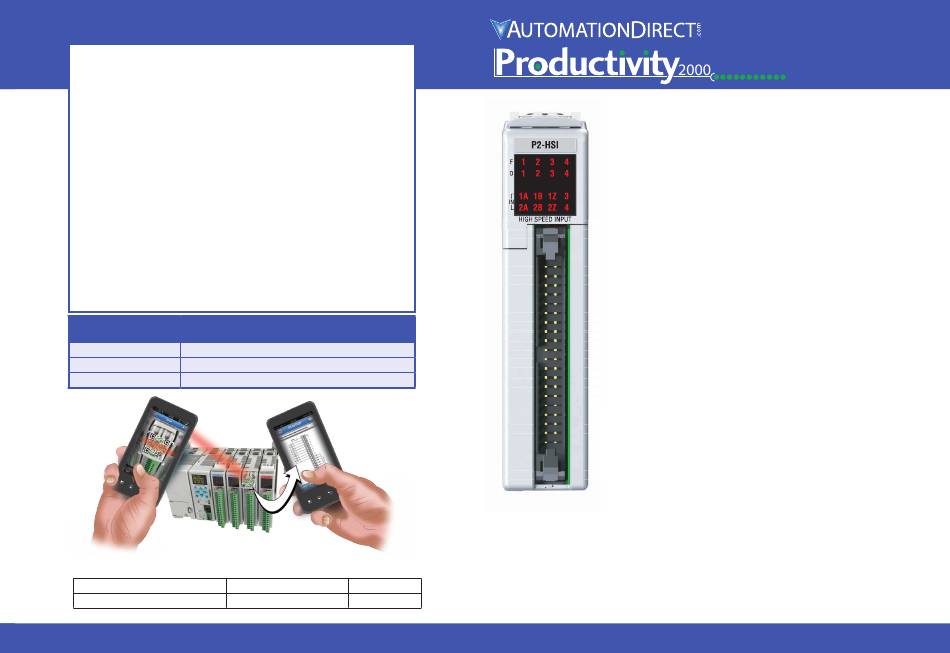

P2-HSI High-Speed Pulse Input
The P2-HSI High-Speed Input Module provides
differential (line receiver, 5V max) and single
ended (5-24 V) inputs that accept up to 1MHz
of pulse/direction and quadrature signals on
each of the two independent input channels.
Additionally, four 5-24 VDC general purpose
high-speed inputs and four general purpose
5-24 VDC, 0.5A outputs are included for use
with any Productivity2000 System.
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Connector Specifications . . . . . . . . . . . . . . . . . . . . . 1
QR Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
General Specifications . . . . . . . . . . . . . . . . . . . . . . 2
Status LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Status Output Specifications . . . . . . . . . . . . . . . . . . 2
Power Specifications . . . . . . . . . . . . . . . . . . . . . . . . 2
Differential (5V) Input Specifications . . . . . . . . . . . . 3
Hot Swap Information . . . . . . . . . . . . . . . . . . . . . . . 3
Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . 4
Wiring Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Frequency Measurement Details . . . . . . . . . . . . . . 5
5V Encoder Inputs Wiring Diagram . . . . . . . . . . . . . 6
24V Encoder Inputs Wiring Diagram . . . . . . . . . . . . 6
Status Inputs Wiring Diagram . . . . . . . . . . . . . . . . . 7
Status Outputs Wiring Diagram . . . . . . . . . . . . . . . . 7
Sinking I/O Wiring Diagram . . . . . . . . . . . . . . . . . . . 8
Sourcing I/O Wiring Diagram . . . . . . . . . . . . . . . . . 8
Warranty: Thirty-day money-back guarantee. Two-year limited replacement.
(See www.productivity2000.com for details).
www.productivity2000.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Productivity2000 P2-HSI and is the answer not in the manual?

Questions and answers

Summary of Contents for AutomationDirect Productivity2000 P2-HSI

  • Page 1: Table Of Contents

    Use any QR Code reader application to display the module’s product insert. Document Name Edition/Revision Date Warranty: Thirty-day money-back guarantee. Two-year limited replacement. P2-HSI-DS 4th Ed. 5/14/2020 (See www.productivity2000.com for details). Copyright 2018, AutomationDirect.com Incorporated/All Rights Reserved Worldwide Sales 800-633-0405 www.productivity2000.com...
  • Page 2: General Specifications

    General Specifications Status Output Specifications Module Type Intelligent Status Outputs 4 sink/source Modules per Base 15 maximum* Output Signal Type, per Channel Select Current Sinking Current Sourcing I/O Points Used None, mapped directly to tags in CPU Operating Voltage¹ 5–24 VDC 5–24 VDC¹...
  • Page 3: Single Ended (5-24V) Input Specifications

    Before attempting to use the hot- swap feature, be sure to read the hot-swap topic in the programming software’s help file or our online documen- tation at AutomationDirect.com for details on how to plan your installation for use of this powerful feature. Sales 800-633-0405...
  • Page 4: Module Installation

    Module Installation Wiring Options ZIPLink Feed Through Modules and Cables¹ WARNING: Do not apply field power until the following steps are completed. See hot-swapping procedure for rotate ZL-RTB40 to seated exceptions. ZL-RTB40 position ZL-RTB-40-1 ZL-RTB40-1 Step One: Align module catch with base slot and rotate module into connector.
  • Page 5: Frequency Measurement Details

    Frequency Measurements Inaccuracy of Frequency Measurements Due to Time Base Errors Inaccuracy of Frequency Measurements¹ ² for “Slow Mode” 25 MHz Crystal for Time Base Input Frequency Step/Dir Quadrature 1X Quadrature 4X ±0.002 Hz ±0.002 Hz ±0.002 Hz Inaccuracy at 25°C, Maximum ±30 PPM 10Hz ±0.009 Hz...
  • Page 6: 5V Encoder Inputs Wiring Diagram

    5V Encoder Inputs Wiring Diagram 24V Encoder Inputs Wiring Diagram To prevent damage to P2-HSI 5V inputs, do not exceed 6.8V or 30 mA on inputs 5VDC to 24VDC 1A, 1A, 1B, 1B, 1Z, 1Z, 2A, 2A, 2B, 2B, 2Z, & 2Z. Encoder with 5V P2-HSI Line Drivers...
  • Page 7: Status Inputs Wiring Diagram

    Status Inputs Wiring Diagram Status Outputs Wiring Diagram P2-HSI 24VDC P2-HSI 5VDC to 24VDC PWR+ 2K Ohm LOAD IN3+ Sourcing Field Device IN3- Sinking 2K Ohm Sensor Outputs IN4+ LOAD IN4- 2K Ohm Sinking Field Device 2K Ohm Sensor Sourcing LOAD Outputs When 2nd power supply is used,...
  • Page 8: Sinking I/O Wiring Diagram

    Sinking I/O Wiring Diagram Sourcing I/O Wiring Diagram Do not exceed 6.8V on these inputs Do not exceed 6.8V on these inputs OUT1 OUT1 OUT2 OUT2 OUT3 OUT3 OUT1 OUT1 OUT2 OUT2 OUT3 OUT3 Panel GND. OUT4 OUT4 -1A +1A -1B +1B -1Z +1Z -2A +2A -2B +2B -2Z +2Z OUT4 OUT4...
