MetLogix M1 User Manual

Rs232 port setup and data export
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

Rs232 Port Setup and Data Export
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M1 and is the answer not in the manual?

Questions and answers

Related Manuals for MetLogix M1

Summary of Contents for MetLogix M1

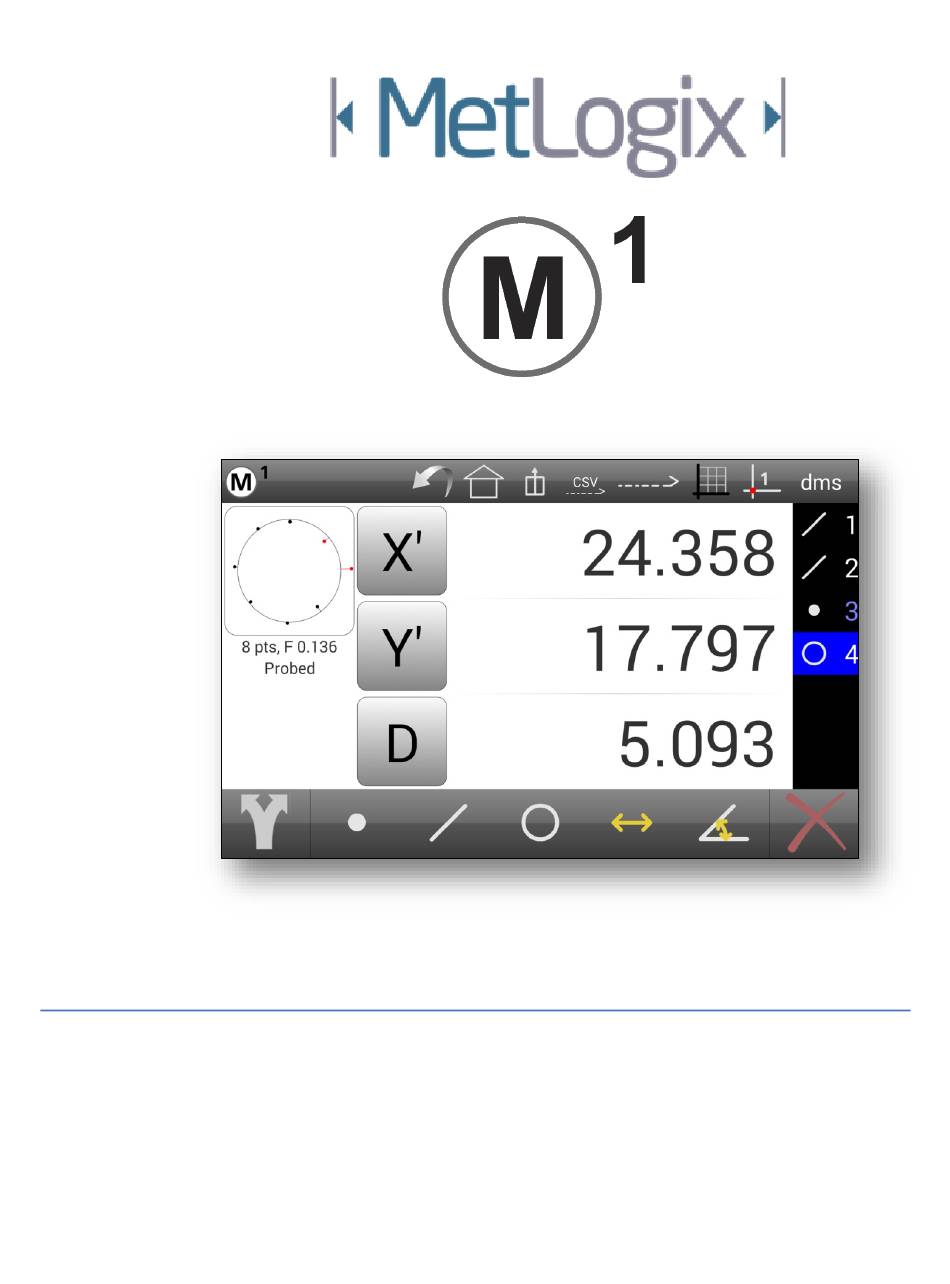

  • Page 1 RS232 Port Setup and Data Export User’s Guide...
  • Page 2 M1. The port parameters configured in the M1 setup screen should match that of the connected device(PC). Note: A straight through(1 to 1) RS232 cable should be used when connecting the M1 to a PC. While a gender changer may be required for the connection, no null model adapter should be required.
  • Page 3 Exporting Data Feature data can be: Exported to email accounts or Google Drive account locations • Printed • • Sent (transmitted) to RS232 devices Exported, and printed data files include all feature data for features contained in the feature list. RS232 transmissions can include selected feature data or all feature data.
  • Page 4 Sending (transmitting) RS232 Data Measurement results for all features or for selected features can be transmitted to RS232 devices from RS232 enabled M1 systems. 1.3.1 Transmitting All Features To send RS232 data for all features: Press the Send All Features button in the System toolbar.
