User Manual

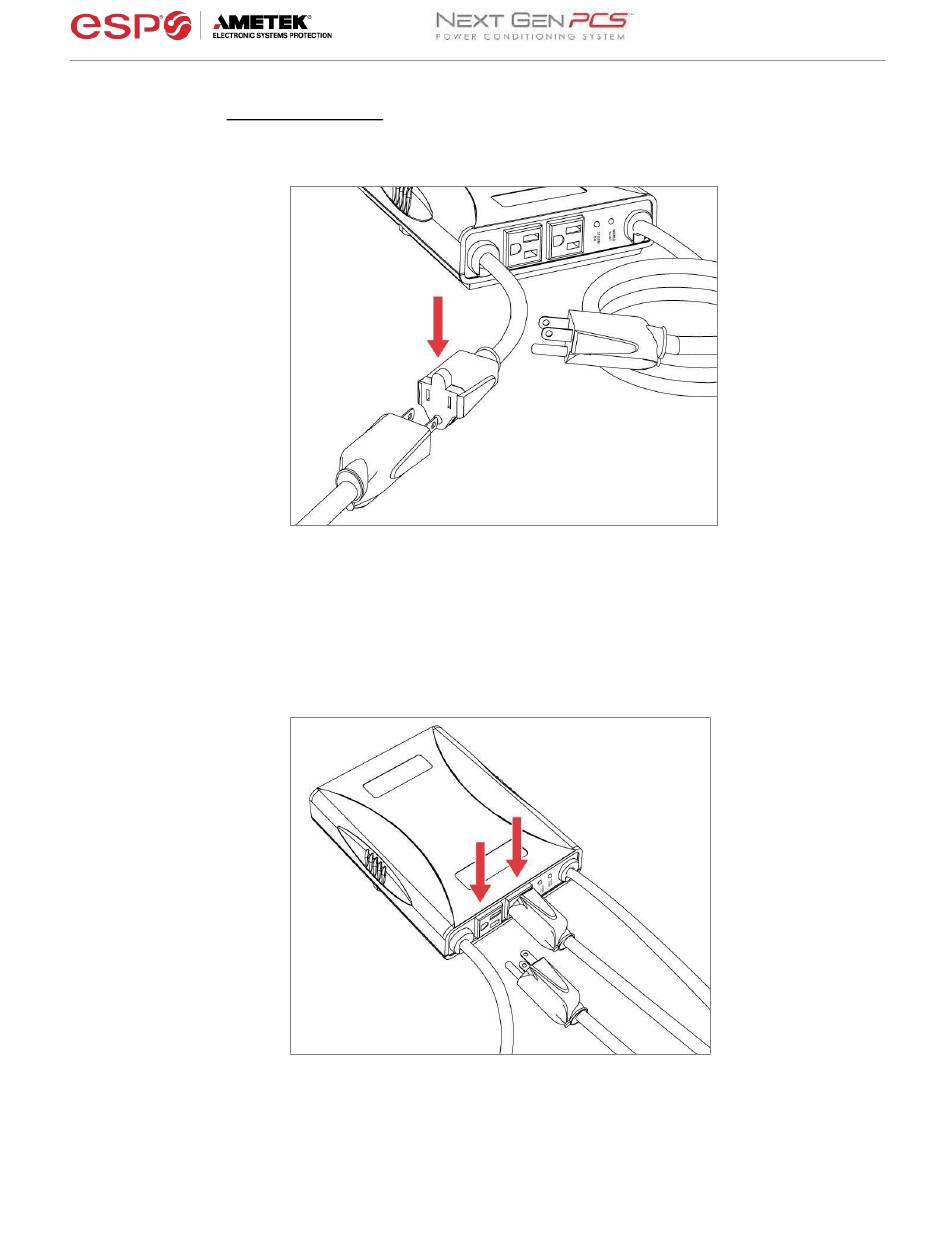

d. Connect Equipment
i. Connect the AC power cord of the equipment to be protected into the
short output power cord of the Next Gen PCS Filter.
ii. For 120V products and XG-PCS-23013: Connect the AC power cords of
additional peripherals into the 2 convenience receptacles next to the short
output power cord.
Make sure that the total amperage of all equipment plugged into the Next
Gen PCS Filter does not exceed the maximum branch circuit rating.
Please Note: Exceeding the branch circuit rating will cause the branch circuit breaker
to trip.
