Chart Mode - Ametek ESP Next Gen PCS User Manual

iii. Number of recorded power quality events
b. Chart Mode
i.
© 2022 AMETEK Electronic Systems Protection / Technical Support: 1-800-645-9721 / espsurgex.com
ii. Real-time display of electrical parameters
Line Voltage: AC RMS Volts. Peak Measurement Type
•
Neutral-Ground Voltage: AC RMS Volts Neutral-Ground. Peak
•
Measurement Type. Available with 120V models with firmware
version 2.00 and later. ±1V accuracy from 3V-10V.
Surge Events: SG
•
Overvoltage Events: OVrec
•
Undervoltage Events: UVrec
•
Power Outage Events: PO
•
The Chart Mode enables a chart style data logging function of electrical
parameters. Data point measurements are acquired once per second.
The measured parameters may be enabled or disabled by pressing the
corresponding button.

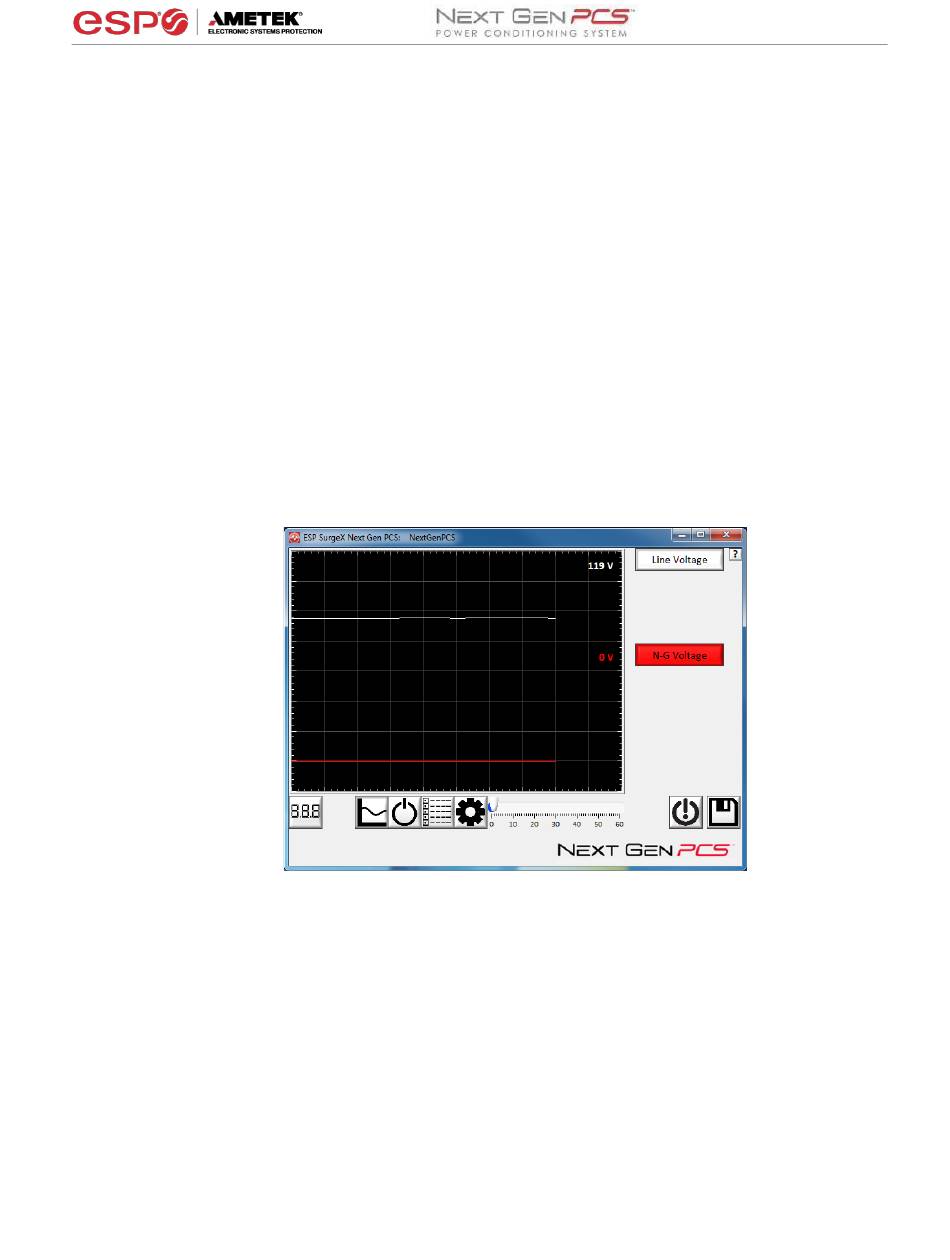

ii. Chart display of electrical parameters:
Line Voltage: AC RMS Volts. Peak Measurement Type
•
Neutral-Ground Voltage: AC RMS Volts Neutral-Ground. Peak
•
Measurement Type. Available with 120V models with firmware
version 2.00 and later. ±1V accuracy from 3V-10V.
User Manual
16
