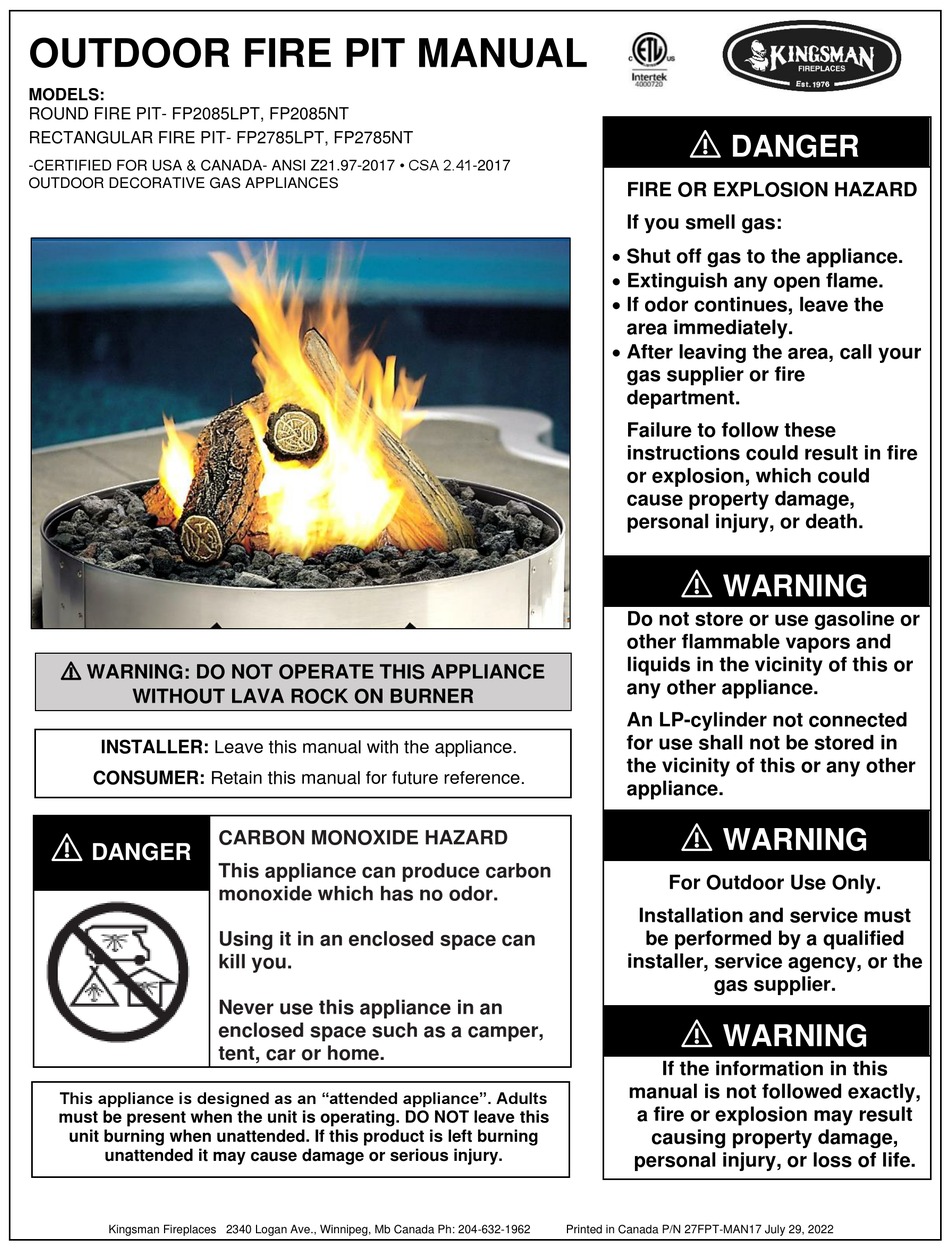

OUTDOOR FIRE PIT MANUAL
MODELS:
ROUND FIRE PIT- FP2085LPT, FP2085NT
RECTANGULAR FIRE PIT- FP2785LPT, FP2785NT
-CERTIFIED FOR USA & CANADA- ANSI Z21.97-2017 • CSA 2.41-2017
OUTDOOR DECORATIVE GAS APPLIANCES
WARNING: DO NOT OPERATE THIS APPLIANCE
WITHOUT LAVA ROCK ON BURNER
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
DANGER
This appliance is designed as an "attended appliance". Adults
must be present when the unit is operating. DO NOT leave this
unit burning when unattended. If this product is left burning
unattended it may cause damage or serious injury.
Kingsman Fireplaces 2340 Logan Ave., Winnipeg, Mb Canada Ph: 204-632-1962
CARBON MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can
kill you.
Never use this appliance in an
enclosed space such as a camper,
tent, car or home.
DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
• Shut off gas to the appliance.
• Extinguish any open flame.
• If odor continues, leave the
area immediately.
• After leaving the area, call your
gas supplier or fire
department.
Failure to follow these
instructions could result in fire
or explosion, which could
cause property damage,
personal injury, or death.
WARNING
Do not store or use gasoline or
other flammable vapors and
liquids in the vicinity of this or
any other appliance.
An LP-cylinder not connected
for use shall not be stored in
the vicinity of this or any other
appliance.
WARNING
For Outdoor Use Only.
Installation and service must
be performed by a qualified
installer, service agency, or the
gas supplier.
WARNING
If the information in this
manual is not followed exactly,
a fire or explosion may result
causing property damage,
personal injury, or loss of life.
Printed in Canada P/N 27FPT-MAN17 July 29, 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FP2085NT and is the answer not in the manual?

Questions and answers

Summary of Contents for Kingsman Fireplaces FP2085NT

  • Page 1 If this product is left burning unattended it may cause damage or serious injury. personal injury, or loss of life. Kingsman Fireplaces 2340 Logan Ave., Winnipeg, Mb Canada Ph: 204-632-1962 Printed in Canada P/N 27FPT-MAN17 July 29, 2022...
  • Page 2: Pre-Installation Questions And Answers

    Pre-installation Questions and Answers About curing of the paint Your stove or fireplace has been painted with the highest quality silicone -Operating Instructions- stove paint. This paint dries quickly in 15-20 minutes when first applied at the factory. However, due to the high temperature silicone components, 1.
  • Page 3: Table Of Contents

    Maintenance Instructions..........................High Elevation Installation........................... Cleaning............................... Safety Information and Lighting Instructions....................FP2085T & FP2785T – Plumbing Parts………………………………………………………………………….. FP2085T / FP2785T Parts List........................Lighting Instructions and Troubleshooting Guide for Thermocouple Equipped Fire Pits…………………… 26-27 Kingsman Fireplaces Gas Fire Pit – Limited Warranty................
  • Page 4: Warnings, Installations And Operations

    Warnings, Installations and Operations WARNING FOR SAFE INSTALLATION AND OPERATION OF YOUR GAS FIREPLACE PLEASE NOTE THE FOLLOWING: when an appliance is for connection to a fixed piping system, the installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1 • NFPA 54; National Fuel Gas Code;...
  • Page 5: Locating Your Appliance

    Locating Your Appliance Note: Ventilation and air flow comes from openings in the walls and ceiling. Open floor space around the appliance must not be considered ventilation and air flow space. This unit requires combustion air and will produce exhaust gases. Install in an open-air situation with natural •...
  • Page 6: Installation Clearances

    Installation Clearances CLEARANCES FOR ROUND FIREPIT (FP2085T) CLEARANCES FOR RECTANGLE FIREPIT (FP2785T) 1. The round firepit (FP2085T) cannot be built into a 1. The rectangle firepit (FP2785T) may be built into a combustible cabinet of any type. Only non- combustible enclosure. You must maintain minimum combustible materials may be placed around firepit.
  • Page 7: 2785Fpt - Installation In A Wooden Enclosure

    2785FPT - Installation in a Wooden Enclosure 1. Minimum size of wood enclosure must be no less 3. Non-combustible materials such as tile or brick than 32.5” I.D. x 39.5” I.D. may be used to finish on top of Wonder Board. Do not use any combustible materials to finish top, 2.
  • Page 8: Installing Wall Clearance Shield

    Installing Wall Clearance Shield NON-COMBUSTIBLE CORNER CLEARANCE SHIELD 1. Using a non-combustible material (eg. Wonder 3. Screw non-combustible shield to spacer. Shield Board) cut two shields, [1] Large 44” x 30 min. must be placed 1” below top of firepit Fig: 2, and [1] Small 37”...
  • Page 9: Assembly And Installation

    (Tank Valve Marked: USE WITH TYPE 1). 8. Never attempt to use this appliance or any components that have been damaged or exposed to an accidental fire. Gas Specifications FP2085NT FP2085LPT FP2785NT FP2785LPT Fuel...
  • Page 10: Enclosures For Lp (Propane) Gas Supply Systems

    Enclosures for LP (Propane) Gas Supply Systems Combustible FP2085T Combustible HOSE ROUTING: Hose must be reasonably straight and WARNING free of kinks. Hose must not TIPPING HAZARD be near sharp edges or run Tank must be back into non-combustible secured area of the burner.
  • Page 11: Gas Conversion For Fp2085T And Fp2785T Fire Pits

    Gas Conversion for FP2085T and FP2785T Fire Pits NOTE: CONVERSION SHOULD BE COMPLETED BEFORE FIRE PIT IS INSTALLED. Caution- the gas supply shall be shut off before proceeding with the conversion. TO CONVERT PROPANE (MAP) SYSTEMS TO NATURAL GAS: TO CONVERT NATURAL GAS (MAN) SYSTEMS TO PROPANE: 1.
  • Page 12: Fp2085T Component List

    #38 BRASS CAP ORIFICE #15 BRASS CAP ORIFICE PRIMARY AIR FULL OPEN PRIMARY AIR 1/4” NATURAL GAS PROPANE SS FLEX - PN# 42 MCV-P16FF -QTY 1 FOR FP2085LPT -QTY 2 FOR FP2085NT 5ft LP Hose & Regulator 27FP-900FF...
  • Page 13: Fp2785T Component List

    FP2785T Component List WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. #38 BRASS CAP ORIFICE #15 BRASS CAP ORIFICE PRIMARY AIR FULL OPEN PRIMARY AIR 1/4”...
  • Page 14: Logc85 Placement Instructions

    LOGC85 Placement Instructions After setting up your model and hooking up the gas connection, make sure that logs are not broken. Identify the logs using the pictures below and place logs as indicated, lining up with mounting pegs in logs. STEP 1 STEP 2 STEP 3...
  • Page 15: Accessories For Your Fire Pit / Bola Fire Bowls

    Accessories For Your Fire Pit Fire Pit Cover: 27FP-113A For FP2785T FP20SSRT: Stainless Steel Ring Fire Pit Cover: FP20COV For Rectangular Fire Pit FP2085T Round Fire Pit Align legs on FP20SSRT with legs on fire pit and place over outside of fire pit. Non-Combustible Enclosures For Firepits NOTE: Any non-combustible enclosure must have a minimum of [5] 1-1/2”...
  • Page 16: 24Obt-Mancp - Control Panel For Fp2085T Fire Pits In Custom Enclosures

    24OBT-MANCP - Control Panel for FP2085T Fire Pits in Custom Enclosures 24OBT-MANCP Assembly. The Control Panel must be located within 12” of the Burner Orifice. RIGHT SIDE VIEW Burner Orifice Control Panel The Cutout Size for the Valve Control Panel is 2-7/16” tall x 7-1/2” wide. CUSTOM ENCLOSURE CUTOUT BOTTOM VIEW The Control Panel is inserted from the inside of the enclosure and set in place by tightening the [2] screws on the back...
  • Page 17: Fp20Ssrt Stainless Steel Ring Dimensions - Accessory For Fp2085T Round Fire Pit

    FP20SSRT Stainless Steel Trim Ring – Accessory for FP2085T Round Fire Pit Contents: [1] Stainless Steel Trim Ring Installation Instructions: 1. Remove Gas Valve Control Knob and Igniter Button from the Fire Pit. 2. Align the [2] round holes in the Stainless Steel Trim Ring with the Gas Valve and the Igniter on the Fire Pit and lower it into place.
  • Page 18: Fpb32Trg Trim Ring Dimensions - Accessory For Fire Bowl

    FPB32TRG Trim Ring for FPB30TBT / FPB30SGT / FPB32SGT Contents of Kit: [1] Trim Ring c/w [3] screws installed Instructions: FPB30TBT & FPB30SGT: Place Trim Ring over concrete bowl. Screws are not required. FPB32SGT: Place Trim Ring over concrete bowl. Tighten screws until they touch the concrete bowl. DO NOT OVER TIGHTEN SCREWS.
  • Page 19: Product Maintenance For Your Canvas Fire Pit Cover

    Product Maintenance For Your Canvas Fire Pit Cover Caring for your Fire Pit Cover The key to keeping your outdoor fabric looking great and extending its life is periodic cleaning followed by repellency treatment. Mildew can be a problem for any outdoor fabric. Mildew will not grow on a clean synthetic fabric.
  • Page 20: Kingsman Outdoor Fire Pit Media Section

    Kingsman Outdoor Fire Pit Media Section MEDIA REQUIREMENTS OPTIONS: (When not using LOGC85 Log Set) 20 LBS of Glass Required for Fire Pits, if using the Fire Bowl add an additional 10-15LBS of Glass. One bag of MQSTONE may be used for the Fire Pit, if using the Fire Bowl an additional bag may be used. One [10LB] bag of 1/4"...
  • Page 21 ¼” Lava Rock & ¾” Lava Rock (Supplied with Fire Pit). ¼” Reflective Bronze Glass - (20LBS) (1/4” Lava Rock is used as Base.) MQSTONE with ¼” Lava Rock Base – (10LBS) MQSTONE with ¼” Bronze Glass Base – (20LBS) NOTE: MQSTONE Requires a Glass or Lava Rock Base.
  • Page 22: Operating Instructions

    OPERATING INSTRUCTIONS WARNING: Read and follow the Safety and Lighting Upon completing the gas line connection, a small amount of air will be in the lines. When first lighting the burner, it Instructions page in this manual and on labels on the will take a few minutes for the lines to purge themselves appliance.
  • Page 23: Safety Information And Lighting Instructions

    Safety Information and Manual Lighting Instructions FOR YOUR SAFETY READ BEFORE LIGHTING ⚠ WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. C. Use only your hand to turn the gas control knob or A.
  • Page 24: Fp2085T & Fp2785T - Plumbing Parts

    Bushing 3/8” NPT x 1/8” FPT 30FPB-P118A Brass Manometer Plug, 1/8” NPT 42MCV-P16FF 3/8” Stainless Steel Flex Connector -16” (Qty 2 for FP2085NT, Qty 1 for FP2085LPT) 42ZCV-P3810 3/8” Stainless Steel Flex Connector -10” (Qty 1 for FP2785LPT-FL) 24OB-PHP1003 Thermocouple 4000-P963VE 3/8 Tube OD x 3/8”...
  • Page 25: Fp2085T / Fp2785T Parts List

    FP20COV Cover for Round Fire Pit 27FP-307 Flat Lid for FP2785T Stainless Steel Ring (Fits FP20SSRT FP2085NT, FP2085LPT) 24OBT-MANCP Control Panel for FP2085NT/FP2085LPT Round Fire Pits in custom enclosures OUTDOOR FIRE BOWLS FOR THE 2085T FIRE PIT Fire Bowl Includes Valve / Igniter Mount Box, 1/4 Lava Rock (20 Lbs.), Leg Extension, Filler Strip Ring and SS Flex...
  • Page 26: Lighting Instructions And Troubleshooting Guide For Thermocouple Equipped Fire Pits

    - FP2785T & FP2085T Thermocouple Equipped Fire Pits - Lighting Instructions and Troubleshooting Guide To Light the Fire Pit: amount of time for the dissipation of gas from the area, as accumulated gas can be extremely dangerous and 1. Depress the valve knob with your hand (do not use cause serious injury or even result in fatalities.
  • Page 27 (b) With the gas valve knob released and flame continuing to remain present in the combustion area, you can now select the flame height you would like for your enjoyment. If you turn the gas valve knob further counterclockwise until it stops, the appliance will be running at the maximum.
  • Page 28: Kingsman Fireplaces Gas Fire Pit - Limited Warranty

    LIMITED WARRANTY Save this certificate. It gives you specific legal rights, and you may also have other rights which may vary from one province or state to another. In the event your unit needs servicing contact your dealer or contractor who installed or services your unit. When requesting service, please have the model and serial number from each unit readily available.
