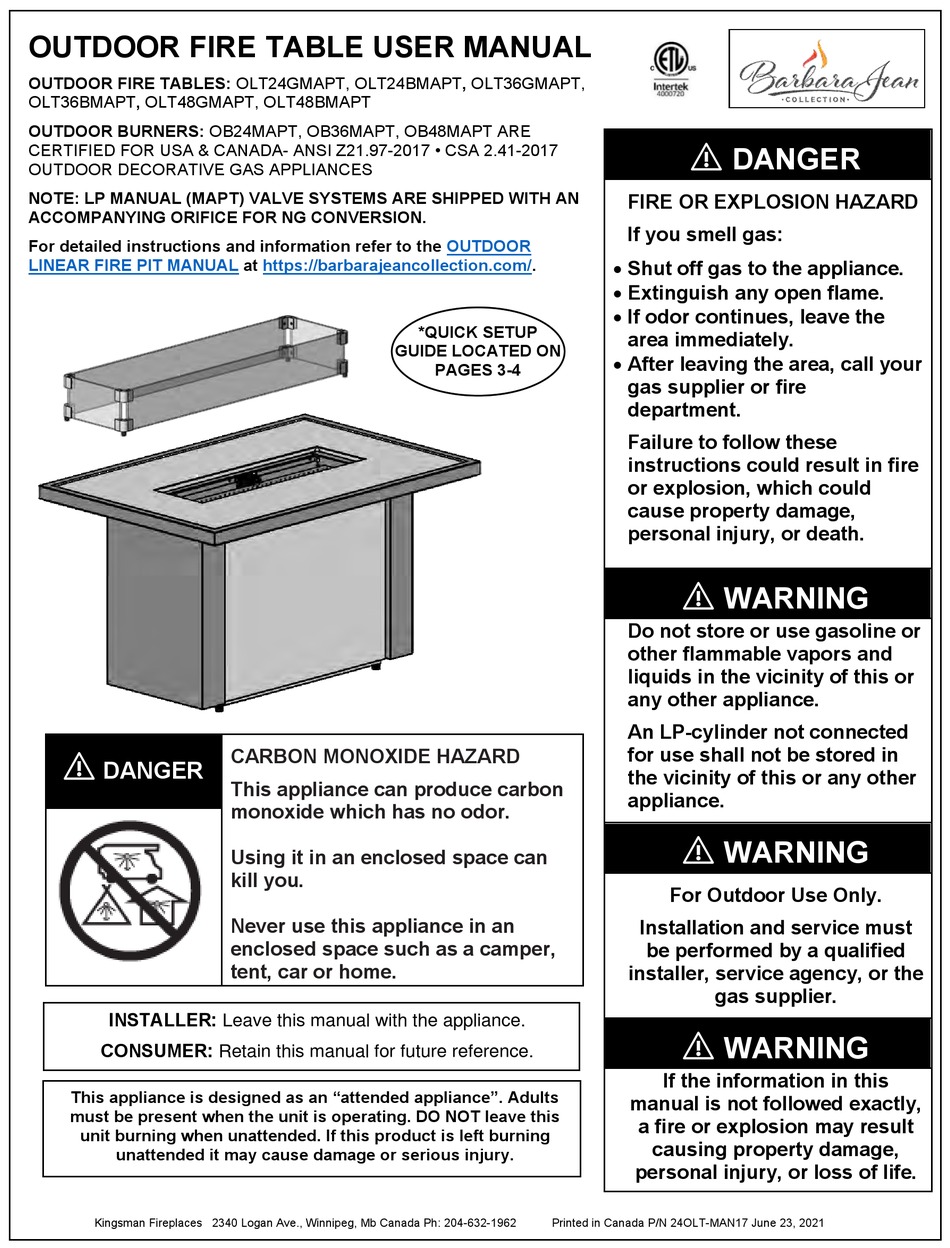

OUTDOOR FIRE TABLE USER MANUAL
OUTDOOR FIRE TABLES: OLT24GMAPT, OLT24BMAPT, OLT36GMAPT,
OLT36BMAPT, OLT48GMAPT, OLT48BMAPT
OUTDOOR BURNERS: OB24MAPT, OB36MAPT, OB48MAPT ARE
CERTIFIED FOR USA & CANADA- ANSI Z21.97-2017 • CSA 2.41-2017
OUTDOOR DECORATIVE GAS APPLIANCES
NOTE: LP MANUAL (MAPT) VALVE SYSTEMS ARE SHIPPED WITH AN
ACCOMPANYING ORIFICE FOR NG CONVERSION.
For detailed instructions and information refer to the
LINEAR FIRE PIT MANUAL
⚠
DANGER
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
This appliance is designed as an "attended appliance". Adults
must be present when the unit is operating. DO NOT leave this
unit burning when unattended. If this product is left burning
unattended it may cause damage or serious injury.
Kingsman Fireplaces 2340 Logan Ave., Winnipeg, Mb Canada Ph: 204-632-1962
at https://barbarajeancollection.com/.
GUIDE LOCATED ON
CARBON MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can
kill you.
Never use this appliance in an
enclosed space such as a camper,
tent, car or home.
OUTDOOR
*QUICK SETUP
PAGES 3-4
Printed in Canada P/N 24OLT-MAN17 June 23, 2021
⚠
DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
• Shut off gas to the appliance.
• Extinguish any open flame.
• If odor continues, leave the
area immediately.
• After leaving the area, call your
gas supplier or fire
department.
Failure to follow these
instructions could result in fire
or explosion, which could
cause property damage,
personal injury, or death.
⚠
WARNING
Do not store or use gasoline or
other flammable vapors and
liquids in the vicinity of this or
any other appliance.
An LP-cylinder not connected
for use shall not be stored in
the vicinity of this or any other
appliance.
⚠
WARNING
For Outdoor Use Only.
Installation and service must
be performed by a qualified
installer, service agency, or the
gas supplier.
⚠
WARNING
If the information in this
manual is not followed exactly,
a fire or explosion may result
causing property damage,
personal injury, or loss of life.
Advertisement
Table of Contents
Related Manuals for Kingsman Fireplaces Barbara Jean OLT24GMAPT
Summary of Contents for Kingsman Fireplaces Barbara Jean OLT24GMAPT
- Page 1 If this product is left burning causing property damage, unattended it may cause damage or serious injury. personal injury, or loss of life. Kingsman Fireplaces 2340 Logan Ave., Winnipeg, Mb Canada Ph: 204-632-1962 Printed in Canada P/N 24OLT-MAN17 June 23, 2021...
-
Page 2: Table Of Contents
- Table of Contents - Table of Contents………………………………………………………………………………………….. Quick Setup Guide………………………………………………………………………………………… 20lb Cylinder Installation………………………………………………………………………………….. Pre-installation Questions and Answers………………………………………………………………… Important Information About Outdoor Fireplaces………………………………………………………. Warnings……………………………………………………………………………………………………. Gas Line Installation………………………………………………………………………………………. Locating Your Appliance………………………………………………………………………………….. Dimensions…………………………………………………………………………………………………. Glass Media for Outdoor Burners………………………………………………………………………... Optional Media Accessories……………………………………………………………………………… 10-11 Wind Guards for Fire Tables……………………………………………………………………………... -
Page 3: Quick Setup Guide
Barbara Jean Fire Tables – Quick Setup Guide Your Barbara Jean Fire Table can be set up in 6 Easy Steps: Step 1: Install Plastic Feet. Step 2: Set Fire Table in place. Step 3: Place Media over Burner. Step 4: Assemble Wind Guard. For detailed Step 5: Install LP Cylinder. - Page 4 Step 3: Install Burner Tray Filler Strips & Place Media over Burner. Filler Strips must be installed before media is placed onto burner. Pilot Shield must not be covered Spread Bronze Glass evenly in burner tray. Pilot Shield must not be covered, as a delayed ignition can occur.
-
Page 5: 20Lb Cylinder Installation
20lb Cylinder Installation - Fire Table - Bottom of LP Cylinder Drops Tank Brace into Round Hole Installation of 20lb Cylinder into Fire Tables: • Remove Top Clamp. • Connect 20lb cylinder to regulator. • Place 20lb cylinder into Fire Table as shown. Secure 20lb cylinder with •... -
Page 6: Pre-Installation Questions And Answers
Pre-installation Questions and Answers About curing of the paint -Operating Instructions- Your stove or fireplace has been painted with the highest quality silicone stove paint. This paint dries quickly in 15-20 minutes when first applied at the factory. 1. Be sure to read and understand all the However, due to the high temperature silicone components, the paint will cure instructions in this manual before when heat is applied to the appliance as it is first used. -
Page 7: Warnings
WARNING FOR SAFE INSTALLATION AND OPERATION OF YOUR GAS FIREPLACE PLEASE NOTE THE FOLLOWING: when an appliance is for connection to a fixed piping system, the installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1 • NFPA 54; National Fuel Gas Code; Natural Gas and Propane Installation Code, CSA B149.1;... -
Page 8: Locating Your Appliance
Locating Your Appliance Note: Ventilation and air flow comes from openings in the walls and ceiling. Open floor space around the appliance must not be considered ventilation and air flow space. This unit requires combustion air and will produce exhaust gases. Install in an open-air situation with natural ventilation and without stagnant areas. -
Page 9: Dimensions
Fire Tables –Dimensions OLT24GMAPT OLT24BMAPT SUPPLIED BURNER: OB24MAPT (c/w #32 Orifice for NG) OLT36GMAPT OLT36BMAPT SUPPLIED BURNER: OB36MAPT (c/w #15 Orifice for NG) OLT48GMAPT OLT48BMAPT SUPPLIED BURNER: OB48MAPT (c/w #15 Orifice for NG) -
Page 10: Glass Media For Outdoor Burners
Glass Media for Outdoor Burners Choose Glass Media ‐ 5 lbs. per Foot of Burner (i.e.: 24" burner = 10lbs) Product Spread glass evenly in burner tray. Number Description Pilot Shield must not be covered, as a delayed ignition can occur (See photo below). MQG5ZG Glass Media ‐... - Page 11 MQRBD4 – Driftwood Log Set – 3 piece Place Logs Randomly as shown. Do not cover Pilot. MQROCK2 – Rock Set, Contemporary Collection – Natural MQROCK3 – Rock Set, Contemporary Collection – Multi- Colored MQSTONE – Decorative Stones – 80 Piece Set MQSTONE10 –...
-
Page 12: Wind Guards For Fire Tables
Wind Guards Fire Tables A Wind Guard is Required for Outdoor Fire Tables. Parts List: [4] Bottom Feet, [8] Corner Brackets c/w neoprene tipped screws, [2] Glass End Panels, [2] Glass Side Panels Wind Guards: O24WG – 24” Fire Table O36WG –... -
Page 13: Burner Lids- Optional
Burner Lids for OB Burners - Optional Parts List: [1] Burner Lid 24LT-LID – OB24 Burners 36LT-LID – OB36 Burners 48LT-LID – OB48 Burners - WARNING - PILOT KNOB MUST BE TURNED TO THE “OFF” POSITION BEFORE INSTALLING BURNER LID. SERIOUS DAMAGE CAN BE CAUSED TO THE APPLIANCE AND PROPERTY IF PILOT IS LEFT ON AND THE MAIN BURNER IS TURNED ON WHEN BURNER LID IS INSTALLED. -
Page 14: Lighting Instructions
Safety Information and Manual Lighting Instructions FOR YOUR SAFETY READ BEFORE LIGHTING ⚠ WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. C. Use only your hand to turn the gas control knob or A. -
Page 15: Burner System Maintenance
Burner System Maintenance It is recommended to annually inspect and clean the Burner System to prevent malfunction and / or sooting. This operation should be performed by your dealer or a qualified technician. -CAUTION- Before servicing the burner system ensure that the gas supply is turned OFF and disconnect all electrical connections to the appliance. -
Page 16: General Maintenance Instructions
OB24 / OB36 / OB48 General Maintenance Instructions The appliance should be inspected before initial use and inspected and cleaned at least annually by a qualified field service person. Tampering is DANGEROUS and voids all warranties. Any component that is found to be faulty, must be replaced with an approved component. -
Page 17: Gas Conversion Instructions
Gas Conversion – PART A - MANUAL SYSTEMS – NOTE: CONVERSION SHOULD BE COMPLETED BEFORE BURNER IS INSTALLED. Caution- the gas supply shall be shut off prior to disconnecting the electrical power, before proceeding with the conversion. TO CONVERT PROPANE (MAP) SYSTEMS TO NATURAL GAS TO CONVERT NATURAL GAS (MAN) SYSTEMS TO PROPANE (MAN): (MAP):... -
Page 18: Troubleshooting The Gas Control System
Outdoor Burners - Troubleshooting the Gas Control System NOTE: Before troubleshooting the gas control system, be sure external gas shut off is in the “ON” position. Problem Possible Causes Corrective Action Check for spark at electrode and pilot: if no spark and electrode wire is properly connected, replace igniter. -
Page 19: Plumbing Parts
Outdoor Burners – Plumbing Parts – OB24 / 36 / 48 MAPT OB24MAPT / OB36MAPT / OB48MAPT Part Description 13. 24OB-107A Electrode Wire Assembly (c/w Mount Plate) 1. 24OB-PHPD6 Valve Knob - Black 14. 27FP-P904FF 3/8” Tube OD x 1/8” MPT 2. -
Page 20: Parts List
Outdoor Fire Tables - Parts List and Accessories Listed for Canada and USA NUMBER DESCRIPTION MQSTONE Decorative Stones ‐ 80 pc. Set Outdoor Fire Tables MQSTONE10 Decorative Stones ‐ 10 pc. Set OLT24GMAPT Outdoor Fire Table-24”, Black with Gray End Doors, c/w Linear Burner Cannonballs ‐... -
Page 21: Gas Specifications
OB48WG Wind Guard for 48” Burners- c/w 24G-101 Glass Panel- 5-1/2”H x 9-5/8”W Tempered Glass [4pcs], Corner 24G-102 Glass Panel- 5-1/2”H x 28-3/16”W Brackets [8pcs], and Rubber Feet 36G-101 Glass Panel- 5-1/2”H x 40-3/16”W [4pcs] 48G-101 Glass Panel- 5-1/2”H x 52-3/16”W Optional Burner Lids 24G-P202 Glass Corner Bracket- c/w neoprene... -
Page 22: Limited Warranty
LIMITED WARRANTY Save this certificate. It gives you specific legal rights, and you may also have other rights which may vary from one province or state to another. In the event your unit needs servicing contact your dealer or contractor who installed or services your unit. When requesting service, please have the model and serial number from each unit readily available.
