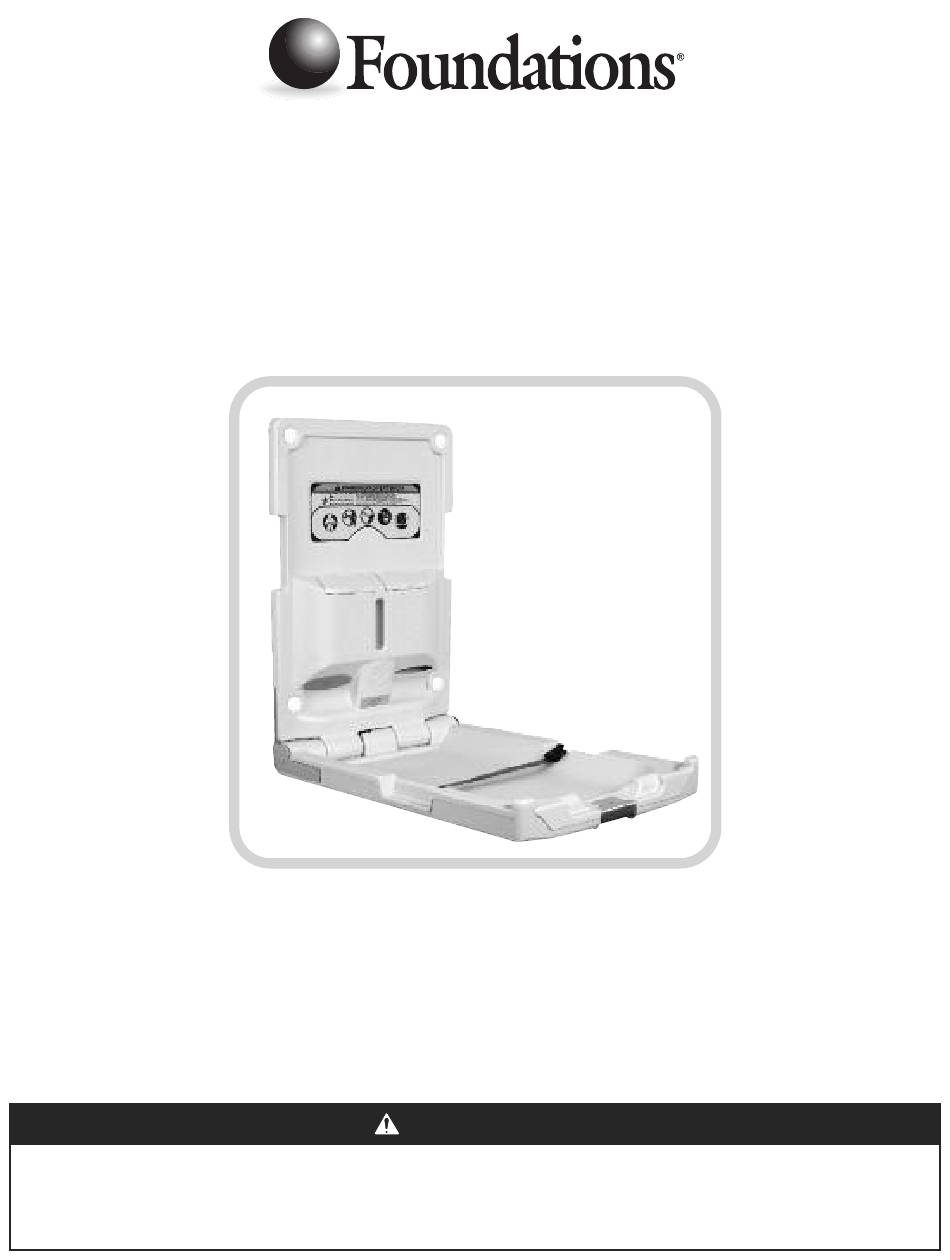

Vertical Diaper Changing Station
• Failure to follow these warnings and the installation instructions could result in serious injury
or death.
• Read all instructions before installing diaper changing station. Keep these instructions. DO NOT
discard.
Model 100-EV
Installation Instructions
WARNING
SI255D-Gen
Advertisement
Related Manuals for Foundations 100-EV
Summary of Contents for Foundations 100-EV
- Page 1 Model 100-EV Vertical Diaper Changing Station Installation Instructions WARNING • Failure to follow these warnings and the installation instructions could result in serious injury or death. • Read all instructions before installing diaper changing station. Keep these instructions. DO NOT discard.
- Page 2 ASSEMBLY INSTRUCTIONS ADULT INSTALLATION REQUIRED. TOOLS REQUIRED: Level (A) Measuring tape (B) Power drill with 7/32”, 1/8” and 1/2” masonry bits (C) Power screwdriver with bull nose phillips bit (D) • READ ALL INSTRUCTIONS BEFORE ASSEMBLY OF Diaper Changing Station. •...
- Page 3 WARNING • A stud MUST be located and used for at least one side of the diaper changing station. • The diaper changing station is no stronger than the anchors or walls to which they are attached and, therefore, MUST be firmly secured in order to support the weight they are intended to support.
- Page 4 RECOMMENDED BLOCKING: If the walls do not have studs on center, then additional blocking is necessary (Fig. e). Contact an architect or building contractor to make sure the blocking is adequate and complies with building codes. 16" 22 3/4" (406 mm) (578 mm) on center OPERATION:...
