Halsey Taylor 4590 Owner's Manual

Floor mount barrier free stone fountain

Hide thumbs Also See for 4590:

4590_FTN

Halsey Taylor Owners Manual

Model 4590

Floor Mount Barrier Free Stone Fountain

INSTALLER

Halsey Taylor Fountains are among the easiest to install Fountains on the

market today. To assure you install these models easily and correctly,

PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE

INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE WITH

PLUMBING, ELECTRICAL, AND OTHER APPLICABLE CODES. After install-

ation, leave these instructions with the Fountain for future reference.

IMPORTANT

IMPORTANT! INSTALLER PLEASE NOTE.

96627C (Rev. SIB - 6/04)

Table of Contents

Do you have a question about the 4590 and is the answer not in the manual?

Page 1 Model 4590 Floor Mount Barrier Free Stone Fountain INSTALLER Halsey Taylor Fountains are among the easiest to install Fountains on the market today. To assure you install these models easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE INSTALLATION.

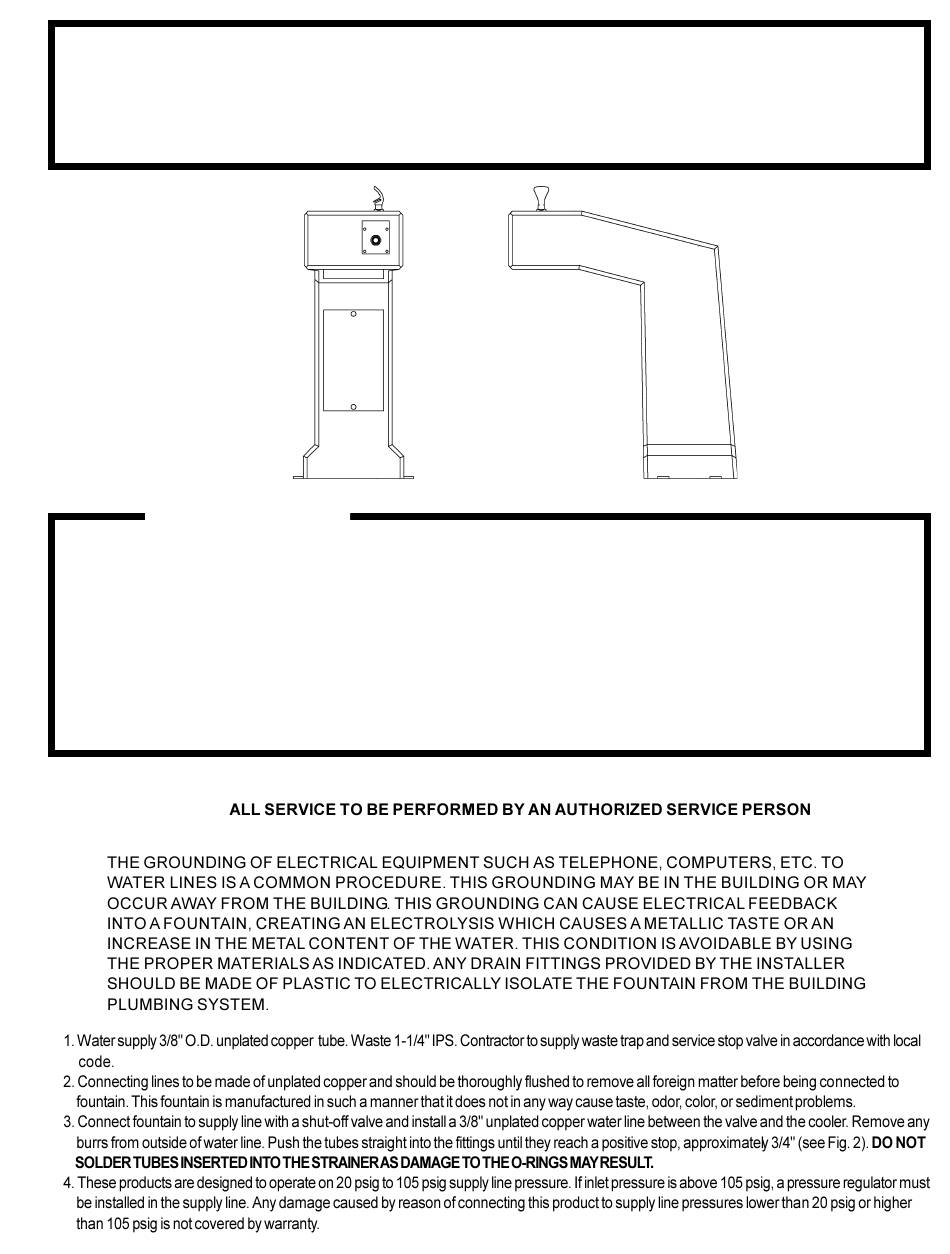

Page 2 4590_FTN ROUGH-IN DRAWING START UP 3/8" O.D. UNPLATED 1/4" O.D. TUBE COPPER TUBE CONNECT WATER INLET COLD WATER SUPPLY TO COOLER BUILDING WATER INLET NOTE: WATER FLOW SERVICE STOP DIRECTION (NOT FURNISHED) FIG. 1 FIG. 2 96627C (Rev. SIB - 6/04) PAGE 2...
Page 3 4590_FTN PAGE 3 96627C (Rev. SIB - 6/04)
Page 4 4590_FTN STREAM HEIGHT ADJUSTMENT: TROUBLE SHOOTING AND MAINTENANCE 2222 CAMDEN COURT OAK BROOK, IL 60523 630.574.3500 FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR WEBSITE WWW.HALSEYTAYLOR.COM PRINTED IN U.S.A. 96627C (Rev. SIB - 6/04) PAGE 4...
