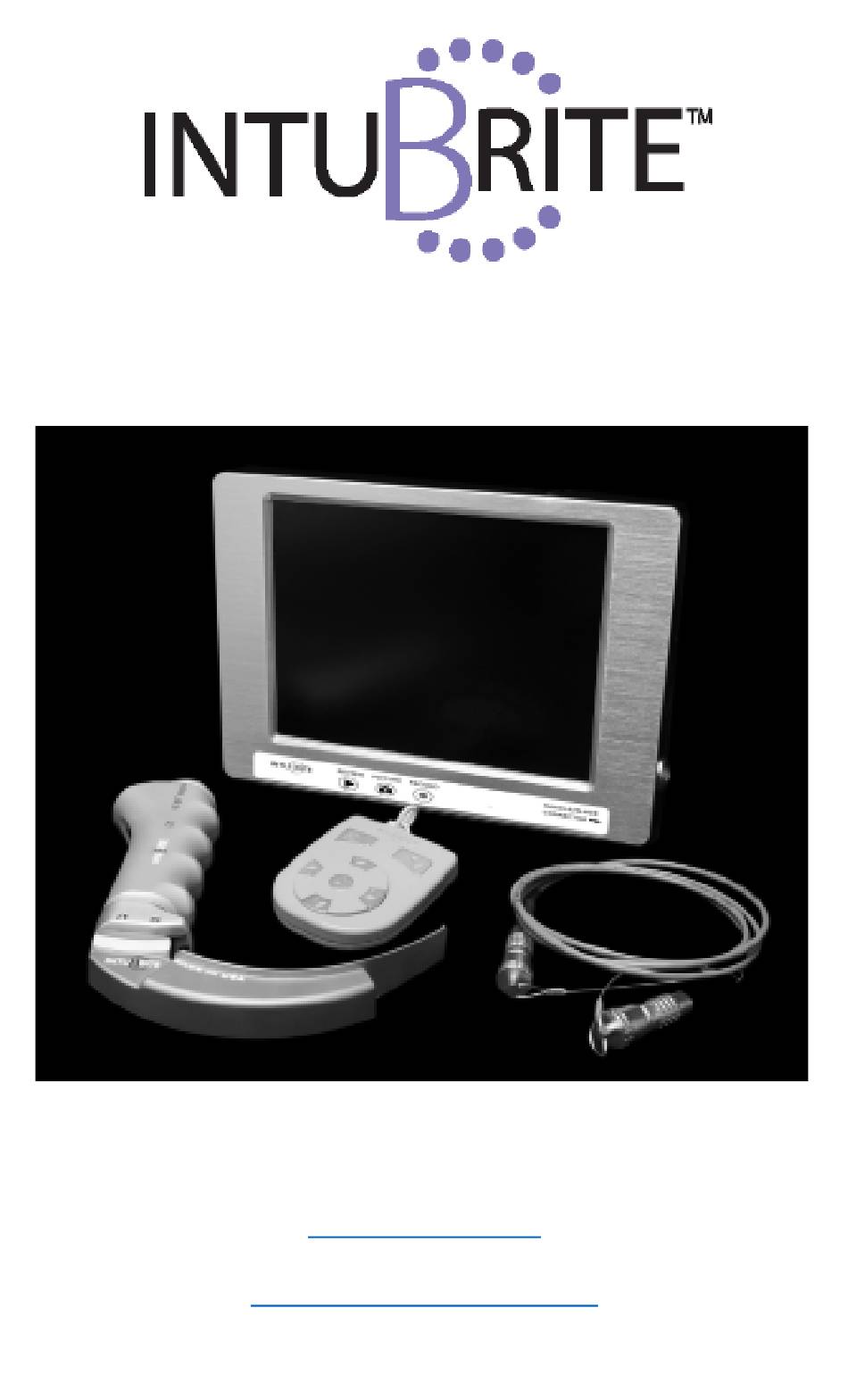

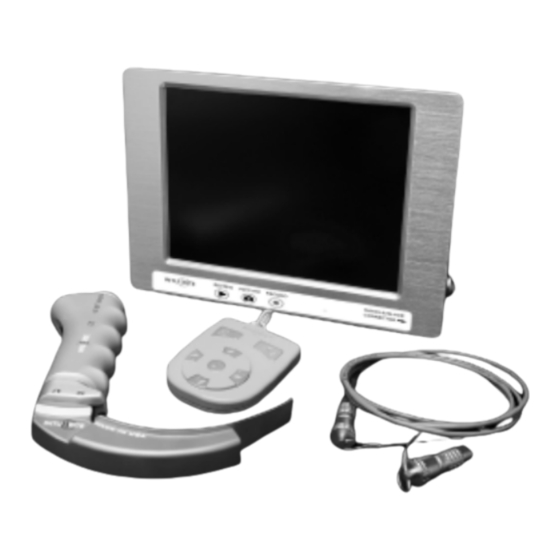

- Page 1 IntuBrite VLS 8800 Video Laryngoscope Operating Instructions Salter Labs 30 Spur Drive El Paso, TX 79906 USA www.salterlabs.com 800-421-0024 customercare@salterlabs.com L052-0912 Rev D...
- Page 2 Index Device Assembly and Disassembly Operating the VLS 8800 Monitor III. VLS 8800 System Operation Cleaning Instructions Batteries and Battery Maintenance Troubleshooting VII. Warranty Information and Registration 14...
- Page 3 IntuBrite VLS 8800 Video Laryngoscope Operating Instructions Intended Use: The rigid laryngoscope is intended for use in laryngoscopy to examine and visualize the upper airway and glottis. Please read the instructions carefully before attempting to operate the VLS 8800. I. Device Assembly and Disassembly 1.
- Page 4 9. To remove the video blade or wand from the handle pull the tip of the blade or wand and separate the blade/block connection. II. Operating the VLS 8800 Monitor Connecting Power to the Monitor The VLS 8800 monitor can be powered directly by AC power, or through an internal high capacity lithium battery source.
- Page 5 fogging. Resistance to lens fogging should be achieved within 30 to 60 seconds of attaching the blade or wand to the powered handle. Monitor 1. Controls and Adjustments: A number of video adjustments have been fine-tuned on each monitor for optimal display performance so further adjustment is not required.
- Page 6 - Press the same button a second time to end the recording. The video file will automatically be saved to the SD card under an “.AVI” format. Accessing images and videos: Both still images and video loops recorded on the SD card can be accessed by pressing the “arrow”...
- Page 7 2. “Access” (upper right hand corner): Changes display from live video feed to access stored files on SD card 3. “Arrow” Up, Down, Left and Right: Enables specific selection of files for viewing on screen, and selects DVR function 4. “Enter” (in center of arrow buttons): Actuates selected DVR function Directions for Remote Control DVR Functions To access and manage still image files and video files:...
- Page 8 • In live video mode, Press “Menu” button • Press Right or Left Hand arrow button to highlight “Time” • Press “Enter” button • Press Right or Left arrow buttons to advance to desired portion of date and time to set •...
- Page 9 • For sterilization, use Steris® or STERRAD® low temperature sterilization by processing. Temperatures should not exceed 140° F (53°C) and/or 28 minute cycles. Refer to Table 1. NOTE: • Given the electrical componentry, the video blade should not be exposed to extreme temperatures during cleaning. •...
- Page 10 The above listed cleaning guidelines are intended as suggestions only. They are based on procedures compatible with specific materials. Disinfection must be performed to approved hospital protocol. Salter Labs cannot warrant that any of the recommended methods will guarantee sterility. This must be validated by the...
- Page 11 V. Batteries and Battery Maintenance The VLS 8800 system is equipped with rechargeable lithium ion batteries. These batteries are designed to independently provide optimal power to the monitor and the video blades or wands. The batteries can be fully recharged many times with minimal loss in performance.
- Page 12 2. Handle battery The rechargeable AA-size 3.7 volt rechargeable lithium ion battery in the video handle powers the camera, and the lens heating element and light source in video blade or wand. When the VLS handle is attached via the cable to the VLS 8800 monitor, the monitor battery and handle battery are linked, and operate as one.
- Page 13 VI. Troubleshooting Salter Labs VLS systems are generally reliable and simple to operate, requiring minimal maintenance for extended periods. However, the following is offered to help deal with unexpected device conditions: 1) Monitor is non-functional, shows no sign of power Check for proper connections with power system and/or battery setup.
- Page 14 IntuBrite VLS Limited Warranty Salter warrants its IntuBrite VLS Products to be free of defects in materials and workmanship under normal use and service of the instruments for twelve (12) months from date of purchase. What is covered: Replacement of Parts and associated Labor. What is not covered: Transportation charges to and from Salter warehouse, damage caused by abuse, misuse, accident or negligence.
- Page 15 This extended warranty does not apply to product that has been damaged due to obvious mishandling or as a result of modification by an unauthorized repair station or person. MT Promedt Consulting GmbH Salter Labs Altenhofstraße 80 30 Spur Drive D-66386 St. Ingbert...
