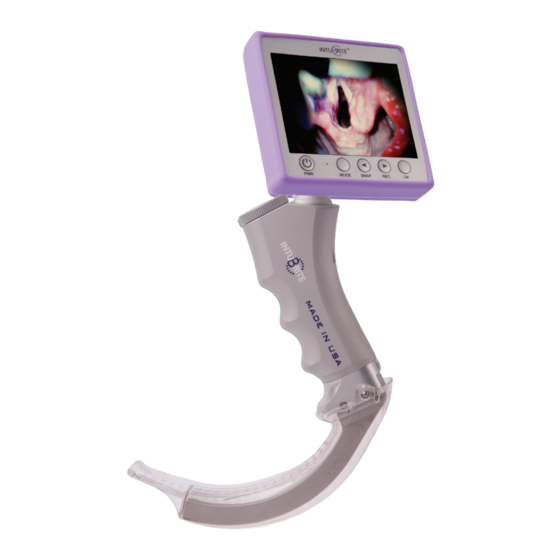

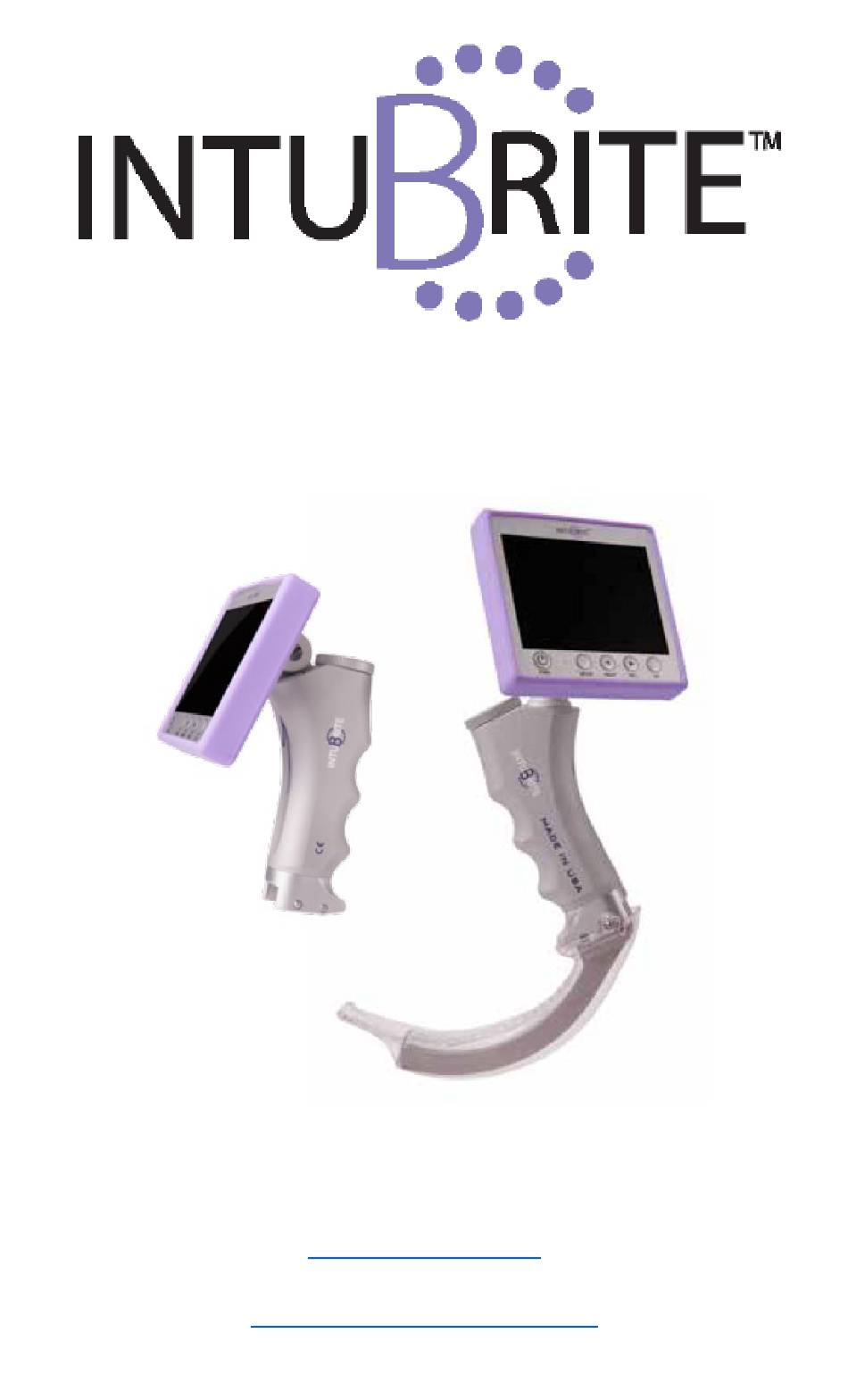

- Page 1 IntuBrite VLS 6600 Series Edge Video Laryngoscope Operating Instructions Salter Labs 30 Spur Drive El Paso, TX 79906 USA www.salterlabs.com 800-421-0024 customercare@salterlabs.com L093-0215 Rev E...
- Page 2 Index Device Assembly and Disassembly Operating the VLS 6600 Series Edge Monitor III. VLS 6600 Series Edge System Operation Cleaning Instructions Batteries and Battery Maintenance Troubleshooting VII. Warranty Information and Registration...
- Page 3 IntuBrite VLS 6600 Series Edge Video Laryngoscope Operating Instructions Intended Use: The rigid laryngoscope is intended for use in laryngoscopy to examine and visualize the upper airway and glottis. Please read the instructions carefully before attempting to operate the VLS 66xx Edge.
- Page 4 indicating the power level of the handle’s internal rechargeable lithium battery. The date and time will also be displayed along with an SD card icon if the SD card is inserted. If the battery is fully charged, the icon will soon disappear. If the battery is low in power and in need of recharging, the icon will remain on the screen until the device is either recharged with the external charger power cord, or power is eventually exhausted...
- Page 5 NOTE: Still images cannot be recorded and saved while the device is recording video. Recording Video loops: • Press the “Rec” icon button once to initiate recording. The action is noted by an ongoing blinking RED notification on the display. A recording time counter will also be displayed. •...
- Page 6 Remove the micro SD card from the display and insert into the SD card holder supplied with the unit. Then insert SD card holder into the PC, using your browser to view the SD card locate files called DVID. By clicking on the selected file you will be able to view the file.
- Page 7 If the Auto Record feature is enabled the unit will Auto Rec for 10 minutes then revert to the normal 15 minute cycle then shut down. IV. Cleaning Instructions Video Handle, Blades and Wands Reusable laryngoscope video blades must undergo high level disinfection or sterilization between uses.
- Page 8 • Clean external surface of the blade, wand and handle with a damp cloth or soft brush using warm water and soap, isopropyl alcohol solution or other anti-microbial disinfectant to remove any deposits. A pH neutral cleaning solutions recommended. For high-level disinfection use Cidex® 2.4% glutaraldehyde •...
- Page 9 The above listed cleaning guidelines are intended as suggestions only. They are based on procedures compatible with specific materials. Disinfection must be performed to approved hospital protocol. Salter Labs cannot warrant that any of the recommended methods will guarantee sterility. This must be validated by the hospital and/or sterilization equipment manufacturer.
- Page 10 It is suggested that the handle charge be checked at least once a week when not in use. VI. Troubleshooting Salter Labs VLS systems are generally reliable and simple to operate, requiring minimal maintenance for extended periods. However, the following is offered to help deal with unexpected device conditions:...
- Page 11 1) Monitor is non-functional, shows no sign of power Check for proper charging of battery. • • Hold down the On/Off button for 2 seconds before release 2) Monitor is powered, but shows blue screen • Ensure that the monitor connector is properly aligned with and fully inserted in the handle connection point •...
- Page 12 IntuBrite VLS Limited Warranty Salter warrants its IntuBrite VLS Products to be free of defects in materials and workmanship under normal use and service of the instruments for twelve (12) months from date of purchase. What is covered: Replacement of Parts and associated Labor. What is not covered: Transportation charges to and from Salter warehouse, damage caused by abuse, misuse, accident or negligence.
- Page 13 This extended warranty does not apply to product that has been damaged due to obvious mishandling or as a result of modification by an unauthorized repair station or person. MT Promedt Consulting GmbH Salter Labs Altenhofstraße 80 30 Spur Drive D-66386 St. Ingbert...
