RV Option

The RV (raw vibration) option includes a 100mV/g ±20% additional output. The accelerometer frequency range is
1 Hz-10 kHz, maximum amplitude of 15 g-pk. Data collectors or analyzers can use this vibration signal for further
analysis.

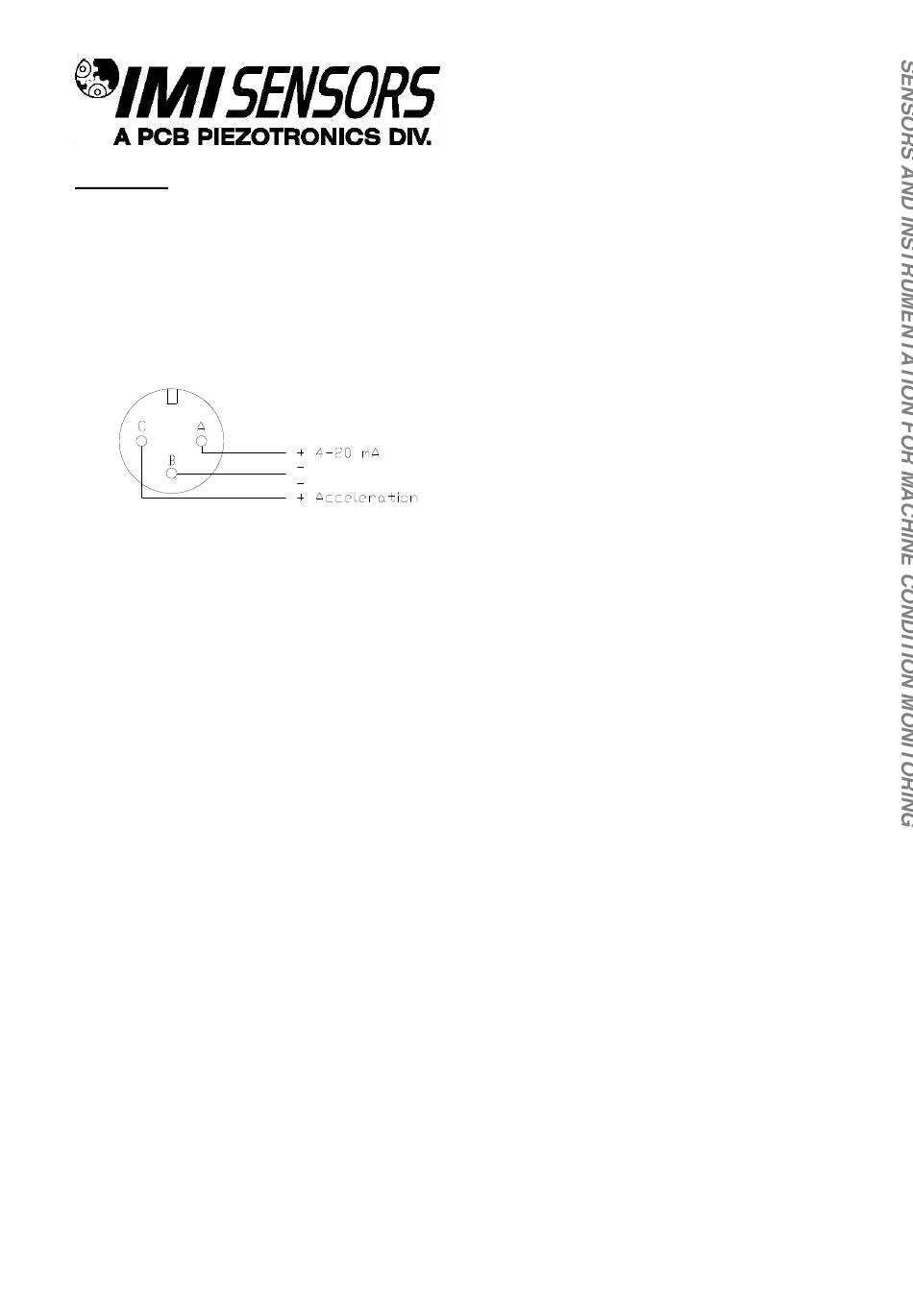

Figure 3 – RV wiring
For integral cable sensors:
RED
BLACK
GREEN
WHITE
Note:
-The Acceleration Signal Negative has to be isolated from any grounding. If this terminal is grounded, the 4-
20mA loop will short, causing no output.
-The acceleration output signal is ideally suited for use with portable battery powered data collectors or analyzers.
4-20mA Positive
4-20mA Negative (same as green)
-RV Acceleration Negative (same as black)
+RV Acceleration Positive
