Genesys SD13 User Instructions

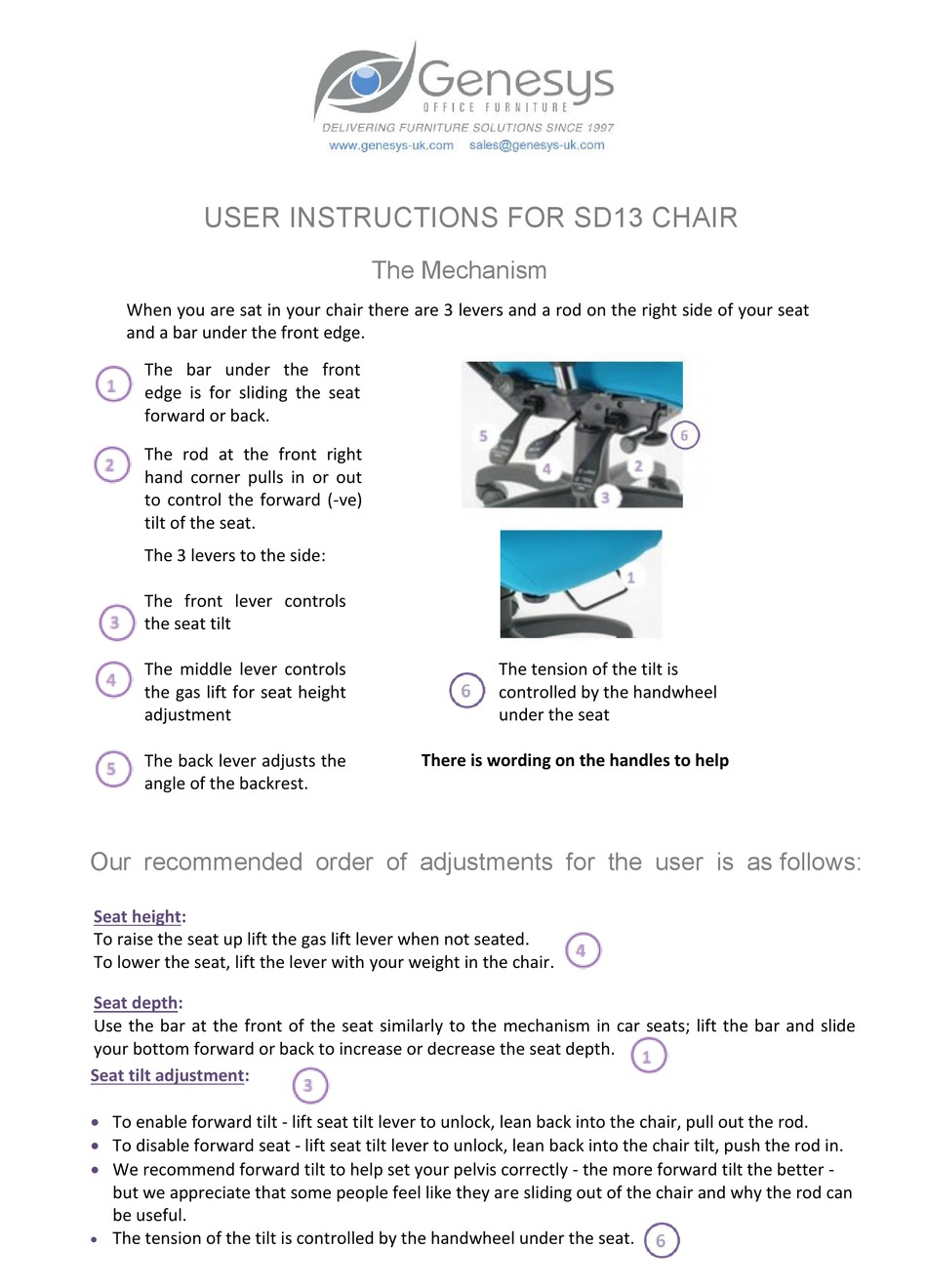

USER INSTRUCTIONS FOR SD13 CHAIR
When you are sat in your chair there are 3 levers and a rod on the right side of your seat
and a bar under the front edge.
The bar under the front
edge is for sliding the seat
forward or back.
The rod at the front right
hand corner pulls in or out
to control the forward (-ve)
tilt of the seat.
The 3 levers to the side:
The front lever controls
the seat tilt
The middle lever controls
the gas lift for seat height
adjustment
The back lever adjusts the
angle of the backrest.
Our recommended order of adjustments for the user is as follows:

Seat height:

To raise the seat up lift the gas lift lever when not seated.
To lower the seat, lift the lever with your weight in the chair.

Seat depth:

Use the bar at the front of the seat similarly to the mechanism in car seats; lift the bar and slide
your bottom forward or back to increase or decrease the seat depth.

Seat tilt adjustment:


To enable forward tilt - lift seat tilt lever to unlock, lean back into the chair, pull out the rod.

To disable forward seat - lift seat tilt lever to unlock, lean back into the chair tilt, push the rod in.

We recommend forward tilt to help set your pelvis correctly - the more forward tilt the better -
but we appreciate that some people feel like they are sliding out of the chair and why the rod can
be useful.

The tension of the tilt is controlled by the handwheel under the seat.

The Mechanism

The tension of the tilt is
controlled by the handwheel
under the seat
There is wording on the handles to help
