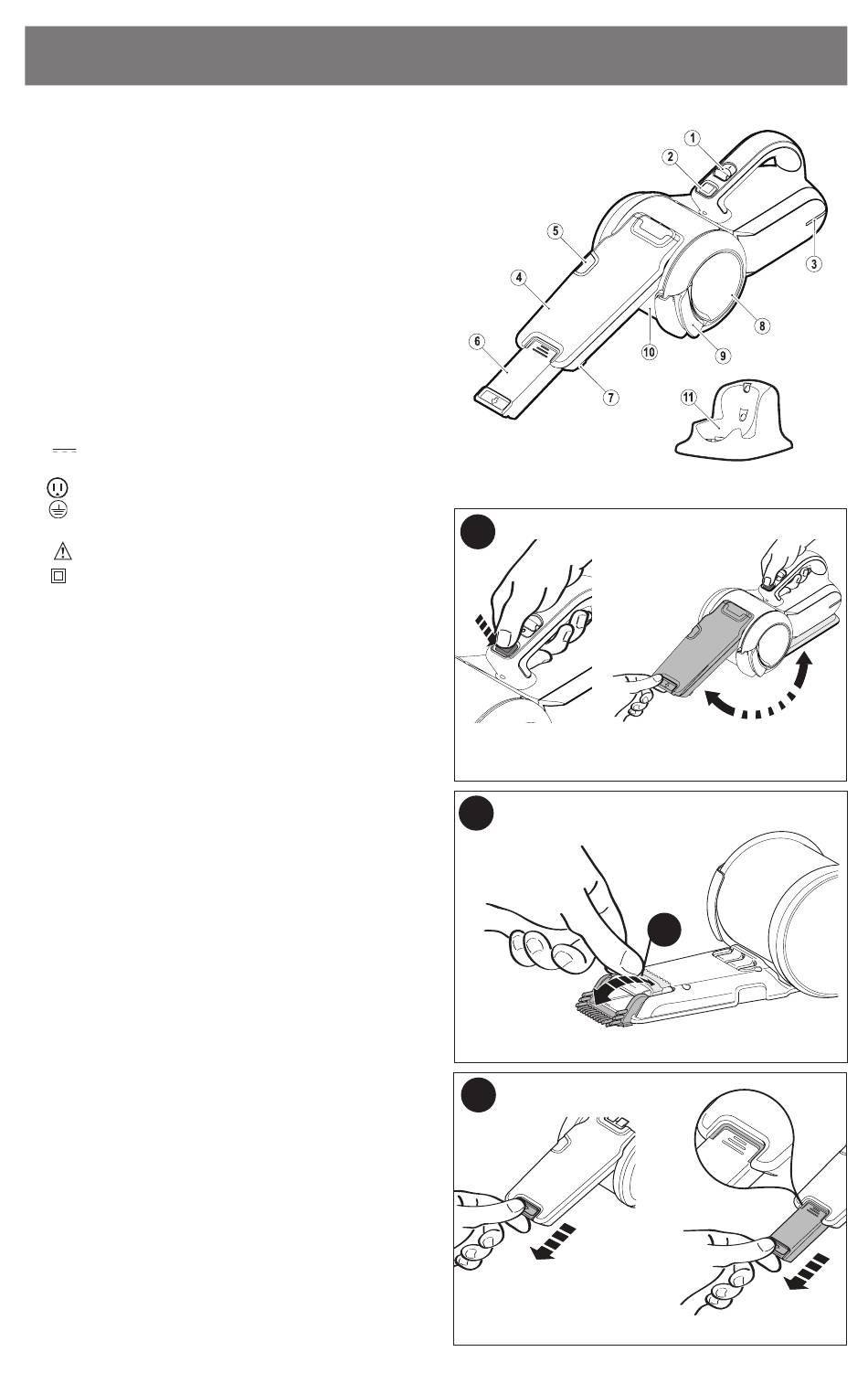

Product Features - Black & Decker BDH2000PL Instruction Manual

1. On/off switch
2. Pivot lock button
3. Charging indicator
4. Nozzle
5. Bowl release button
6. Crevice tool
7. Brush tool
8. Dust bowl door
9. Dust bowl door release
10. Removable dust bowl
11. Charging base
or DC ..direct current
n o ................no load speed
................Class I Construction
................earthing terminal
(grounded)
...............safety alert symbol
................Class II Construction
(double insulated)
.../min or rpm .....revolutions or reciprocation
per minute
Wh ..........................Watt Hours
ASSEMBLY
ADJUSTING THE NOZZLE
(FIG. A - C)
The nozzle (4) has a brush (7) that can be folded
forward for dusting and upholstery cleaning.
• The nozzle (4) is stored under the
appliance.
• Press the pivot lock button (2) and rotate
the nozzle (4) to the required position.
• Release the pivot lock button (2) to lock the
nozzle in position
• The nozzle can be extended by pulling the
crevice tool (6) until it locks into position.
• The crevice tool can be retracted by
pressing the raised button on the crevice
tool and pushing the crevice tool back into
the nozzle.
• The nozzle should be returned to the
storage position under the appliance after
use and while charging the appliance.
USE
• Before first use, the battery must be
charged for at least 4 hours.
• Plug the appliance into the charger
whenever power gets low.
CHARGING THE BATTERY (FIG. D)

PRODUCT FEATURES

A
B
C
4
7
