IGNITION SWITCH
WHITE CONNECTOR
TRUNK/TAILGATE WINDOW RELEASE (-) OUTPUT TRUNK/TAILGATE WINDOW RELEASE (-)
LEGEND
N/A NOT REQUIRED IN DATA MODE (1-WAY)
NOT REQUIRED IN DATA MODE (2-WAY)
USE DATA MODE
OR HARDWIRE MODE
GWR (-) INPUT - BLUE/WHITE GWR (-) INPUT - BLUE/WHITE
LOCK/ARM (-) INPUT - GREEN/BLACK LOCK/ARM (-) INPUT - GREEN/BLACK
UNLOCK/DISARM (-) INPUT - BLUE/BLACK UNLOCK/DISARM (-) INPUT - BLUE/BLACK
TRUNK/TAILGATE WINDOW RELEASE (-) INPUT - RED/WHITE TRUNK/TAILGATE WINDOW RELEASE (-) INPUT - RED/WHITE
READ NOTE BELOW - PURPLE/BLACK READ NOTE BELOW - PURPLE/BLACK
AUTO-RELOCK (+) INPUT - WHITE AUTO-RELOCK (+) INPUT - WHITE
ACCESSORY (+) INPUT - ACCESSORY (+) INPUT - BLACK/WHITE
2 POSSIBLE APPLICATIONS - GREEN 2 POSSIBLE APPLICATIONS - GREEN
*TACH (AC) OUTPUT - PURPLE/WHITE *TACH (AC) OUTPUT - PURPLE/WHITE
RAP SHUTDOWN (-) OUTPUT APPLICATION:
1-CONNECT GREEN WIRE TO DRIVER DOOR SWITCH TO TURN
OFF RADIO AT THE END OF THE REMOTE START SEQUENCE.
2-CONNECT PURPLE/BLACK WIRE TO GROUND.
OR
DOOR/TRUNK STATUS (-) OUTPUT APPLICATION:
1-CONNECT GREEN WIRE TO REMOTE STARTER.
(NOT REQUIRED IN 2-WAY DATA MODE)
2-DO NOT CONNECT PURPLE/BLACK WIRE.
CONNECT TO CONSTANT 12V (+)
TO ENABLE AUTOMATIC RELOCK AFTER START
www.flash-it.com

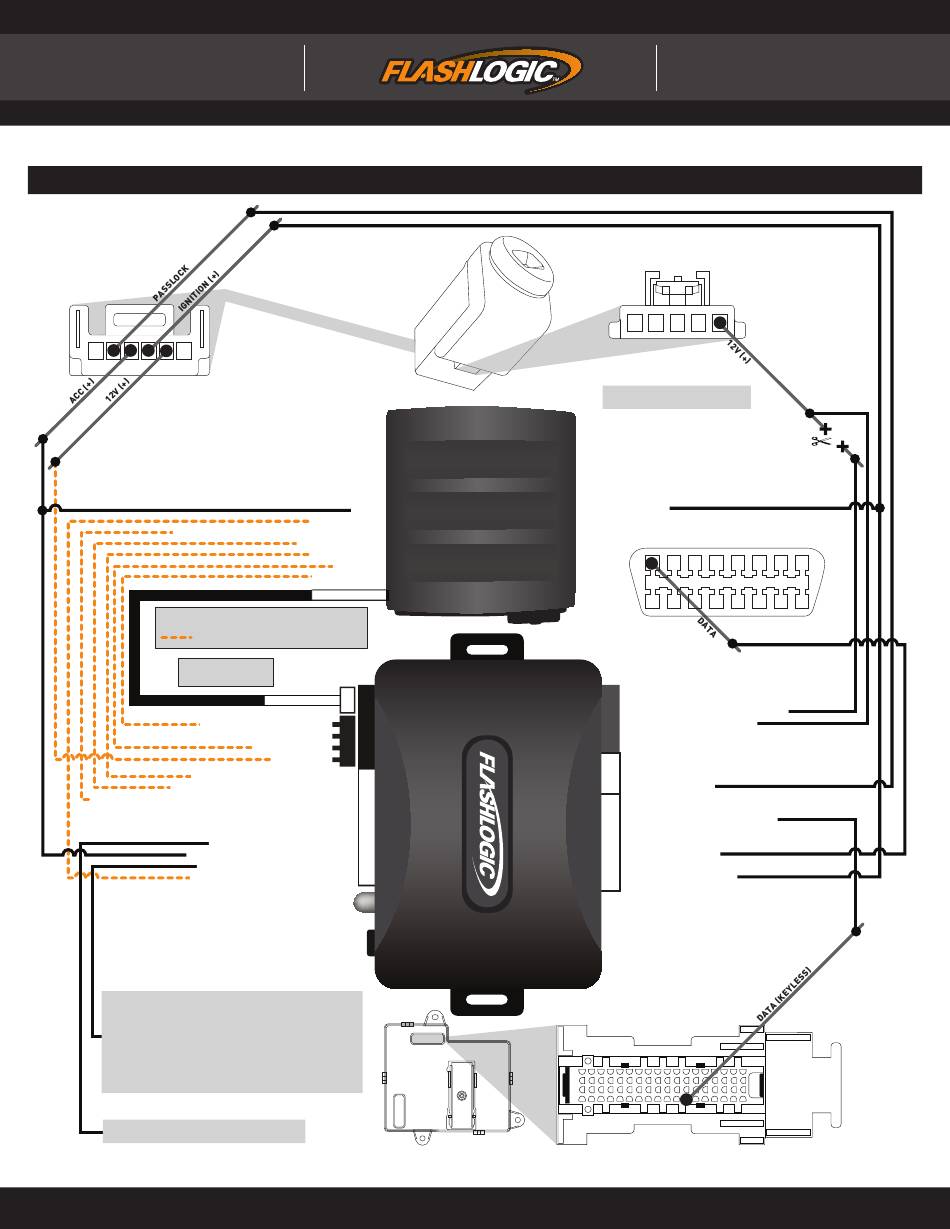

TYPE 1 - wiring DiAgrAM
IGNITION SWITCH
REMOTE STARTER
ACC (+) ACC (+) <- REQUIRED
TACH (AC) INPUT TACH (AC) INPUT <- REQUIRED
OUTPUT <- REQUIRED
UNLOCK (-) OUTPUT UNLOCK (-) OUTPUT <- REQUIRED
LOCK (-) OUTPUT LOCK (-) OUTPUT <- REQUIRED
GROUND (-) GROUND (-) <- REQUIRED
GWR (-) OUTPUT GWR (-) OUTPUT <- REQUIRED
DATA MODE
DATA MODE
(NC) WHITE (NC) WHITE
GROUND - BLACK GROUND - BLACK
12V (+) - RED 12V (+) - RED
(NC) BROWN (NC) BROWN
(NC) PURPLE/YELLOW (NC) PURPLE/YELLOW
BLACK/WHITE
BCM
FLC-DL-GM2
PK3+ CONNECTOR - BLACK
PK3+
IF THERE IS NO PK3+ CONNECTOR
IGNORE RED/WHITE WIRE CUT
REQUIRED -> IGNITION (+) OUTPUT IGNITION (+) OUTPUT
55
1
Doorlock Interface
GM
Doc. No.: ##8874##
5 4 3 2 1 1
OBDII CONNECTOR LOCATED
UNDER DRIVER SIDE DASH
1 1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
WHITE/BLACK - PK3 (+) VEHICLE SIDE WHITE/BLACK - PK3 (+) VEHICLE SIDE
WHITE/RED - PK3 (+) KEY SIDE WHITE/RED - PK3 (+) KEY SIDE
WHITE (NC) WHITE (NC)
YELLOW/BLACK (NC) YELLOW/BLACK (NC)
YELLOW/RED (NC) YELLOW/RED (NC)
YELLOW - PASSLOCK YELLOW - PASSLOCK
BROWN/RED - GROUND BROWN/RED - GROUND
BROWN/YELLOW - DATA (KEYLESS) BROWN/YELLOW - DATA (KEYLESS)
ORANGE/BLACK (NC) ORANGE/BLACK (NC)
ORANGE/WHITE (NC) ORANGE/WHITE (NC)
ORANGE - DATA (SWC) ORANGE - DATA (SWC)
PINK/BLACK (NC) PINK/BLACK (NC)
PINK - IGNITION (+) INPUT PINK - IGNITION (+) INPUT
C2 - WHITE
