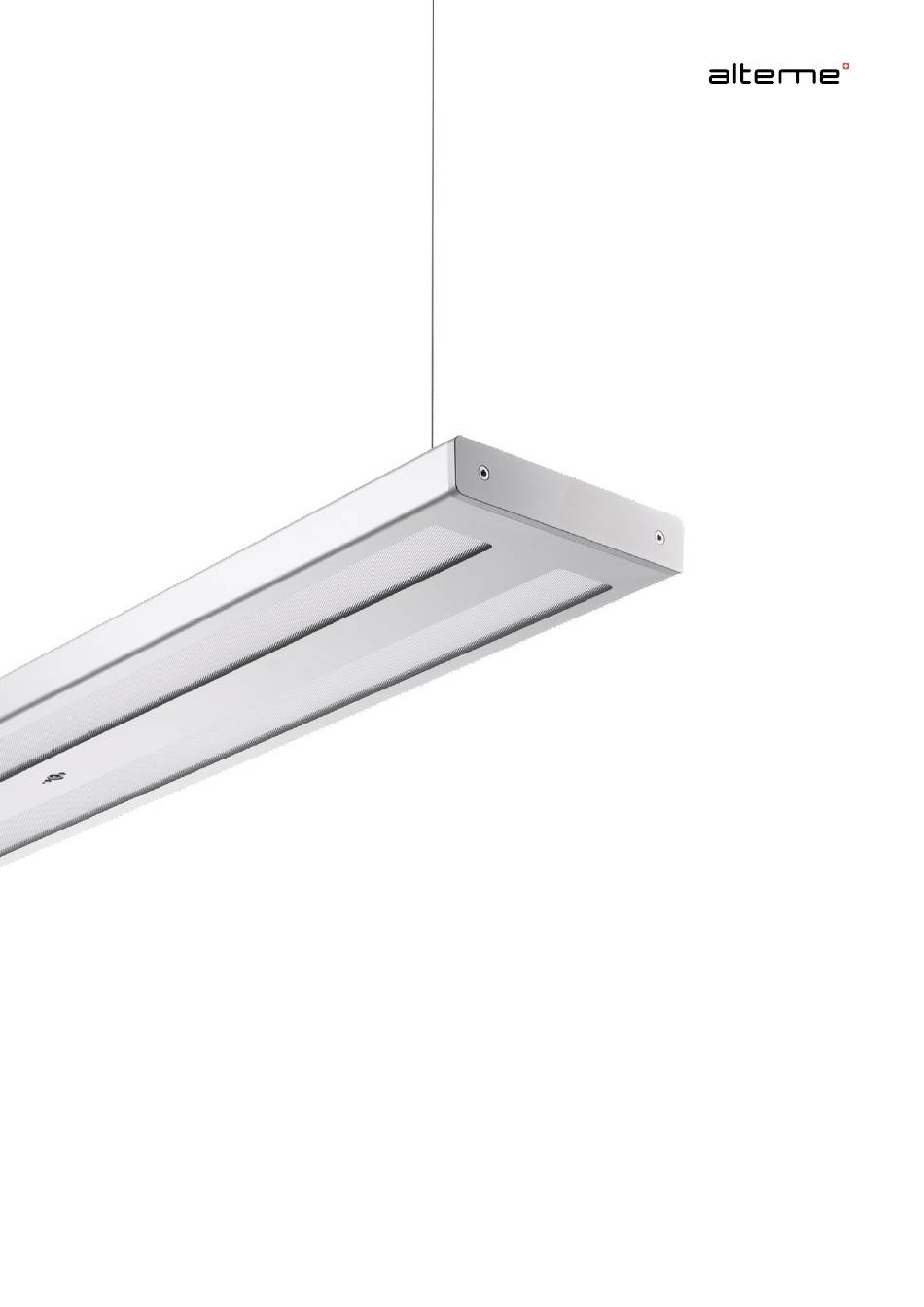

- Page 1 TERA...
- Page 2 TERA...
- Page 3 Table of Contents 04 Presentation 06 Features & Benefits 10 Portfolio 12 TERA Suspended Luminaires 16 Accessories 18 General Information...
- Page 4 TERA TERA bears the outstanding hallmarks of designers Hannes Wettstein and Simon Husslein. The high quality lighting technology and the use of stamped and bent aluminium sheet with milled aluminium profiles, both chemically matted and natural anodised, meets the high demands of this light.
- Page 6 TERA Features & Benefits Design for high standards TERA suspension luminaire is especially elegant with its timeless design and use of high-quality materials. All visible aluminium parts are chemically matted and natural anodised. The microprism offers high-quality, optimal glare control (Fig. 1).
- Page 7 Wide variety – the individual lights The TERA is available as individual lights in the On/Off, dimmable DALI and with Sensonic Basic versions as well with light colours 3000K and 4000K. For the DALI activation, there is a difference between the joint or separated regulation of indirect and direct light parts.
- Page 8 Also available with the Sensonic Basic controller on request. Colour anodising It is also possible to anodise the TERA in a specific colour. This allows the light’s appearance to be adapted to fit the architecture or the relevant company’s presence. The light is an absolutely unique...
- Page 10 TERA Portfolio CallPoint AG, Baden Sales Partner: Neuco AG, Zurich Photography: Roger Frei, Zurich...
- Page 11 Roche Pharmaceuticals Limited, Shanghai, China Lighting concept: Alteme Licht AG, Aarau Photography: Fengfang Lu, Shanghai...
- Page 12 TERA Suspended Luminaire Ready-to-fit suspended luminaire Synchronous lighting control Joint indirect/direct lighting control ф ф ф Control [lm] [lm] [lm] B11 7311.B 3000 K >80 On/Off 2940 5663 8603 B11 7314.B 3000 K >80 Sensonic Basic 2940 5663 8603 B11 7316.B 3000 K >80...
- Page 13 Combinable Suspended Synchronous lighting control Luminaire Set Joint indirect/direct lighting control ф ф ф Control [lm] [lm] [lm] B14 7311.B 3000 K >80 On/Off 2940 5663 8603 B14 7314.B 3000 K >80 Sensonic Basic 2940 5663 8603 B14 7316.B 3000 K >80 DALI 2940...
- Page 14 TERA Suspended Luminaire Combinable Side-by-Side Synchronous lighting control Luminaire Set Joint indirect/direct lighting control Start luminaire (with power supply) ф ф ф Control [lm] [lm] [lm] B24 7311.B 3000 K >80 On/Off 2940 5663 8603 B24 7316.B 3000 K >80...
- Page 15 Asynchronous lighting control Joint indirect/direct lighting control Start luminaire (with power supply) ф ф ф Control [lm] [lm] [lm] B24 7326.B 3000 K >80 DALI 2940 5663 8603 B24 7426.B 4000 K >80 DALI 2957 5808 8765 End luminaire ф ф...
- Page 16 TERA Accessories Sensonic Basic User Remote Control the lights comfortably and remotely from your seat. Current lighting scenes can be stored on up to four save buttons in order to be able to recall them again at a later time. The holiday function enables the presence detector to be temporarily deactivated, for example: when away on holiday.
- Page 17 Square canopy, anodised aluminium Chemically matted and natural anodised, with internal screw fastening, floating clips for a simplified connection. Power cable must be ordered separately. Z00 0020 Size: 80 x 80 x 22 mm Round canopy, anodised aluminium Chemically matted and natural anodised, with internal screw fastening, floating clips for a simplified connection.
- Page 18 TERA General Information General Information Symbols and abbreviations Lighting technology ф Nd [lm] We reserve the right, to make technical and The CE label documents the formal changes to our products, required compliance of the products with the Direct luminous flux by technical developments.
- Page 20 Alteme Licht AG Gysulastrasse 21 CH-5000 Aarau Tel.: +41 62 832 80 00 Fax: +41 62 832 80 01 info@alteme.ch www.alteme.ch...
