Merida GJB701 Manual

FRAGRANCE
DISPENSER

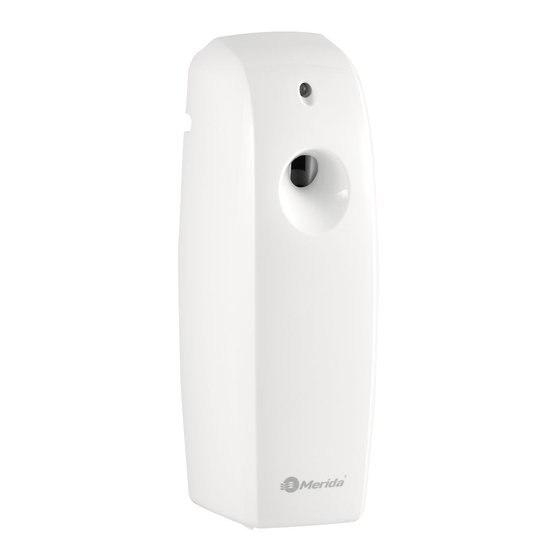

UK LCD FRAGRANCE DISPENSER
PL LCD ELEKTRONICZNY ODŚWIEŻACZ POWIETRZA
CZ
LCD AUTOMATICKÝ OSVĚŽOVAČ VZDUCHU
HU LCD LÉGFRISSÍTŐ- ADAGOLÓ
LT LCD ORO GAIVIKLIS
LV LCD GAISA ATSVAIDZINĀTĀJA IZSMIDZINĀTĀJS
ЭЛЕКТРОННЫЙ ОСВЕЖИТЕЛЬ C
RU
ЖИДКОКРИСТАЛЛИЧЕСКИМ ЭКРАНОМ
РОЗПИЛЮВАЧ АЕРОЗОЛЬНОГО АРОМАТУ З
UA
РІДКОКРИСТАЛІЧНИМ ЕКРАНОМ
SK
AUTOMATICKÝ OSVIEŽOVAČ VZDUCHU S LCD
GJB701
LCD
8.
2
UK

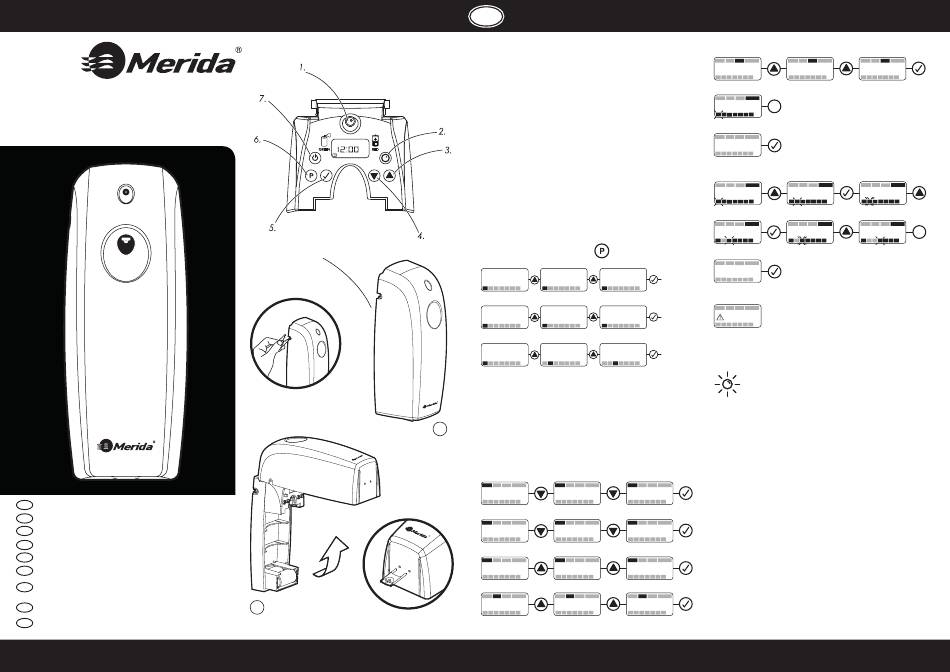

01 Buttons
1. Dual Colour LED 5. Accept
2. Spray Count Reset 6. Programme
3. Scroll Up 7. On/Off
4. Scroll Down 8. Spray Test
02 Installation
Open the dispenser using the supplied key. (fig 2)
-
Offer the dispenser up to the mounting surface and
-
mark the two fixing holes with a pencil.
NB. The dispenser should ideally be positioned at least 2m (7ft)
from ground level.
Drill the two marked fixing positions and fit the
-
dispenser in position using the two supplied wall plugs
and screws.
Once installed, insert an aerosol fragrance and two
-
'C' size batteries, observing the correct orientation.
Press the ON/OFF button (7) to turn the dispenser on.
-
NB. The LED will flash red 4 times and a test spray will follow.
Take care to ensure that you are not sprayed in the face.
03 Clock set
To begin programming press
Set Time - Hours
12:00 13.00 14.00
MO TU WE TH FR SA SU MO TU WE TH FR SA SU MO TU WE
Set Time - Minutes
14.00 14.01 14.02
MO TU WE TH FR SA SU MO TU WE TH FR SA SU MO TU WE
Set Day
14.02 14.02 14.02
MO TU WE TH FR SA SU MO TU WE TH FR SA SU MO TU WE
04 Factory Settings
The dispenser is factory set to run at 15 minute
-
intervals, 24 hours / day, 7 days / week.
With factory settings, your aerosol will last one month.
-
The factory settings can be changed as shown in the
-
'Programming' section of these instructions.
1
Continue to step 5 - Programming.
-
05 Programming
Complete step 03 and continue:
Start Time (Hours)
START STOP SPRAY OFF DAYS START STOP SPRAY OFF DAYS
12.00 11.00
MO TU WE TH FR SA SU MO TU WE TH FR SA SU
Start Time (Minutes)
START STOP SPRAY OFF DAYS START STOP SPRAY OFF DAYS
10.00 10.01
MO TU WE TH FR SA SU MO TU WE TH FR SA SU
Stop Time (Hours)
START STOP SPRAY OFF DAYS START STOP SPRAY OFF DAYS
12.00 13.00
MO TU WE TH FR SA SU MO TU WE TH FR SA SU
Stop Time (Minutes)
START STOP SPRAY OFF DAYS START STOP SPRAY OFF DAYS
14.00 14.01
MO TU WE TH FR SA SU MO TU WE TH FR SA SU
Spray Interval
START STOP SPRAY OFF DAYS START
15
MO TU WE TH FR SA SU MO TU
Off Days - Example 1, No off days
START STOP SPRAY OFF DAYS
P
MO TU WE TH FR SA SU
Expected can life
DAYS
START STOP SPRAY OFF
212
MO TU WE TH FR SA SU
Off Days - Example 2, Tuesday & Wednesday off days
(Flashes faster when selected)
START STOP SPRAY OFF DAYS START
MO TU WE TH FR SA SU MO TU
Off Days - Example 2 (Cont.)
START STOP SPRAY OFF DAYS START
MO TU WE TH FR SA SU MO TU
Expected can life
START STOP SPRAY OFF DAYS
297
MO TU WE TH FR SA SU
If the warning symbol starts flashing, the 'spray interval' is
TH FR SA SU
longer than the 'active spray time.'
DAYS
START STOP SPRAY OFF
14.00
MO TU WE TH FR SA SU
TH FR SA SU
Please reprogramme so the 'spray interval' is shorter, or
the 'active spray time' is increased.
06 Maintenance
TH FR SA SU
Green Replace Aerosol
Red
Replace Batteries
Aerosol Replacement
-
Turn the unit off using the ON/OFF button. (7)
-
Replace the used aerosol with the new can
-
Turn on the unit using the ON/OFF button. (7)
-
NB. The LED will flash red 4 times and a test spray will follow
Take care to ensure that you are not sprayed in the face.
Reset the spray counter by pressing the RESET button. (2)
-
The LED will flash red once and then green once after
-
the reset button has been pressed.
Battery Replacement
-
START STOP SPRAY OFF DAYS
Turn the unit off using the ON/OFF button. (7)
-
10.00
NB. The batteries must be replaced within 60 seconds to
MO TU WE TH FR SA SU
ensure that the current programme settings are retained.
Replace the used batteries with the new set
-
START STOP SPRAY OFF DAYS Turn on the unit using the ON/OFF button. (7)
-
10.02
NB. The LED will flash red 4 times and a test spray will follow
MO TU WE TH FR SA SU
Take care to ensure that you are not sprayed in the face.
If a manual test spray is required, use the key to activate
-
the exterior test spray button (8) as shown in fig 1
START STOP SPRAY OFF DAYS
14.00
MO TU WE TH FR SA SU
START STOP SPRAY OFF DAYS
14.02
MO TU WE TH FR SA SU
STOP SPRAY OFF DAYS START STOP SPRAY OFF DAYS
16 17
WE TH FR SA SU MO TU WE TH FR SA SU
STOP SPRAY OFF DAYS START STOP SPRAY OFF DAYS
WE TH FR SA SU MO TU WE TH FR SA SU
STOP SPRAY OFF DAYS START STOP SPRAY OFF DAYS
P
WE TH FR SA SU MO TU WE TH FR SA SU
www.merida.eu
