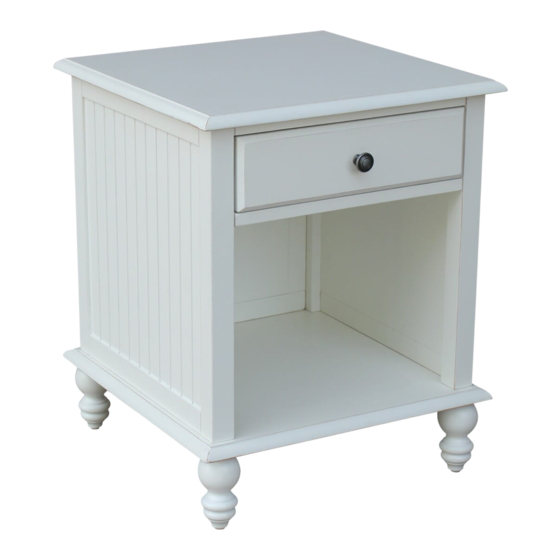

- Page 1 ASSEMBLY INSTRUCTIONS Description : COTTAGE END TABLE Item No. : OT-20E ITEM NO.: OT-20E Printed in Vietnam REVISED OCT 09, 2017 - 1 -...
- Page 2 BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. All parts were checked prior to packaging to insure quality. Prior to beginning assembly, however, make sure all parts and hardware are included and free of obvious defect.
- Page 3 PART LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following parts: Description Sketch Description Sketch Back panel Side panel Bottom frame (L-R) HARDWARE LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have all of the following hardware: Description Sketch...
- Page 4 STEP 1 Attach top (A) to back panel (B) with bolts (3), and washers (4) and (5) as shown below. Tighten with Allen key (6). STEP 2 Attach side panels (C) to top (A) with bolts (3), and washers (4) and (5) as shown below. Tighten with Allen key (6).
- Page 5 STEP 3 Attach bottom frame (D) to side panels (C) and back panel (B) with bolts (3), and washers (4) and (5) as shown below. Tighten with Allen key (6). STEP 3 STEP 4 Attach legs (E) to the unit by screwing them into bottom frame (D), as shown below. ITEM NO.: OT-20E Printed in Vietnam REVISED OCT 09, 2017...
- Page 6 STEP 5 Attach knob (1) to front of drawer with pan head screw (2) as shown below. Tighten with a screwdriver. ITEM NO.: OT-20E Printed in Vietnam REVISED OCT 09, 2017 - 6 -...
