Digital Check TellerScan TS500 TTP2 Easy Installation Manual

What's Included
▪ TellerScan Teller Transaction Printer (TTP2)
▪ Jumper cables:
USB 2.0 jumper cable
Power jumper cable
Printer Setup

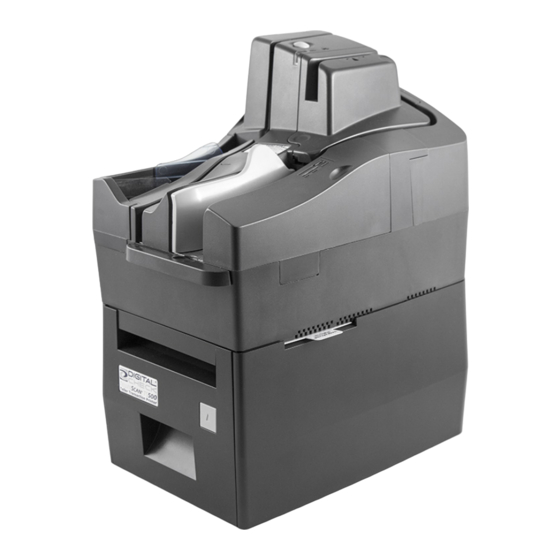

● Set the TS500 check scanner on the printer
as shown. The scanner simply sits on top of the
printer platform and after it has been aligned, it
will remain secured on the platform.
TellerScan TS500 TTP2 Easy Installation Guide
®
Connect the USB and Power Cables
● Connect the TS500 scanner and the TTP2
printer to each other using the included USB
and power jumper cables.
● Connect the standard USB 2.0 cable
(included with the TellerScan TS500 scanner) to
the TS500 scanner, then to the PC.
● Connect the power supply (included with the
TellerScan TS500 scanner) to the TTP2 printer,
then into an outlet.
www.digitalcheck.com
Loading or Replacing the Paper Roll
● Pull out the printer tray and lift up on printer
cover to access the internal paper roll housing.
Place the roll into the printer and unroll the
paper in the "underhand" method as shown.
Rev 113015
