Schumacher Electric SP-10 Operating Instructions

Portable Solar Powerstation (Model SP-10)
The SP-10 is a multi-function solar charger with a built-in high-capacity
lithium-ion rechargeable battery. It charges automatically in sunlight or
via USB device. At night, it utilizes the stored charge from the internal
battery. It's great for mobile phones, digital cameras and other digital
products.

SAFEGUARDS

• Charge the internal battery before use.
• Do not use the solar panel in rainy weather.
• Do not use sharp objects to scrape the surface of the solar panel.
• Place the solar panel upward toward the sunlight when charging.
• Use only adapters recommended by the manufacturer.
• For best performance, keep the surface of the solar panel clean.
OPERATING INSTRUCTIONS
IMPORTANT: To improve the efficiency of the internal battery, the solar
panel MUST be charged and discharged at least twice before use.

Charging the Internal Battery

There are two ways to charge the internal battery:
1. Place the solar panel in direct sun. The RED (charging) LED will
illuminate. When fully charged, the LED changes to GREEN.
2. Connect the solar panel to a USB charging port. The RED
LED will illuminate. When the battery is full charged, the LED
changes to GREEN.
NOTE: For both charging methods, the charger will automatically stop
when the internal battery is fully charged.

Using the Solar Panel

NOTE: Before using the solar charger, refer to the owner's manual for
the device you intend to charge and make sure the charging voltage
is the same as the output voltage from the solar panel.
Connect the USB plug and connect the other end with the corresponding
adapter to your product for charging.

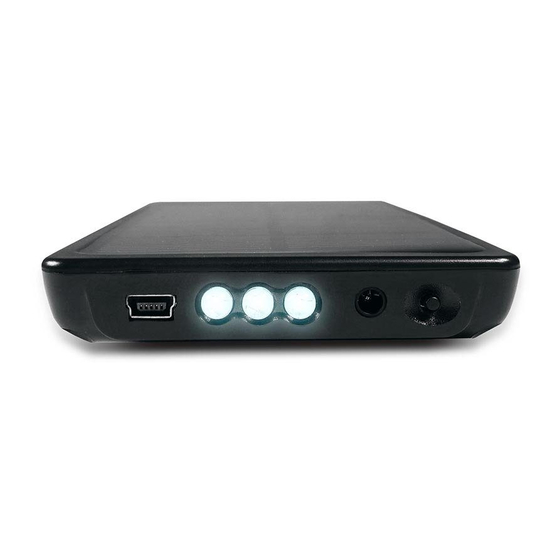

Using the Built-in Light

1. Press and hold the button on the front of the unit for 2 seconds.
The 3 LEDs will turn on and illuminate your work area.
2. Press the button to turn off the LEDs.
3. Charge the portable solar panel as soon as possible after
using the built-in light.

CLEANING AND STORAGE

• Unplug the solar charger before cleaning.
• Dust the device regularly. Clean the solar charger with a dry,
soft cloth.
• Do not immerse the solar charger in any liquid.
• Store the solar charger in a clean, dry location.

SPECIFICATIONS

Solar panel ........................................... Monocrystalline silicon panel
Output current..........................................................................100mA
Working voltage ...........................................................................5.5V
Internal battery type .......................................... Lithium-ion 2700mAh
Battery output .................................................................. 6V/250mAh
