MODEL / MODELO:
BE01257

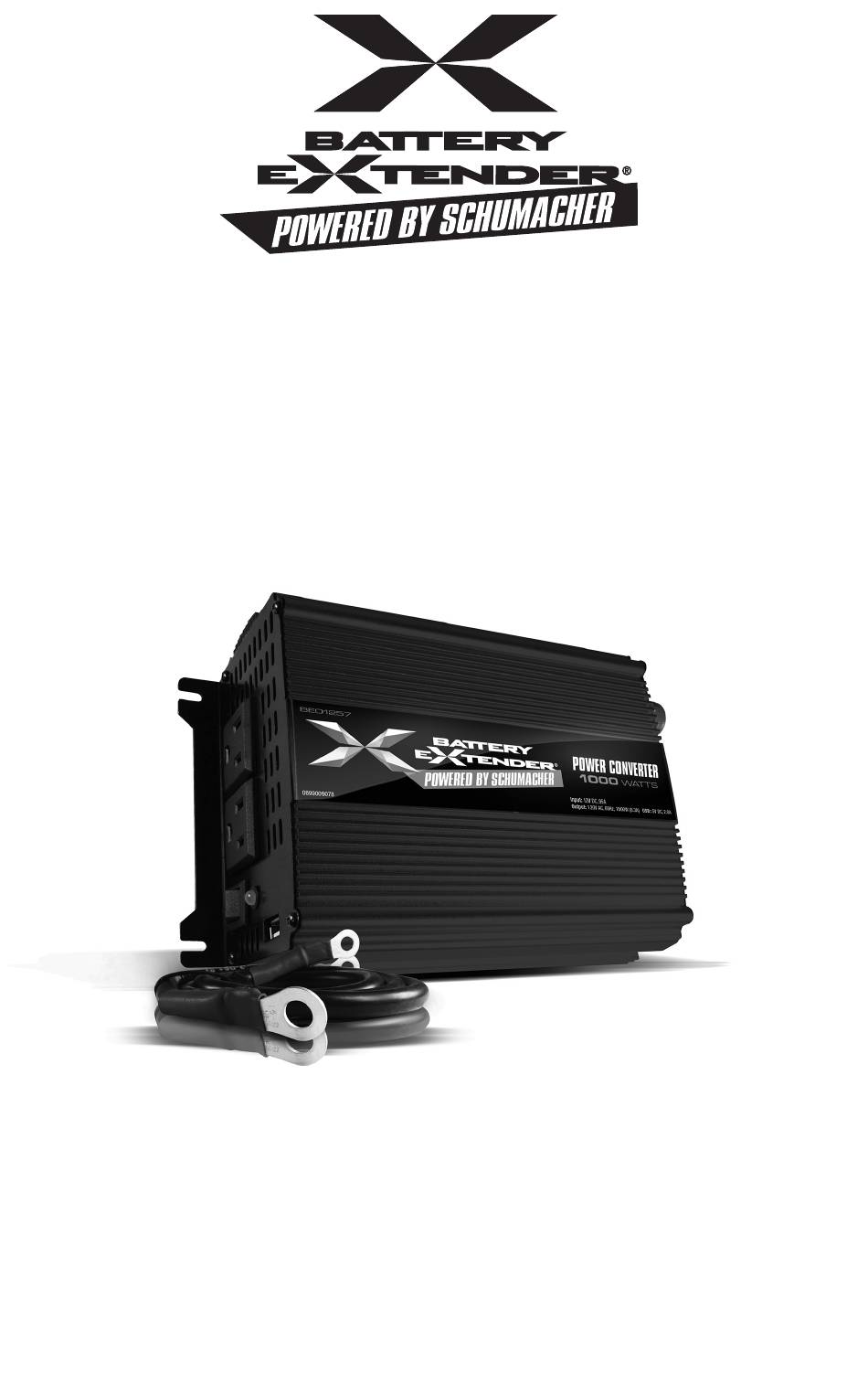

Power Converter
Converts 12V DC Battery Power to AC Household Power
Convertidor de Energía
Convierte la energía 12V CD de baterías a energía doméstica de CA
OWNERS MANUAL / MANUAL DEL USUARIO
PLEASE SAVE THIS OWNERS MANUAL AND READ BEFORE EACH USE.
This manual will explain how to use the converter safely and effectively. Please
read and follow these instructions and precautions carefully.
POR FAVOR CONSERVE ESTE MANUAL DEL USUARIO Y LEALO ANTES
DE CADA USO. En este manual le explica cómo utilizar el convertidor de manera
segura y confiable. Por favor, lea y siga las siguientes instrucciones y precauciones.
0099001708-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BATTERY EXTENDER BE01257 and is the answer not in the manual?

Questions and answers

Summary of Contents for Schumacher Electric BATTERY EXTENDER BE01257

  • Page 1 MODEL / MODELO: BE01257 Power Converter Converts 12V DC Battery Power to AC Household Power Convertidor de Energía Convierte la energía 12V CD de baterías a energía doméstica de CA OWNERS MANUAL / MANUAL DEL USUARIO PLEASE SAVE THIS OWNERS MANUAL AND READ BEFORE EACH USE. This manual will explain how to use the converter safely and effectively.
  • Page 2: Important Safety Instructions

    1. IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS. 1.1 SAVE THESE INSTRUCTIONS. 1.11 DO NOT operate the converter if you, the This manual contains important safety and converter, the device being operated or any operating instructions for converter model other surfaces that may come into contact BE01257.
  • Page 3: Before Using Your Converter

    3. CONVERTER LOCATION 3.1 Never place unit directly above battery; 3.2 Never allow battery acid to drip on unit gases from battery will corrode and when reading gravity or filling battery. damage the converter. 3.3 Do not operate converter in a closed-in area or restrict ventilation in any way.
  • Page 4 1. Switch mode power supplies Diagram A Diagram B 2. Linear power supplies 3. Class 2 transformers 4. Line filter capacitors 5. Shaded pole motors Modified sine waveform Pure sine waveform 6. Fan motors produced by converter typical of home AC outlet 7.
  • Page 5 8. BATTERY BANK INSTRUCTIONS BATTERY BANK ASSEMBLY 4. Test the voltages at the output cables, to make sure that the battery bank is WARNING: Read these safety correctly wired. instructions before assembling the battery bank. 5. If the voltage is higher than 13 volts, part of the battery bank is probably •...
  • Page 6: Power Source

    NOTE: If more than one device is to be 2. Try coiling the television power cord powered, start one device at a time, to and the input cables running from the avoid a power surge and overloading 12 volt power source to the converter. the converter.
  • Page 7: If The Converter's Fuse Blows

    4. The thermal resistor exceeds RESET: To reset after shutdown occurs, 80° C (176° F.) Allow the converter to switch the converter’s ON/OFF switch to the cool. Do not block the cooling slots or OFF (O) position. Check the source of the air flow over and through the converter.
  • Page 8: Specifications

    1-800-621-5485 Monday-Friday 7:00 to 5:00 For REPAIR OR RETURN, contact Customer Service at 1-800-621-5485. DO NOT SHIP UNIT until you receive a RETURN MERCHANDISE AUTHORIZATION (RMA) number from Customer Service at Schumacher Electric Corporation. • 8 •...
  • Page 9: Limited Warranty

    Manufacturer does not provide any warranty for any accessories used with this product that are not manufactured by Schumacher Electric Corporation and approved for use with this product. This Limited Warranty is void if the product is misused, subjected to careless handling, repaired, or modified by anyone other than Manufacturer or if this unit is resold through an unauthorized retailer.
  • Page 10: Instrucciones Importantes De Seguridad

    1. INSTRUCCIONES IMPORTANTES DE SEGURIDAD GUARDE ESTAS INSTRUCCIONES. 1.1 GUARDE ESTAS INSTRUCCIONES. 1.11 NO OPERE el convertidor si usted, el Este manual contiene instrucciones convertidor, el dispositivo a ser operado de seguridad y de funcionamiento o cualquier otra superficie que puede importantes para el modelo convertidor entrar en contacto con cualquier fuente BE01257.
  • Page 11: Antes De Usar Su Convertidor

    2.3 Use protección completo de los ojos y la un anillo al metal, lo que ocasionaría una ropa de protección cuando trabaje cerca quemadura grave. de baterías de plomo-ácido. Siempre 2.5 NUNCA fume o permita la presencia de cuente con la presencia de otra persona chispas o llamas en la proximidad de una para obtener ayuda.
  • Page 12: Para Sujetar El Convertidor A Una Superficie Plana

    Para calcular la carga continua: 5. Motores ligeros. Carga Continua = AMPS x 120 (Voltaje CA). 6. Motores de ventilador IMPORTANTE: Siempre corra una 7. Hornos de microondas prueba para establecer si el convertidor 8. Lámparas flourescentes y de alta operará...
  • Page 13 4. Acople el conector del anillo del cable CONVERTIDOR A UNA BATERÍA DE 12V de tierra al terminal de tierra del O UNA FUENTE DE ENERGÍA DE 12V convertidor. 1. Mantenga las manos, cabello, ropa y 5. Apriete la tuerca hexagonal que joyería alejados de las terminales de aflojó...
  • Page 14: Instrucciones De Operación

    CONEXIÓN DE LAS BATERÍAS Ejemplo: EN PARALELO 12V / 400 Ah † BANCO DE BATERÍAS 1. Primero conectar todos los terminales positivos entre sí. SALIDA 2. A continuación, conectar todos los a la terminal convertidor terminales negativos entre sí. NEGATIVO 3.
  • Page 15: Fuente De Energía

    1. Trate de alterar la posición del NOTA: Usted puede escuchar un sonido convertidor, los cables de la antena y de “zumbido” siendo emitido de sistemas el cable de corriente de la televisión. de sonido baratos cuando son operados Agregue un cable de extensión del con el convertidor.
  • Page 16: Si Se Quema El Fusible Del Convertidor

    12. SI SE QUEMA EL FUSIBLE DEL CONVERTIDOR Su convertidor de corriente está equipado inversa como un cortocircuito dentro del con un fusible, que no tendría que ser dispositivo o equipo siendo operados. reemplazado bajo condiciones normales Si el fusible se quema, lleve el convertidor de operación.
  • Page 17: Especificaciones

    15. ESPECIFICACIONES Tensión nominal de entrada ............... 12,8-13,2 V CC Tensión nominal de salida................110-125 V CA Frecuencia de salida ..................60 Hz±3 Hz Tensión de entrada de funcionamiento ............10,5-15,5 V CC Potencia de salida continua ................. Hasta 1000 W Sobretensiones de potencia de salida (0,1 segundos) ...........2000 W Forma de onda................Onda senoidal modificada Eficiencia máxima ......................
  • Page 18: Garantía Limitada

    El Fabricante no presta garantía por lo accesorios utilizados con este producto que no sean los fabricados por Schumacher Electric Corporation y que no estén aprobados para su uso con este producto. La presente Garantía Limitada será nula si el producto se utiliza en forma errónea, se trata de manera inadecuada, es reparado o modificado...
  • Page 19: Warranty Card / Tarjeta De Garantía

    ORIGINAL receipt because it will be required for any warranty claims. This warranty is not transferable. Send warranty card only. DO NOT SEND UNIT TO THIS ADDRESS FOR REPAIR. Mail this card to: Schumacher Electric Corporation 801 Business Center Drive Mount Prospect, IL 60056-2179 Name ______________________________________________________________...
