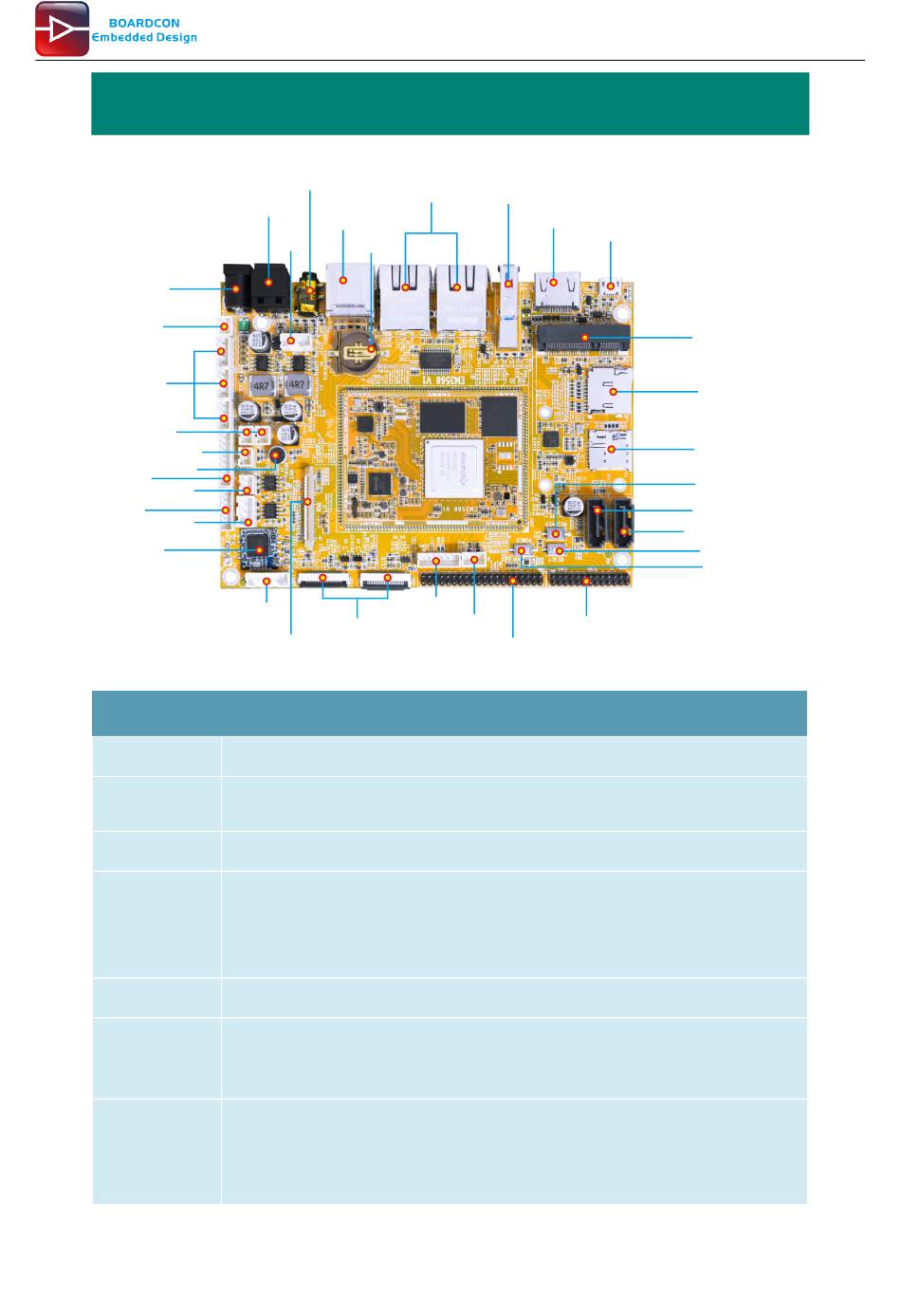

1 EM3568 Introduction

OPT
Power in
DC 12V
Power in
DC 12V
3x UART
SATA Power
Speaker
MIC
GPIO
CAN
SPI
RS485
WiFi&BT
SPI
LCD(RGB)
CPU
Rockchip RK3568 Quad-core Cortex-A55 @ up to 2.0 GHz
GPU
ARM Mali-G52 GPU with support for OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
NPU
0.8 TOPS
8GB eMMC flash (up to 128GB)
Storage
MicroSD card slot
2x SATA3.0 (SATA2 shared with PCIe2.0)
Power Supply
12V/3A DC input jack
1x USB OTG 2.0
USB
3x USB Host 2.0 (USB-AF or 4-pin connector)
1x USB 3.0
2x Gigabit Ethernet RJ45 ports via Realtek
2.4G WiFi (802.11b/g/n) with Bluetooth 4.0
Connectivity
PCIe socket with Nano SIM card port to support 4G modules (PCIe socket integrated
PCIe2.0 for WiFi Card)
Headphone
2x Gigabit
Ethernet
2x USB2.0
Host
USB
2.0
RTC
Key con
2x Camera
Specifications
Customize the embedded system based on
USB3.0
Host
USB
HDMI
OTG
Debug
eDP
LVDS/MIPI
RTL8211F-CG
controller
4
Your Idea
PCIe
4G/WiFi card
Micro SD
Nano SIM
Recover
SATA0
SATA2(optional)
Reset
Power
