USER'S MANUAL
01202-0-00_rev2021-11-30

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the tango ce and is the answer not in the manual?

Questions and answers

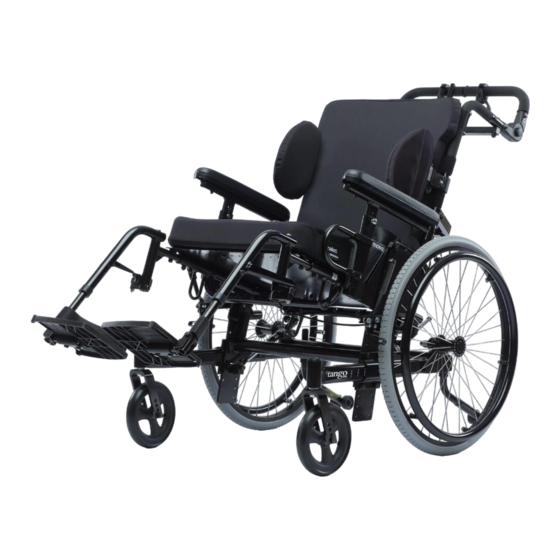

Summary of Contents for Orthofab tango ce

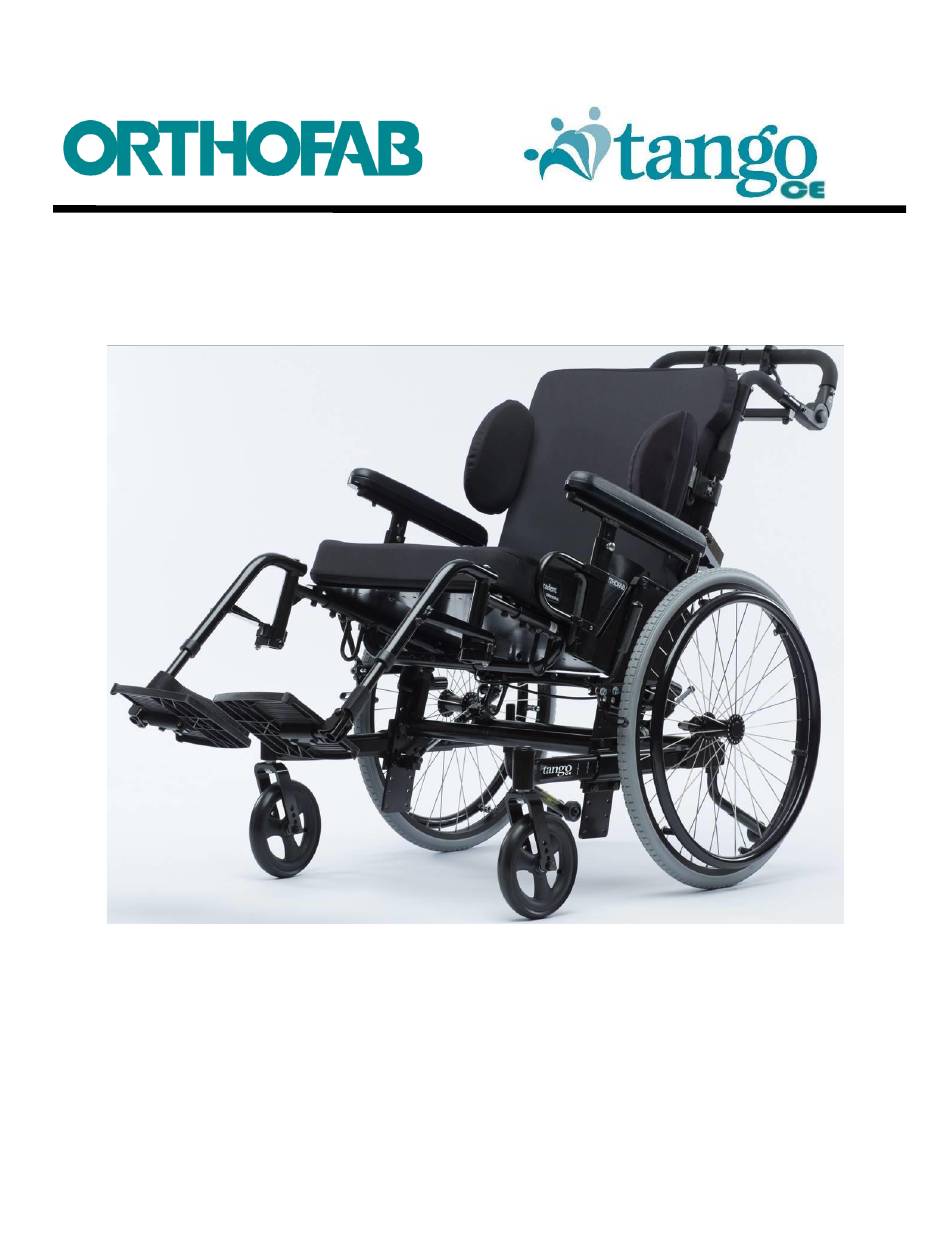

  • Page 1 USER'S MANUAL 01202-0-00_rev2021-11-30...
  • Page 2 Please give this manual to the user of this Tango CE tilt wheelchair. Please read the entire manual before using the Tango CE tilt wheelchair. Please refer to this manual as needed and pay close attention to the warnings until you are familiar with them.
  • Page 3 Additionally, damage caused by abuse, neglect, accidents or normal wear and tear are not covered by the warranty. This instruction manual is designed to help you use the Tango CE safely tilt wheelchair and effectively. It has information on safety, operation and adjustment.
  • Page 4: Table Of Contents

    TABLE OF CONTENTS SAFETY RULES ..............................6 GENERAL INFORMATION ..........................6 1.1.1 BEFORE YOU HIT THE ROAD ........................6 1.1.2 GETTING AROUND IN A WHEELCHAIR ....................7 1.1.3 CROSSING A SLOPE ..........................7 1.1.4 TRANSFERRING ............................8 1.1.5 MISCELLANEOUS HANDLING ........................9 1.1.6 CLEANING AND DISINFECTING ........................
  • Page 5 TABLE OF CONTENTS USE OF THE T-SHAPED ARM SUPPORTS......................47 USE OF LEG SUPPORT ASSEMBLIES ....................... 48 5.2.1 RETRACTING THE LEG SUPPORTS ......................48 5.2.2 Removing the leg support........................49 5.2.3 RAISING AND LOWERING THE LEG SUPPORT ELEVATOR ASSEMBLY ............ 50 Back support ..............................
  • Page 6: Safety Rules

    1. SAFETY RULES 1 SAFETY RULES 1.1 GENERAL INFORMATION (Applies to all wheelchairs) The driving settings should only be adjusted and/or modified by a health care professional or an authorized service technician. 1.1.1 BEFORE YOU HIT THE ROAD • Check the charge indicator on the control box to ensure that the batteries are sufficiently charged.
  • Page 7: Getting Around In A Wheelchair

    1. SAFETY RULES 1.1.2 GETTING AROUND IN A WHEELCHAIR • Avoid any impacts to the control box or joystick; • Avoid slippery (snow, ice, etc.) or uneven surfaces (unmanaged trails and tracks, construction sites, etc.). • Do not change direction abruptly at high speeds. •...
  • Page 8: Transferring

    1. SAFETY RULES • Restart slowly, without letting the wheelchair accelerate. • Do not approach a slope diagonally. • Climb and descend slopes in a straight line, directly along the slope's axis; This reduces the risk of tipping or falling. •...
  • Page 9: Miscellaneous Handling

    1. SAFETY RULES 1.1.5 MISCELLANEOUS HANDLING Do not charge the batteries in your bedroom. Charging the batteries may release harmful gases. • Never immerse your wheelchair in water. • Never store your wheelchair unattended. • Never leave your wheelchair in the rain. •...
  • Page 10 1. SAFETY RULES Special treatment: Any upholstery from which foam cannot be removed (back support, lower leg support, etc.). Disinfection by hand. First clean with a cloth and a cleaning agent, apply a disinfectant, wait the required time and then wipe dry. Not treatable: Electronic components (batteries, controllers, accumulator).
  • Page 11: Recommended Use

    2. RECOMMENDED USE 2 RECOMMENDED USE Tango tilt wheelchair models have several customization options to meet the occupant's specific and individual needs, while also making it easier for assistants and caregivers to handle the chair. To ensure the utmost comfort for our customers, all models are equipped with specialized posture components and provide all the mechanical functions to adjust these components.
  • Page 12: Specifications

    6, 7 or 8 in. semi-solid, high-density tires Rigid frame (non-folding) 8 in. air tires Adjustable centre of gravity (5 positions, 1 in. increments) Centre of gravity tilt (Tango CE) from 0° to 40° Rear wheels Seat 20, 22 or 24 in. semi-solid tires Reinforced spokes with 24 in.
  • Page 13: Installation / Adjustments

    Check that the locking mechanisms are secure before using the wheelchair. Adjustments to your Tango CE tilt wheelchair should only be performed by health care professionals. Improper adjustments can cause injury and/or damage to the occupant, the assistant, the tilt wheelchair, or the environment.
  • Page 14: Changing The Angle Of The Adjustable Angle Foot Support, Single And Full Width

    ADJUSTMENTS 4.1.2 CHANGING THE ANGLE OF THE ADJUSTABLE ANGLE FOOT SUPPORT, SINGLE AND FULL WIDTH 1 - Loosen the screws (A) with a 10 mm open-end wrench. 2 - Reposition the plates at the desired angle and firmly tighten the screws (A) (140 psi). 4.1.3 CHANGING THE POSITION (DEPTH) OF THE ADJUSTABLE ANGLE FOOT SUPPORT 1 - Unscrew the 2 Phillips screws (A) and remove the end cap (B).
  • Page 15: Two-Piece Full-Width Plate

    ADJUSTMENTS 4.1.4 TWO-PIECE FULL-WIDTH PLATE 1. For full-width plate, fold down the plate with the anchor rod (A) (see Figures 2-A and 2-B). Figure 2-A : Full-width plate Figure 2-B: Full-width plate 4.1.5 DEPTH ADJUSTMENT OF THE HEEL SUPPORT STRAP Pull on the velcro strip and adjust to the desired length.
  • Page 16: Adjusting The Flat Padded Lower Leg Support

    ADJUSTMENTS 4.1.6 ADJUSTING THE FLAT PADDED LOWER LEG SUPPORT HEIGHT 1 – Loosen the hexagon socket screw (A) with a 3/16 in. Allen wrench. 2 – Place the bracket (B) at the desired height and firmly tighten the screw (A). DEPTH 1 –...
  • Page 17: Adjusting The Small Flat Padded Lower Leg Support (14 In. Base)

    ADJUSTMENTS 4.1.7 ADJUSTING THE SMALL FLAT PADDED LOWER LEG SUPPORT (14 IN. BASE) The lower leg support can be adjusted in height, depth and width (see Figure 4-B). a) To adjust the height of the lower leg support: 1. Loosen the screw (A) with a 5 mm Allen key; 2.
  • Page 18: Angle-Adjustable Back Support

    4.2 ANGLE-ADJUSTABLE BACK SUPPORT 4.2.1 CHANGING BACK SUPPORT ANGLE Adjustments to your Tango CE tilt wheelchair should only be performed by health care professionals. Improper adjustments can cause injury and/or damage to the occupant, the assistant, the tilt wheelchair, or the environment.
  • Page 19: Adjusting Back Support Height

    4. Tighten the screw (A) and nut (B) on each back support post, followed by the circular support for the , or the belt attachment buckle if applicable. (See Figure 6 Tango CE and relevant section) 4.2.2 ADJUSTING BACK SUPPORT HEIGHT Loosen the screw (A) (7/16 in.
  • Page 20: Installing A Bolted Tension Bar With Head Support Anchor

    You can install a tension bar on the to accommodate a head support.To do this: Tango CE 1. Cut the rubber end of the back support posts to uncover their ends (see Figure 8-B). 2. With a 5/32 in. Allen wrench, tighten the screw (A) at each end of the tension bar to the end of the back support posts, which you just uncovered in step 1 (see Figure 8- 3.
  • Page 21 ADJUSTMENTS a) To attach an adjustable angle push bar to the back support posts: Cut at 1 ½ in. 1 in. mounting hole Figure 9-B: Attaching the push bar to the back support posts. 1. Cut the rubber at 1 ½ in. from the end of the back support post (see Figure 9- 2.
  • Page 22 ADJUSTMENTS Inc. all rights reserved...
  • Page 23 ADJUSTMENTS 1. Slide the tubes into each other until they reach the desired width (see Figure 9-B). 2. Insert the screw (A), washers (B) and nut (C) into the centre hole and firmly tighten (3/8 in. wrench and 5/32 in. hex key). c) Assembling the tilt mechanism handles (see Figure 9-D): BACK SUPPORT...
  • Page 24: Adding A Tension Bar With An Adjustable Push Bar

    ADJUSTMENTS 4.2.5 ADDING A TENSION BAR WITH AN ADJUSTABLE PUSH BAR You can add a tension bar with an adjustable push bar in order to install a head support anchor: Figure 9-E: Tension bar with adjustable angle handle. 1. Remove the adjustable angle handles by loosening the screws (A) and nuts (B) in Figure 9-B, using a 3/8 in.
  • Page 25: Seat

    The seat depth of the can be adjusted with the basic components, to 15, Tango CE 16, 17, 18 and 19 in. for a 15 to 19 in. seat structure, or to 19, 20, 21 and 22 in. for a 19 to 22 in. structure (see Figure 10).
  • Page 26: Height Adjustment

    (H5 in this example). Figure 11: Floor-to-seat height adjustment. The floor-to-seat height on the Tango CE tilt wheelchair can be adjusted in two (2) ways (see Figure 11-A and Table 1): 1. By adjusting the frame on the height adjustable interface over a 4 in. range (H1 to H5).
  • Page 27 ADJUSTMENTS When the seat height is adjusted, readjust the centre of gravity and the brakes. Adjusting floor-to-seat height can alter the tilt angle. Please refer to the following table for the available angles. OPTIONS FOR FLOOR-TO-SEAT HEIGHTS, WHEELS, AND TILT ANGLES Table 1: Tilt wheelchair configuration.
  • Page 28 ADJUSTMENTS Figure 11-A: Position of the rear wheel axle (drive). Inc. all rights reserved...
  • Page 29: Front Wheels

    ADJUSTMENTS Table 2: Tango CE rear wheel positions (15 in. to 19 in.) Table 3: Tango CE rear wheel positions (19 in. to 22 in.) FRONT WHEELS Always make sure the wheelchair is stable BEFORE using the maximum tilt setting. TEST the wheelchair BEFORE allowing the user to use it.
  • Page 30 Fork bracket Figure 12: Front wheel position. Adjustments to your Tango CE tilt wheelchair should only be performed by health care professionals. Improper adjustments can cause injury and/or damage to the occupant, the assistant, the tilt wheelchair, or the environment.
  • Page 31: Changing The Front Wheel Depth

    ADJUSTMENTS 4.4.1 CHANGING THE FRONT WHEEL DEPTH Changing the seat depth requires adjusting the front wheels. To do this: Fork bracket Grading according to seat depth 15 in. to 19 in. (The 15 in. and 16 in. depths are on the same spot) Grading according to seat depth 19 in.
  • Page 32: Changing The Front Wheel Model Or Height

    ADJUSTMENTS 4.4.2 CHANGING THE FRONT WHEEL MODEL OR HEIGHT 1. Remove the screw (A) and nut (B) (1/2 in. open-end wrenches) that hold the wheel to the fork (see Figure 14-A); 2. Remove the wheel from the fork; 3. Remove the spacers or washers from the wheel assembly; 4.
  • Page 33: Rear Wheels

    ADJUSTMENTS 4.5 REAR WHEELS 4.5.1 CHANGING THE WHEEL MODEL Figure 14-B: Threaded axle Figure 14-C: Quick release axle Changing the floor-to-seat height may involve changing the rear wheel diameter. To do this: a) THREADED AXLES: 1. To remove the wheels, loosen the screw (A) and nut (B), using a 3/4 in. open-end wrench (see Figure 14-B).
  • Page 34  1/64 in. Figure 15: Quick release axle: Adjustment. NOTE: The Tango CE can be fitted with 12 in. diameter wheels. See the section on this subject for instructions. Inc. all rights reserved...
  • Page 35: Adjusting The Centre Of Gravity (Rear Axle)

    ADJUSTMENTS 4.5.2 ADJUSTING THE CENTRE OF GRAVITY (rear axle) Adjustments to your Tango CE tilt wheelchair should only be performed by health care professionals. Improper adjustments can cause injury and/or damage to the occupant, the assistant, the tilt wheelchair, or the environment.
  • Page 36 ADJUSTMENTS As the wheel position increases (+0 to +5), the tilt wheelchair becomes more stable. As the wheel position decreases, the tilt wheelchair is easier to handle and less stable. The anti-tips should always be in the drive position (see Figure 24) to prevent accidents.
  • Page 37 ADJUSTMENTS To change the rear wheel position 1. Using a 7/16 in. open-end wrench (see Figure 17-A), loosen the screws (A) on each side of the wheelchair, without removing them. 2. Also, loosen the (4) screws (B) height adjustment interface support, without removing them, (see Figure 17-...
  • Page 38: Changing The Rear Wheel Width

    CHANGING THE REAR WHEEL WIDTH The width rear wheels can be reduced to improve accessibility to of the Tango CE the hand rims. However, reduced width may interfere with the arm support, depending on its height and the wheel diameter.
  • Page 39 +5 to ensure proper stability of the tilt wheelchair (see Table 1 for location on the graduated slider). The Tango CE can be fitted with 12 in. rear wheels. To do this, the rear wheel axle must be reversed. (See Figure 19) 1.
  • Page 40: Locking Brakes

    ADJUSTMENTS Figure 19: Installation of 12 in. wheels. LOCKING BRAKES 4.6.1 BRAKE POSITION ADJUSTMENT Brake adjustment is necessary depending on the level of tire wear or whenever the position of the rear wheels is changed. a) Routine adjustment (see Figures 20-A and B): Inc.
  • Page 41 ADJUSTMENTS Brake efficiency is optimum when there is an adjusted gap between ¼ and ½ in. between the tire and the brake brace when the brake is released. To adjust this gap, release the brake and, using a 13 mm open-end wrench, loosen the screw (A) on the brake bracket, then slide the brake support to a distance between ¼...
  • Page 42 ADJUSTMENTS Brake bracket ENGAGED BRAKE (activated) Brake bracket Brake brace Figure 20-B: Brake position adjustment (engaged brake). b) Adjusting the brakes in relation to the 20, 22 or 24 in. rear wheel position: When you have set the rear wheel position, (Section 4.6.2), you must reposition the brake support.
  • Page 43: Changing Or Installing A Brake Lever Extension

    ADJUSTMENTS c) Adjusting the brakes on 12 in. wheels. When the unit has 12 in. wheels, the brakes are on the back and can be adjusted as follows (see Figure 21): The brake rod (F) can be raised or lowered by loosening the two screws (A) and setting a distance of approximately 3/16 to 1/4 in.
  • Page 44: Changing The Brake Lever Angle

    ADJUSTMENTS 2. Place the spring (D) provided with the extension (F) into hole (B). 3. Insert the pin (C) into the hole (B) by compressing the spring (D); 4. While holding the pin (C) inside the hole (B), slide the extension (F) so that it covers the entire assembly.
  • Page 45: Height Adjustment

    ADJUSTMENTS 4.7.1 HEIGHT ADJUSTMENT Adjustments to your Tango CE tilt wheelchair should only be performed by health care professionals. Improper adjustments can cause injury and/or damage to the occupant, the assistant, the tilt wheelchair, or the environment. A clearance of approximately 1 3/4 in. between the anti-tip rollers and the ground must always be maintained.
  • Page 46 ADJUSTMENTS If the floor-to-seat height or the rear wheel size has been changed, the anti-tips must be adjusted to an approximate clearance of 1 3/4 in. between the bottom of the roller and the ground. Figure 25: Clearance between the anti-tips and the ground. For your safety, the anti-tips must be properly engaged in and the spring-loaded buttons must protrude from the adjustment holes.
  • Page 47: Use

    5 USE 5 USE USE OF THE T-SHAPED ARM SUPPORTS Figure 26: T-shaped arm support adjustment. a) The height of the T-shaped arm support can be adjusted in 1 in. increments. Hold down button (B) (see Figure 26), then, with the other hand, raise or lower the telescopic stand to the desired height.
  • Page 48: Use Of Leg Support Assemblies

    5 USE USE OF LEG SUPPORT ASSEMBLIES 5.2.1 RETRACTING THE LEG SUPPORTS FORWARD POSITION Figure 27-A: Retracting, wheels in forward position. NOTE : It is best to fold down the foot support before retracting the leg support. (see Figure 27-B). NOTE : Always check that the front wheels are in forward position (see Figure 27-A).
  • Page 49: Removing The Leg Support

    5 USE Figure 27-C: Retracting leg supports 5.2.2 Removing the leg support • All leg supports are removable; 1. To do this, you must first retract the foot support; 2. Next, grasp the leg support at the top and lift it off the base (E) (see Figure 27-C);...
  • Page 50: Raising And Lowering The Leg Support Elevator Assembly

    5 USE 5.2.3 RAISING AND LOWERING THE LEG SUPPORT ELEVATOR ASSEMBLY 1 – To raise the leg support, grasp the tube (A) and move upwards. The leg support will lock in the desired position, or users can simply push their leg on the plate to raise the leg support. 2 –...
  • Page 51: Back Support

    5 USE 5.3 Back support 5.3.1 RECLINING BACK SUPPORT HANDLE FOR OPERATING THE GAS CYLINDER RECLINING BACK SUPPORT Figure 29-B: Handle installed on the tension bar. Figure 29-A: Reclining back support handle with gas cylinder. To recline the back support, press the handle at the rear of the back support on the back support post (with a swivel back bar) and push down (see Figure 29).
  • Page 52: Height And Depth Adjustable Head Support

    Figure 30: Height and depth adjustable head support TILTING THE SEAT The Tango CE is equipped with a seat tilt. This mechanism allows you to tilt the entire seat backwards or forwards. • Make sure to engage the locking brakes before operating the tilt mechanism.
  • Page 53: Backward Tilt

    3. Release the handles when the selected position is reached; Figure 30-A: Tango CE seat tilt. When tilting the seat, the wheelchair may become unstable in some configurations. Do a test run before leaving a person in a wheelchair with the seat tipped over.
  • Page 54: Rear Wheels

    5 USE REAR WHEELS REMOVING – INSTALLING 5.5.1 If your Tango CE has a quick-release wheel axle, you can remove the wheels for easier transport. This should be done when the wheelchair is unoccupied. To remove the wheel: 1. Hold down button (A) and pull the wheel toward you by holding it by the centre (see Figure 31);...
  • Page 55: Locking Brakes

    5 USE LOCKING BRAKES 5.6.1 ENGAGING - RELEASING THE BRAKES Front side Front side wheelchair wheelchair Figure 32-A: Engaged brake (active). Figure 32-B: Released brake (inactive). To engage the brake, apply forward pressure to the lever (see Figure 32-A); To release the brake, pull the brake lever toward you (see Figure 32-B). NOTE: Inadequate tire pressure will render the brake ineffective.
  • Page 56 5 USE a) To extend the lever, pull up on the end (see Figure 33-A); b) To retract the lever, press down on the end (see Figure 33-B). Figure 33-A: Extended handle. Figure 33-B: Retracted handle. Inc. all rights reserved...
  • Page 57: In. Wheel Brakes

    5 USE 5.6.3 12 IN. WHEEL BRAKES 1. The 12 in. wheel brake can be activated by the assistant at the back of the wheelchair, as shown in Figure 34. 2. Push down with one hand to release the brakes, then pull up to lock the wheels. 3.
  • Page 58: Reinstalling

    5 USE Never use your wheelchair alone if the anti-tip devices are not in the drive position. 5.7.3 REINSTALLING 1. To reinstall the anti-tips, insert the tube into its housing and press lightly. There should be a small click, indicating that the anti-tip is in place (see Figure 24). 2.
  • Page 59: Anchor Points For Specialized Transit

    ANCHOR POINTS FOR SPECIALIZED TRANSIT 5.9.1 INSTRUCTIONS FOR SPECIALIZED TRANSIT • The Tango CE complies with BNQ 6645-001 (2020) and ISO 7176-19 standards. This model was subjected to frontal impact testing when used as a forward- facing seat in a motor vehicle.
  • Page 60 • Attach tie-down straps to the vehicle floor anchors as specified by the anchoring system manufacturer. • Attach the four tie-down hooks at the following locations: The Tango CE has 4 anchor points (see Figure 36). Rear anchor rings Front anchor rings Figure 36: Location of anchor rings for specialized transit.
  • Page 61: Tips For Transporting The Wheelchair With Its User

    5 USE Never use anything other than these anchor points for transport. • The brakes must be engaged. Never leave the wheelchair in freewheel mode during transport. • The carrier should provide you with a seat belt that is attached to the vehicle. 5.9.1 TIPS FOR TRANSPORTING THE WHEELCHAIR WITH ITS USER Pelvic positioning belts may be used in a moving vehicle in...
  • Page 62 • Removable components and/or accessories should be secured independently. • Postural components should NOT be used as a restraint system. • The Tango CE wheelchair weighs 39 kg in its test configuration. Inc. all rights reserved...
  • Page 63 5 USE Accommodation assessment of wheelchair according to Annex D of ISO 7176-19 Criteria Assessment Ease of belt fitting Excellent Quality of belt fit Excellent Section 2 – Instructions – Using the wheelchair as a seat in a motor vehicle Anchor points Use the anchor points on the wheelchair, following the directions provided in this note.
  • Page 64 5 USE The belt should pass over the occupant's body and not over parts of the wheelchair, such as arm supports or wheels. The shoulder belt should fit snugly over the body through the midpoint of the shoulder and across the centre of the abdomen. Here are some tips for situations where assistants must transport an occupant: •...
  • Page 65 5 USE • Do not lift the wheelchair by its detachable components (arm supports, leg supports, etc.). Inc. all rights reserved...
  • Page 66: Maintenance

    6 MAINTENANCE 6 MAINTENANCE MAINTENANCE PROCEDURE Like any other vehicle, your wheelchair needs maintenance to operate safely and efficiently. Routine maintenance will increase your wheelchair's lifespan and efficiency. Take your chair to a qualified dealer or authorized service centre once a year for thorough inspection and maintenance.
  • Page 67 6 MAINTENANCE The recommended air pressure will usually be marked on one side of the tire. However, if necessary, you can refer to the following table: 20 in. standard tire pressure 65 psi 22 in. standard tire pressure 65 psi 24 in.
  • Page 68: Troubleshooting Guide

    7 TROUBLESHOOTING GUIDE 7 TROUBLESHOOTING GUIDE Wheelchai Wheelchair Wheelchair Front Noise or SOLUTIONS r pulls to pulls to the is difficult to wheels squeaking the right left propel oscillate Check tire air pressure Check the tightness of the screws and nuts Check that both front wheels are touching the ground at the same time Check the tightness of the spokes...
  • Page 69: Warranty

    8 WARRANTY 8 WARRANTY guarantees its Tango CE tilt wheelchair against any manufacturing defect for RTHOFAB a period of five (5) years on the units and components from the date of possession by the insured person. The warranty applies to units, components, parts, and workmanship in the event of breakage or malfunction due to a defect.
  • Page 70 8 WARRANTY This is provided in lieu of any other written, implied, or statutory warranty. ORTHOFAB’s liability is limited to the repair or replacement of any part or component as set forth above. Exclusions and limitations The above warranty does not apply to products that have been subject to negligence or accident, faulty use, maintenance or storage, or improper use or service.
  • Page 71 8 WARRANTY The warranty shall be limited to the repair and, at ORTHOFAB's absolute discretion, the replacement of defective material as provided herein. Except for the warranties set forth herein, O makes no express or implied warranty, statutory or contractual,...
  • Page 72: Authorized Centres

    9 AUTHORIZED CENTRES AUTHORIZED CENTRES Technical Aids Services Addresses CIUSSS du Bas-Saint-Laurent 800, avenue Sanatorium 800, avenue Sanatorium Mont-Joli (Québec) G5H 3L6 Mont-Joli (Québec) G5H 3L6 CIUSSS du Saguenay-Lac-Saint-Jean 2230, rue de l'Hôpital 2230, rue de l'Hôpital Jonquière (Québec) G7X 7X2 Jonquière (Québec) G7X 7X2 CIUSSS de la Capitale-Nationale Site François Charron / section adultes...
  • Page 73 9 AUTHORIZED CENTRES CISSS de l'Outaouais 135, boulevard Saint-Raymond 135, boulevard Saint-Raymond Gatineau (Québec) J8Y 6X7 Gatineau (Québec) J8Y 6X7 CISSS de l'Abitibi-Témiscamingue 622, 4e Rue Ouest CH SAT Amos Amos (Québec) J9T 2S2 622, 4e Rue Ouest 7, 9e Rue Amos (Québec) J9T 2S2 Rouyn-Noranda (Québec) J9X 2A9 CISSS de l'Abitibi-Témiscamingue...
  • Page 74 Inc. all rights reserved...
  • Page 75 Customer Service Centre 2160, De Celles Québec (Québec) G2C 1X8 (418) 847-5225 (800) 463-5293 Tango CE 01202-0-00_rev.20211130 Inc. all rights reserved...
