Orthofab Tango User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

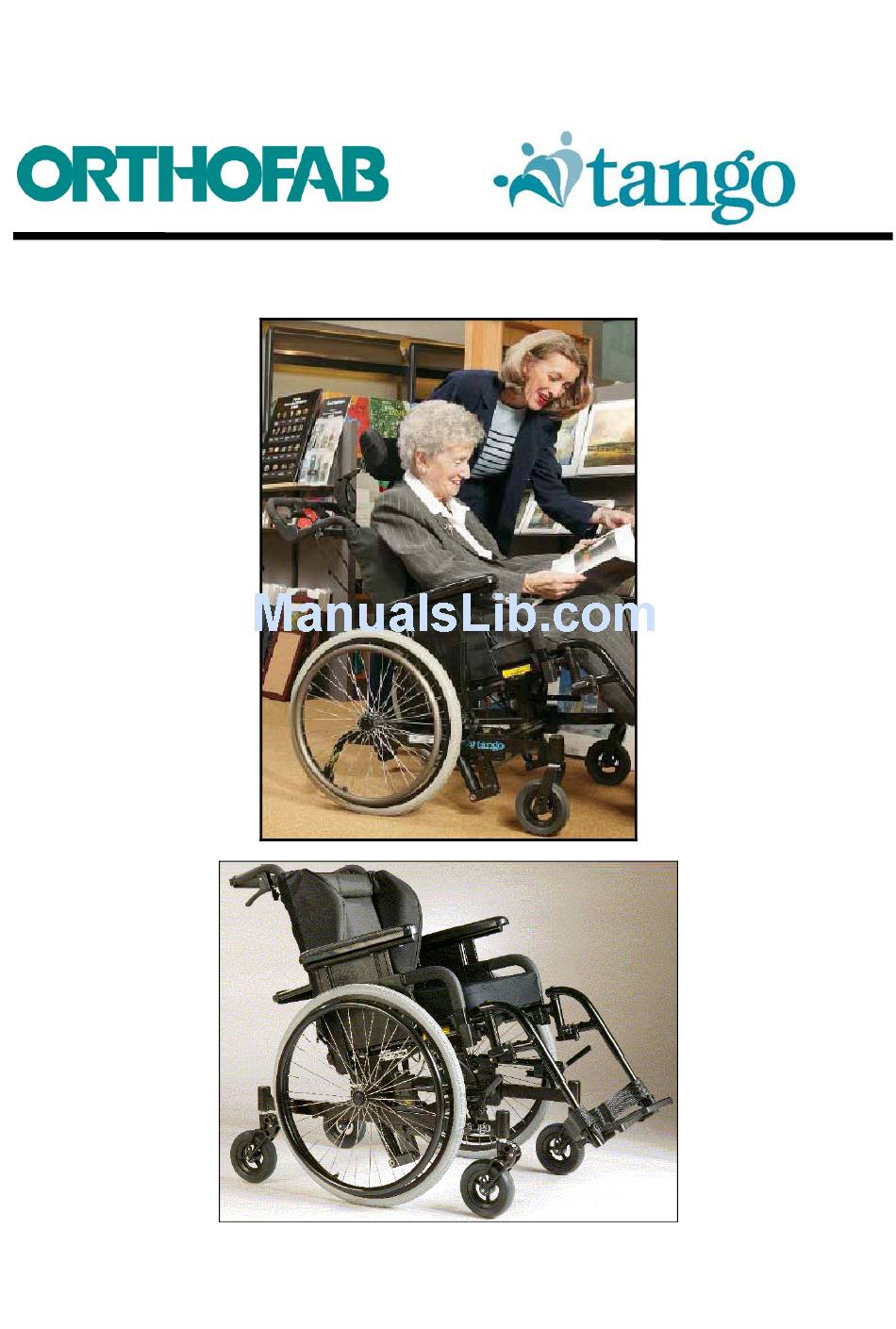

USER MANUAL
July 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tango and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Orthofab Tango

Summary of Contents for Orthofab Tango

  • Page 1 USER MANUAL July 2008...
  • Page 2 Please give this manual to the owner of the wheelchair. Please read this manual in it entirety before using your wheelchair for the first time. Read this manual until it becomes familiar and pay close attention to the warnings. If you have any questions about non-covered subjects in this manual, please consult a technician in an authorized service center or contact our customer service at: 1-(418)-847-5225 Center:...
  • Page 3 is proud to count you among its customers and thanks you for having chosen one of its products. All the products manufactured by respect or exceed the highest standards of quality and safety currently in force in the industry. personnel is guided by the desire to satisfy customers expectations.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS SAFETY REQUIREMENTS ................. 6 SAFETY REQUIREMENTS ................. 6 1.1.1 BEFORE TAKING THE ROAD ......................6 1.1.2 MOVING WITH THE WHEELCHAIR ....................7 1.1.3 TO CARRY OUT TRANSFERT ....................... 7 1.1.4 VARIOUS HANDLING OPERATIONS..................... 8 1.1.5 CLEANING AND MAINTENANCE OF COMPONENTS ..............9 WHAT ABOUT THE ELECTROMAGNETIC ENERGY ........
  • Page 5 TABLE OF CONTENTS 4.9.5 TO INSTALL 12 INCHES REAR WHEELS..................50 4.10 PARKING BRAKES ..................52 4.10.1 TO ADJUST THE POSITION OF THE PARKING BRAKE (Pushing or pulling brake type)..52 4.10.2 TO CHANGE THE BRAKE LEVERS .....................56 4.10.3 TO CHANGE THE ANGLE OF THE BRAKE LEVER (pushing brake type only) ......58 4.11 ANTI-TIPPERS ....................

  • Page 6: Safety Requirements

    1. SAFETY REQUIREMENTS The adjustments of your wheelchair must be made by a health care professional or a technician in an authorized service center. 1 SAFETY REQUIREMENTS 1.1 SAFETY REQUIREMENTS (Applies to all wheelchairs) 1.1.1 BEFORE TAKING THE ROAD • Always put the key switch OFF before getting on or off your vehicle. •...

  • Page 7: Moving With The Wheelchair

    1. SAFETY REQUIREMENTS 1.1.2 MOVING WITH THE WHEELCHAIR • Avoid any shock to the joystick box or the joystick itself. • Avoid slippery surfaces (snow, ice, etc). • Do not change direction abruptly at high speed. • Do not use your wheelchair on expressways or streets with intense car circulation. •...

  • Page 8: Various Handling Operations

    1. SAFETY REQUIREMENTS 1.1.4 VARIOUS HANDLING OPERATIONS Never try to recharge the batteries in your bedroom while you sleep. During recharge, batteries can produce a harmful gas who can cause you health problem. • Do not immerse your wheelchair, it could cause a dangerous electrical problem. •...

  • Page 9: Cleaning And Maintenance Of Components

    1. SAFETY REQUIREMENTS 1.1.5 CLEANING AND MAINTENANCE OF COMPONENTS • Clean as soon as possible your joystick box once it been soiled. • Use a soft rag and a diluted soft soap. • Do not use detergent based on alcohol or thinner. •...

  • Page 10: Caution

    1. SAFETY REQUIREMENTS 1.2.1 CAUTION Waves emitted by : • Radio and television stations; • Amateur radio; • Radio transmitters and receivers; • Cellular phones; • Computers laptop. CAN AFFECT THE CORRECT FUNCTIONALITY OF MOTORIZED WHEELCHAIR. 1.2.2 USING TRANSMITTERS AND RECEIVERS •...

  • Page 11: Recommended Use

    2. RECOMMENDED USE 2 RECOMMENDED USE manual tilt wheelchair offers all the mechanical characteristics and necessary functions for easy installation and adjustment of seating products; its structural concept allows assembly of specialized posture components. The harmonious integration of these characteristics allows you to increase the propulsion function of your client.

  • Page 12: Specifications

    3 SPECIFICATIONS 3 SPECIFICATIONS Dimensions • Note: The weight does not include rear wheels and the footrests. Weight: 38 lbs* • Overall length: with a 20 " wheel = 27 " to 33 " • Note: The overall length is measured without the footrest, with a 22 "...

  • Page 13: Setup Instructions

    4 SETUP INSTRUCTIONS 4 SETUP INSTRUCTIONS After having carried out an adjustment and before using the wheelchair, make sure that all hardware is tight. Make sure that all functions are secure before using the wheelchair. The adjustments of your wheelchair must be made by a health care professional.

  • Page 14: Changing Footplate Angle

    4 SETUP INSTRUCTIONS 4.1.2 CHANGING FOOTPLATE ANGLE 1. Loosen screw (B) using a 10 mm key; 2. Adjust the footplate at the needed angle; 3. Tighten screw (B) firmly (tighten at 140 Pounds/inch). COMPOSITE FOOTPLATE INSERTION GROOVE Aluminum footplate Figure 2 : Changing footplate angle. 4.1.3 CHANGING POSITION (DEPTH) OF THE COMPOSITE FOOTPLATE 1.

  • Page 15: Changing Calf Pad Height

    4 SETUP INSTRUCTIONS 4.1.4 CHANGING CALF PAD HEIGHT NOTE: The calf pad is adjustable in height, depth and width (see; figure 3). a) To adjust calf pad height: 1. Loosen screw (A) using a 5 mm Allen key; 2. Slide support (B) until you reach the needed position; 3.

  • Page 16: Adjustable «U» Shape Armrest Height

    4 SETUP INSTRUCTIONS 4.2 ADJUSTABLE «U» SHAPE ARMREST HEIGHT 4.2.1 TO PROHIBIT REMOVING THE ARMREST The (A) screw located at the base of the armrest, gives the possibility of installing in a permanent way the armrest to the wheelchair. This removes the "DETACHABLE" function of the armrest while preserving the swingaway possibility.

  • Page 17: Telescopic Armrest «T» Shape

    4 SETUP INSTRUCTIONS 4.3 TELESCOPIC ARMREST «T» SHAPE 4.3.1 TO LIMIT THE TELESCOPIC ARMREST HEIGHT ADJUSTMENT Figure 5: Armrest height adjustment limitation. It is possible to limit the telescopic armrest height adjustment. You just have to move the (2) limitation blocks, using a 5/32” Allen key and tighten them at the needed position (see;...

  • Page 18: Dynamic Backrest

    4 SETUP INSTRUCTIONS 4.4 DYNAMIC BACKREST 4.4.1 DYNAMIC BACKREST INSTALLATION The adjustments of your wheelchair must be made by a health care professional. Inadequate adjustments can cause wounds and/or damage to the user, the caregiver, the wheelchair or the environment. POSITION ANGLE (std) 90°...
  • Page 19 4 SETUP INSTRUCTIONS Figure 6-B: Dynamic backrest installation on the wheelchair. 1. Determine at which angle the backrest should be installed. 2. Take the backrest structure tubing (G) and insert the compression piston (D) equal to the oblong hole in the same way as shown at figure 6-B. The compression piston (D) should be sprayed with grease before insertion.

  • Page 20: Dynamic Backrest Adjustment

    4 SETUP INSTRUCTIONS 6. Adjust the backrest structure tubing (G) at the desired angle and once the (C) nylon washers and the holes in the backrest structure tubing (G) will be all aligned, insert the full threaded (A) screw and tighten the (B) nut, using two 7/16" key (see; the note at step 4, in reference to know about the tightening force to use).

  • Page 21: Adjustable Backrest

    4 SETUP INSTRUCTIONS 4.5 ADJUSTABLE BACKREST 4.5.1 CHANGING THE BACKREST ANGLE The adjustments of your wheelchair must be made by a health care professional. Inadequate adjustments can cause wounds and/or damage to the user, the caregiver, the wheelchair or the environment. POSITION ANGLE UPPER ROW HOLES o (std)
  • Page 22 4 SETUP INSTRUCTIONS To adjust the backrest angle (see: figure 7-A): 1. Unscrew (B) nut (using a 7/16" wrench) do this on each side of the backrest structure; 2. Position yourself behind the backrest, and take off the (A) screw on each side by pushing lightly on the backrest to help.

  • Page 23: Changing The Backrest Height

    4 SETUP INSTRUCTIONS 4.5.2 CHANGING THE BACKREST HEIGHT To change the backrest height, unscrew the (A) screw (using a 7/16" wrench) located on each backrest structure. Choose the height by placing the threaded hole on the backrest post in line with one of the 5 holes (H1 to H5) on the backrest structure tubing and then screw back the (A) screw in position.

  • Page 24: Stabilizer Bar With Headrest Support

    4 SETUP INSTRUCTIONS 4.5.3 STABILIZER BAR WITH HEADREST SUPPORT For a better comfort, it is possible to put a headrest on the wheelchair, to do this : 1. Cut out the end of the rubber handles on the backrest handle; 2.

  • Page 25: Stabilizer Bar With Headrest Support And Adjustable Angle Push Handle

    4 SETUP INSTRUCTIONS 4.5.4 STABILIZER BAR WITH HEADREST SUPPORT AND ADJUSTABLE ANGLE PUSH HANDLE 1. To install a cross bar with a headrest support; unscrew and remove on each side the (C) screw and the (E) nut, using a 5/32" Allen key and a 3/8" wrench, make sure to keep the (2) (D) washers.

  • Page 26: Adjustable Angle Push Handle

    4 SETUP INSTRUCTIONS 4.5.5 ADJUSTABLE ANGLE PUSH HANDLE Figure 10-A : Adjustable angle push handle. a) Width adjustment (see; figure 10-B.1) : 1. Insert the tubing one into the other and slide until you will reach the needed width. 2. Use a Phillips screwdriver insert in the middle hole and tighten (A) screw, (B) washers and (C) nut firmly.
  • Page 27 4 SETUP INSTRUCTIONS Cut 1½" Fixation hole at 1" INSERTION PART OF THE ADJUSTABLE ANGLE PUSH HANDLE. Figure 10-B.2 : Backrest handle and adjustable angle push handle assembly. c) Handle assembly (see; figure 10-C) : 1. Remove the handles from the backrest post or from the cross bar and reinstall them on the adjustable angle push handle;...

  • Page 28: Seating Adjustments

    4 SETUP INSTRUCTIONS 4.6 SEATING ADJUSTMENTS 4.6.1 CHANGING SEAT DEPTH seat depth can be easily adjusted, using the same components found on the wheelchair to 16, 17, 18 and 19 inches or 19, 20, 21 and 22 inches. (see; figure 11). To do it : 1.

  • Page 29: Changing Seat Height

    4 SETUP INSTRUCTIONS 4.6.2 CHANGING SEAT HEIGHT The adjustments of your wheelchair must be made by a health care professional. Inadequate adjustments can cause wounds and/or damage to the user, the caregiver, the wheelchair or the environment. ADJUSTABLE HEIGHT INTERFACE BOLTS FRAME Figure 12 : Seat to floor height adjustment.
  • Page 30 4 SETUP INSTRUCTIONS When the seat to floor height is modified, it is always necessary to proceed to a readjustment of the center of gravity and brakes. The change in seat to floor height can modify the tilt angle, refer to the following table to identify the angle range available.
  • Page 31 4 SETUP INSTRUCTIONS MID-WHEEL PROPULSION CONFIGURATION WITH SEAT DEPTH 16" to 19" POSSIBLE CHOICES OF SEAT TO FLOOR HEIGHT, WHEELS AND TILT ANGLES Table 3: Mid-wheel propulsion configuration. ADJUSTABLE HEIGHT INTERFACE BOLTS FRAME Figure 13 : Seat to floor height adjustment on a mid-wheel propulsion wheelchair. NOTE: 1- For the mid-wheel configuration, please follow the same procedure as per the standard frame.

  • Page 32: Maximum Tilt Angle Adjustment

    4 SETUP INSTRUCTIONS 4.6.3 MAXIMUM TILT ANGLE ADJUSTMENT In some cases, it will be necessary to limit the tilt angle of the seat. Two (2) devices make it possible to carry out this function (see; figure 14). a) Limitation of the posterior angle. The tilt allows an angle up to 45°: 1.

  • Page 33: Seat With Motorized Tilt Mechanism

    4. To make easier the motorized tilt mechanism assembly, it is recommended to remove the seat system from the base. The seat with motorized tilt mechanism can only be assembled on a mid-wheel TANGO configuration. Figure 15 : Remove the pneumatic actuator release handles. 4.7.2 UPPER ANCHOR INSTALLATION 1.

  • Page 34: Lower Anchor Installation

    4 SETUP INSTRUCTIONS Figure 16-B : Final assembly. Figure 16-A : Upper anchor installation. 4.7.3 LOWER ANCHOR INSTALLATION 1. Place the lower anchor (D) on the front corner of the height adjustment interfaces (E) (see; figure 17-A). 2. Insert the "U" shape bolt (C) over the height adjustment interfaces (E) and make the threaded parts pass through the holes of the lower anchor (D).

  • Page 35: Batteries Compartment Installation

    4 SETUP INSTRUCTIONS 4.7.4 BATTERIES COMPARTMENT INSTALLATION 1. Open the lower flap (B) on the batteries compartment (see; figure 18-A). 2. Insert the part (C) (see; figure 18-A) of the compartment support extrusion on the lower anchor, make sure that the insertion is complete and solid (see; figure 18-B). 3.
  • Page 36 4 SETUP INSTRUCTIONS The batteries compartment must be installed just beside the actuator and the ACTUATOR charger over the frame CABLE cross bar. (B) FLAP Figure 18-B : Compartment installed. Figure 18-C : Actuator cable. Figure 18-D : Actuator and connector. Figure 18-E : Control box and cables.

  • Page 37: Control Box And Its Support Installation

    4 SETUP INSTRUCTIONS Figure 18-F : Red and black connectors. 4.7.5 CONTROL BOX AND ITS SUPPORT INSTALLATION 1. Choose the side of assembly (right or left). 2. Remove the (A) screw and the (B) washer which maintains the front part of the armrest upholstery (see;...

  • Page 38: Cable Winder Installation

    4 SETUP INSTRUCTIONS Figure 19 : Motorized tilt mechanism control box installation. 4.7.6 CABLE WINDER INSTALLATION 1. Use the last hole, on the seat structure frame (F), this hole will be use to fix the charger cable winder (see; figure 20). 2.

  • Page 39: Tilt Mechanism Positioning System Adjustment

    4 SETUP INSTRUCTIONS 4.7.7 TILT MECHANISM POSITIONING SYSTEM ADJUSTMENT NOTE: The motorized tilt mechanism is equipped with 3 electromagnetic cursors which are easily adjustable. These switches and their connectors are well identified with stickers as shown below (see; figure 21). The (A) switch limits the posterior tilt action.

  • Page 40: Front Wheels

    4 SETUP INSTRUCTIONS 4.8 FRONT WHEELS 4.8.1 TO CHANGE THE FRONT PART OF THE FRAME OR THE FRONT WHEEL POSITIONS The adjustments of your wheelchair must be made by a health care professional. Inadequate adjustments can cause wounds and/or damage to the user, the caregiver, the wheelchair or the environment.

  • Page 41: Changing The Types Of Wheels And Height (Front And Rear)

    4 SETUP INSTRUCTIONS The front wheel position is adjusted at the factory as per the seat depth chosen. There is a risk of instability when the seat is farther ahead than the front wheels. In a mid-wheel propulsion configuration rear forks positions don't have to be adjusted.

  • Page 42: Rear Wheels (Standard Propulsion)

    4 SETUP INSTRUCTIONS NOTE: FOR THE MID-WHEEL PROPULSION IF 5 INCHES WHEELS: Install the washer at position A. IF 6 INCHES WHEELS: For the (2) rear wheels, install the washer at the position B and for the (2) front wheels at the position A.
  • Page 43 4 SETUP INSTRUCTIONS QUICK RELEASE AXLE : 1. Push the (A) button and pull the wheel towards you. Grab the wheel from its center (see; figure 24-B) ; 2. To replace, push the (A) button and insert the axle in the housing. Make sure that the axle is locked in position in the housing by the blocking pins (B).

  • Page 44: Center Of Gravity Adjustement

    4 SETUP INSTRUCTIONS 4.9.2 CENTER OF GRAVITY ADJUSTEMENT The adjustments of your wheelchair must be made by a health care professional. Inadequate adjustments can cause wounds and/or damage to the user, the caregiver, the wheelchair or the environment. There is no center of gravity adjustment if your wheelchair is equipped with a mid-wheel option.
  • Page 45 4 SETUP INSTRUCTIONS The more the position of the wheel increases (+ 1 to + 5) better is the wheelchair stability. The anti-tippers must always be secured to prevent any risk of accidents. Table 1 and 2 (4.6.2) : Standard configuration. inc All rights reserved...
  • Page 46 4 SETUP INSTRUCTIONS The adjustments of your wheelchair must be made by a health care professional. Inadequate adjustments can cause wounds and/or damage to the user, the caregiver, the wheelchair or the environment. Check the wheelchair stability before delivery to the user. Figure 27-A : Changing rear wheel axle position.

  • Page 47: Changing Mid-Wheel Axle Position

    4 SETUP INSTRUCTIONS 5- Repeat this procedure for the other side ; 6- Replace in position the rear wheels on the wheelchair; 7- Engage the tilt mechanism and carry out a stability test on the wheelchair; 8- Repeat this entire procedure (1 to 7) until the wheelchair is stable. 4.9.3 CHANGING MID-WHEEL AXLE POSITION Figure 27-B: Changing mid-wheel axle position.

  • Page 48: Changing The Overall Width

    4 SETUP INSTRUCTIONS To change the position of the mid-wheels (see; figure 27-B) : 1- Remove the middle wheels from the wheelchair. See section 5.6.1 ; 2- Remove the (E) screws (7/16" key) and (G) nuts, which maintains the housing assembly for the middle wheel axle. Don't lose the (F) washers;...
  • Page 49 4 SETUP INSTRUCTIONS NUTS 1/8 po HOUSING WHEEL WHEEL HOUSING Figure 28-A : To change overall width. FLAT PART THREADED PART Figure 28-B inc All rights reserved...

  • Page 50: To Install 12 Inches Rear Wheels

    4 SETUP INSTRUCTIONS 4.9.5 TO INSTALL 12 INCHES REAR WHEELS It is possible to assemble 12 inches diameter rear wheels on the This assembly can be carried out without significant modifications. To do this, if you choose the foot brake as an option, follow these steps : FOOT BRAKE PEDAL FOOT BRAKE OR...
  • Page 51 4 SETUP INSTRUCTIONS For the 12 inches rear wheels installation (see; figure 29): 1- Remove rear wheels (see; section 5.6.1) ; 2- Remove the rear wheels axle (see; section 4.9.2, figure 27-A) ; 3- Insert the side tubing frame extension in the side tubing ; 4- Take a "Foot brake system assembly"...

  • Page 52: Parking Brakes

    4 SETUP INSTRUCTIONS 4.10 PARKING BRAKES It is possible to have a pulling brake type which is activated in the opposite way of the standard brake. The adjustments explained in this section, can be apply to the pulling brake. 4.10.1 TO ADJUST THE POSITION OF THE PARKING BRAKE (Pushing or pulling brake type) As per the level of wear of the tires or each time the position of the rear wheels was changed, an adjustment of the parking brakes is necessary.
  • Page 53 4 SETUP INSTRUCTIONS b) Adjustment according to the position of the rear 20, 22 or 24 inches wheels : When the position of the rear wheels has been determined (section 4.9.2), the brake support should be repositioned (see; figure 31-A). 1.
  • Page 54 4 SETUP INSTRUCTIONS Adjustment according to the position of the middle 20 or 22 inches wheels : When the position of the middle wheels has been determined (section 4.9.3), the brake support should be repositioned (see; figure 31-B): 1. Loosen (A) screws and (B) nuts, using a 1/2" key ; 2.
  • Page 55 4 SETUP INSTRUCTIONS c) Adjustment with a 12 inches rear wheel positions : • The 12 inches rear wheel foot brake system assembly, is now activated either by foot or hand, directly behind the wheelchair by the caregiver. There is no need for adjustment. NOTE : * The caregiver will have the choice of activation with the foot brake pedal or the two handles positioned on each side (see;...

  • Page 56: To Change The Brake Levers

    4 SETUP INSTRUCTIONS 4.10.2 TO CHANGE THE BRAKE LEVERS You have the choice of two (2) types of brake extensions that can be assembled : RETRACTABLE EXTENSION (see; figure 33-A) : 1. Install the extension guides (E) on each side of the brake lever (A) ; 2.
  • Page 57 4 SETUP INSTRUCTIONS FIXED LENGTH EXTENSION (see; figure 33-B) : 1. Install the extension guides (C) on each side of the brake lever (A) ; 2. Insert the extension lever (E) on the brake lever (A) ; 3. Place the (D) screws in line with the (B) holes ; NOTE: If you have to drill a hole on the opposite side of the (B) hole, use a 7/64"...

  • Page 58: To Change The Angle Of The Brake Lever (Pushing Brake Type Only)

    4 SETUP INSTRUCTIONS 4.10.3 TO CHANGE THE ANGLE OF THE BRAKE LEVER (pushing brake type only) NOTE: The angle of the brake lever can be adjusted. To do it : 1. Unscrew (B) screw, using a 3 mm Allen key and carry out a rotation of the lever until the needed position is reached ;...

  • Page 59: Anti-Tippers

    4 SETUP INSTRUCTIONS 4.11 ANTI-TIPPERS 4.11.1 HEIGHT ADJUSTMENT The adjustments of your wheelchair must be made by a health care professional. Inadequate adjustments can cause wounds and/or damage to the user, the caregiver, the wheelchair or the environment. A maximum of 1 3/4 inches between the floor and the anti- tippers must be maintained at any time.
  • Page 60 4 SETUP INSTRUCTIONS If the seat to floor height or the dimension of the rear wheels were modified, the anti-tippers must be adjusted in order to maintain the height of 1 3/4 inches between the anti-tippers and the floor. 1 3/4" FLOOR Figure 35-B : Always keep a distance of 1 3/4 inches between the anti-tippers and the floor.

  • Page 61: Tilt Mechanism

    4 SETUP INSTRUCTIONS 4.12 TILT MECHANISM 4.12.1 TO ADJUST THE FORCE REQUIRED TO TILT We can adjust the force required to tilt. We simply have to position the anchor point of the pneumatic cylinder in either the front, center or rear position as shown on figure 36 below : Center position;...

  • Page 62: Operating Instructions

    5 OPERATING INSTRUCTIONS 5 OPERATING INSTRUCTIONS 5.1 «U» SHAPE REMOVABLE ARMREST 5.1.1 TO SWINGAWAY 1. To swingaway the armrest, push on the (A) release button in the same direction than the arrow and pull upwards the (E) transfer handle (see; figure 37). 2.

  • Page 63: To Remove And/Or Install

    5 OPERATING INSTRUCTIONS 5.1.2 TO REMOVE AND/OR INSTALL 1. Follow the 5.1.1 section to swingaway the armrest from its (B) front socket armrest support (see; figure 37). 2. Unscrew slightly the locking nut and the screw (G) from the (C) rear armrest socket, using a 8 mm key and a 4mm Allen key.

  • Page 64: Adjustable « T » Shape Armrest

    5 OPERATING INSTRUCTIONS 5.2 ADJUSTABLE « T » SHAPE ARMREST Figure 38-A : Telescopic armrest adjustment. The height adjustment of the telescopic armrest is made by an up and down movement. This movement is activated by a lever positioned under the armrest towards rear (see; figure 38-A).

  • Page 65: Footrest / Legrest

    5 OPERATING INSTRUCTIONS 5.3 FOOTREST / LEGREST 5.3.1 SWINGAWAY 1. To remove the footrests, you will first have to take your feet off the footplates; 2. Then by pushing on the (A) lever figure 39-B, the footrest will swingaway itself; NOTE : It is preferable to fold back the footplate before to swingaway the footrest (see;...
  • Page 66 5 OPERATING INSTRUCTIONS FOLD BACK FOOTREST Figure 39-B : To swingaway footrest/legrest. Figure 39-C : To swingaway footrest/legrest. inc All rights reserved...

  • Page 67: To Remove And/Or Install

    5 OPERATING INSTRUCTIONS 5.3.2 TO REMOVE AND/OR INSTALL • All the legrests on the wheelchair are removable ; 1. To do this, it is initially necessary to swingaway the footrest as described earlier in section 5.3.1; 2. Then grab the legrest by its upper part, and raise it to release from the hanger bracket (C) (see;...

  • Page 68: Retractable Full Length Legrest

    5 OPERATING INSTRUCTIONS 5.3.4 RETRACTABLE FULL LENGTH LEGREST Figure 41-A : Retractable full length legrest. ASSISTED ELEVATION The retractable full length legrest allows you to elevate the leg with assistance. To do this, you will need to push on the lever positioned on each side of the wheelchair (see; figure 41-B): Figure 41-B : Retractable full length legrest elevation lever.
  • Page 69 5 OPERATING INSTRUCTIONS Figure 41-C : Retractable full length legrest elevated position. RETRACTION The retractable full length legrest can swingaway to help during a transfer. To swingaway the legrest, first lower the legrest to its lowest position and pull on the lateral release switch (see;...
  • Page 70 5 OPERATING INSTRUCTIONS The legrest will swing away under the seat creating space under the user's feet (see; figure 41-E). To put back the legrest into position. Pull in the arrow's direction. Figure 41-E : Legrest swingaway to help movement during transfer. To replace the legrest into position, push on the legrest extension tubing towards the calf pad.

  • Page 71: Backrest

    5 OPERATING INSTRUCTIONS BACKREST 5.4.1 TO FOLD THE BACKREST In order to facilitate transportation of the wheelchair, you can fold back the backrest on the seat. This operation will be possible only if nobody is on the seat. To do this : 1.

  • Page 72: Reclining Backrest

    5 OPERATING INSTRUCTIONS STABILIZER CROSS BAR Figure 42-B : Folding backrest in reclined position. 5.4.2 RECLINING BACKREST Figure 43 : Reclining backrest gas actuator handle. To recline a gas actuator reclining backrest, you have to pull the handle positioned behind the backrest on the backrest handle structure (see; figure 43). inc All rights reserved...

  • Page 73: Seat Tilt Mechanism

    5 OPERATING INSTRUCTIONS 5.5 SEAT TILT MECHANISM wheelchair is equipped with a seat tilt mechanism. This makes it possible to tip over the seat, backward or forward. • Before operating the tilt mechanism, make sure the parking brakes are applied (see; section 5.7.1). NOTE: Make sure that the anti-tippers are in position and correctly adjusted (see;...

  • Page 74: Tilt With The Motorized Tilt Mechanism

    5 OPERATING INSTRUCTIONS 5.5.3 TILT WITH THE MOTORIZED TILT MECHANISM 1- Put the control box ON/OFF switch (A) to the ON position (see; figure 45-A). 2- The (B) light indicator panel will show you the batteries charge level (see; figure 45-B). 3- To tilt the seat forward, push the (C) toggle switch downward.

  • Page 75: Recharging Batteries

    5 OPERATING INSTRUCTIONS 5.5.4 RECHARGING BATTERIES • Always recharge the batteries in a ventilated area. • Do not smoke near the charger during the battery charge. • Do not remain in the wheelchair during charging. Do not charge batteries in your bedroom. Charging, the batteries can release harmful gases for your health.
  • Page 76 5 OPERATING INSTRUCTIONS NOTE: It will be possible for the user to check visually if the charger is in charge mode. As soon as the charger is plugged a red LED will light up and once the recharge will be done a green LED will light up (see; figure 47). Red LED indicate that the charger is under voltage.

  • Page 77: Rear Wheels

    5 OPERATING INSTRUCTIONS 5.6 REAR WHEELS 5.6.1 TO REMOVE AND/OR INSTALL If your wheelchair is equipped with a quick release axle, you can remove wheels in order to facilitate transportation. This operation is carried out when nobody is seated in the wheelchair. To remove the wheel : 1.

  • Page 78: Parking Brakes

    5 OPERATING INSTRUCTIONS 5.7 PARKING BRAKES 5.7.1 TO APPLY AND DISENGAGE THE PARKING BRAKE the PUSHING type NOTE : With the PULLING brake type, invert the lever action. Figure 49-A : Brake disengage. Figure 49-B : Brake apply. To apply the brake, exert a pressure on the handle towards front (see; figure 49-B) ; To disengage the brake, pull the handle towards you (see;...

  • Page 79: Apply - Disengage The Hill Holder

    5 OPERATING INSTRUCTIONS 5.7.3 APPLY – DISENGAGE THE HILL HOLDER In order to be able to climb slopes, your wheelchair can be equipped with a hill holder mechanism to stop backward movement when climbing. LEVER Figure 51-A : Hill holder disengage. Figure 51-B : Hill holder apply.

  • Page 80: Inches Rear Wheels Brake

    5 OPERATING INSTRUCTIONS 5.7.4 12 INCHES REAR WHEELS BRAKE The 12 inches rear wheel foot brake system, is activated by the caregiver, behind the wheelchair, as shown in figure 52-A. There is no rear wheels adjustment. To activate it, simply push with your foot on the central pedal, behind the wheelchair (see;...

  • Page 81: Anti-Tippers

    5 OPERATING INSTRUCTIONS 5.8 ANTI-TIPPERS 5.8.1 TO REMOVE • In order to facilitate the transportation of your wheelchair, the anti-tippers can be removed. To do this, exert a pressure on the (A) spring release button and remove the anti-tipper from its housing (see; figure 53-A). 5.8.2 TO SWINGAWAY 1.

  • Page 82: To Replace

    5 OPERATING INSTRUCTIONS 5.8.3 TO REPLACE 1. To replace the anti-tippers, insert the tubing in its housing while pushing the spring release button. When the spring release button will catch itself in the hole, this will indicates that the anti-tipper is secured in position (see; figure 53-B) ; 2.

  • Page 83: Seat Belt

    5 OPERATING INSTRUCTIONS 5.9 SEAT BELT It is important for your comfort and safety that the belt provided with the wheelchair be adjusted to your size. Never modify the assembly or anchor point of your belt.. In a paratransit transportation, the belt provided with your wheelchair, cannot be used as a seat belt.

  • Page 84: Transportation

    5 OPERATING INSTRUCTIONS 5.10 TRANSPORTATION 5.10.1 ANCHOR POINTS POSITION In order to immobilize your wheelchair during transportation, your wheelchair is equipped with four (4) anchor points. Two (2) are positioned at the front and two (2) at the rear (see; figure 55). Figure 55 : Anchor points position for wheelchair transportation.

  • Page 85: Advice For Transportation

    5 OPERATING INSTRUCTIONS 5.10.2 ADVICE FOR TRANSPORTATION • Check that the brakes immobilize your wheelchair completely; • Put the reclining backrest in the upright position; • Reset the tilt mechanism in a horizontal position; • Put your seat belt on and make sure that it is well adjusted to your size.

  • Page 86: Maintenance

    6 MAINTENANCE 6 MAINTENANCE Maintenance procedure To function adequately and in a safe way, your wheelchair, like any other vehicle, needs care. A routine maintenance will increase the lifespan and the effectiveness of your wheelchair. Once a year, bring your wheelchair at a qualified retailer or an authorized service center for an in-depth inspection and maintenance.
  • Page 87 6 MAINTENANCE Tires pressure Usually, recommended air pressure will be written on the side of the tire. However, if you cannot find it, you can refer to the following table. 6 x 1 ¼ inchesTire 35 psi 8 x 1 ¼ inches Tire 35 psi 20 inches Tire 65 psi...

  • Page 88: Breakdown Service Guide

    BREAKDOWN SERVICE GUIDE 7 BREAKDOWN SERVICE GUIDE Wheelchair is Wheelchair Wheelchair Loose front SOLUTIONS difficult to Noise steers right steers left wheel propulse Check tires pressure. Check screws and nuts tightening. Make sure that both front wheels touch the ground simultaneously. Check spokes tightening.

  • Page 89: Warranty

    8 WARRANTY 8 WARRANTY will warranty the manual tilt wheelchair against any manufacturing defect for a period of one (1) year from the delivery date. This warranty covers all components and complementary, except the tires, tires tube and seat, backrest and armrests upholstery of which the warranty is (1) month.
  • Page 90 8 WARRANTY cannot, in any case, be held responsible for the particular, indirect or consecutive damage, even if were informed of the possibility of such damage. The warranty of the distributor is expressly limited to the repair and the replacement of non-conformity of products as envisaged in this warranty or to the refunding of a sum not exceeding the purchase price of the material in question.

  • Page 91: Authorized Service Centres

    AUTHORIZED SERVICE CENTRES 9 AUTHORIZED SERVICE CENTRES Institut de réadaptation en déficience physique de 2975, chemin Saint-Louis Québec Sainte Foy (Québec) G1W 1P9 (Centre Cardinal-Villeneuve) Tél.: 418-529-9141 Institut de réadaptation en déficience physique de 525, boulevard Hamel Québec Québec (Québec) G1M 2S8 (Centre François-Charron) Tél.: 418-529-9141 Centre de réadaptation en déficience physique...
  • Page 92 AUTHORIZED SERVICE CENTRES Centre de réadaptation de l’Estrie inc. 300, rue King Est, Bureau 200 Sherbrooke (Québec) J1G 1B1 Tél. : 819-346-8411 Centre de réadaptation Interval 4100, rue Jacques Labadie Trois-Rivières (Québec) G9A 5M6 Tél. : 819-693-0441 Centre de réadaptation Gaspésie 230, route du Parc Ste-Anne-des-Monts (Québec) G4V 2C4 Tél.

  • Page 93: Customer Service

    Customer service 2160, De Celles Québec (Québec) CANADA, G2C 1X8 Tel. : 1.800.463.5293 418.847.5225 Fax. : 418.847.7961 526-00040-00_Tango_2008-2011_D_ANG.doc inc All rights reserved...
