LARGE FULL MOTION MOUNT
REDLC125
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
MANUEL D'INSTRUCTIONS
CAUTION: DO NOT EXCEED MAXIMUM
LISTED WEIGHT CAPACITY. SERIOUS
!
CAUTION:
INJURY OR PROPERTY DAMAGE MAY
THE MAXIMUM LOADING WEIGHT
OCCUR!
IS 125 LBS. USE WITH PRODUCTS HEAVIER THAN
THE MAXIMUM WEIGHT INDICATED MAY RESULT IN

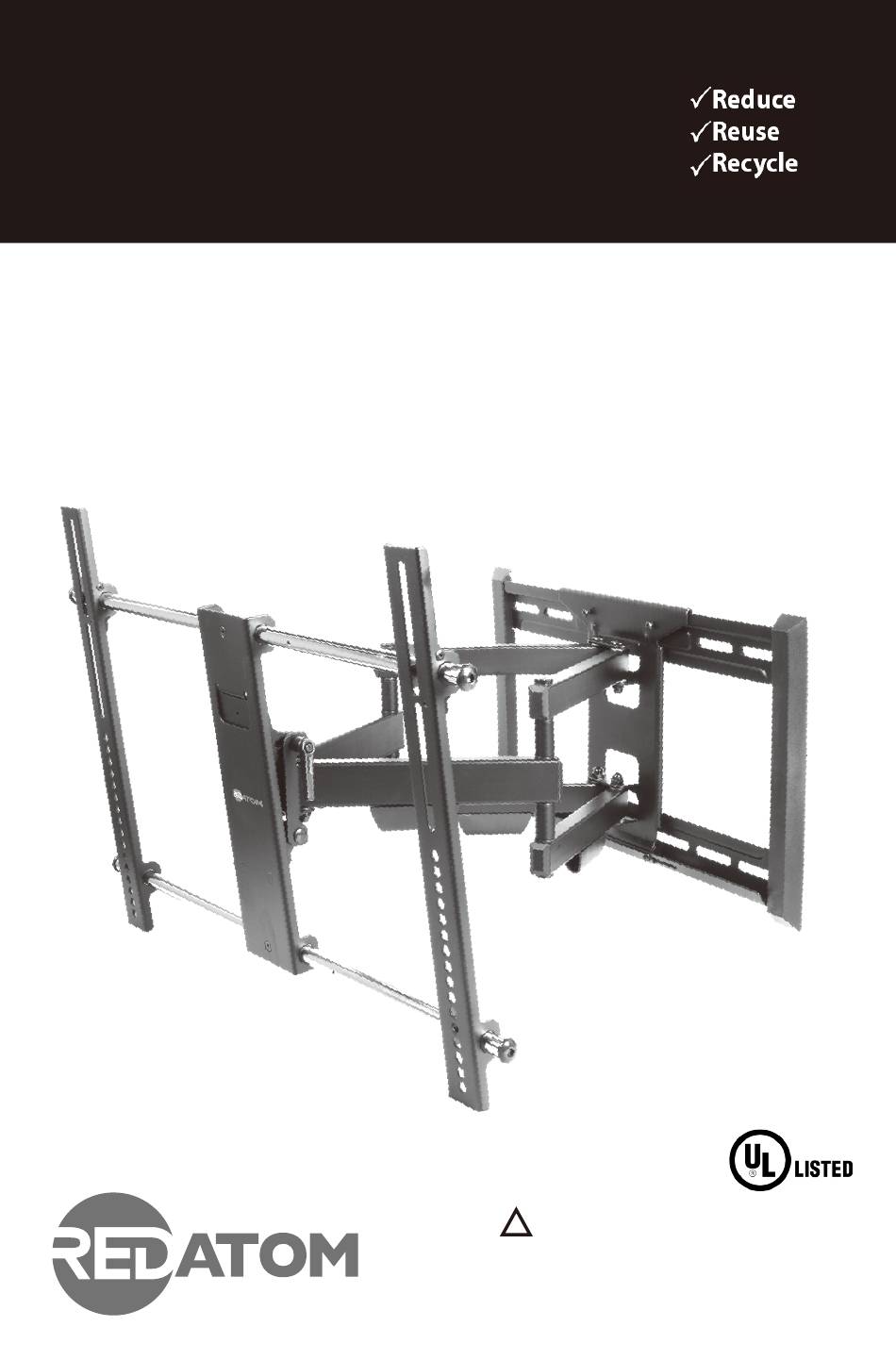

Large Full Motion Mount
INSTABILITY AND POSSIBLE PERSONAL INJURY.
Max Scree n Size: 70"
Max Screen Size: 70"
Max weight: 125lbs
V4
V1
P 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the REDLC125 and is the answer not in the manual?

Questions and answers

Summary of Contents for RED ATOM REDLC125

  • Page 1 LARGE FULL MOTION MOUNT REDLC125 INSTRUCTION MANUAL MANUAL DE INSTRUCCIONES MANUEL D’INSTRUCTIONS CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS CAUTION: INJURY OR PROPERTY DAMAGE MAY THE MAXIMUM LOADING WEIGHT OCCUR! IS 125 LBS. USE WITH PRODUCTS HEAVIER THAN...
  • Page 2: Tools Needed

    DISCLAIMER – WARNING INFORMATION Disclaimer –. RED ATOM has extended every effort to ensure to accuracy and completeness of this manual. However, RED ATOM does not claim that the information covers all installation and or operational variables. The information contained in this document is subject to change without notice or obligation of any kind. Regarding the information contained herein, RED ATOM makes no representation of warranty, expressed or implied, and assumes no responsibility for accuracy, sufficiency, or completeness of the information contained in this document.
  • Page 3 HARDWARE PRODUCT NUMBERS M4 x 12 M5 x 12 M6 x 15 M8 x 15 M4 x 25 M5 x 25 M6 x 25 M8 x 25 SQUARE WASHER SPACER STEEL STEEL M6 X 5/8” WASHER WASHER ACORN WRENCH WASHER 8 mm LAG ANCHOR BOLT...
  • Page 4 CORNER MOUNTING INFORMATION The Large Full Motion Mount can be installed in a corner location when needed. Prior to installing the Mount it is important to determine the appropriate corner wall to install the mount. Please see diagrams below to assist in determining the appropriate wall placement to use.
  • Page 5 STEP 1- FLAT BACK FLAT PANEL (UNIVERSAL MONITOR PLATE) Connect Universal Monitor Plate to flat panel Conecte el adaptador al monitor Connectez l'adaptateur au moniteur STEP 1- CURVED BACK FLAT PANEL (UNIVERSAL MONITOR PLATE) Connect Universal Monitor Plate to flat panel Conecte el adaptador al monitor Connectez l'adaptateur au moniteur Spacers can also be used to...
  • Page 6 STEP 1- USE M8 STEEL WASHER IF THE PHILLIPS SCREWS FROM THE MONITOR KIT ARE TOO LONG Diagrams show three options for using additional washers if hardware screws are too long to properly tighten into back of flat panel television. STEP 2- CENTER UNIVERSAL MONITOR PLATE Monitor Plate must be centered (horizontal plane) on back of flat panel STEP 2- SECURE UNIVERSAL MONITOR PLATE VERTICAL RAILS...
  • Page 7 STEP 3 - PRIOR TO EXTENDING ARMS REMOVE ARM ASSEMBLY FROM WALL PLATE Prior to extending arms; Remove 2 Philips screws at top of Arm Assembly . Remove additional 2 Philips screws at bottom of Arm Assembly. Note- 4 Philips screws will be used in Step 5 to reattach arm assembly to wall mount.
  • Page 8 STEP 4A- WOOD STUD INSTALLATION (CONCRETE INSTALLATION SKIP TO 4B) Find stud and mark edge and center locations Ubique el panel y marque las ubicaciones de los bordes y el centro. Repérez l'emplacement d'une poutre, puis marquez l'emplacement des bords et du centre de cette poutre. LEVEL WALL PLATE DRILL BIT WITH INCLUDED...
  • Page 9 STEP 4B – SOLID CONCRETE INSTALLATION Solid Concrete Drill Bit Level Drill pilot hole Concreto sólido S. broca Nivelado Realice el agujero piloto Béton massif Foret Level Percez le trou de guidage DRILL BIT LEVEL WALL PLATE NOT INCLUDED WITH INCLUDED BUBBLE LEVEL AND MARK HOLES FOR DRILL BIT PILOT HOLE...
  • Page 10 STEP 5 - ATTACH MOUNT ASSEMBLY TO WALL PLATE Position Arm Assembly to desired lateral position on wall plate for optimum placement of Flat Panel. Secure Arm Assembly to Wall plate using screws removed from Step 3. Note: Ensure that bottom of Arm Assembly tucks INSIDE the bottom lip of the Wall Plate.
  • Page 11 SECURE MONITOR PLATE TO ARM ASSEMBY Secure Acorn Nut and Washer on Monitor Plate to Arm Assembly (snug tension only) M6 Wrench M6 Washer M6 Acorn Nut ADJUST TILT TENSION/ POST INSTALLATION LEVEL Built-in level feature for post installation Adjust tilt mechanism tension with ratchet handle correction lever a) Rotate handle...
  • Page 12: Warranty Information

    Para obtener el servicio de garantía, comuníquese con el servicio de Atención al cliente de RED ATOM. Escribanos an info@redatomproducts.com. Deberá proporcionar el recibo original. Si fuera necesario enviar el producto a RED ATOM para revisarlo, los gastos de envío correrán por su cuenta. El producto de reemplazo que se le envíe se le devolverá...
