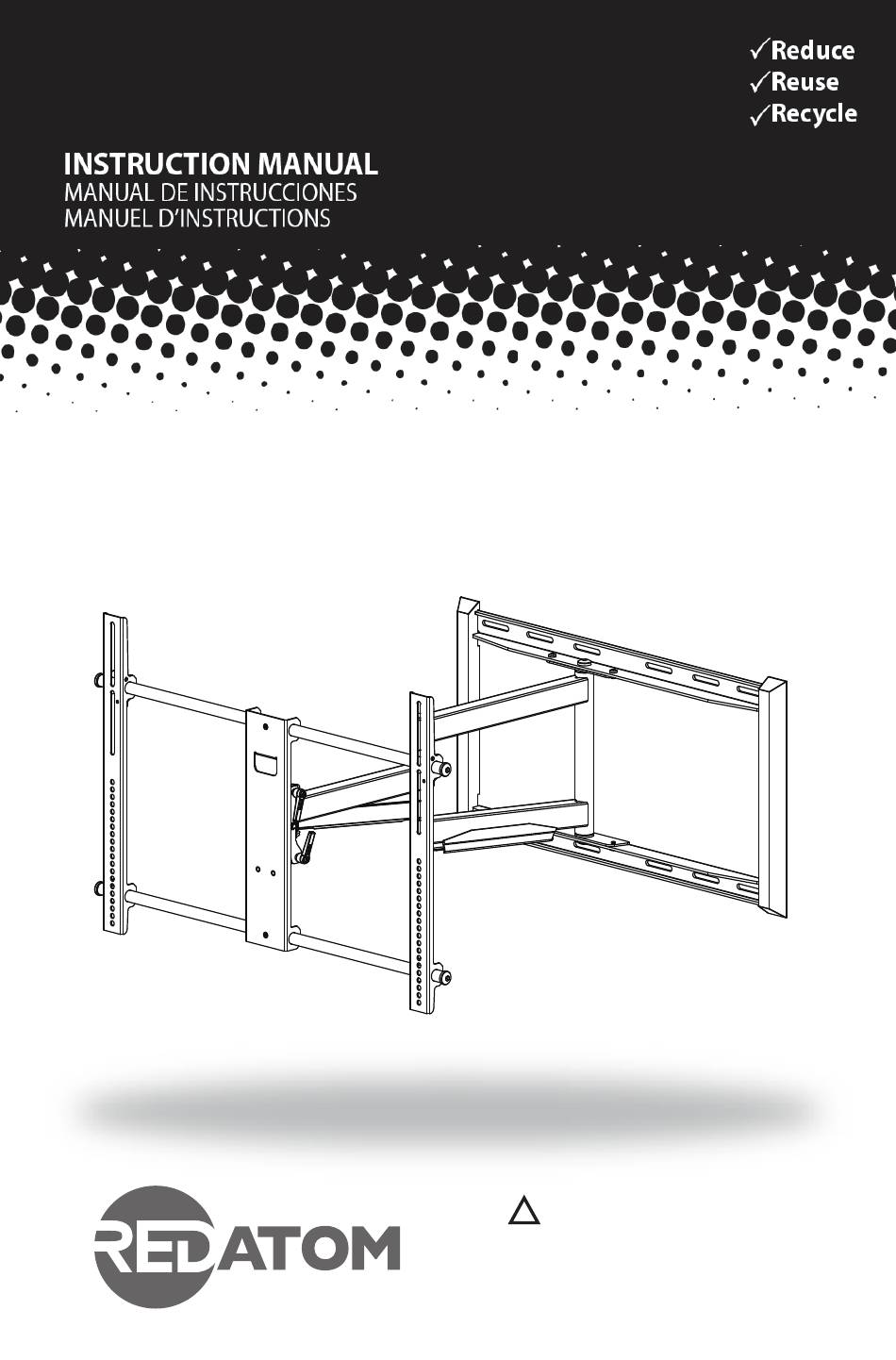

EXTRA LARGE FULL MOTION MOUNT
REDXC150
CAUTION: DO NOT EXCEED MAXIMU
LISTED WEIGHT CAPACITY. SERIOUS
!
CAUTION:
INJURY OR PROPERTY DAMAGE MAY
THE MAXIMUM LOADING WEIGHT
OCCUR!
IS 150 LBS. USE WITH PRODUCTS HEAVIER THAN
THE MAXIMUM WEIGHT INDICATED MAY RESULT IN
INSTABILITY AND POSSIBLE PERSONAL INJURY.

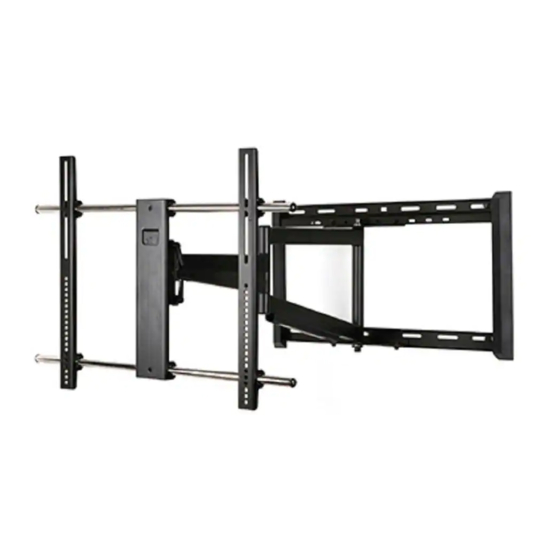

Extra Large Full Motion Mount
Max Screen Size: 80"
Max Screen Size: 90"
Max Weight: 150 LBS
V2
P 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for RED ATOM REDXC150
Summary of Contents for RED ATOM REDXC150
- Page 1 EXTRA LARGE FULL MOTION MOUNT REDXC150 CAUTION: DO NOT EXCEED MAXIMU LISTED WEIGHT CAPACITY. SERIOUS CAUTION: INJURY OR PROPERTY DAMAGE MAY THE MAXIMUM LOADING WEIGHT OCCUR! IS 150 LBS. USE WITH PRODUCTS HEAVIER THAN THE MAXIMUM WEIGHT INDICATED MAY RESULT IN INSTABILITY AND POSSIBLE PERSONAL INJURY.
-
Page 2: Tools Needed
DISCLAIMER – WARNING INFORMATION Disclaimer –. RED ATOM has extended every effort to ensure to accuracy and completeness of this manual. However, RED ATOM does not claim that the information covers all installation and or operational variables. The information contained in this document is subject to change without notice or obligation of any kind. Regarding the information contained herein, RED ATOM makes no representation of warranty, expressed or implied, and assumes no responsibility for accuracy, sufficiency, or completeness of the information contained in this document. - Page 3 HARDWARE PRODUCT NUMBERS M6 x 30 M8 x 30 M4 x 30 SQUARE M8 x 15 M6 x 15 M4 x 12 SPACER WASHER M8 x 50 WALL STEEL LAG BOLT LAG BOLT 10mm ALLEN ANCHOR NYLON WASHER 8mm x 65mm STEEL WASHER WASHER SPACER...
- Page 4 CORNER MOUNTING INFORMATION The Extra Large Full Motion Mount can be installed in a corner location when needed. Prior to installing the Mount it is impor- tant to determine the approprite corner wall to install the mount. Please see diagrams below to assist in determin- ing the appropriate wall placement to...
- Page 5 STEP 1- FLAT BACK FLAT PANEL (UNIVERSAL MONITOR PLATE) Connect Universal Monitor Plate to flat panel Conecte el adaptador al monitor Connectez l'adaptateur au moniteur STEP 1- CURVED BACK FLAT PANEL (UNIVERSAL MONITOR PLATE) Connect Universal Monitor Plate to flat panel Conecte el adaptador al monitor Connectez l'adaptateur au moniteur Spacers can also be used to...
- Page 6 STEP 1- USE M8 STEEL WASHER IF THE PHILLIPS SCREWS FROM THE MONITOR KIT ARE TOO LONG Diagrams show three options for using additional washers if hardware screws are too long to properly tighten into back of flat panel television. STEP 2A - CENTER UNIVERSAL MONITOR PLATE Monitor Plate must be centered (horizontal plane) on back of flat panel STEP 2B- SECURE UNIVERSAL MONITOR PLATE VERTICAL RAILS...
- Page 7 STEP 3A- WOOD STUD INSTALLATION (CONCRETE INSTALLATION SKIP TO 3B) Find stud and mark edge and center locations Ubique el panel y marque las ubicaciones de los bordes y el centro. Repérez l'emplacement d'une poutre, puis marquez l'emplacement des bords et du centre de cette poutre. LEVEL WALL PLATE DRILL BIT WITH INCLUDED...
- Page 8 STEP 3A – DRILL PILOT HOLE AND MOUNT WALL PLATE AND ARM ASSEMBLY Mount wall plate Coloque la placa de pared Montez la plaque murale Secure lag bolts with steel washer to Wall Plate STEP 3B – SOLID CONCRETE INSTALLATION Solid Concrete Drill Bit Level...
- Page 9 STEP 3B- USE TEMPLATE TO MARK WALL FOR PILOT HOLES STEP 3B – DRILL PILOT HOLES AND MOUNT WALL PLATE AND ARM ASSEMBLY Insert Wall Anchors into Concrete Wall Secure Lag Bolts to Wall Bracket...
- Page 10 STEP 4- ATTACH UNIVERSAL MOUNT BRACKET TO ARM ASSEMBLY & WALL BRACKET Heavy, Assistance Required TRES LOURD ! Cette etape requiert deux personnes !PESADO! Necesitara ayuda para realizar esta operacion STEP 5- SECURE MONITOR PLATE TO ARM ASSEMBLY Secure Acorn Nut and Washer on Monitor Plate to Arm Assembly...
- Page 11 STEP 6 - ADJUST TILT TENSION/ POST INSTALLATION LEVEL Adjust tilt mechanism tension with ratchet handle lever Rotate ratchet a) Rotate handle clockwise as far as handle lever possible. clockwise for tensioning tilt b) Pull handle to side mechanism. laterally (against For additional spring tension) and tension pull...
-
Page 12: Warranty Information
Para obtener el servicio de garantía, comuníquese con el servicio de Atención al cliente de RED ATOM. Escribanos an info@redatomproducts.com. Deberá proporcionar el recibo original. Si fuera necesario enviar el producto a RED ATOM para revisarlo, los gastos de envío correrán por su cuenta. El producto de reemplazo que se le envíe se le devolverá...
