OWNER/USER INSTRUCTION MANUAL
Please Read Entire Operating Manual Prior to Use!

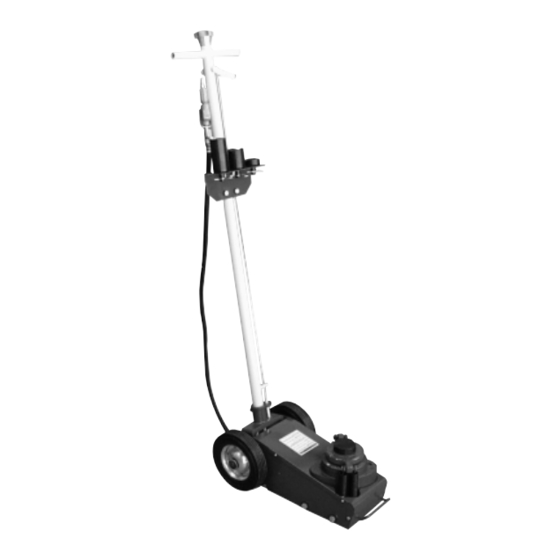

Model SNX20AHJ is an air/hydraulic service jack in which the lift
arm is actuated by a mechanism that utilizes a relatively incompressible
fluid, such as oil, as the force transmitting means, actuated by a pneu-
matic power source.
SAVE THIS MANUAL FOR FUTURE REFERENCE
SNX20AHJ
MODEL
SNX20AHJ
20 TONNE
20,000 KG
SAFE WORKING
AIR/HYDRAULIC
JACK
USE ONLY ON HARD LEVEL SURFACES.
DO NOT GET UNDER A VEHICLE THAT IS ONLY SUPPORTED BY A
TROLLEY/SERVICE JACK–USE VEHICLE SUPPORT STANDS.
THIS IS A LIFTING DEVICE ONLY. DO NOT MOVE OR DOLLY THE
VEHICLE WHILE ON THE JACK. IMMEDIATELY AFTER LIFTING,
SUPPORT THE VEHICLE WITH APPROPRIATE MEANS.
DO NOT OVERLOAD. OVERLOADING CAN CAUSE DAMAGE TO OR
FAILURE OF THE JACK.
LIFT ONLY ON AREAS OF THE VEHICLE AS SPECIFIED BY THE
VEHICLE MANUFACTURER.
CENTER LOAD ON SADDLE PRIOR TO LIFTING. OFF-CENTER LOADS
MAY CAUSE DAMAGE TO JACK, LOSS OF LOAD, PROPERTY
DAMAGE, PERSONAL OR FATAL INJURY.
NO ALTERATIONS TO THE JACK SHALL BE MADE.
READ, STUDY AND UNDERSTAND THE OPERATING MANUAL
PACKED WITH THIS JACK BEFORE OPERATING.
FAILURE TO HEED THESE WARNINGS MAY RESULT IN LOSS OF
LOAD, DAMAGE TO JACK, AND/OR FAILURE RESULTING IN
PROPERTY DAMAGE, PERSONAL OR FATAL INJURY.
FOR YOUR SAFETY AND TO PREVENT INJURY:
Use Service Jack for
lifting purposes
ONLY.
Model 1003
3 TON
CAPACITY
RATCHETING
JACK STAND
Always support
vehicle with
jack stands.
LOAD
Model 1003
3 TON
CAPACITY
RATCHETING
JACK STAND
04/21/03
Advertisement
Related Manuals for Blue point SNX20AHJ
Summary of Contents for Blue point SNX20AHJ
- Page 1 LOAD AIR/HYDRAULIC JACK Model SNX20AHJ is an air/hydraulic service jack in which the lift arm is actuated by a mechanism that utilizes a relatively incompressible fluid, such as oil, as the force transmitting means, actuated by a pneu- matic power source.
-
Page 2: Operation
SNX20AHJ SPECIFICATIONS MODEL Capacity . . .20 Tonne (20,000 kg.) Handle Length ... .1244 mm SNX20AHJ Min. Saddle Height ..225 mm Wheel Diameter ... .203 mm Max. -
Page 3: Maintenance Instructions
MODEL SNX20AHJ OPERATING INSTRUCTIONS IMPORTANT: Before attempting to raise a vehicle, check vehicle service manual for recommended lifting surfaces. 1. To raise load: Close release valve tightly (by turning handle knob clockwise). DO NOT OVERTIGHTEN. Position jack under load so that saddle will contact load firmly and load is centered so it cannot slip. - Page 4 MODEL SNX20AHJ WARNING! READ ALL INSTRUCTIONS WARNING INFORMATION BEFORE OPERATION! Page 4 04/21/03...
- Page 5 MODEL SNX20AHJ Item Part Item Part Description Qty. Description Qty. 20AHJ1-1 Wheel Shaft 5-21 20AHJ5-21 Handle Cap 20AHJ1-2 Washer 5-22 20AHJ5-22 Handle Cap 20AHJ1-3 Wheel 20AHJ6-1 Handle Fork Bracket 20AHJ1-4 Snap Ring 20AHJ6-3 Frame 20AHJ2-0 Piston Rod Ass’y 20AHJ6-6 Upper Cover...
- Page 6 Manually flush hydraulic ✔ system by raising and lowering lift arm by hand. Open the release valve, as required to raise and lower the lift arm. Manually raise and lower lift arm. 04/21/03 SNX20AHJ SNX20AHJ...
