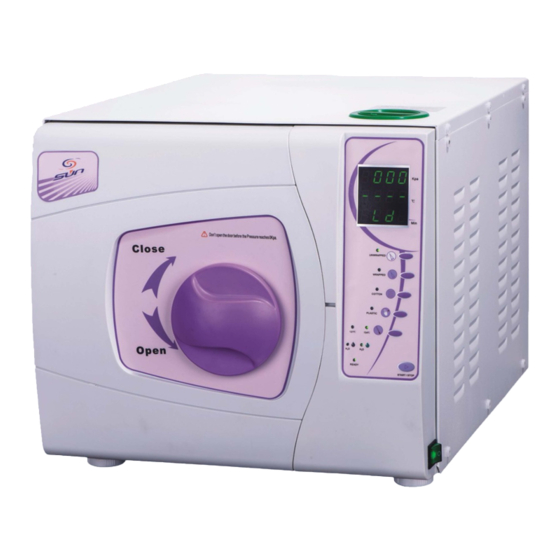

- Page 1 Steam Sterilizer Operation Manual Please read the manual carefully, operate it according to the manual strictly, and avoid any hazard! This manual applies to SUN8-Ⅱ、SUN12-Ⅱ、SUN16-Ⅱ、SUN18-Ⅱ、 SUN23-Ⅱ Steam Sterilizer File No：MTQM/C1-7.5.1-05-02/II-A(E) 12 REV1607ER...
-
Page 2: Table Of Contents
Content 1、General Introduction ……………………………………….1 2、Application Scope ………………………………………….1 3、Tech. Parameter…………………………………………….1 4、Diagram Specification ………………………………………2 5、Installation …………………………………………………..3 6、Packing accessory..........……..5 7、Display and keypad description........……..5 8、Emergency Condition……………………………………….8 9、Maintenance and Service……………………………………9 10、 Transportation and Storage…………………………………11 11、Attention…………………………………......12 Appendix： 1 、 Steam loop （ Work Description ） 2、Circuit diagram of sterilizer 3、BD test method... -
Page 3: 1、General Introduction
Steam Sterilizer 1．General Introduction This Steam Sterilizer is a precision instrument specializing in the operation occasion in need of simple, fast and efficient sterilization by the doctor or his/her assistants, and the doctor shall take the responsibility for such work. This Steam Sterilizer is specially designed for the occasions in use of frequent sterilizations. -
Page 4: 4、Diagram Specification
Sterilizing (Pressure/temp.)…………………………………100-120KPa/121ºC 200-220KPa/134ºC (Both of above are Under Standard Atmospheric pressure) Fuse-Melting pipe……………………….. ……. …….. ………….. 250V/T 15A Capacity of water tank………………………………………………………2L Probable water consumption of one cycle ……………………………..0.4L Environment temperature of operate……………………………………0-40ºC Type of sterilization cycles………………………………………………Class B Wire heat resistance level…………………………………………………70ºC N·W 23L…………………………………………………………………53kg... -
Page 5: 5、Installation
5．Installation 5.1 Remove the packing Dismantle thin film, open the packing,get the equipment from the packing Hauling precautions: ·forbid lift up door ·forbid lift up legs of machine ·forbid Rollover or upside down ·Hauling sketch map is as follows: 5.2 The air-cooling window attached to the exterior surface of the Steam Sterilizer shall be non-clog by dust or articles, and the Steam Sterilizer shall working in the proper air flowing environment,and no dangerous flammable and explosive gas. - Page 6 5.6 After placing the Equipment Check whether the power supply is in conformity with the requirements: 230 ~, 5 0 hz, voltage fluctuation range± 10%, power supply ≥2300 VA. In order to ensure the safety of the person and equipment, must be equipped a ground wire,the equipment casing and the ground wire of the control cables must be connected to external ground wire reliable .
-
Page 7: 6、Packing Accessory
6. Packing Accessory Draining pipe 1 pc Mesh tray 2-3 pcs Plug 1 pc Bracket 1 pc Manual holder 1 pc Fuse 2 pcs Operation manual 1 pc Measuring cup 1 pc Sealing ring 1 pc 7. Display and keypad description 7.1 Control Panel 1) Pressure display Display on time the air pressure inside the... - Page 8 the wrapped devices. The working temperature is 121ºC or 134ºC. After having been selected, its indicator light is on. 6) COTTON button It’s used to be the sterilization choice especially for the cotton yarn devices. The working temperature is 121ºC. After having been selected, its indicator light is on.
- Page 9 7.3 Function description Vacuum sterilizer divided into the following process: preheating process;the vacuum step-up process; sterilization process; exhaust drying process; the pressure balance process. 7.3.1 preheating process: Select the program firstly, then close the door, press start button to enter the preheating process,electrify heated steam generator heater reaches 100 ℃, electrify heated the chamber wall heater to set temperature 50 ℃.
-
Page 10: 8、Emergency Condition
When the drying time is reduced to zero, turn off the exhaust, dry intake valve opens, so that the pressure to achieve and external balance, open the automatic doors, complete sterilization. 7.3.6 Sterilization program is as follows: 134℃ 121℃ 134℃ 121℃... -
Page 11: 9、Maintenance And Service
Error code and resolving measures Code Alarm Tone Malfunction content Resolving Measures display long "du" Fault of temperature Inspect if anything effected the sensor inside the chamber sensor or wire not connecting well or sensor was broken long "du" Pressure over 240 KPa Inspect pressure sensor or vacuum pump working long "du"... - Page 12 9.1 Clean the top water tank by disinfectant or alcohol once a week. 9.2 Disinfect and clean the interior surface of the Steam Sterilizer chamber monthly. 9.3 Replace the fuse. Fuse Type: 250V,15A Check the parameters of new fuse is correct . 1) Before change the fuse, turn off the power, and must pull out the plug.
-
Page 13: 10、 Transportation And Storage
2)When the pressure in the sterilizer reaches 100 kpa， Pull rings on safety valve, make the safety valve open,about 2S, if steam jet, the safety valv e work is normal. Ifnot, the safety valve need for effective inspection or replacement Pull rings on safety valve will steam jet, It is best to use tools such as screwdriver when pull. -
Page 14: 11、Attention
11. Attention ATTENTION 1. The Steam Sterilizer must be placed on the horizontal working base. 2. Must use the distilled water for the purpose of lasting the operation life of the Steam Sterilizer. 3. There shall be no clog to the air cooling window on the outer surface of the Steam Sterilizer. - Page 15 Appendix： 1 、 Steam loop （ Work Description ）...
- Page 16 2 、 Circuit diagram of sterilizer...
- Page 17 "UNWRAPPED" button around 10s, When the board displaying "bd", then press start/stop button, the autoclave would start the BD test automatically and end by displaying "Ed". Ningbo Mingtai Medical Instrument Co., Ltd Yunzhen Road, Industrial Zone, Yunlong Town, Yinzhou, Ningbo City, China Tel: +86-0574-88320096；Fax:+86-0574-88320098...
