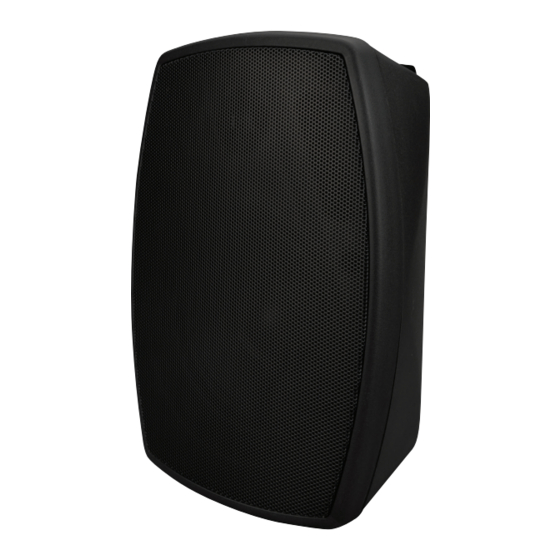

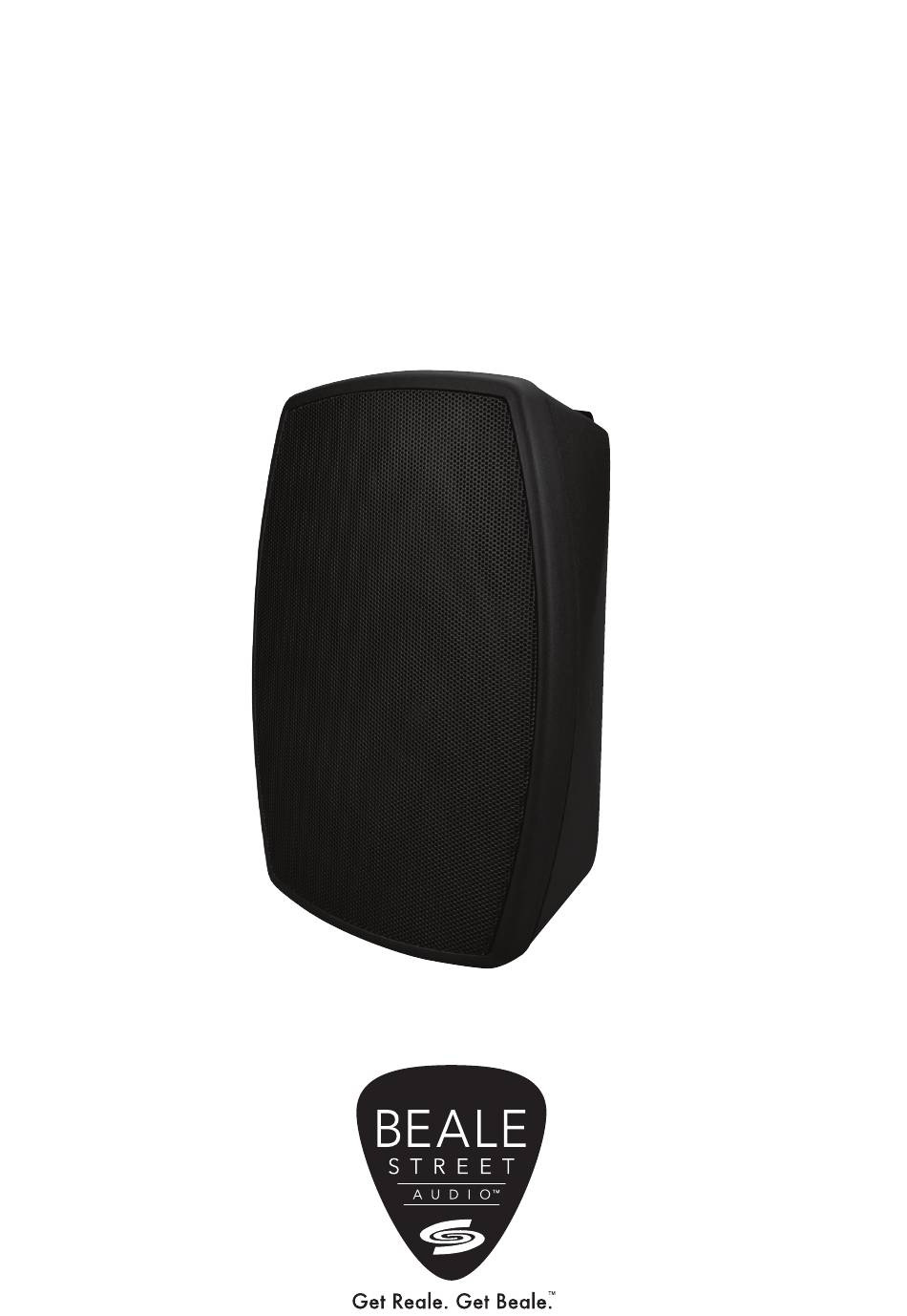

- Page 1 Beale Street Audio W5VB-BSC 5.25” On-Wall Indoor/Outdoor Speaker Installation Guide...
- Page 2 Introduction Congratulations and thank you for purchasing Beale Basics Series speakers from Beale Street Audio! Beale Basics speakers install with ease for fast, clean installations. Please follow the instructions in this manual to assure proper installation and to achieve the full performance and satisfaction you would expect from Beale Street Audio.
- Page 3 Installation 1. Use the bracket to find the appropriate mounting location and position NOTE: Ensure the location is made of sufficient material to withstand the weight of the speaker. For example, wood/metal studs or other wood structures 2. Fix the bracket to the wall 3.
- Page 4 70V/100V Configuration W5VB BSC 70/100 V AMPLIFIER SPEAKER SPEAKER SPEAKER The total number of speakers multiplied by the tap value cannot exceed the output power (in watts) of the 70V/100V amplifer. The example below shows 3 total speakers. Using the 10W taps, you will need an amplifer with at least 30W (3 speakers x 10W tap).
- Page 5 8ohm Connection W5VB BSC 8 OHM AMPLIFIER SPEAKER SPEAKER The speaker terminals on the speaker are red on one side and black on the other. Connect to the red terminal of the amplifier to the speaker (+), and connect the black terminal of the amplifier to the speaker (-). Connect each speaker to make sure there is not inverted polarity (+ goes to -).
- Page 6 Specifications W5VB-BSC • 0.75” Titanium Tweeter • 5.25” Engineered Woven Fiber Woofer • Frequency Response of 60Hz-20 kHz • RMS Power Output of 50 Watts • IP44 Outdoor Rating • Compatible with 8 ohm and 70V/100V systems • Dimensions: 7.9” x 7.5” x 10.6” (200mm x 195mm x 270mm) •...
- Page 7 (US only) a replacement speaker or your repaired speaker. If a current model is substituted for your speaker, a modification to the mounting surface may be required. Vanco is not responsible or liable to make, account for or pay the cost of any such modification.
- Page 8 The Vanco logo, Sonic Vortex logo, and Beale Street Audio Inc. logo are registered trademarks of Vanco International, LLC. Vanco, Sonic Vortex, Beale Street Audio, Get Reale. Get Beale., the Vortex logo, and the Beale Street Audio logo are trademarks of Vanco International, LLC.
