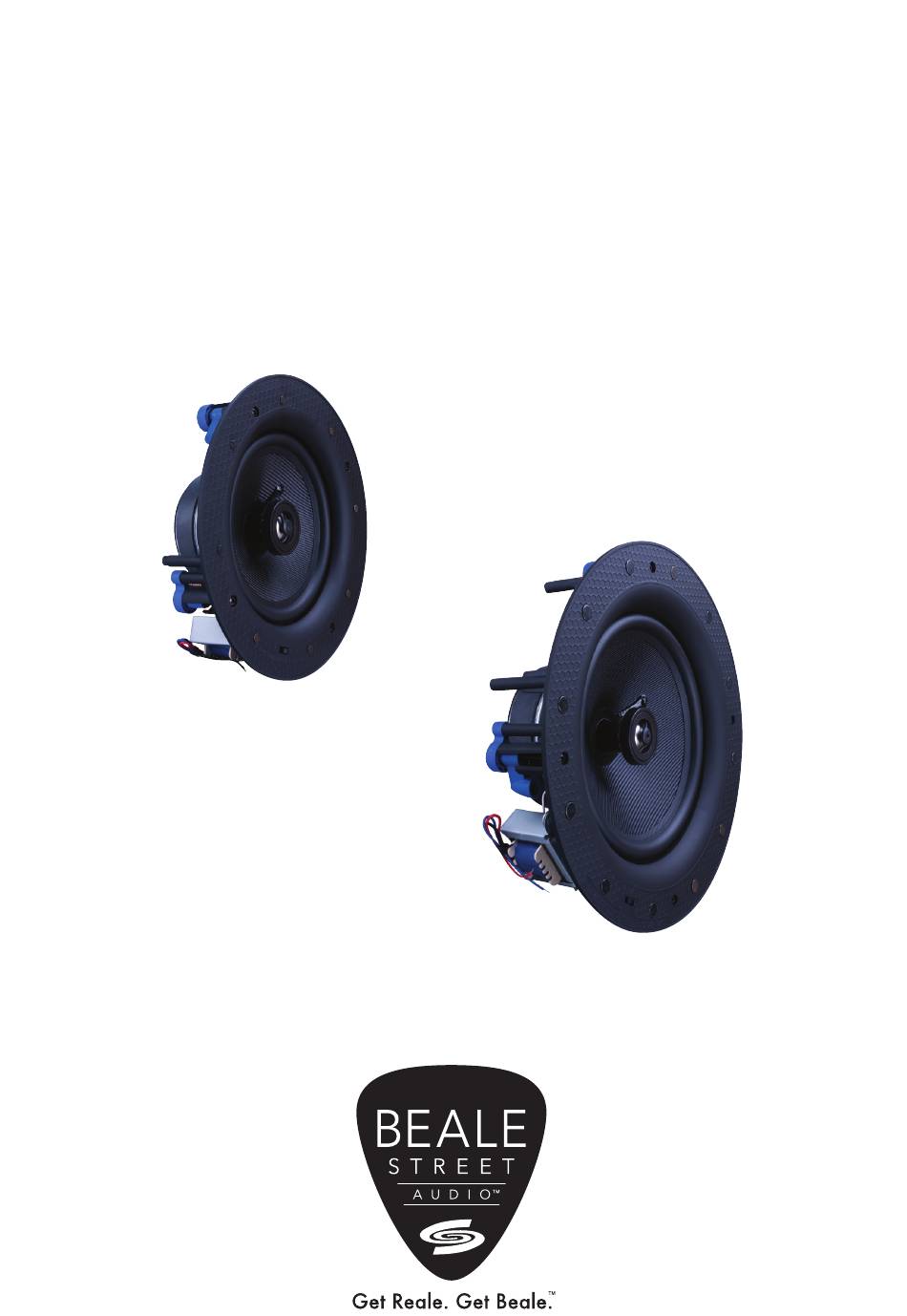

- Page 1 Beale Street Audio IC6V-BSC, IC8V-BSC 70 Volt In-Ceiling Speakers Installation Guide...
- Page 2 Introduction Congratulations and thank you for purchasing Beale Basics Series speakers from Beale Street Audio! Beale Basics In-Ceiling speakers install with ease using the ‘dog’ mounting system and magnetic grilles for fast, clean installations. Please follow the instructions in this manual to assure proper installation and to achieve the full performance and satisfaction you would expect from Beale Street Audio.
- Page 3 Existing Construction Speaker wire can be run from either the head-end to each location or daisy chained. • Choose a location for each speaker that is free of obstructions created by joists, HVAC ductwork, electrical wire runs, plumbing or anything else that might not allow for the depth of the speaker or create interference or noise Installation...
- Page 4 70V/100V Configuration The total number of speakers multiplied by the tap value cannot exceed the output power (in watts) of the 70V/100V amplifier. The example below shows 5 total speakers. Using the 10W taps, you will need an amplifier with at least 50W (5 speakers x 10W tap).
- Page 5 1. Red or 100V wire connects from the voltage or positive terminal of an amplifier or speaker 2. Blue or 70V wire connects from the voltage or positive terminal of an amplifier or speaker 3. Common/Ground or Negative wire connects from the voltage or positive terminal of an amplifier to speaker SPEAKER TROUBLESHOOTING PROBLEM...
- Page 6 Specifications IC6V-BSC 6.5” In-Ceiling 2 Way • Woofer: 6.5” Kevlar Type Woven Cone • Tweeter: 0.75” Titanium Dome • RMS Power: 60W • Nominal Impedance: 8Ω • Transformer: 10W • Sensitivity: 90dB • Installed Frequency Response: 65Hz- 20kHz • Product Dimension: 227x87mm (9” x 3.4”) •...
- Page 7 (US only) a replacement speaker or your repaired speaker. If a current model is substituted for your speaker, a modification to the mounting surface may be required. Vanco is not responsible or liable to make, account for or pay the cost of any such modification.
- Page 8 The Vanco logo, Sonic Vortex logo, and Beale Street Audio Inc. logo are registered trademarks of Vanco International, LLC. Vanco, Sonic Vortex, Beale Street Audio, Get Reale. Get Beale., the Vortex logo, and the Beale Street Audio logo are trademarks of Vanco International, LLC.
