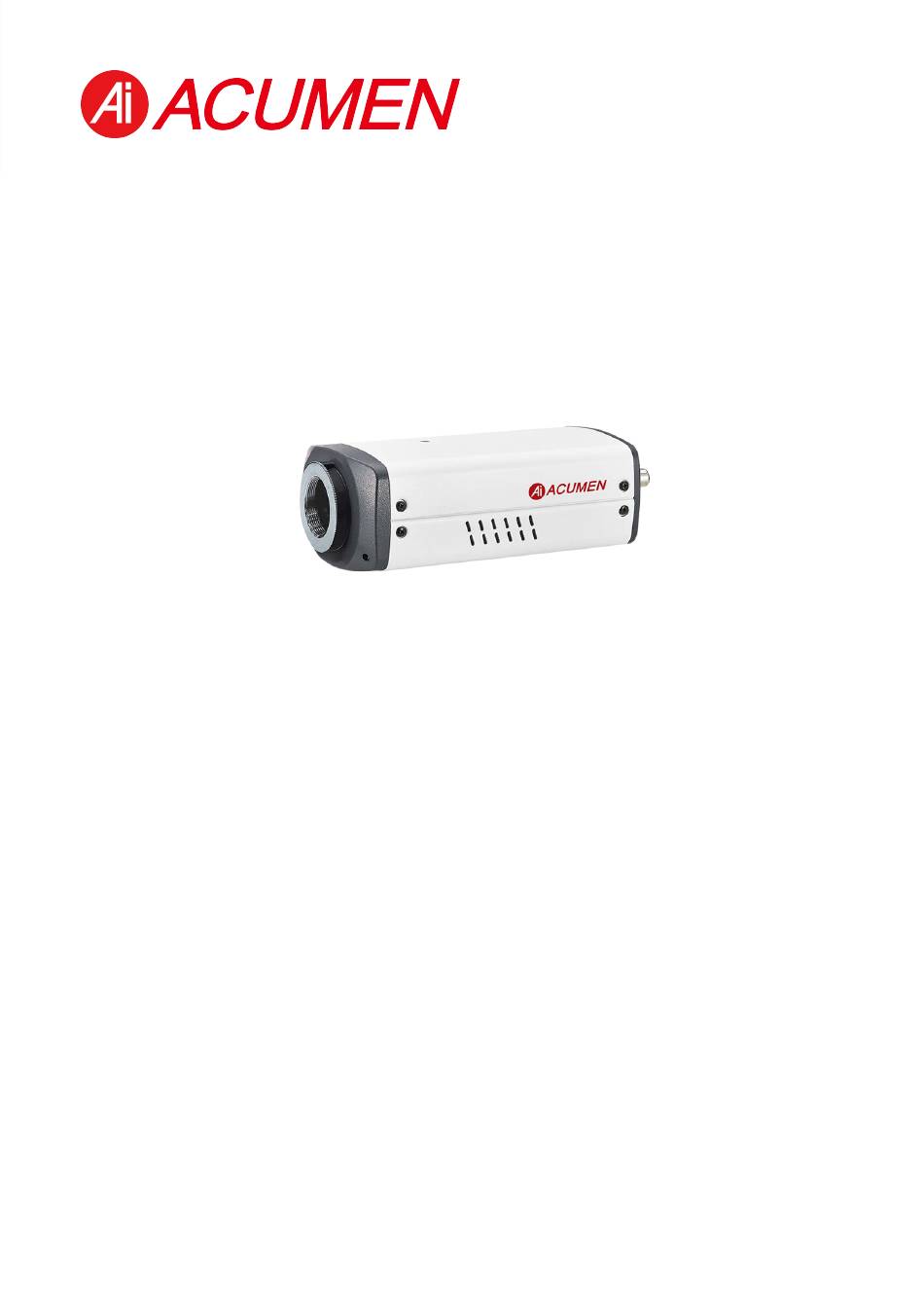

- Page 1 AiP-B26A D/N 1080P 60FPS HD IP Camera Quick Installation Guide...
- Page 2 CAUTION Do not drop or strike this equipment Do not install the equipment near any naked flames or heat sources Do not expose this unit to rain, moisture, smoke or dust environment Do not cover the opening of the cabinet with cloth and plastic or to install this unit in poor ventilated places.
- Page 3 Product Overview Unit: mm - 1 -...
- Page 4 ① Lens Mount Cap ② Focal Length Adjustment Ring and Locking Screw ③ Microphone ④ Light Sensor ⑤ Auto Iris Connector (4-Pin Socket) ⑥ Power LED ⑦ Live Video RCA Jack ⑧ Reset Key ⑨ RJ-45 Network Connector and Indicator LEDs Green(LINK): Network connection.
-
Page 5: Installation
Installation ● SUITABLE LENSES Lenses used must be either C or CS mount type. The protrusion behind the mounting surface must fit within the following requirements: ● FITTING THE LENS 1. Remove the lens mount cap. 2. Screw in the C mount ring until it is secured. (When using a CS mount lens, skip this step.) 3. -
Page 6: Fitting The Camera
CAUTION Keep the lens mount cap on the camera when not attaching to a lens. ● FITTING THE CAMERA 1. The mounting hole is on the top or bottom of the camera. 2. Tighten the screw to the mounting hole. Please refer to the following diagram. - Page 7 System Architectures For connecting HD IP cameras to the network, please follow one of the system architectures: (1). Use a DC12V power adapter and a network switch to connect to the network. (2). Use a PoE network switch to connect to the network. (3).
-
Page 8: Emergency Factory Default
JPEG or H.264 Full HD video. When you login to the IP camera by Internet Explorer, the security warning dialog box will prompt the installation of the Acumen Universal ActiveX. Click Install to download it. - 6 -... - Page 9 IPScan software from the installation CD, and paste to your computer. Alternatively, you can execute the IPScan software from the installation CD, or download the software from the Acumen website (www.acumenin.com). To change the settings of the IP address, subnet mask, gateway, or HTTP port, you can follow the steps below: 1.
- Page 10 Configuring IP Addresses via Web Interface To change an IP address via web interface, type the default IP address (192.168.0.200) in the Internet browser and follow the steps below: 1. Login to the H.264 Full HD IP camera by the default username “admin”...
- Page 11 Once complete, you can access the IP camera’s live video by entering the default IP address via your Internet browser. As the security warning dialog box appears, click OK to download the ActiveX directly from the IP camera. Login There are two levels of user authentication, including admin and guest, that can access the IP camera.
- Page 12 The default usernames and passwords are as follows: Administrator Username admin Password pass To logon the H.264 FULL HD IP camera, please type username and password in logon HTML page and click on Submit button to enter the system. - 10 -...
