Acumen AiS series Installation Manual

Network hd camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Installation Manual for
AiS Network HD Camera

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AiS series and is the answer not in the manual?

Questions and answers

Related Manuals for Acumen AiS series

Summary of Contents for Acumen AiS series

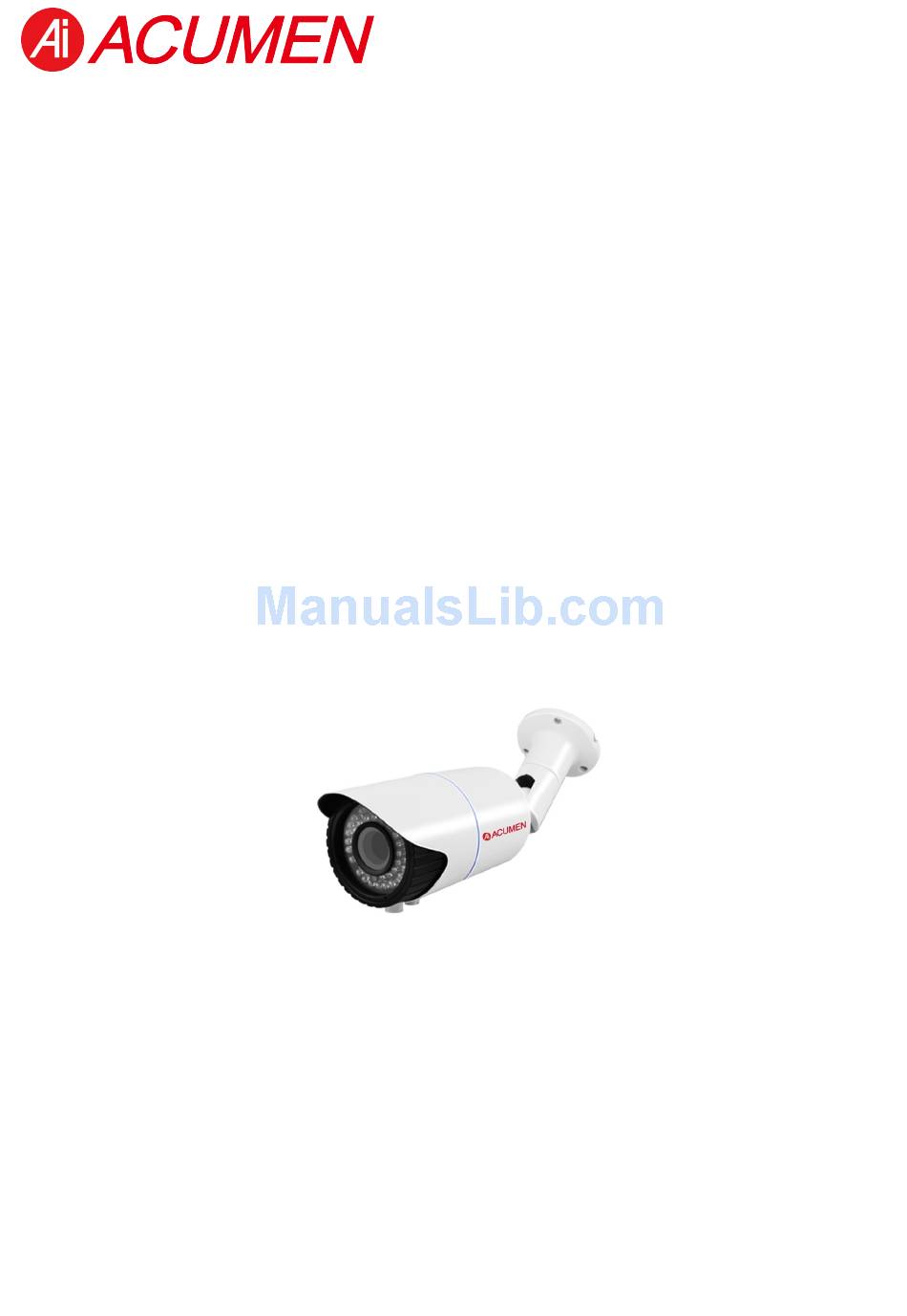

  • Page 1 Installation Manual for AiS Network HD Camera...
  • Page 2 HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 Statement： Thanks for purchasing from us. Please feel free to contact our service whenever you need help. This is universal product manual for Network HD Cameras. Features and functions vary with different products, please refer to our physical commodity and the fast manual.
  • Page 3 HD Intelligent Network Speed Dome Installation Manual English Safety Instruction This manual is intended to ensure that user can use the product properly without danger or any property loss. Please read it carefully and take care of it for further reference. Precaution measures are divided into “warnings”...

  • Page 4: Table Of Contents

    HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 Catalog Chapter 1 Product Introduction ................................. 4 Chapter 2 Functional Characteristics ..............................4 2.1. Network management ..................................4 2.2. User management ..................................... 4 2.3. Alarm linkage function ................................4 2.4 storage function ..................................... 4 2.5.
  • Page 5 HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 5.4 Management Tool ..................................... 31 5.4.1. HDD management ................................. 31 5.4.2. User Management ................................32 5.4.3. Auto Maintenance ................................32 5.4.4. Restore Default ................................33 5.4.5. Import and Export ................................33 5.4.6.

  • Page 6: Chapter 1 Product Introduction

    HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 Chapter 1 Product Introduction Network camera is easy to install and use, without cumbersome integrated wiring and can carry real-time compressed image and transfer through the network to different users at the same time. You can browse the real-time image, storage and control by connecting to the network camera at any places of network coverage in the world.

  • Page 7: Color/Black And White Conversion Function

    HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 2.5. Color/black and white conversion function It can be set to automatic low illumination conversion and manual low illumination conversion, in the automatic conversion mode, the camera according to the variation of environmental light convers sensor illumination automatically.
  • Page 8 HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 Open IE browser, enter the IP address of the network the ball in the address bar (default is 192.168.1.10) the system will prompt whether to install this plug-in, click Install, the browser will automatically load the IE plugin.

  • Page 9: Log On To The Web Client

    HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 Enable permission to download and install Activex controls and plug-ins, as shown in the following figure. After confirming the application, refresh the IE browser to begin downloading and installing IE controls. 4.2 Log on to the WEB client Open the IE page, in the address bar enter the IP address of the network camera.
  • Page 10 HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 Reserved one user “admin”, is default no password. Admin is super user, can change the password but not the authority. If there is invalid login account or password error system will be a corresponding hint.

  • Page 11: Ptz Control

    HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 control: Close all see details audio client Full in section channel 4.2. screenshot screen Other ICONS functions: Close all Open all channel video channel channel video 4.3. PTZ control PTZ control interface is as shown in figure 4-4. Attention: When control the PTZ, please go to system Settings –...

  • Page 12: Set Of Step Length

    HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 of the PTZ to turn right or left, and the rotation of the upper left, lower left, upper right, lower right direction. Among them the size of the velocity can be modified in the step set. 4.3.2 set of Step length Step size is mainly used to control the running speed of PTZ, the greater the step length, the larger PTZ runs, the smaller the step length PTZ’s operation of the amplitude is smaller;...

  • Page 13: Add And Call Preset

    HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 4.3.4. Add and call preset Preset point is network camera stores the current position and the lens focal length, aperture parameters,etc in the memory, when it is needed can call these parameters quickly and adjust PTZ and camera to the location of the function.

  • Page 14: Other Settings

    HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 Attention: this function is only to adjust the picture color of the current WEB side, it will not affect the picture color on the camera. Contrast Brightne Saturation Tone adjustment adjustment adjustme sdjustme Restore defaults Restore the brightness, contrast, saturation...

  • Page 15: Client Configuration

    HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 4.5. Client configuration 1. The alarm Settings: set the external alarm, mobile detection alarm linkage set, such as linkage alarm monitoring, alarm prompt, and other functions 2. The system Settings: set the client information such as video capture. 【video directory】: set up the client video storage paths.
  • Page 16 HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 Play Paus Stop Slow Fast Previou Next s frame frame 【video query】: return to the video query dialog box. 【play】: select needed playback file, click the play button to start the file playback. 【Attention】: double click needed playback file, also can play back the file.

  • Page 17: Local Playback

    HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 Attention: the file queried according to its time on time axis color display respectively: red for external alarm video, blue for manual videos, green for the common video. Ash for detecting video (including mobile detection, video screening, loss of video footage).

  • Page 18: Record

    HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 5.1.Record Click ，as follows: 5.1.1. Record settings Click ，as follows: This function allows you to config the time length and pre-record time for each record.We have three settings: Configuration, manual or stop. Configuration:Record according to the set video type (common, detection and alarm).

  • Page 19: Snapshot Storage

    HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 5.1.2. Snapshot Storage Click ，as follows: Configure the number of snapshot pictures. We have three snapshot modes: configuration, continuous, close. 1. configuration：Configure timing capture among different dates. Timing capture include common snapshot, detect snapshot and alarm snapshot.

  • Page 20: Motion Detect

    HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 5.2.1. Motion Detect Click ，as follows: 【Channel】Choose the set motion detect channels, default is one channel. 【Enable】■ means that the motion detect function is on. 【 Sensitivity 】 Choose options according sensitivity: lowest/lower/medium/high/higher/highest.

  • Page 21: Video Blind

    HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 【Interval】：Shortest time interval between two alarming. The range is 0~600seconds. 【Alarm output】：Enable to link alarm output. 【Delay】Delay a few moments and stop when the alarm state is turned off. The range is 10~300 seconds.

  • Page 22: Video Loss

    HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 5.2.3．Video Loss Click ，as follows: Set method: refer to chapter5.2.1. video loss. 5.2.4．Alarm input Click【 】pop-up the alarm input dialog box, as shown in figure 5-8. Alarm input can be external connection with all kinds of alarm.

  • Page 23: Alarm Output

    HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 5.2.5 .Alarm output Click pop-up the【alarm output】dialog box, as shown in figure 5-9. Alarm output can be an external lights, alarm warning devices, etc. 【Configuration】: according to the alarm function is enabled the alarm output to decide whether output alarm signal or not.
  • Page 24 HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 【channel】：select the number of channels needed to set, network cameras default 1 channel. 【Enable】：enable intelligent analysis of alarm function. 【method】：a perimeter alarm algorithm. 【rule】 ： click "Settings" button, open the rule "rules Settings" dialog box. As shown in figure 5-10-01. [Traces show]: if checked can display trigger alarm objects moving trajectory.

  • Page 25: System Setting

    HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 Set the warning area, click on the "right" set direction, ban direction is divided into two-way points, enter and leave. [Rule] : click "Settings" set the boundary line and the alert area. Other relevant configuration, please refer to 5.2.1 motion detecting section.

  • Page 26: Encode Setup

    HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 date) 【Date Separator】Choose list separator of the data format. Three modes:“—”“/”“.” 【Time Format】Choose time format: 24-hour or 12-hour. The default system in the preview images shows in 24 hours. 【Language】：Config system language: Simplified Chinese, Traditional Chinese, English and other 20 languages.

  • Page 27: Network Setup

    HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 【image quality】Effective when it is variable code stream. Switch between worse/bad/general/good/better/best. The larger code stream value the better image quality. 【I frame interval】：Camera capture key frame time interval, can be set between 2-12S. Note：When I frame interval is too large, the preview screen will Caton.

  • Page 28: Net Service

    HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 Network transmission priority: When multiple users login the same camera, limit the user with the smallest bandwidth. 5.3.4．Net Service Click ，as follows :to config the email, wifi and other functions. 5-15 【IP permission】...
  • Page 29 HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 [Addressee]：You can config 3 email addresses, separated by a semicolon, can be the same with outbox. [Theme]：Config email theme, can be modified. [Mail Test]：After configuration, click mail test to config whether the email is valid. 【NTP settings】...
  • Page 30 HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 5-16 WIFI 设置 [Search]: click on the search button, search wireless router within the scope, displaying in a bar above. [DHCP]: wireless function of obtaining IP address automatically. [SSID]: specify the name of the wireless router. [Code]: connection password of wireless router.

  • Page 31: Output Mode

    HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 5.3.5. Output mode Click ，as follows: to config channel name. 5-17 【Channel Name】 ：Set the camera channel name, up to 26 characters, special characters are not supported. 【Regional coverage】 ：Set the camera coverage area number, location and size, can set up four coverage area.
  • Page 32 HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 5-20 【Exposure Mode】 ： Config the exposure time, can be switched between auto/manual,1/50 to 1/10000S .the shorter the exposure time, the darker the preview screen. [Day/Night Mode]: Modify day/night mode manually. Auto: The camera automatically control color of the preview screen according to the actual ambient light.

  • Page 33: Management Tool

    HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 [Flip]: When you enable it, the preview screen turn upside down 90 °. [Fluorescent anti-flash]: To get rid of the horizontal fluorescent stripes of preview screen with fluorescent lamp. [IR lens reverse order]: IR_CUT reverse order. 5.4 Management Tool Click ，as follows.

  • Page 34: User Management

    HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 Attention：①We recommend Genuine Kingston TF card, capacity greater than or equal 4G. ②Make sure that each partition is larger than 1024M. ③Format TF card before partition, data will be lost. 5.4.2. User Management Click ，as follows: 5-21...

  • Page 35: Restore Default

    HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 [Automatic restart]: Set the camera automatically restart at some point during the day, the default restart 1:00 Tuesday. [Automatically delete old files]: System will automatically delete videos and drawings within 1-255 days, the default is never deleted.

  • Page 36: Restart

    HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 5.4.6. Restart Click ，as follows，click restart, camera soft-reboot via client. 5.4.7. System Upgrade Click ，as follows，Select the correct upgrade file via browsing, click Upgrade to begin the upgrade, the upgrade process will be displayed, pop-up dialog box when upgrade is successful, the camera automatically soft reboot when the upgrade is complete.

  • Page 37: Log Info

    HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 5-27 [Drive type and capacity]: check the partition type, total capacity, remaining capacity, and status information. [DVR time]: check start time and end time of the recordings and capture. 5.5.2. Log info Click as follows，all info or parted info can be searched.

  • Page 38: Chapter 6 After-Sale Service & Maintenance

    HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 5-29 [Video channel, extended channel, alarm input, alarm output]: Display the current camera hardware, support alarm input and output. [System Version]: Display the camera model and other information. [Release Date]: The current program release time. Attention: Contact company's technical staff, provide system version and release dates for technical support.
  • Page 39 HD Intelligent IP Speed Dome Installation Manual Chinese V1.0 (5） Abnormal situations caused by falling, squeezing, high temperature, corrosion, foreign objects enterin poor electrical environment or other non-normal reasons. (6）Breakdown or damage caused by natural disasters, war and other force majeure factors. (7）Breakdown caused by unauthorized service agencies or disassemble, repair, installation confirmed b their personnel.
  • Page 40 HD Intelligent IP Speed Dome Installation Manual Chinese V1.0...
