Page 1: Speed Dome Camera

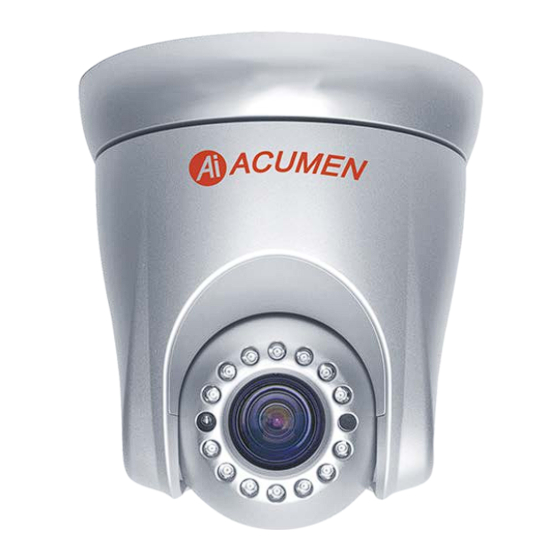

AiP HD Series Speed Dome Camera INSTRUCTION MANUAL... -
Page 2: Key Features
Executive Summary AI’s H.264 video server or HD Speed Dome IP PTZ camera uses the latest compression technologies providing 4-Streaming of H.264 and JPEG in different resolutions. AI’s 4-Streaming technologies allow transmitting digital video at various bitrate and frame rate to fit both high and low bandwidth network environment. - Page 3 Trademark Acknowledgments Microsoft, Windows 2000, Windows XP, Windows Vista, Windows 7, ActiveX, and Internet Explorer are registered trademarks of Microsoft Corporation in the U.S. and/or other countries. Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc.
-
Page 4: Table Of Contents
Table of Content Chapter 1 System Overview ..........................4 Chapter 2 Before Accessing IP Camera ......................5 Chapter 2-1 Configure IP Address Using IPScan Utility ..................5 Chapter 2-2 Configure IP Address Using HTML Page ..................5 Chapter 2-3 Internet Browser Setting & Software Component Required ............6 Chapter 2-4 Login .............................. -
Page 5: Chapter 1 System Overview
Chapter 1 System Overview Chapter 1-1 System Requirements The IP Camera’s H.264 video compression technology can provide high compression rate and superior video quality. However, the performance highly depends on both CPU computational power of a client PC and the network bandwidth for transmitting video streaming. The following sections specify system requirement for running the H.264 IP Camera: Chapter 1-2 Software Requirements AI Universal ActiveX software components are required for web interface for displaying JPEG or... -
Page 6: Chapter 2 Before Accessing Ip Camera
Chapter 2 Before Accessing IP Camera Before accessing to the IP camera, make sure that the camera’s RJ-45 network cable, audio cable, and IP camera’s power cable are properly installed. For setup IP address, please consult your network administrator for available IP addresses. The default IP address of IP camera is 192.168.0.200. -
Page 7: Chapter 2-3 Internet Browser Setting & Software Component Required
Chapter 2-3 Internet Browser Setting & Software Component Required Make sure that your Internet Browser allows signed ActiveX plug-in running on your PC. Set “Download Signed ActiveX plug-in controls” to “Prompt” and “Run ActiveX control and plug-in” to “Enable” at Internet Explorer->Tools->Options->Security Settings. After finishing above security settings, accessing IP camera’s live video by default IP address of IP camera using Internet Explorer will prompt a Security Warning dialog box. -
Page 8: Chapter 3 Start Using The Camera
Chapter 3 Start Using the Camera After login H.264 HD video server or IP PTZ camera as administrator, there are two main features—system operation and configuration. Operation and configuration features are described as follows: Chapter 3-1 IP Camera Operational HTML Page Operational HTML page layout 1. -
Page 9: Chapter 3-2-1 Pt Mode
Chapter 3-2-1 PT Mode There are four Pan and Tilt Modes (PT) for users to operate the PTZ device. To select one of the PT modes, please click on the icon under PT Mode panel. PT mode PT mode with speed Lower speed (inner) Higher speed (outer) Pan mode at absolute position... -
Page 10: Chapter 3-2-3 Camera Control Panel
AI Universal ActiveX control becomes eZoom mode. Please use computer mouse pointing to the sub-window of PIP view. Dragging the sub-window can perform ePan and eTilt. Using mouse scroll button can perform zoom in and out features. Performing right-mouse click on the video can disable ePTZ feature. Chapter 3-2-3 Camera Control Panel Control panel buttons are described as below: Snapshot: Take a snapshot of the video. -
Page 11: Chapter 3-3-1 Server Settings
Chapter 3-3-1 Server Settings Server settings contain H.264 HD video server or IP PTZ camera server’s system information such as MAC address, firmware version, users, system timer, and other system settings. To change or to use these options, please follow the instructions at this section. MAC Address Network MAC address of the video server or camera Firmware Version &... -
Page 12: Chapter 3-3-2 User Settings
Chapter 3-3-2 User Settings There are ten user accounts allowed for the system. Each account can be configured for its access rights. To add/edit a user, please click on Add/Edit User button. To access H.264 HD video server or IP PTZ camera without authentication, set Bypass Logon radio button to ON. To change account name, please type the new account name in Account edit box. -
Page 13: Chapter 3-3-4 System Setting
Synchronize with a PC A user can synchronize the PC system timer to the IP camera's system timer. Chapter 3-3-4 System Setting Load Default feature allows to load manufacturing default. There are certain critical settings such as IP addresses and video system which are not affected by this operation. To reboot H.264 HD video server or IP PTZ camera, click on Reboot System hyper link. -
Page 14: Chapter 3-4-2 Dhcp Setting
For Internet access configuration, please contact your local ISP for global IP address. Once the physical Internet connection gets installed, enter IP address (global), Subnet Mask, and Gateway IP from the ISP. Default DNS IP Address—Primary Domain Name Server, the IP address of the domain name server ... -
Page 15: Chapter 3-4-4 Smtp Service
Chapter 3-4-4 SMTP Service Alarm or motion notification feature can send an alarm or motion detection snapshot to an E-mail account. To enable alarm or motion sending E-mail feature, please setup the following email accounts. E-mail receiver setting E-mail address— E-mail address of the recipient ... -
Page 16: Chapter 3-4-6 Ddns Settings
Send email to Yahoo or Gmail account. Please follow: E-mail Address: Please fill in the SMTP for Yahoo or Gmail account. SMTP Server: For Gmail, please fill in "smtp.gmail.com". For Yahoo E-mail, please fill in "smtp.mail.yahoo.com". SMTP Authentication: Please check "AUTH SSL". ... -
Page 17: Chapter 3-5 Video Settings
Chapter 3-5 Video Settings This section describes the details in setting the H.264 video’s attributes. The settings of bit rate control, video input, and video resolution can be configured. Chapter 3-5-1 Video General For transmitting H.264 video over low bandwidth network such as Internet, please set the bit rate close to network upload bandwidth. -
Page 18: Chapter 3-5-3 Video Quality
Chapter 3-5-3 Video Quality Under the tab < Video Quality >, there are categories including: < Camera Advanced Ⅰ > and < Camera Advanced Ⅱ >. 3-5-3.1 Camera Advance Ⅰ Camera Advanced Ⅰ Setting Menu can be found under this path: Video Quality > Camera Advanced Ⅰ... - Page 19 ■ Exposure In the Exposure Mode Setting users can select Auto, Shutter, Iris and Fix four modes. Exposure-Auto Mode In this mode can adjust the parameter of the Brightness/Flickerless/AGC Limit/Shutter Limit. Exposure-Iris Mode In this mode can adjust the parameter of the Brightness/Shutter/Flickerless/AGC Limit. Exposure-Shutter mode In this mode can adjust the parameter of the Brightness/Lens Iris/AGC Limit/Shutter Limit.
-
Page 20: Chapter 3-6 Ptz Settings
AWC Mode Auto White Balance Control（One-Push White Balance). Manual Mode In this mode, users can change the White Balance value manually via specifying R gain and B gain; the range of R/B gain is from 0 to 127. Indoor Mode The indoor mode setting. -
Page 21: Chapter 3-6-2 Ptz Advanced Settings
1.3MP IP PTZ Interface Preset Go To have the camera move to a specified Preset position, please select the Preset Point from the drop-down Preset Point list. Then the camera shall readily move to the target position. Chapter 3-6-2 PTZ Advanced Settings 3-6-2.1 Lens Advance Lens Advance Setting Menu can be found under this path: PTZ>... - Page 22 3-6-2.2 Pan-Tilt Setup Pan-Tilt Setting Menu can be found under this path: PTZ> PTZ Advance> Pan-Tilt Setup In the Pan-Tilt Setup Menu, users can set various Pan-Tilt parameters including Home Position, Self Return Time, Self Return Mode and Auto Mode. Each setting is specified as follows: Home Position Specify home position for one of the presets.
-
Page 23: Chapter 3-6-3 Ptz Schedule Settings
The IP Speed Dome Camera supports totally four Tour Path; each Tour Path consists of up to 32 Preset Points. Please refer to the instructions below to program a Tour table. NOTE: Before setting this function, users must pre-define at least two Preset Points. Tour Path Setting ... -
Page 24: Chapter 3-7 Sd Card Recording
Chapter 3-7 SD Card Recording To record video on SD Card, please insert SD card into the SD card slot. Enable SD card recording feature. The IP camera can start to record video into the SD card. Chapter 3-7-1. SD Card Recording Setting For SD card recording setting, please see the following for detail. -
Page 25: Chapter 3-8 Alarm Settings
Chapter 3-8 Alarm Settings H.264 D1 video server or IP PTZ camera’s hardware alarm system contains motion detection, alarm sensors, and one alarm/relay output. Many alarm features such as motion/alarm email notification and FTP archiving can be found at this section. Chapter 3-8-1 Motion/Alarm Setup There are motion detection zones allowed in the H.264 D1 video server or IP PTZ camera. -
Page 26: Chapter 3-8-4 Audio Detection
Chapter 3-8-4 Audio Detection For audio model, the IP camera has audio detector detecting acoustic level. If the volume exceeds the audio sensitivity value, audio detector triggers an alarm for notification. Chapter 3-9. Audio Setting Audio setting is based on the following: ... -
Page 27: Appendix
Appendix Advance Network DDNS and PPPoE Technologies The advantage of using DDNS and PPPoE is to save the cost of IP address. H.264 AVC IP camera’s PPPoE service gets a dynamic global IP address after system reboot. This IP address may get changed periodically. -
Page 28: Android Access
Execute Live Cams Pro application. Please click on “Add Camera” button on your phone while using Live Cams Pro. Task bar gets prompted as below: Please selection one of the following drivers for cameras: Profile 1: H.264 HD or D1 IP camera. Android Access: Please use your Android phone and select Android Market for downloading IP Cam Viewer/IP Cam Viewer Lite application developed by Robert Chou. -
Page 29: Emergency Factory Default
“Add/Edit IP Camera” dialog box gets prompted for editing an IP camera or a DVR. In “Add/Edit IP Camera” dialog box, please enter the following information: Name: Name of the IP camera or DVR’s camera Category: Please select AI. Type: Select device type, AI D1/ AI HD/ AI DVR. IP Address: Please type IP address, for example http://122.116.191.129:86 where 86 is the... -
Page 30: Specification
DISTRIBUTOR： AiP HD Series Speed Dome...
