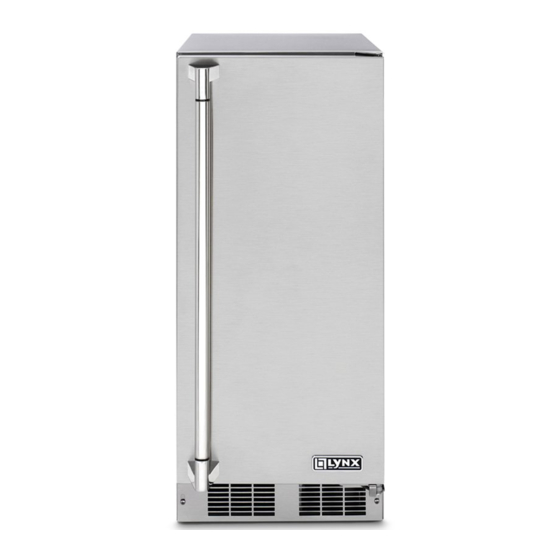

- Page 1 MAKE THE MOST OF YOUR LN15ICE OUTDOOR CLEAR ICE MACHINE CARE & USE/INSTALLATION...
-
Page 2: Table Of Contents
CONTENTS Contents: Warranty Registration: Warranty registration ............2 Warranty registration ............2 It is important you send in your warranty registration card Safety information ...............3 immediately after taking delivery of your appliance or you Unpacking your appliance ..........3 can register online at: Installing your appliance ............4 www.lynxgrills.com/support/registration Door Reversal ..............7... -
Page 3: Safety Information
SAFETY INFORMATION AND UNPACKING YOUR APPLIANCE Important Safety Instructions Warnings and safety instructions appearing in this guide are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care must be exercised when installing, maintaining, or operating this appliance. Recognize Safety Symbols, WARNING Words, and Labels. -
Page 4: Installing Your Appliance
INSTALLING YOUR APPLIANCE Template For Installing the Name Badge To Install, use the template below to locate the name badge on the door. Remove the adhesive and apply the name badge to the door. - Page 5 The over- all height of your Lynx appliance may be adjusted between the minimum, 33 ⁄...
- Page 6 Model Height Height 33 3 ⁄4" 34 3 ⁄4" LN15ICE This product is factory equipped with a power supply (85.7 cm) (88.3 cm) cord that has a three-pronged, grounded plug. It must be plugged into a mating grounding type receptacle in accor- dance with the National Electrical Code and applicable lo- cal codes and ordinances (see Figure 6).
-
Page 7: Door Reversal
DOOR REVERSAL Door Reversing Instructions 1. Open door. 2. Loosen screw #1 and #2 using a Philips Screwdriver on top and bottom hinge. Slide door and remove the door from the unit. Figure 7 3. Once door is removed, using a Philips Screwdriver remove screws from magnet actuator located on inside and bottom of door. -
Page 8: Installing The Drain Plumbing
INSTALLING THE DRAIN PLUMBING CAUTION CAUTION Failure to use an adequate drainage system, will result in Observe and follow all local building codes Water surrounding water damage and/or poor ice production. when installing this ice machine and drain supply lines. inlet ⁄... -
Page 9: Drain Pump
Contact Lynx Grills Customer Service cut to length. at 888.289.5969 or your dealer for ordering. CAUTION This drain pump is designed to be installed in Lynx ice machines only and approved for use with water only. WARNING Drain pump vent tube. -
Page 10: Installing The Water Supply
INSTALLING THE WATER SUPPLY Water Supply CAUTION Observe and follow all local building codes when installing this appliance. This ice machine must be connected to a potable cold water supply line. delivering water pressure between a minimum of 20 psi and a maximum of 120 psi. ⁄... -
Page 11: Drain System Test
DRAIN SYSTEM TEST CAUTION Procedure for Testing Drain System (both gravity and drain pump models) Drain pump models have a safety feature that will interrupt power to the unit if a high-limit condition occurs to prevent flooding. This safety feature can be initiated by a restriction in the drain system and will continue until high-limit condition is corrected, at which time power will be restored to the unit. -
Page 12: Ice Maker Operation
OPERATION OF THE ICE MACHINE The Ice Making Process When the ice slab reaches the correct thickness, the ice Your ice machine is unique in how it forms ice with fraction- sheet is released and slides onto the grid cutter (see al freezing to form a slab of ice that is clear and has less Figure 18). - Page 13 OPERATION OF ICE MACHINE Ice Production The ice machine will keep producing ice until the ice machine’s bin is full and will restart automatically when In normal mode the ice machine will produce up to 39 ice needs to be replenished in the bin. The ice bin is pounds (17.7 kg) of clear ice in a 24-hour period when not refrigerated, and some melting will occur by design installed in a 72°F ambient with a 55°F water supply.
-
Page 14: Product Dimensions
⁄ " to 34 ⁄ " ⁄ " ⁄ " ⁄ " ⁄ " LN15ICE (38.1 cm) (86.4 to 88.9 cm) (61 cm) (37.8 cm) (85.7 to 88.3 cm) (60 cm) (64.9 cm) (95 cm) (42.4 cm) "A" "B" "E"... - Page 15 ELECTRICAL PRODUCT MODEL REQUIREMENTS # WEIGHT # A grounded 15 amp dedicated circuit is required. Follow 105 lbs all local building codes when installing electrical and LN15ICE 115V/60Hz/15A (47.7 kg) appliance. "J" "H" "G" "D" "F"...
-
Page 16: Using Your Electronic Control
USING YOUR ELECTRONIC CONTROL Figure 25 - Electronic control Control Function Guide Function Command Notes ON/OFF Press and release. Unit will immediately turn ON or OFF. C symbol will flash briefly after 5 seconds. Interior light Enable Sabbath Mode Press and hold for 5 seconds and release and display will go dark and remain so until user resets mode - unit continues to operate... -
Page 17: Cleaning Your Ice Machine
CAUTION To clean your ice machine you will need to purchase a "nickel safe" ice maker cleaner (#36684). Cleaner can be Figure 26 obtained by contacting Lynx Grills Customer Service at 888.289.5969. Figure 27... - Page 18 CLEANING YOUR ICE MACHINE Refer to your cleaning solution instructions to determine the proper amount of cleaning solution to add based on 2 quarts (1.9 liters) of water. Lift fascia door up to access evaporator plate (See Figure 29). Pour the cleaning solution slowly on the evaporator plate so it flows down into the fresh water reservoir.
-
Page 19: Care And Cleaning
If the product is within the first year warranty period of liquid could collect, become stagnant, and concentrate please contact your dealer or call Lynx Grills Customer contaminants. Additionally, any mounting hardware that is Service at 888.289.5969 for directions on how to obtain showing signs of corrosion should be replaced. -
Page 20: Troubleshooting The Ice Machine
TROUBLESHOOTING THE ICE MACHINE Before You Call for Service WARNING If the appliance appears to be malfunctioning, read through this manual first. If the problem persists, check the trouble- shooting guide below. Locate the problem in the guide and Electrocution Hazard refer to the cause and its remedy before calling for service. - Page 21 TROUBLESHOOTING THE ICE MACHINE Troubleshooting the Drain Pump Ice Quality Odor, grey color, or off taste in the ice Is there mineral scale build up on the evaporator NOTE plate? The ice machine needs cleaning. See “Cleaning the Ice Machine”. If the drain pump reservoir (not the ice machine bin) reaches overfill condition, the power to the ice machine will Is there a high mineral content in the water? The water...
-
Page 22: Preparing The Ice Machine For Storage
PREPARING THE ICE MACHINE FOR STORAGE If the ice machine is moved, not used for an extended period of time, or will be in an area that will be near freezing temperatures, it is necessary to remove any remaining water in the ice-making system. CAUTION This ice machine must have all water drained and removed to prevent ice machine damage as well as possible water... - Page 23 PREPARING THE ICE MACHINE FOR STORAGE 7. Disconnect the water valve’s outlet water line to the 8. Reconnect the water valve outlet water line. reservoir and drain the remaining water left in the water (See Figure 35 and 35a). line trap area. (See Figure 35 and 35a). 9.
- Page 24 PREPARING THE ICE MACHINE FOR STORAGE 14. Remove the top clamp from the vent tube, for easier To Restart the Ice Machine access for the air hose. 1. Reconnect or turn on the water supply line. 15. Apply air pressure (approximately 10 psi) to the end of 2.
-
Page 25: Drain Pump Removal
DRAIN PUMP REMOVAL INSTRUCTIONS Front panel Front panel Figure 39 Toe grille Front of ice machine Figure 39a Toe grille Remove the hex nut on front drain pump bracket with the ⁄ " socket then remove the Figure 40 bracket. #10-24 hex nut Front drain pump bracket... - Page 26 DRAIN PUMP REMOVAL INSTRUCTIONS 6. Rotate the drain pump and remove from the ice Additional issues to be inspected by the installer machine, (See Figure 42). It may be necessary to upon service replacement: disconnect the ground wire connection in the back 1.
-
Page 27: Warranty
Any sealed refrigeration system component, as listed below, is warranted to be free from defective materials or workmanship in normal household use during the third through the sixth year from the date of original retail purchase. Lynx, warranter, agrees to repair or replace, at its option, any part which fails or is found to be defective during the warranty period. - Page 28 The best outdoor kitchen products come from: Lynx Grills 62201 Highway 82 West Greenwood, MS 38930 Service: (888)-289-5969 www.lynxgrills.com All specifications and product designs subject to change without notice. Such revisions do not entitle 41016411 Rev B the buyer to corresponding changes, improvements, additions, replacements or compensation for 4/14/2022 previously purchased products.
