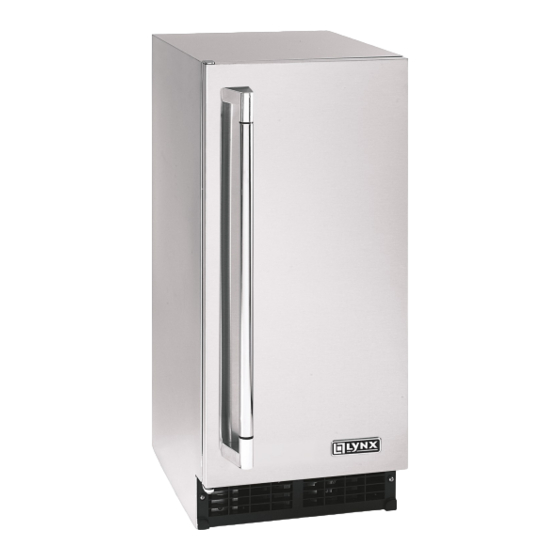

- Page 1 MOM FRIENDLY. DAD READY.™ User Manual / Installation Instructions Outdoor Ice Machine L15ICE...
- Page 2 (15) days of date delivery is made to you. Be sure to retain container for inspection. We cannot assume re- sponsibility for damage or loss incurred in transit. Lynx Grills, Inc. 7300 Flores Street, Downey, CA 90242 Ph. 888-289-5969, Fax. 562-299-6978 www.lynxgrills.com...
-
Page 3: Important Safety Instructions
8. Do not operate any appliance with damaged cord or plug, or after the appliance malfunctions or has been dam- aged in any manner. Contact Lynx Customer Care Department for service information or additional details. 9. UL listed for indoor and outdoor use. -
Page 4: Construction And Dimensions
Construction and Dimensions L15ICE Lynx L15ICE... - Page 5 Construction and Dimensions L15ICE Lynx L15ICE...
-
Page 6: Installation Instructions
1. Remove the doors from your old ice machine. 2. Leave shelves in place. 3. If an old ice machine contains refrigerants, it must be recycled by a licensed service or disposal company. Lynx L15ICE... -
Page 7: Recommended Grounding Method
2. Install on a firm foundation and adjust the front legs just enough to lift the cabinet up off of the floor. 3. Place a leveling tool on top of the appliance first side to side, then front to back. Turn leg counterclockwise to raise a corner. Turn leg clockwise to lower a corner. Lynx L15ICE... - Page 8 2. Do not build in the icemaker in a corner where the door will hit other equipment such as an oven handle or where the icemaker cannot be pulled out for service. Installation Space Model Height Width Depth L15ICE 34” (864mm) 15” (381mm) min. 24” (610mm)min. Lynx L15ICE...
-
Page 9: Water Supply And Drain Connections
For condensate pump installation, refer to the instruction manual included with the pump. A plumbing permit and services of a licensed plumber may be required in some areas. This icemaker should be installed in accordance with applicable national, state and local regulations. Lynx L15ICE... -
Page 10: Electrical Connections
9. Has the user been given the instruction manual and instructed on how to operate the icemaker and the im- portance of the recommended periodic maintenance? 10. Has the user been given the name and telephone number of an authorized service agent? Lynx L15ICE... -
Page 11: Cleaning Your Icemaker
6. Plug in appliance or reconnect power. It is important to keep the area around the icemaker clean. Dirt, dust or insects in the icemaker could cause electrical damage to the equipment of harm to individuals. Lynx L15ICE... - Page 12 4) Unplug the icemaker. 9) Close the water supply line shut-off valve and open the drain Note: This procedure is necessary to protect the ice line. maker from freezing up at subfreezing temperatures. 10) Close the drain valve. Lynx L15ICE...
- Page 13 9) After circulating the cleaning solution for about 30 minutes, move the control switch to the "OFF" position. 10) Remove the water tank, drain it, and replace it as described in 3) through 6). Open the water supply line shut-off valve. Lynx L15ICE...
- Page 14 Remove all separators in the same way and clean and sanitize them. Disconnect the suction tube by compressing both plastic tabs to unlock the joint in the direction of the black arrows and pulling the tube clear to drain the tank. Lynx L15ICE...
- Page 15 11) Refit the two caps in their correct positions. Make sure the reducing pipe is in place in the center. 12) Slide in the spray assembly along the rails on the right and left brackets. Refit the discharge tube securely on the spray assembly. A loose fitting may cause a water leak. Lynx L15ICE...
- Page 16 Refit all the separators in the same way. 17) Refit the slope in its correct position. 18) Close the water supply line shut-off valve. 19) Discard the sanitizing solution. Lynx L15ICE...
- Page 17 23) through 26). 31) Repeat 29) and 30) two more times to rinse thoroughly. 32) Move the control switch to the "ICE" position, and start the automatic ice making process. Lynx L15ICE...
-
Page 18: Maintenance
SUBJECT: BIN CONTROL ADJUSTMENT FOR HIGHER ALTITUDE The thermostatic bin control utilized on the Lynx ice machines is factory set for normal operation. The factory setting is marked on the bin control label with a red dot. - Page 19 If you need to order replacement parts, we recommend that you only use factory specified parts. Factory specified parts will fit right and work right, because they are made with the same precision used to build every new LYNX appliance.
-
Page 20: Lynx™ Limited Warranty
The obligation of Lynx and the rights and remedies of the owner/user under this warranty are exclusively limited to the repair of replacement, including labor charges, of parts or assemblies that in Lynx opinion are defective within one year after original date of purchase. - Page 21 No one has the authority to add to or vary Lynx’s warranty, or to create for Lynx any other obligation or liability in connection with the sale or use of its products. IV. What is not covered: Lynx shall not be responsible for and shall not pay for the following: ...
- Page 22 Lynx Grills, Inc., 7300 Flores Street, Downey CA 90242, Customer Care: 888-289-5969 Lynx L15ICE...
- Page 23 Lynx Grills, Inc. 7300 Flores Street Downey, CA 90242 For more information, please call: MOM FRIENDLY. DAD READY. As product improvement is an ongoing process at Lynx, we reserve the right to change specifications and design without notice.
