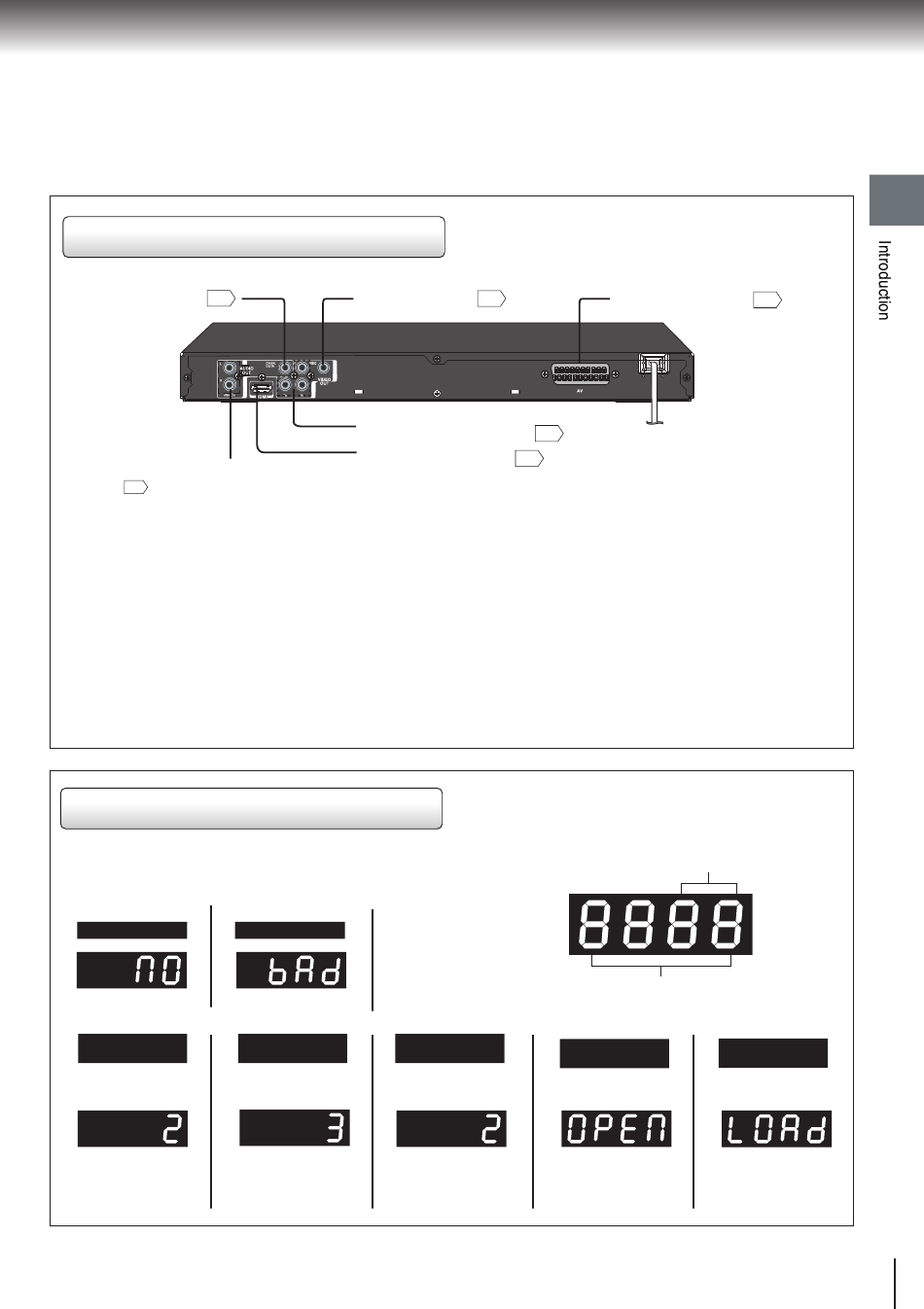

Rear panel

COAXIAL DIGITAL
4
AUDIO OUT jack
ANALOG AUDIO OUT (L/R)
jacks 1
1.ANALOG AUDIO OUT (L/R) jacks
Use Audio/Video cable supplied to connect to TV or
monitor with audio/video inputs.
2.HDMI OUTPUT jack
Connect to a HDMI compatible port of a television or
other display equipment.
3.VIDEO OUT jack
Connect the video output to TV or monitor with audio
/video inputs capability.

DVD display

The indicators vary depending on the kinds of discs you play.
No disc
DVD video disc
• During playback:
Example
Some discs may Some discs may
only display chaper only display track
numbers. numbers.
VIDEO OUT jack
VIDEO OUT (Y/PB/PR)
(Component video) jacks
HDMI OUTPUT jack
Bad disc
Bad disc
VIDEO CD
• During playback: • During playback:
Example Example
Some discs may
only display track
numbers.
3
5
2
4.COAXIAL DIGITAL AUDIO OUT jack
Use to output digital audio recorded on discs by
connecting to the coaxial digital audio input on an
AV amplifier or receiver with digital audio input
capability, but first you need to change the setting
to digital audio output on the SETUP MENU.
5.VIDEO OUT (Y/PB/PR)(Component video) jacks
If your TV or monitor or other similar devices has
component video inputs, you can produce a higher
quality picture on it by connecting its component
video cable to the Y/PB/PR jack on this unit.
6.AV (SCART) socket
Connect to the scart socket on your TV.
Multifunctional indicator (indicates
operating status or messages, etc.)
Audio CD
AV (SCART) socket 6
Chapter/Track
number Indicator
OPEN
LOAD/CLOSE
