Summary of Contents for Toshiba SD-370EKE

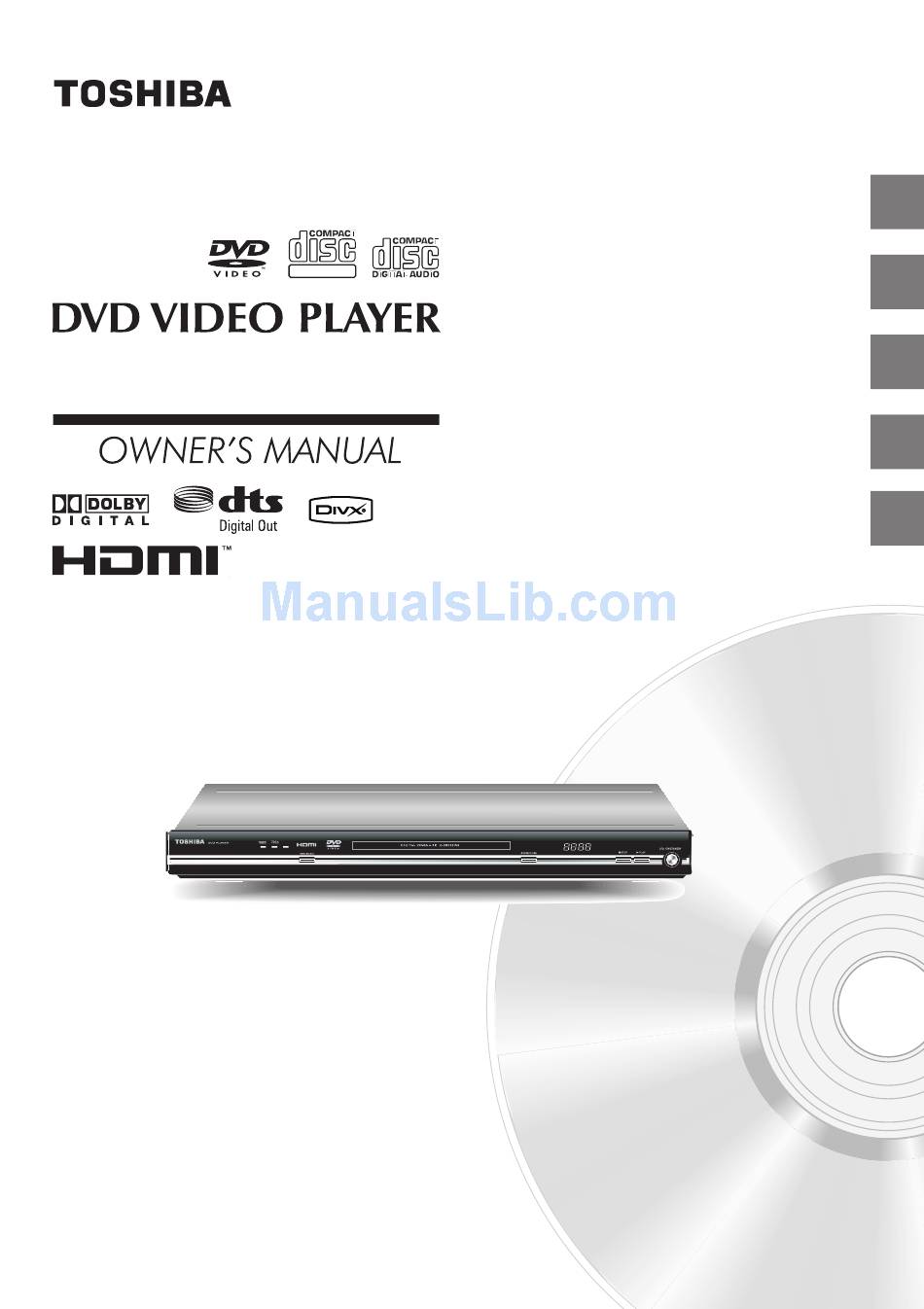

- Page 1 Introduction Disc playback DIGITAL VIDEO Connections SD-370EKE Function setup Others 576p © 2007 Toshiba Corporation...
-
Page 2: Introduction
Introduction SAFETY PRECAUTIONS WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPENTHE CABINET. REFER SERVICINGTO QUALIFIED PERSONNEL ONLY. CAUTION: This Digital Video Disc Player employs a Laser System. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. - Page 4 Introduction IMPORTANT SAFETY INSTRUCTIONS 9. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
-
Page 5: Additional Safety Instructions
ADDITIONAL SAFETY INSTRUCTIONS 14. When you use headphones, keep the volume at a moderate level. If you use the headphones continuously with high volume sound, it may cause hearing damage. 15. Do not overload wall outlets; extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. - Page 6 Introduction IMPORTANT SAFETY INSTRUCTIONS SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. So, please read the points below for your own safety.
-
Page 7: Precautions
Precautions Notes on moisture condensation Notes on handling When shipping the DVD video player, the original Moisture condensation damages the DVD video player. shipping carton and packing materials come in handy. Please read the following carefully. For maximum protection, repack the unit as it was Moisture condensation occurs, for example, when you pour originally packed at the factory. -
Page 8: Notes On Discs
Introduction Notes on Discs On handling discs Structure of disc contents Do not touch the playback side of the disc. Normally, DVD video discs are divided into titles, and the titles are sub-divided into chapters.VIDEO CDs and audio CDs are divided into tracks. DVD video disc DVD video disc Title 1... -
Page 9: Playable Discs
DVD and CD software and/or the • VIDEO CD not equipped with PBC function (Ver 1.1). manufacture of DVD and CD discs, Toshiba cannot assure Sound and movie can be played on this DVD video that this DVD video player will successfully play every disc player in the same way as an audio CD. -
Page 10: Table Of Contents
Introduction Table of Contents Introduction Function setup SAFETY PRECAUTIONS ......2 Customizing the Function Settings ..28 Setting procedure ........... 28 IMPORTANT SAFETY INSTRUCTIONS ..3 Setting details ..........28 Precautions ..........7 Others Notes on Discs ........... 8 Table of Languages ........ 34 Notes on region numbers ........ -
Page 11: Identification Of Controls
Identification of Controls See the NO. in for details. Front panel ON/STANDBY button Disc tray Remote sensor OPEN/CLOSE button PLAY button HDMI indicator HDMI SELECT button DVD display STOP button ON/STANDBY button 6.DVD display Press to toggle the unit ON and OFF. Display current disc information. -
Page 12: Rear Panel
Introduction Identification of Controls (continued) Rear panel COAXIAL DIGITAL VIDEO OUT jack AV (SCART) socket AUDIO OUT jack VIDEO OUT (Y/P (Component video) jacks HDMI OUTPUT jack ANALOG AUDIO OUT (L/R) jacks 4.COAXIAL DIGITAL AUDIO OUT jack 1.ANALOG AUDIO OUT (L/R) jacks Use to output digital audio recorded on discs by Use Audio/Video cable supplied to connect to TV or connecting to the coaxial digital audio input on an... -
Page 13: Remote Control
The instructions in this manual describe the functions on the remote control. Remote control SEARCH button HDMI HDMI button... -
Page 14: Number Buttons
Introduction Identification of Controls (continued) The instructions in this manual describe the functions on the remote control. Please see below: OPEN/CLOSE button PAUSE/STEP button Press to OPEN/CLOSE the disc tray. Press PAUSE/STEP to freeze playback. During still playbacks, each time you press the Number buttons PAUSE/STEP button, the picture advances one frame. -
Page 15: Audio Button
PLAY MODE button AUDIO button For DVD discs, press this button to toggle between Press PLAY MODE button to select desired features different audio modes. The selected audio mode using and then press ENTER button to toggle will be displayed on the screen. The abbreviation of desired mode. -
Page 16: Loading Batteries
Introduction Identification of Controls (continued) Loading batteries Operating with the remote control Point the remote control at the remote sensor Open the cover. and press the buttons. Insert batteries (AAA size). Distance: About 7 m (23 feet) from the front of the remote sensor. -
Page 17: Playing A Disc
Playing a Disc This section shows you the basics on how to play a disc. CAUTION Keep your fingers well clear of the disc tray as it is closing. Neglecting to do so may cause serious personal injury. SELECT Basic playback Preparations •... -
Page 18: Resuming Playback From The Same Location
Disc playback Playing a Disc (continued) PAUSE/STEP 2 PLAY 1 STOP SKIP Resuming playback from the same location To start playback from the beginning regardless Press STOP at the location where you want to of the location where you stopped playback interrupt playback. -
Page 19: Playing Mp3/Jpeg/Divx /Audio Cdfiles
Resumes normal playback. copyright owners to download or use copyrighted Shuffle: Playbacks track/file in random order. content. Toshiba cannot and does not grant such Random: Playbacks track/file in random order, and will permission. repeat playback the same track/file more Notes than one time. - Page 20 JPEG files compatibility Discs whose compatibility with this DVD video player has been confirmed by TOSHIBA are as follows. Many of these discs, when loaded, will make the DVD video player enter the automatic mode to play a prescribed folder in the disc.
-
Page 21: Connecting To Atv
Connecting to a TV Connect the DVD video player to your TV. Connecting to a TV (Using the SCART socket) Normal TV • Make the following setting. To wall outlet On-screen display Select: Page To SCART input Composite Component “Video Output” To AV P-Scan HDMI... -
Page 22: Connecting To A Tv (Using The Component Video Jacks)
Connections Connecting to a TV (continued) Interlaced outputs Progressive outputs Some TVs or monitors are equipped with component video Some TVs or monitors are equipped with component video inputs. Connecting to these inputs allows you to enjoy higher inputs that are capable of reproducing a progressively scanned quality picture playback. -
Page 23: Connecting To A Display
About HDMI HDMI (High Definition Multimedia Interface) supports both HDMI has the capability to support standard, enhanced, or high- video and audio on a single digital connection for use with definition video plus standard to multi-channel surround-sound DVD players, DTV, set-top boxes, and other AV devices. HDMI audio. - Page 24 Connections Connecting to a TV (continued) Content of the output for each output jack is shown in the following table and differ depending on user setting/operation: On-Screen Display Setting Content of output for each output jack "Video Output" HDMI Output HDMI Video Component...
-
Page 25: Connecting To Optional Equipment
Connecting to Optional Equipment You can enjoy high quality dynamic sounds by connecting the DVD video player to optional audio equipment. • For connection to your TV, see “Connecting to a TV” Warning (see pages 21~23). • When you are connecting (via the COAXIAL •... -
Page 26: Connecting To An Amplifier Equipped With A Dolby Digital Decoder
Connections Connecting to Optional Equipment (continued) Connecting to an amplifier equipped with a Dolby Digital decoder ® Dolby Digital Manufactured under license from Dolby Dolby Digital is the surround sound technology used in theaters showing the latest Laboratories. “ Dolby ” and the double-D symbol are trademarks of Dolby movies, and is now available to reproduce this realistic effect in the home. -
Page 27: Connecting To An Amplifier Equipped With A Dts Decoder
Connecting to an amplifier equipped with a DTS decoder ® Digital Theater Systems (DTS) DTS is a high quality surround technology used in theaters and now available for home use, on DVD video discs or audio CDs. “DTS” and “DTS Digital Out” are registered If you have a DTS decoder or processor, you can obtain the full benefit of 5.1 trademarks of DTS, Inc. -
Page 28: Function Setup
Function setup Customizing the Function Settings Setting procedure Setting procedure Tray Lock Press SETUP button, and then press the number Press the SETUP button to display the main button 2005 to lock the tray. menu on the screen. When the setup menu is shown, the playback will be automatically paused. - Page 29 Setting details DivX Subtitle Audio If your DivX files include a subtitle file, then you may select a supported DivX subtitle language by region: French Spanish Unicode (UTF-8): Uniform byte's encode German Italian standard, adopt double byte Portuguese to encode byte. Dutch Dannish Western European: Albanian, Breton, Catalan,...
- Page 30 Function setup Customizing the Function Settings(continued) Setting details Auto Fit: Automatically fit the decoded image TV Shape Video View Mode Auto Fit on screen without distortion. TV System Pan Scan: Automatically display decoded Video Output HDMI image on full screen without HD Resolution 480p/576p HD Jpeg Mode...
- Page 31 Setting details Video Output HD Jpeg Mode TV Shape TV Shape View Mode Auto Fit View Mode Auto Fit TV System TV System NTSC Composite Video Output HDMI Video Output Component HD Resolution 480p/576p HD Resolution 720p HD Jpeg Mode P-Scan HD Jpeg Mode HDMI...
- Page 32 Function setup Customizing the Function Settings(continued) Setting details Rating Audio Digital Output Parental Selects the output sound format corresponding DVD discs equipped with the password function to your system connection. are rated according to their content. The contents allowed by a parental lock level and the way a DVD disc can be controlled may vary from disc to disc.
- Page 33 Setting details Press to select the Parental from 1 to Default 8 and then press ENTER. Parental one (1) has the most restrictions while Parental eight(8) can virtually playback all DVD software. 6 ) Press OPEN/CLOSE button to activate the Parental Level setting.
-
Page 34: Others
Others Table of Languages Table of languages and their abbreviations Abbreviation Abbreviation Abbreviation Language Language Language Portuguese No alternate Guarani – – – Quechua language Gujarati Hausa Rhaeto-Romance CHI (ZH) Chinese Hindi Kirundi DUT (NL) Dutch Croatian Rumanian ENG (EN) English Hungarian Russian... -
Page 35: Before Calling Service Personnel
Before Calling Service Personnel Check the following guide for the possible cause of a problem contacting service. Symptoms and correction Symptom Cause Correction No power. • The power plug is disconnected. • Connect the power plug securely into the wall outlet. - Page 36 Others Before Calling Service Personnel (continued) Symptoms and correction Symptom Cause Correction The DVD video • No disc is inserted. • Insert a disc. player does not • An unplayable disc is inserted. • Insert a playable disc. (Check the disc type and start playback.
-
Page 37: Specifications
Specifications DVD Video player/outputs/supplied accessories DVD Video player Power supply 100V-240V AC ~ 50/60 Hz Power consumption 10 W Mass 1.63kg External dimensions 430 x 40 x 199 mm (W/H/D) Signal system PAL/NTSC Laser Semiconductor laser, wavelength 650/780 nm Frequency range DVD linear sound: 48 kHz sampling 4 Hz to 22 kHz 96 kHz sampling 4 Hz to 44 kHz... - Page 38 Printed in China TSDAC10058A 70% Recycle paper...
