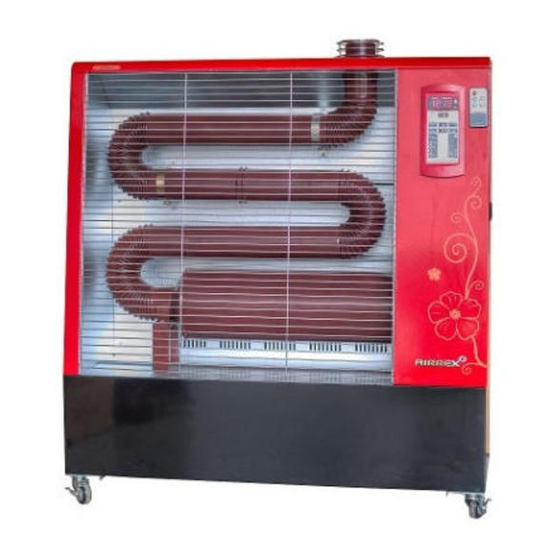

FAR INFRARED RAYS HEATER
▶ Thank you for purchasing AiRREX Far Infrared Rays heater.
Please read this user's manual carefully before you operate this heater.
▶ It is recommended you to put this manual on where the user can find easily.
▶ It is obligatory that the user read "Notice for Safety" carefully before using, and
should be aware of this notice whenever using this heater.
▶ This heater is designed for your country only. If you use it in another country
you have to check the electricity first, and if the electricity condition is same
you can use it.
▶ Warranty card is enveloped in this manual.
▶ The contents(features & specifications) in this manual are subject
to be changed without notice.
USER'S MANUAL
MODEL : AH-1330
Advertisement
Table of Contents
Related Manuals for Airrex AH-1330
Summary of Contents for Airrex AH-1330
- Page 1 USER’S MANUAL MODEL : AH-1330 ▶ Thank you for purchasing AiRREX Far Infrared Rays heater. Please read this user’s manual carefully before you operate this heater. ▶ It is recommended you to put this manual on where the user can find easily.
- Page 2 NOTICE FOR SAFETY WARNING It is dangerous to put your hands or any Do not place any inflammable vinyl other thing into the grill or furnace, or or plastic goods on top of heater, to apply a considerable shock or force or cover the heater grill with clothes.
-
Page 3: Table Of Contents
TABLE OF CONTENTS ■ NOTICE FOR SAFETY ■ STRUCTURE & DESCRIPTION · STRUCTURE & DESCRIPTION · CONTROLLER · REMOTE CONTROLLER ■ HOW TO USE 9~11 · OPERATION & STOP · TEMPERATURE CONTROL · SELF DIAGNOSIS FOR THE SAFETY DEVICE ■ CLEANING &... - Page 4 NOTICE FOR SAFETY This is for protecting the user’s safety, and preventing any property damage, please read carefully and follow the instruction on this manual. ● It is classified as “Warning”, and “Caution” by the contents. : In case of misuse, it may cause a serious wounds or death. : In case of misuse, it may cause a slight injury or property damage.
- Page 5 NOTICE FOR SAFETY CAUTION Do not put this heater on unstable You must take out the plug from the surface of ground such as inclined outlet, if there is a flash of lightening or bumpy. or thunder or you don’t use it for a (The heater may not work properly.) long time.
-
Page 6: Structure & Description 6~8
Bottom Reflection Tilt sensor Fuel guage Fuel inlet Power code (a.c. 220/230V only) Fuel tank Fuel filter Oil tank MODEL : AH-1330 ♣ The structure and description shall be changed without any notice for improvement of quality and performance. -
Page 7: Controller
STRUCTURE & DESCRIPTION CONTROLLER 1. LED DISPLAY It displays the status of temperature, time, operation, and error, etc. 2. TIMER DISPLAY It displays remaining time at the Timer off mode. 3. TEMPERATURE CONTROL MODE It is lighten at the temperature control mode. 4. - Page 8 STRUCTURE & DESCRIPTION Remote control ■ Point remote control at machine receiver. ON/OFF ■ Remote control will not function where strong lights such as 3 florescent, neon or strong sunlight interferes. TEMP/TIME VALUE (TEMP/TI M E) In this case use the remote control directly in front of UP/DOWN the receiver on the unit.
-
Page 9: How To Use 9~11
HOW TO USE OPERATION & STOP 1. START WITH PRESSING “ON/OFF” SWITCH. 2. SELECT THE DESIRED OPERATION TYPE USING · Heater will be turned ON with “beep” sound, and “TEMP/TIME” SWITCH. automatically operated. · If you wish to stop the unit press “ON/OFF” switch one more time. -
Page 10: Temperature Control
HOW TO USE This mode enables the user set the desired temperature, and once it is fixed this heater works automatically with TEMPERATURE CONTROL running and stop repeatedly to meet this temperature. (If power ON and Heater starts operation,the temperature control mode will be operated as default.) 1. -
Page 11: Self Diagnosis For The Safety Device
HOW TO USE SELF-DIAGNOSIS FOR THE SAFETY DEvICE By self-diagnosis function, in case of error automatically all safety device which is equipped in the heater is detected, and the detect result is displayed immediately to the display window. (If problem happen, display and flickering Err / Er1 / Er2 / Er3 and buzzer sound.) 1. -
Page 12: Cleaning & Maintenance
CLEANING & MAINTENANCE CLEANING & MAINTENANCE To pull out the front grille, please raise a little and pull it out.(Assembly is opposition way.) In case that you keep the heater for a long time and you want to maintain it in clean status, please power off and cool down the heater, and pull out the plug as the above picture and clean according to the following instruction. -
Page 13: Daily Check Points & Adjustment 13~14
DAILY CHECK POINTS & ADJUSTMENT DAILY CHECk POINTS CLEAN OF FLAME SENSOR (CdS) ■ · If the detection part of CdS is contaminated by soot or other dirt, the performance can be lowered and it may cause a problem. · Please take out CdS carefully which is placed in lower part of burner. - Page 14 DAILY CHECK POINTS & ADJUSTMENT ADJUSTMENT IN CASE OF SUDDEN STOP DURING OPERATION ■ · Please check if now is operating in the time control operation.? If so, the heater can be rest for 5min. · Please check if now the setting temp. is less than the current temp. ·...
-
Page 15: Trouble Shooting 15~16
TROUBLE SHOOTING Please check below points before you think trouble has been occurred. Is Power ON? Is Fuel enough? Is Flame sensor clean? PROBLEM CAUSE SOLUTION No Power supply ? Check the power supply is proper. (ex. 220/230V a.c. 50Hz) Check power plug is Power plug into the outlet disconnected... - Page 16 TROUBLE SHOOTING PROBLEM CAUSE SOLUTION ”Lack of Fuel” light ON? Running out of fuel Fill up the fuel. Check if the fuel is It may cause less Drain the existing fuel, and fill with Diesel or kerosene performance & trouble Diesel or kerosene only.
-
Page 17: Specification & Electrical Wiring Diagram
SPECIFICATION & ELECTRICAL WIRING DIAGRAM MODEL AH-1330 ITEM CALORIC VALUE 14 ~ 16.3kW/h (12,000~14,000kcal/h) FUEL CONSUMPTI O N 1.38~1.6 (ℓ/h) BURNER TYPE Electronic pump (pressurized spray type) POWER SUPPLY a.c. 220/230V , 50Hz, Single Phase ELECTRI C POWER CONSUMPTI O N FUEL TANk SIzE 45 (ℓ) -
Page 18: Warranty Card
WARRANTY CARD This AiRREx far infrared rays heater gives you more reliable performance and comfortableness, and durability the more you use it, because it is produced under the strict quality assuarance system including various inspection during production and after production and reliance test, etc.
