Step 1
Order#XXXXX -

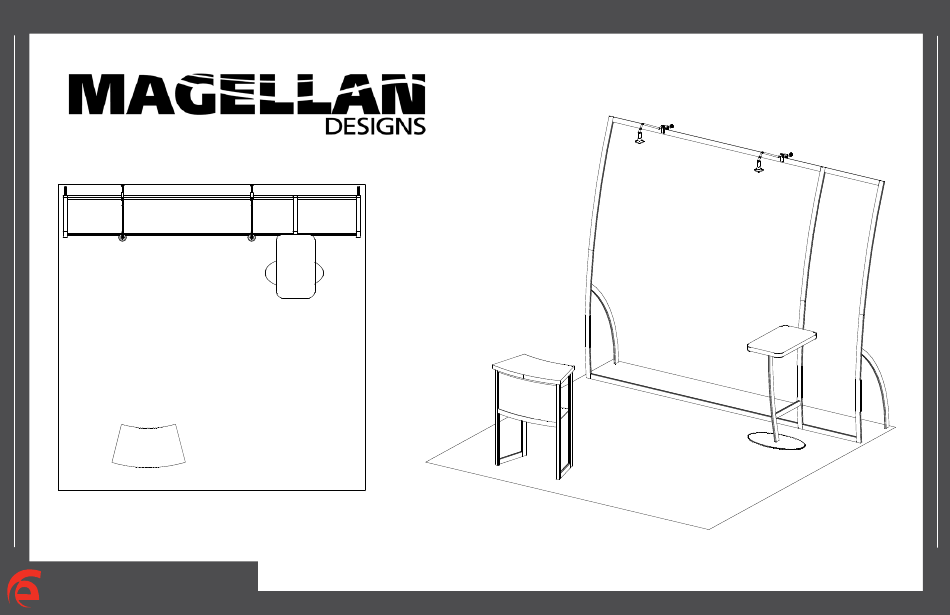

VK-1065 - Magellan Miracle - General Layout
866.652.2100
10'
Plan View
10'
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
© 2012
w w w . c l a s s i c e x h i b i t s . c o m
Page 1 of 3
Advertisement
Related Manuals for Magellan Miracle VK-1065
Summary of Contents for Magellan Miracle VK-1065
- Page 1 Step 1 Order#XXXXX - VK-1065 - Magellan Miracle - General Layout 866.652.2100 10’ Plan View 10’ WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING © 2012 w w w . c l a s s i c e x h i b i t s . c o m...
- Page 2 Typical Connection Using You Set-up Instructions: The Visionary Designs Set-up Instructions for Magellan displays are created specifically for your configuration. They are laid out sequentially, including an exploded view of the entire display and a logical series of detailed steps for assembly.
-
Page 3: Back View
Step 1 Order#XXXXX - Backwall Assembly 866.652.2100 GREEN STAR indicates location Part # Description of connection lock with knob. 48.5”h Lower Curved Extrusion 48.5”h Upper Curved Extrusion 48.5”h Lower Curved Extrusion Light Connection FRONT 48.5”h Upper Curved Extrusion Attach lights to VIEW 48.5”h Lower Curved Extrusion backwall where... - Page 4 Step 2 Order#XXXXX - Backwall Workstation Assembly 866.652.2100 Part Number Description Base Plate 37.6”h Curved Vertical Extruaion Oval Flange Plate 18.5”w Horizontal Extrusion 15.69”w Horizontal Extrusion Steps 1) Attach curved vertical [14] to base plate [13], see Base Plate Attachment detail. 2) Attach horizontal extrusions [15 and 16] between Counter Top Attachment curved vertical [14] and backwall vertical [3]...
- Page 5 Step 3 Order#XXXXX - Pedestal Assembly 866.652.2100 Part Number Description 37.5”h Vertical Extrusion 37.5”h Corner Extrusion 37.5”h Corner Extrusion 37.5”h Vertical Extrusion 21/21a 11”w Horizontal Extrusion 24.875”w Horizontal Extrusion Steps Steps (Cont’d): 1) Attach horizontal extrusions [21 and 21a] between vertical 3) Place shelf atop lip of extrusions.
- Page 6 Order#XXXXX - Case Packing - Case 1 of 2 866.652.2100 Top View of Each Level Backwall Components Halogen Lights Backwall Counter Base Plate Graphics Flange Plate Setup Hardware Level 1 (Bottom) Level 2 Level 3 Level 4 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING ©...
- Page 7 Order#XXXXX - Case Packing - Case 2 of 2 866.652.2100 Top View of Each Level Pedestal Components Front Insert Assembled Assembled Pedestal Pedestal Side Side Counter Top Internal Shelf Level 1 Level 2 Level 3 Level 4 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING ©...
