Step 1

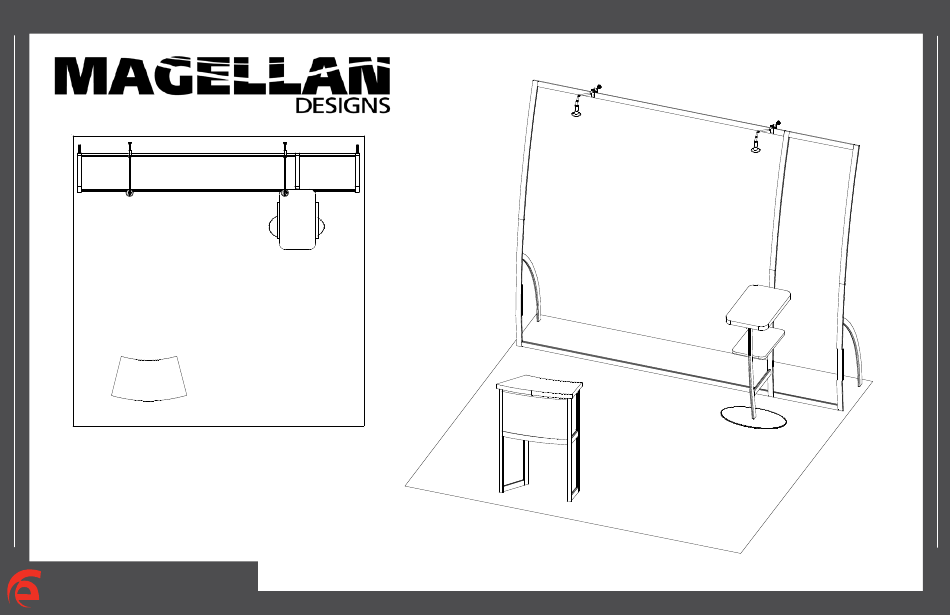

Order #XXXXX - VK-1090 - Magellan Miracle - General Layout
866.652.2100
10'
Plan View
10'
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
© 2012
w w w . c l a s s i c e x h i b i t s . c o m
Page 1 of 3
