Installation guidelines
The reference to PGP303 throughout this manual includes the model PGP9303.
CAUTION: Only qualified personnel may install this equipment. Place this device in non-
hazardous indoor locations only.
Important: Check the device and the entire alarm system weekly to ensure optimal
performance.
Note:
To comply with FCC and ISED Canada RF exposure compliance requirements, locate the device
at a distance of at least 20 cm from all persons during normal operation.
Do not co-locate the antennas used for this product, or operate them in conjunction with any
other antenna or transmitter.
Install the UL/ULC listed model PGP9303 in accordance with the Standard for Installation and
Classification of Residential Burglar Alarm Systems, UL 1641 and ULC-S302

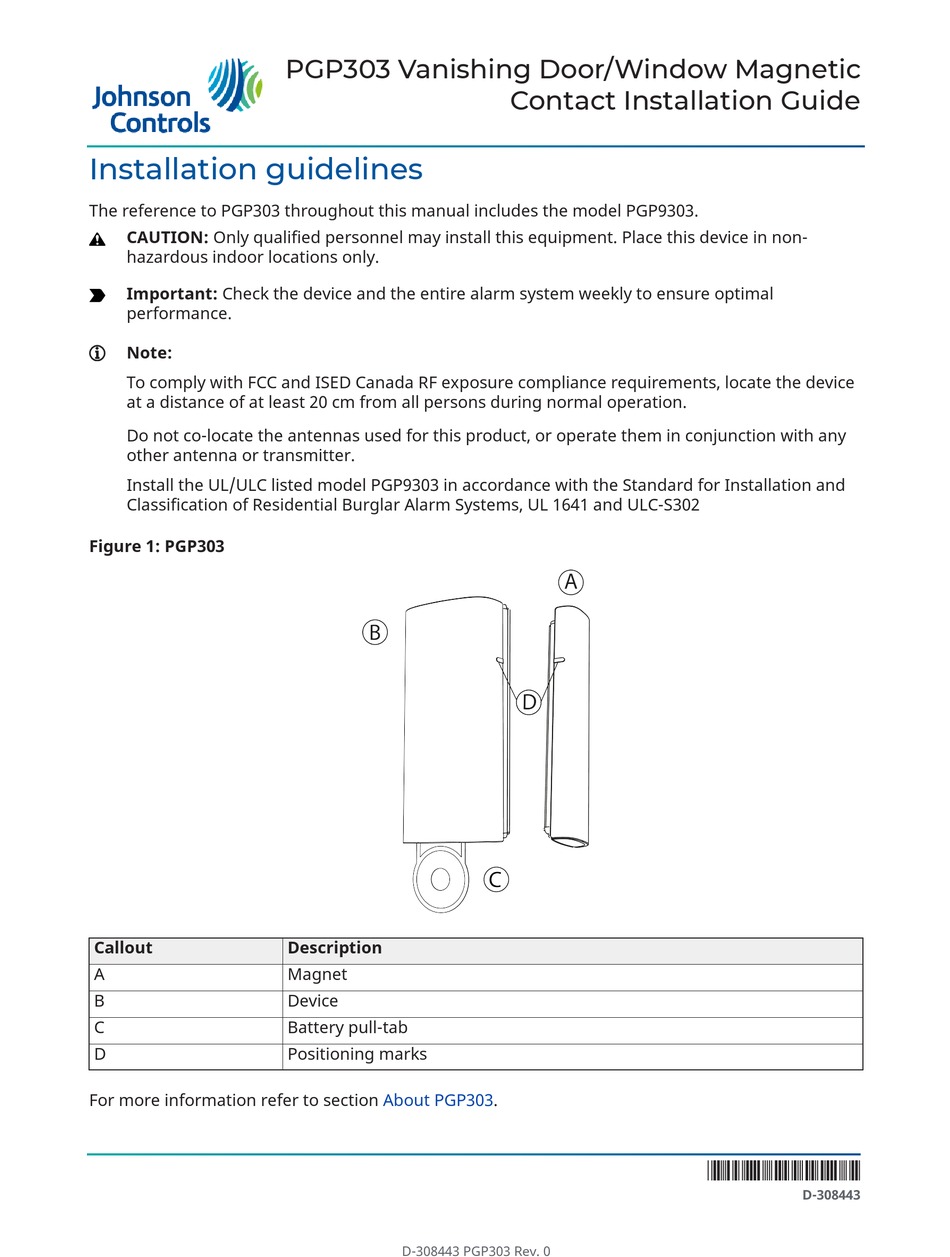

Figure 1: PGP303
Callout
A
B
C
D
For more information refer to section
PGP303 Vanishing Door/Window Magnetic
Description
Magnet
Device
Battery pull-tab
Positioning marks
About
PGP303.
D-308443 PGP303 Rev. 0
Contact Installation Guide
*D-308443*
D-308443
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Johnson Controls PGP303
Summary of Contents for Johnson Controls PGP303
- Page 1 PGP303 Vanishing Door/Window Magnetic Contact Installation Guide Installation guidelines The reference to PGP303 throughout this manual includes the model PGP9303. CAUTION: Only qualified personnel may install this equipment. Place this device in non- hazardous indoor locations only. Important: Check the device and the entire alarm system weekly to ensure optimal performance.
-
Page 2: Configuring The Device Parameters
Note: If the device has been powered up for more than 2 hours it will be identified by the system only after the device has been reset. The PGP303 is enrolled with device ID 103-XXXX. In fall back mode it enrolls as PGx303 with device ID 109-XXXX. - Page 3 To open the device cover, insert and turn a 4mm flat screwdriver into the four corners of the device . Figure 4: Device cover removal Screw the device base on to the door or window frame. See figure 5 A. PGP303 Vanishing Door/Window Magnetic Contact Installation Guide D-308443 PGP303 Rev. 0...
-
Page 4: Replacing The Battery
Twist the screwdriver using leverage to remove the battery. Insert the battery at an angle while observing battery polarity. Note: When you insert the battery, the (+) symbol should be visible. See B in the following figure. PGP303 Vanishing Door/Window Magnetic Contact Installation Guide D-308443 PGP303 Rev. 0... - Page 5 16 mm (0.63 in.) 14 mm (0.55 in.) 15 mm (0.59 in.) 12 mm (0.47 in.) 27 mm (1.06 in.) 22 mm (0.87 in.) 26 mm (1.02 in.) 22 mm (0.87 in.) PGP303 Vanishing Door/Window Magnetic Contact Installation Guide D-308443 PGP303 Rev. 0...
-
Page 6: Specifications
-20°C (-4°F) to 70°C (158°F) Relative Humidity Up to 95% non-condensing Dimensions (LxWxD) 68 mm x 31 mm x 12 mm (2.7 in. x 1.1 in. x 0.4 in.) PGP303 Vanishing Door/Window Magnetic Contact Installation Guide D-308443 PGP303 Rev. 0... -
Page 7: Compliance With Standards
Weight (including battery) 20 g (0.71 oz) Color White Compliance with standards The PGP303 complies with the following standards: PGP9303 FCC (912 to 919 MHz): 47CFR part 15 ISED (912 to 919MHz): RSS-247 UL/ULC: UL 634, ULC C634 FCC and ISED Canada Compliance Statement This device complies with FCC Rules Part 15 and with ISED license-exempt RSS standard(s). -
Page 8: Limited Warranty
The PGP303 is a thin, ultra-long-life PowerG magnetic contact device that is compatible with Johnson Controls’ PowerG control panels. The PGP303 includes a built-in reed switch that opens a circuit when the magnet is moved from its usual position. The device has the following features: •... - Page 9 ("Device"). In other words, if You have several workstations, You will have to acquire a license for each workstation where the SOFTWARE will be used. PGP303 Vanishing Door/Window Magnetic Contact Installation Guide D-308443 PGP303 Rev. 0...
- Page 10 Arbitration Act, and the parties agree to be bound by the arbitrator's decision. The place of arbitration shall be Toronto, Canada, and the language of the arbitration shall be English. 7. LIMITED WARRANTY PGP303 Vanishing Door/Window Magnetic Contact Installation Guide D-308443 PGP303 Rev. 0...
- Page 11 However, despite frequent testing, and due to, but not limited to, criminal tampering or electrical disruption, it is possible for this SOFTWARE PRODUCT to fail to perform as expected. Website: www.dsc.com Tech. support: 1-800- 387-3630 D-308443 Rev. 0 (03/22) PGP303 Vanishing Door/Window Magnetic Contact Installation Guide D-308443 PGP303 Rev. 0...
- Page 12 ©2022 Johnson Controls. All rights reserved. JOHNSON CONTROLS, TYCO and DSC are trademarks and/or registered trademarks. Unauthorized use is strictly prohibited. D-308443 PGP303 Rev. 0...
