Installation guidelines
The reference to MC-302E PG+ throughout this manual includes the model MC-302E P9M0.
CAUTION: Only qualified personnel may install this equipment. Place this device in non-
hazardous indoor locations only.
Important: Check the device and the entire alarm system weekly to ensure optimal
performance.
Note:
Do not co-locate the antennas used for this product, or operate them in conjunction with any
other antenna or transmitter.

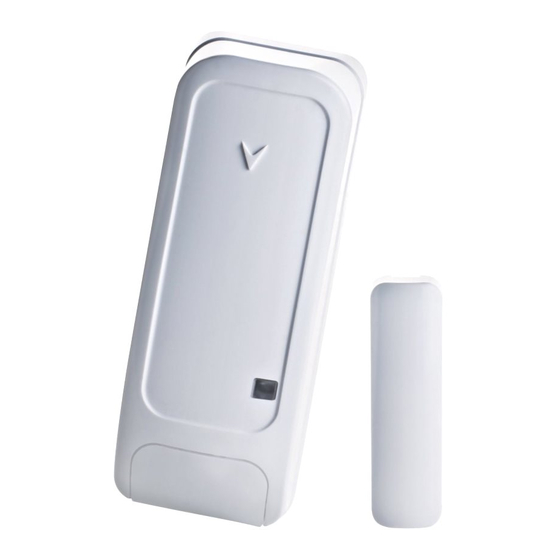

Figure 1: MC-302E PG+
Callout
A
B
C
D
E
For more information refer to section
MC-302E PG+ Wired Input Door/Window
Magnetic Contact Installation Guide
Description
Device
Magnet
Transmission LED
Positioning marks
Battery pull-tab
About MC-302E
D-308441 MC-302E PG+ Rev. 0
PG+.
*D-308441*
D-308441
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Johnson Controls MC-302E PG+
Summary of Contents for Johnson Controls MC-302E PG+
- Page 1 MC-302E PG+ Wired Input Door/Window Magnetic Contact Installation Guide Installation guidelines The reference to MC-302E PG+ throughout this manual includes the model MC-302E P9M0. CAUTION: Only qualified personnel may install this equipment. Place this device in non- hazardous indoor locations only. Important: Check the device and the entire alarm system weekly to ensure optimal performance.
-
Page 2: Configuring The Device Parameters
Enrolling the device Refer to the control panel installation manual for the complete set of enrollment instructions and testing procedures. From the Installation menu, enter the Device enrollment menu and select the option to add a new device. Remove the battery pull-tab to power on the device and begin the auto-enrollment process. If the battery pull-tab is not available or if the device does not automatically enroll, open the device cover to trigger the enrollment. - Page 3 Mounting the device using tape Peel the release liners off the two strips of double-sided adhesive tape and attach the tape to the back of the device and the magnet. See the following figure. Figure 2: Double-sided adhesive tape placement on the device and magnet Callout Description Double-sided adhesive tape...
- Page 4 Mounting the device using screws About this task: Figure 4: Internal view Callout Description Flexible electronic board retainer Break-away segment Electronic board edge supports Mounting holes Wiring inlet Terminal block Enroll button Tamper switch To open the device cover, use a screwdriver to loosen the cover screw and separate the base from the cover.
- Page 5 Figure 6: Removing the electronic board Callout Description Electronic board Retainer Screw the device base on to the door or window frame. See the following figure. Note: Make sure to fasten the break-away segment to the frame. If the device is forcibly removed from the wall, this segment will break away from the base, causing the tamper switch to open.
- Page 6 To reattach the electronic board to the base, flex the retainer and place the electronic board under the electronic board edge supports. Then release the retainer back in place to fasten the electronic board. See the following figure. Figure 8: Reattaching the electronic board Callout Description Electronic board edge supports...
-
Page 7: Replacing The Battery
Figure 10: Magnet screw installation 11. Optional: You can add 3 mm or 7 mm spacers to the magnet. Clip the spacers onto the bracket in the required combination. Figure 11: Spacer mounting combinations Callout Description Bracket + 3 mm spacer Bracket + 7 mm spacer Bracket only 3 mm spacer only... - Page 8 Figure 12: Battery removal and insertion Press down on the battery until it fits into place. Close the device cover and fasten the cover screw. See Figure 9. Note: After restoring a low battery, the system may take up to 5 minutes to clear the trouble.
- Page 9 Figure 14: Alarm circuit options with EOL resistors Callout Description NO switch NC switch EOL: NO switch; 5.6 kΩ resistor EOL: NC switch; 5.6 kΩ resistor DEOL: NC switch only; R1=5.6 kΩ resistor; S1=tamper R2=5.6 kΩ resistor; S2=Alarm TEOL: NC switch only; R1=5.6 kΩ...
- Page 10 Figure 15: EOL Wiring Example Directional magnet distances for event triggers The following figure and table display the directional magnet distances that trigger open or close events. Figure 16: Range coverage directions Table 2: Directional magnet distances for event triggers Non-metallic surface Supports Metallic surface...
-
Page 11: Specifications
Table 3: Signal strength indication LED response Reception Red LED blinks Poor No blinks No communication Important: Reliable reception must be assured. Therefore, poor signal strength is not acceptable. If you receive a poor signal from the device, relocate it and re-test until a good or strong signal strength is received. -
Page 12: Compliance With Standards
Compliance with standards MC-302E PG+ complies with the following standards: MC-302E P9M0 FCC (915 MHz): 47CFR part 15.247 FCC Compliance Statement This device complies with FCC Rules Part 15 license-exempt standard(s). Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference that may be received or that may cause undesired operation. -
Page 13: Warranty
W.E.E.E Product recycling declaration For information regarding the recycling of this product you must contact the company from which you originally purchased it. If you are discarding this product and not returning it for repair then you must ensure that it is returned as identified by your supplier. - Page 14 warning or protection. The Products, properly installed and maintained, only reduce the risk of such events without warning and it is not a guarantee or insurance that such events will not occur. Conditions to Void Warranty: This warranty applies only to defects in parts and workmanship relating to normal use of the Products.
- Page 15 the Seller freight pre-paid and insured. All freight and insurance costs are the responsibility of the Buyer and are not included in this Warranty. This warranty shall not be modified, varied or extended, and the Seller does not authorize any person to act on its behalf in the modification, variation or extension of this warranty.
- Page 16 ©2022 Johnson Controls. All rights reserved. JOHNSON CONTROLS, TYCO and VISONIC are trademarks and/or registered trademarks. Unauthorized use is strictly prohibited. D-308441 MC-302E PG+ Rev. 0...
