Installation guidelines
The reference to MC-303 PG+ throughout this manual includes the model MC-303 P9M0.
CAUTION: Only qualified personnel may install this equipment. Place this device in non-
hazardous indoor locations only.
Important: Check the device and the entire alarm system weekly to ensure optimal
performance.
Note:
To comply with FCC RF exposure compliance requirements, locate the device at a distance of at
least 20 cm from all persons during normal operation.
Do not co-locate the antennas used for this product, or operate them in conjunction with any
other antenna or transmitter.

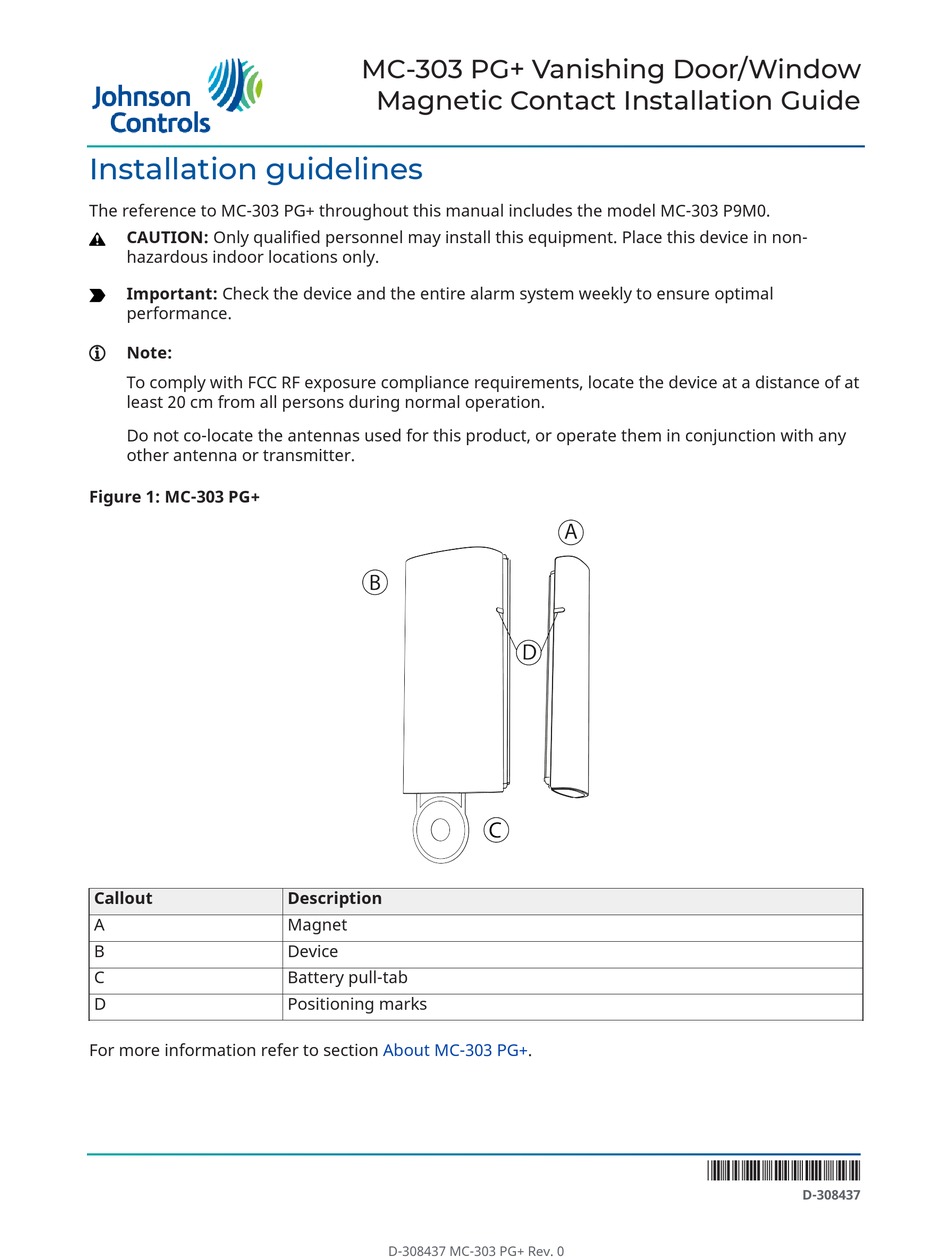

Figure 1: MC-303 PG+
Callout
A
B
C
D
For more information refer to section
MC-303 PG+ Vanishing Door/Window
Magnetic Contact Installation Guide
Description
Magnet
Device
Battery pull-tab
Positioning marks
About MC-303
D-308437 MC-303 PG+ Rev. 0
PG+.
*D-308437*
D-308437
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Johnson Controls MC-303 PG+
Summary of Contents for Johnson Controls MC-303 PG+
- Page 1 MC-303 PG+ Vanishing Door/Window Magnetic Contact Installation Guide Installation guidelines The reference to MC-303 PG+ throughout this manual includes the model MC-303 P9M0. CAUTION: Only qualified personnel may install this equipment. Place this device in non- hazardous indoor locations only. Important: Check the device and the entire alarm system weekly to ensure optimal performance.
-
Page 2: Configuring The Device Parameters
Enrolling the device Refer to the control panel installation manual for the complete set of enrollment instructions and testing procedures. From the Installation menu, enter the Device enrollment menu and select the option to add a new device. Remove the battery pull-tab to power on the device and begin the auto-enrollment process. If the battery pull-tab is not available or if the device does not automatically enroll, open the device cover to trigger the enrollment. - Page 3 Callout Description Double-sided adhesive tape Place the device on the frame of a window or door and place the magnet on the moving surface of the window or door itself, directed according to the positioning marks. See the following figure. Figure 3: Device and magnet position on door and door frame Mounting the device using screws To open the device cover, insert and turn a 4mm flat screwdriver into the four corners of the...
-
Page 4: Replacing The Battery
Callout Description Screwing device base Break-away segment Closing the device cover Replacing the battery Before you begin: CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the manufacturer's instructions and according to local rules and regulations. - Page 5 Figure 6: Battery removal and insertion Press down on the battery until it fits into place. Close the device cover. See figure 5 Note: After restoring a low battery, the system may take up to 5 minutes to clear the trouble.
-
Page 6: Specifications
Local diagnostics test About this task: After power-up or closing the cover, the device automatically enters Test Mode for 15 minutes. To manually enter the devices into Test Mode refer to the Control Panel Installer Guide. Before you start the test, remove the device cover from the base. See Figure 4. Close the cover to return the tamper switch to its normal position. -
Page 7: Compliance With Standards
Compliance with standards MC-303 PG+ complies with the following standards: MC-303 P9M0 FCC (915 MHz): 47CFR part 15.247 FCC Compliance Statement This device complies with FCC Rules Part 15 license-exempt standard(s). Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference that may be received or that may cause undesired operation. -
Page 8: Warranty
About MC-303 PG+ The MC-303 PG+ is a thin, ultra-long-life PowerG magnetic contact device that is compatible with Johnson Controls’ PowerG control panels. The MC-303 PG+ includes a built-in reed switch that opens a circuit when the magnet is moved from its usual position. - Page 9 • damage arising out of any other abuse, mishandling or improper application of the Products. Items Not Covered by Warranty: In addition to the items which void the Warranty, the following items shall not be covered by Warranty: (i) freight cost to the repair centre; (ii) customs fees, taxes, or VAT that may be due;...
- Page 10 Email: info@visonic.com Website: www.visonic.com D-308437 Rev. 0 (01/22) ©2022 Johnson Controls. All rights reserved. JOHNSON CONTROLS, TYCO and VISONIC are trademarks and/or registered trademarks. Unauthorized use is strictly prohibited. D-308437 MC-303 PG+ Rev. 0...
