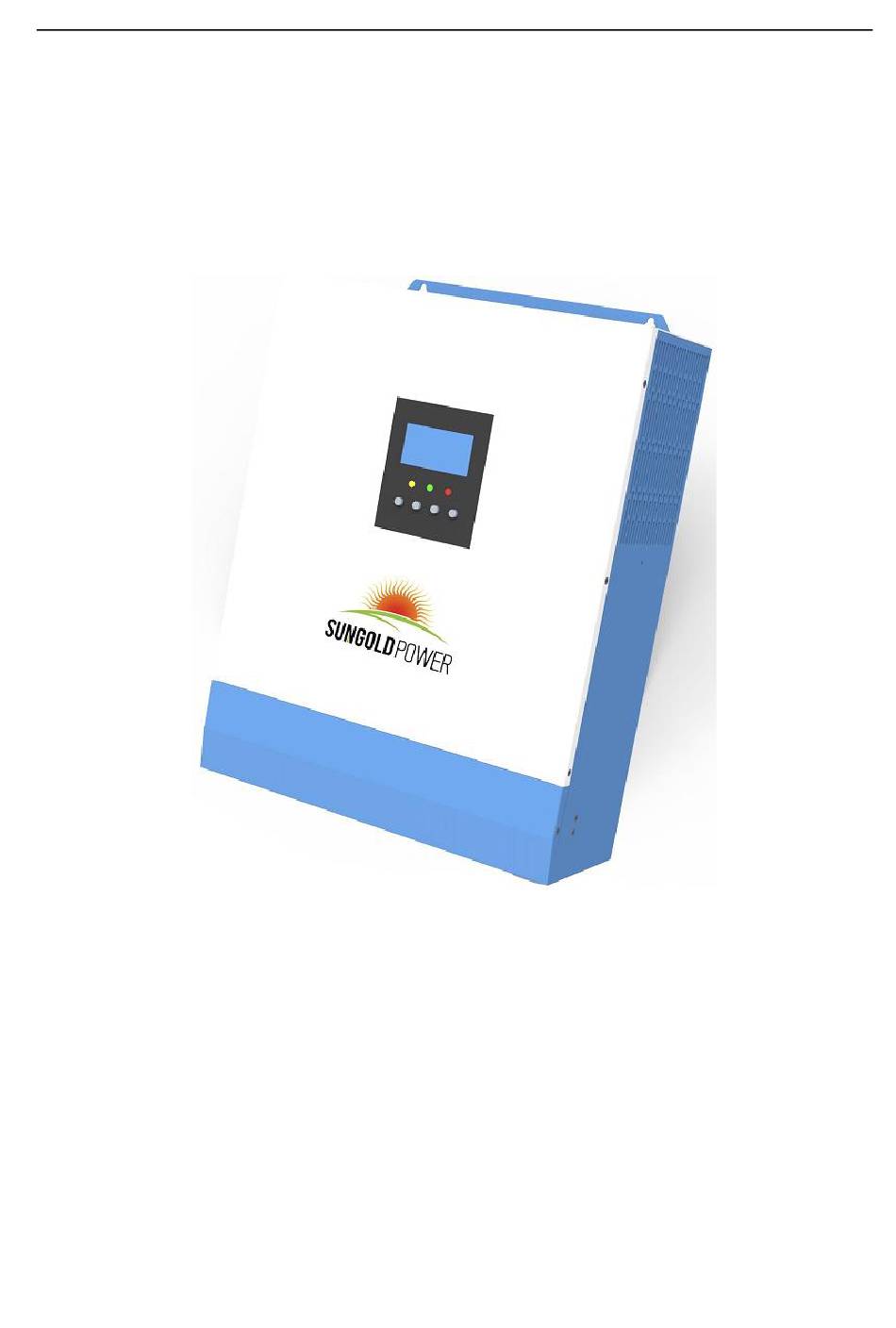

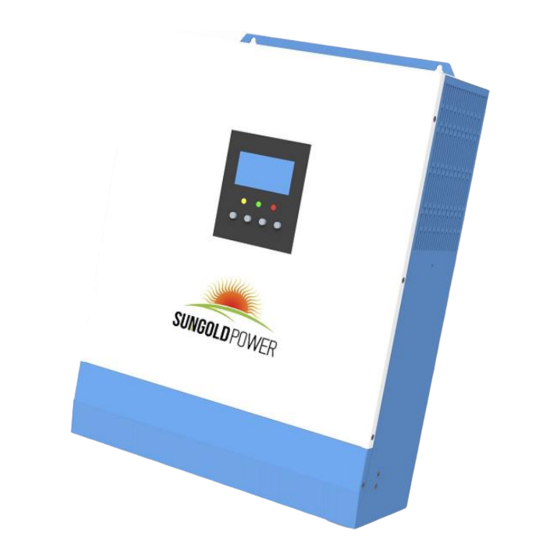

- Page 1 Sun Gold Power Co.,Ltd www. sungoldpower.com Solar charger inverter User Manual Product Type SPH504880A...
- Page 2 Sun Gold Power Co.,Ltd www. sungoldpower.com Important Safety Instruction Please keep this manual for future use. This manual contains all safety, installation and operating instructions for the SPH Series solar charge inverter. Please read all instructions and precautions in the manual carefully before installation and use.
-
Page 3: Table Of Contents
Sun Gold Power Co.,Ltd www. sungoldpower.com Table of Contents 1. Basic Information ........................4 1.1 Product overview and characteristics......................... 4 1.2 Basic system introduction ............................. 5 1.3 Product characteristics ..............................6 1.4 Dimension drawing ................................. 7 2. Installation Instruction ....................... 8 2.1 Installation notice ................................ -
Page 4: Basic Information
Sun Gold Power Co.,Ltd www. sungoldpower.com 1. Basic Information 1.1 Product overview and characteristics SPH series is a new type of mixed solar charge inverter integrating solar energy storage & municipal power charge storage and AC sine wave output. It adopts DSP control and advanced control algorithm to achieve characteristics of high response speed, high reliability and high industrial standard. -
Page 5: Basic System Introduction
Sun Gold Power Co.,Ltd www. sungoldpower.com connected). When the battery is full, it can also enter the mixed load mode, which can make full use of the photovoltaic energy. 1.2 Basic system introduction The figure below shows the system application scenario of this product. A complete system includes the following parts: 1. -
Page 6: Product Characteristics
Sun Gold Power Co.,Ltd www. sungoldpower.com 1.3 Product characteristics ⑨ Overload protector Dry contact port ② ⑩ ON/OFF rocker switch Cooling fan ③ ⑪ ACi nput port Battery port ④ ⑫ AC output port Cooling fan ⑤ ⑬ Grounding screw hold PV port ⑥... -
Page 7: Dimension Drawing
Sun Gold Power Co.,Ltd www. sungoldpower.com 1.4Dimension drawing... -
Page 8: Installation Instruction
Sun Gold Power Co.,Ltd www. sungoldpower.com 2. Installation Instruction 2.1 Installation notice Before installation, please carefully read the manual and get familiar with the installation step. Take care while installing the battery. When installing the lead-acid liquid battery, it is required to wear ➢... -
Page 9: Wire Specification And Breaker Type
Sun Gold Power Co.,Ltd www. sungoldpower.com 2.2 Wire specification and breaker type For wiring and installation ways,it is required to observe national and local electrical specification requirements. Recommended wiring specification and breaker type for photovoltaic array: the output current of the... -
Page 10: Installation And Wiring
Sun Gold Power Co.,Ltd www. sungoldpower.com Note: the wire diameter is only for reference. In case of long distance between photovoltaic array and solar charge inverter or between solar charge inverter and battery, use thicker wire to reduce voltage drop and improve system performance. - Page 11 Sun Gold Power Co.,Ltd www. sungoldpower.com Step 2: Remove the terminal protection cover Step 3: wiring AC input/output wiring method: ① Before AC input/output wiring, disconnect the external breaker at first and then confirm whether the cable used is thick enough. Please refer to chapter “ 2.2 Wiring Specification and Breaker type”;...
- Page 12 Sun Gold Power Co.,Ltd www. sungoldpower.com ： Ground L：Live N：Neutral ③ Correctly connect AC output wire in accordance with cable sequence and terminal position shown in the figure below. Please connect the ground wire at first, and then live wire and null wire. The ground wire is connected to the ground screw hold through Oshaped terminal.
- Page 13 Sun Gold Power Co.,Ltd www. sungoldpower.com PV+ positive input pole PV1- negative input pole BAT wiring method: ① Before wiring, disconnect external breaker at first, and then confirm whether the used cable is thick enough. Please refer to chapter “ 2.2 Wiring Specification and Breaker Type ” . BAT wire shall be connected with the machine via O-shaped terminal.
- Page 14 Sun Gold Power Co.,Ltd www. sungoldpower.com Step 4: inspect whether the wires are correctly and firmly connected, especially whether the positive and negative input poles of the battery are correct, whether the positive and negative input poles of PV are correct, whether AC input is inaccurately connected to AC output terminal.
-
Page 15: Operating Mode
Sun Gold Power Co.,Ltd www. sungoldpower.com 3.Operating Mode 3.1 Charge mode 1. Photovoltaic priority: in photovoltaic priority charge mode, mains charge is started only when photovoltaics is out of work. Make full use of solar energy for power generation in the daytime and transfer to the mains supply for charge to maintain electric quantity of the battery. -
Page 16: Output Mode
Sun Gold Power Co.,Ltd www. sungoldpower.com 3.2 Output mode ➢ Photovoltaic priority mode: Photovoltaic and battery supply power to the load. With diversified charge mode and optional output mode, when photovoltaic priority mode is selected, the green solar energy can be used as far as possible so as to achieve energy conservation and emission reduction. -
Page 17: Operation Instruction For Lcd Screen
Sun Gold Power Co.,Ltd www. sungoldpower.com 4. Operation Instruction for LCD Screen 4.1 Operation and display panel 4.2 Introduction to operation keys Function Key Description Enter/exit setting menu Last option DOWN Next option Confirm/enter option under setting menu 4.3 Introduction to indicator light... -
Page 18: Introduction To Lcd Screen
Sun Gold Power Co.,Ltd www. sungoldpower.com 4.4 Introduction to LCD screen Icon Function Icon Function Indicating that AC input end Indicating that inverter circuit is in has been connected to working. power grid Indicates that the AC input Indicating that the machine is in... - Page 19 Sun Gold Power Co.,Ltd www. sungoldpower.com Indicating that present Indicating that buzzer is not battery type of the machine enabled is lithium battery Indicating that current Indicating alarm of machine battery type of machine is lead-acid battery Indicating that the battery is Indicating that the machine is in in charge state.
-
Page 20: Setting Parameter
Sun Gold Power Co.,Ltd www. sungoldpower.com Real-time data view method In LCD main screen, press keys “UP” and “DOWN” to turn page and view different realtime data of the machine. Middle Page Left Parameter of Screen Parameter of Right Parameter of Screen... - Page 21 Sun Gold Power Co.,Ltd www. sungoldpower.com No. of Name of Setting Description Parameter Parameter Option Exit [00] ESC Exit from setting menu At photovoltaic priority mode, when the photovoltaics is invalid or the battery values are [01] SOL lower than the parameter 【04】setting value, it shall switch to AC power.
- Page 22 Sun Gold Power Co.,Ltd www. sungoldpower.com No. of Name of Setting Description Parameter Parameter Option Maximum [07] 60A Setting range 0~80A; Charge current default [08] USE For user-defined, all battery parameters can be set. Sealed lead-acid battery, constant voltage charge [08] SLd voltage 57.6V, float charge voltage 55.2V.
- Page 23 Sun Gold Power Co.,Ltd www. sungoldpower.com No. of Name of Setting Description Parameter Parameter Option So as to battery undervoltage alarm point, when the Battery battery voltage is lower than the judgement point, [14] 44V undervoltage an undervoltage alarm is given out and no turnoff is...
- Page 24 Sun Gold Power Co.,Ltd www. sungoldpower.com When the automatic restart after overload is enabled, if the output is turned off upon overload, [23] ENA output is restarted by the mains after 3min delay. default The machine shall not restarted after 5 times of restarts.
-
Page 25: Battery Type Parameters
Sun Gold Power Co.,Ltd www. sungoldpower.com Battery type parameters For Lead-acid Battery : Battery type Sealed lead Colloidal lead Vented lead User-defined acid battery acid battery acid battery (USE) Parameters (SLD) (GEL) (FLD) Overvoltage disconnection voltage 40～60V Equalizing charge voltage 58.4V... - Page 26 Sun Gold Power Co.,Ltd www. sungoldpower.com For Lithium Battery : Lithium Lithium Lithium Ternary Ternary Battery type iron iron iron User- lithium lithium phosphate phosphate phosphate defined battery battery Parameters battery battery battery (USE) (N13) (N14) (L16) (L15) (L14) Overvoltage...
-
Page 27: Other Function
Sun Gold Power Co.,Ltd www. sungoldpower.com 5.Other Function 5.1 Dry node function Working principle: this dry node can control the switch of diesel generator to charge the battery. ① Under normal conditions, in this terminal, NC-N point is closed and NO-N point is opened;... -
Page 28: Protection
Sun Gold Power Co.,Ltd www. sungoldpower.com 6.Protection 6.1 Protection function Protection Note Function Current limiting When the charge current of the configured PV array exceeds the rated protection current of PV, it will be charged at the rated current. At night, because the battery voltage is greater than that of the PV... -
Page 29: Meaning Of Fault Code
Sun Gold Power Co.,Ltd www. sungoldpower.com 6.2 Meaning of fault code Affecting Fault Code Fault Name Note output or not 【01】 BatVoltLow Battery undervoltage alarm Average overcurrent software 【02】 BatOverCurrSw protectionforbattery discharge 【03】 BatOpen No connection alarm of battery 【04】... -
Page 30: Some Fault Troubleshooting
Sun Gold Power Co.,Ltd www. sungoldpower.com 6.3 Some fault troubleshooting Fault Solving Measures Check whether the battery air switch or PV air switch is closed; No display on screen whether the switch is in "on" state; press any key on the screen to exit from the screen sleep mode. -
Page 31: System Maintenance
Sun Gold Power Co.,Ltd www. sungoldpower.com 7.System Maintenance In order to maintain the optimum and permanent operation performance, it is suggested to check ➢ the following items semiannually. Confirm that the air flow around the solar charge inverter will not be blocked. In addition, remove any dirt or debris from the radiator. -
Page 32: Technical Parameter
Sun Gold Power Co.,Ltd www. sungoldpower.com 8. Technical Parameter Model SPH504880A AC mode Rated input voltage 110/120Vac Input voltage range (90Vac-140Vac) Frequency 50Hz/ 60Hz (auto-sensing) 47±0.3Hz ~ 55±0.3Hz (50Hz); Frequency range 57±0.3Hz ~ 65±0.3Hz (60Hz); Overload/short- circuit protection Breaker Efficiency >95%... - Page 33 Sun Gold Power Co.,Ltd www. sungoldpower.com Maximum charge current Charge current error ± 5Adc Charge voltage range 40–60Vdc Short-circuit protection Breaker and blown fuse Breaker specification Overcharge protection Turn off charge after 1min alarm Solar charge Maximum PV open- circuit voltage...
